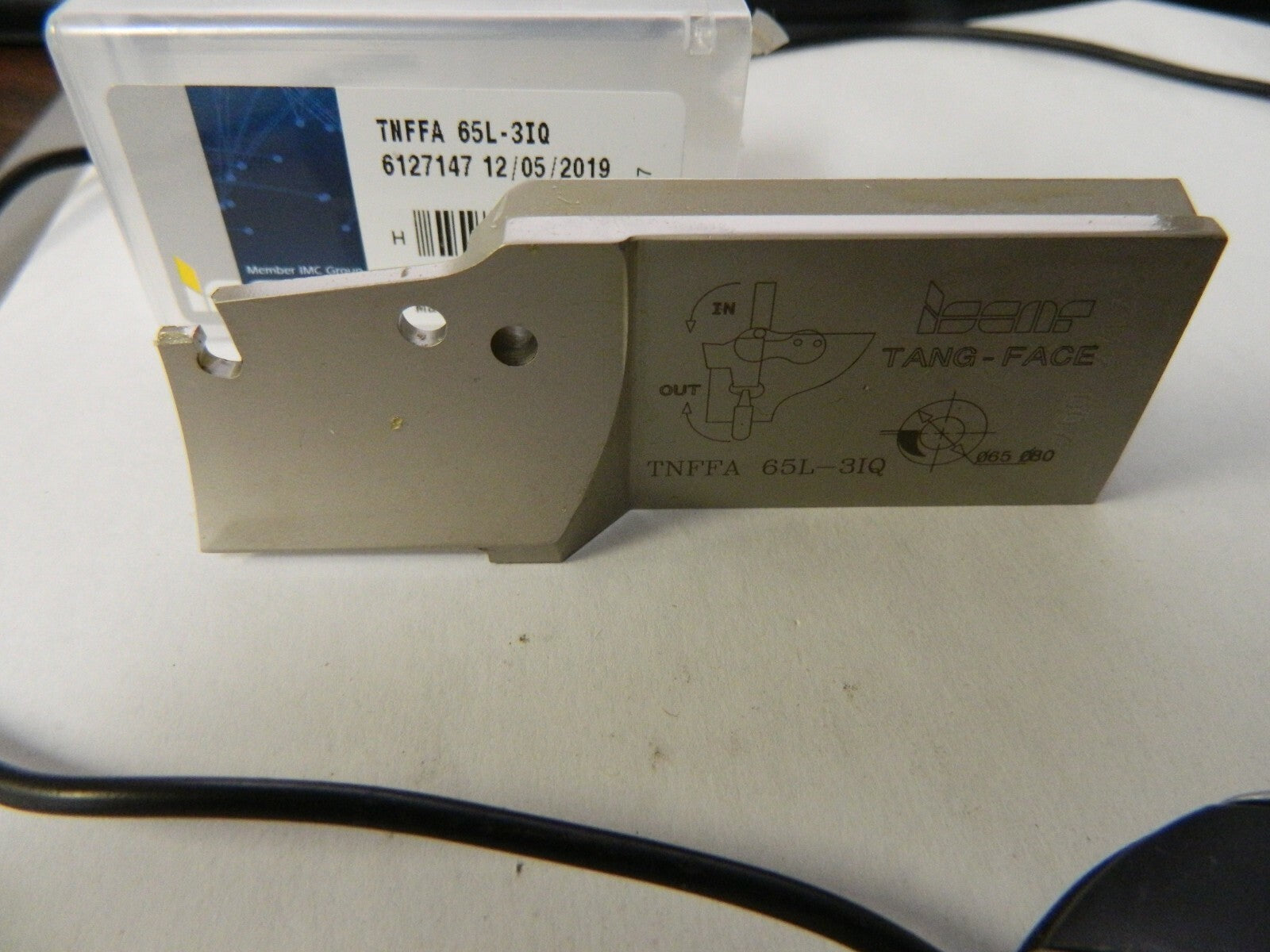

Iscar 3mm Min Width x 27mm Max Depth TNFFA Left Hand 2302509
Iscar 3mm Min Width x 27mm Max Depth TNFFA Left Hand 2302509
Regular price
$99.06 USD
Regular price
$210.00 USD
Sale price
$99.06 USD
Shipping calculated at checkout.
Iscar
MSRP: $210.00
Model: 2302509
Description:
Cutting Direction Left Hand
Minimum Groove Width (mm) 3.00
Minimum Groove Width (Decimal Inch) 0.1180
Maximum Depth of Cut (mm) 27.00
Maximum Depth of Cut (Decimal Inch) 1.0630
Blade Style TNFFA
Series TangFace
Minimum Workpiece Diameter (mm) 65.00
Minimum Workpiece Diameter (Decimal Inch) 2.5591
Maximum Workpiece Diameter (mm) 80.00
Maximum Workpiece Diameter (Decimal Inch) 3.1496
Blade Height (mm) 32.00
Blade Height (Decimal Inch) 1.2600
Blade Width (mm) 18.50
Blade Width (Decimal Inch) 0.7283
Maximum Groove Width (mm) 3.00
Maximum Groove Width (Decimal Inch) 0.1180
Overall Length (mm) 90.00
Overall Length (Decimal Inch) 3.5433
Insert Style TNF-M
Complete Insert Compatibility TNF 3M
This listing is for One Iscar tool that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
