ISCAR 10pc Grooving Insert: GIM 3-4RA IC908, Carbide 6403171

ISCAR

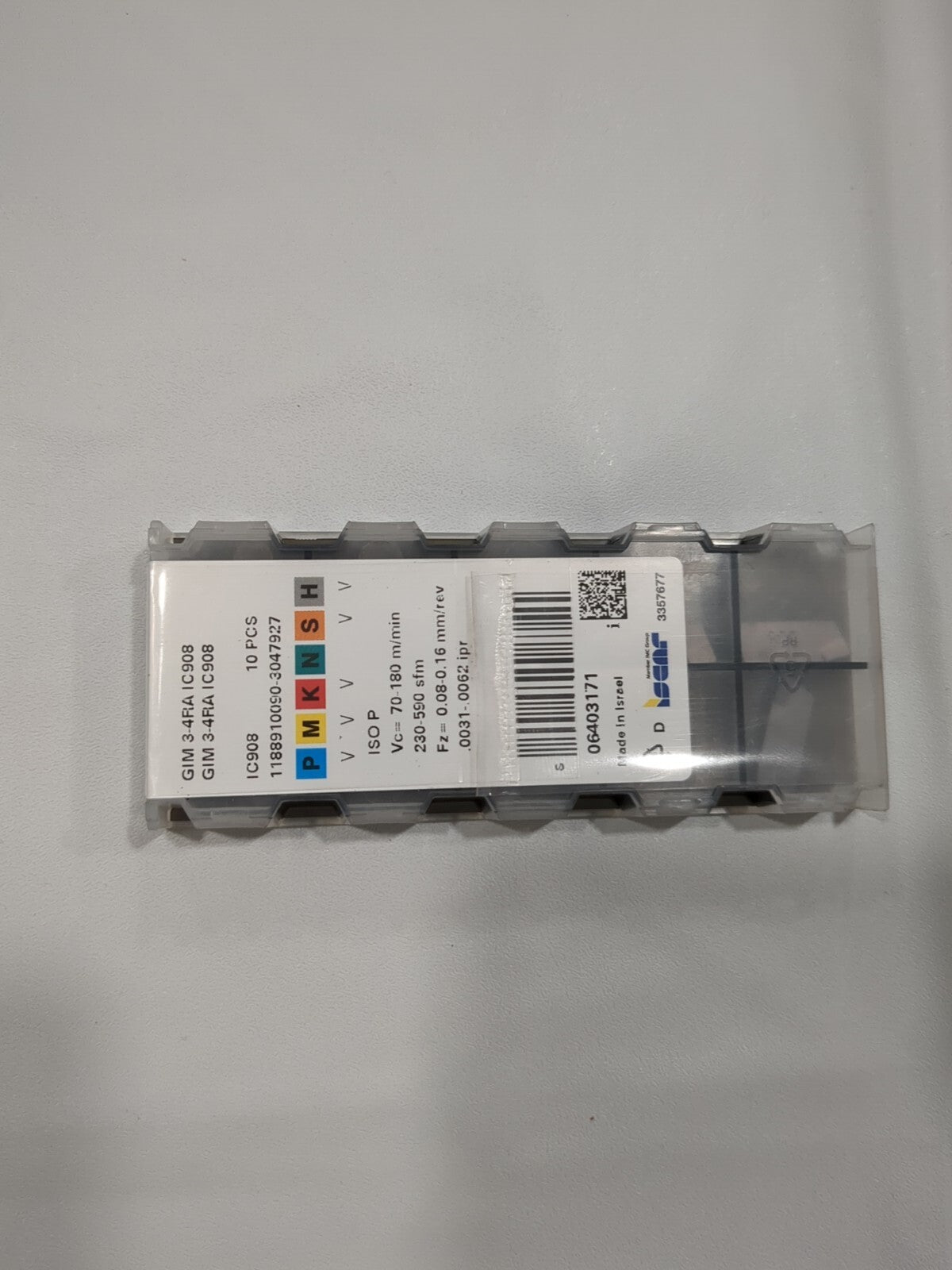

10pc Grooving Insert: GIM 3-4RA IC908, Carbide 6403171

MSRP: $175

• Insert Style GIM
• Insert Size Code 34
• Cutting Width (Decimal Inch) 0.1181
• Cutting Width (mm) 3.00
• Insert Hand Right Hand
• Insert Material Carbide
• Manufacturer Grade IC908
• Full Radius No
• Corner Radius (Decimal Inch) 0.0098
• Corner Radius (mm) 0.25
• Rake Positive
• Measurement Type Metric
• Insert Holding Method Screw; Clamp
• Insert Size 34
• Material Grade Submicron
• Lead Angle 4
• Multi-use Tool Yes
• Series Cut Grip
• Coating Process PVD
• Rake Angle 7
• Overall Length (Decimal Inch) 0.6024
• Primary Workpiece Material Universal
• Primary Workpiece Material Code P; S; H; K; M
• Iso Code ISO 13399
• Standards ISO 13399
• UNSPSC Code 23242105
• Chip Breaker W
• Overall Width (mm) 3.00
• Overall Width (Decimal Inch - 4 Decimals) 0.1181
• Coating/Finish TiAlN
• Country of Origin Israel

(Description).

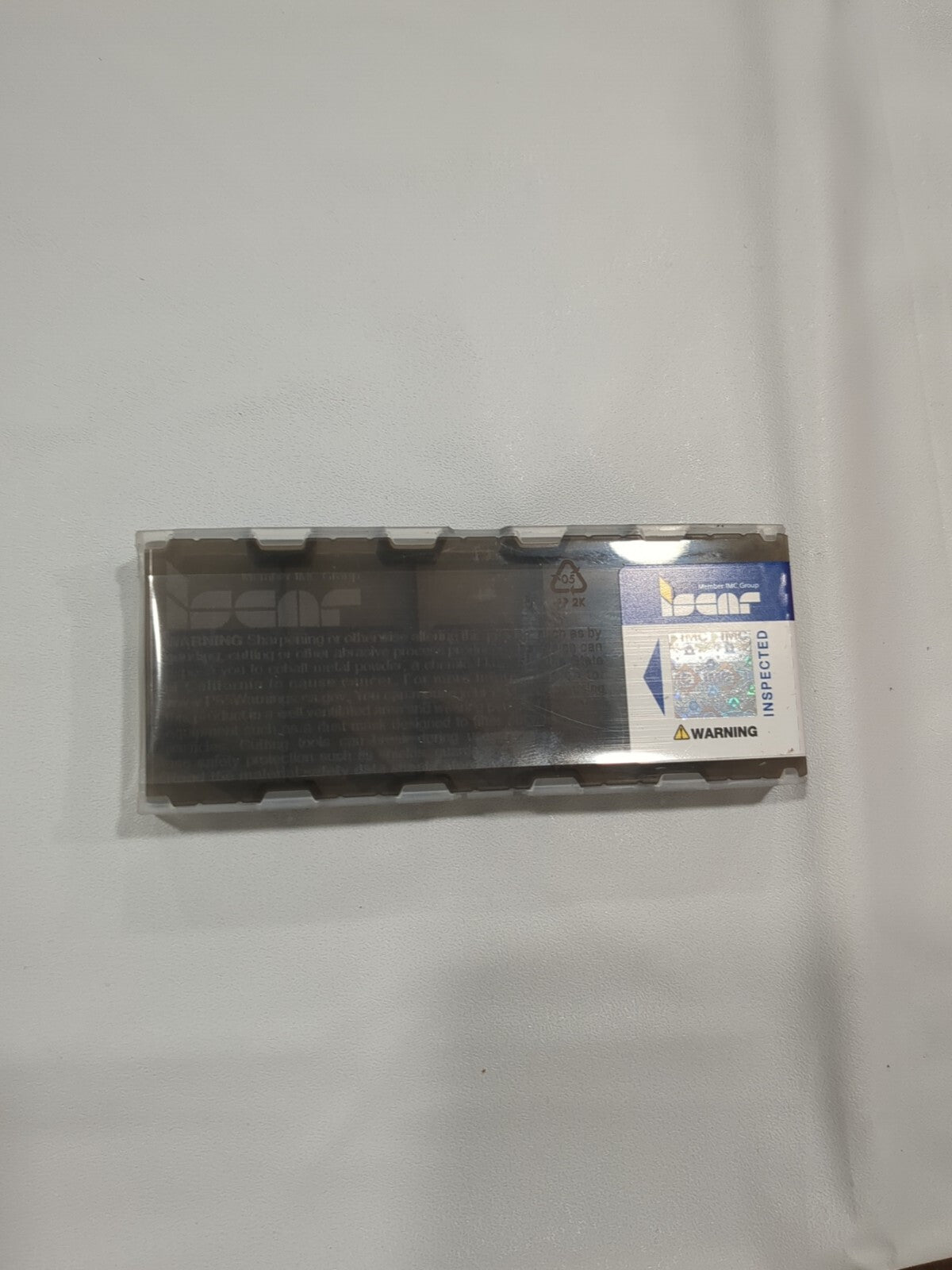

Please review photos, comes as shown.
