ISCAR

 0.98? Max Depth 0.157? to 0.157? External LH Indexable Toolholder 2500204
MSRP: $200

•

• Internal or External External
• Toolholder Type Face Grooving
• Hand of Holder Left Hand
• Cutting Direction Left Hand
• Maximum Depth of Cut (Decimal Inch) 0.9800
• Minimum Groove Width (Decimal Inch) 0.1570
• Toolholder Style HFH
• Maximum Groove Width (Decimal Inch) 0.1570
• Insert Holding Method Clamp
• Insert Compatibility H.PL 40..
• Compatible Insert Size Code HGPL 4
• Shank Width/Diameter (Decimal Inch) 1.0000
• Shank Height (Decimal Inch) 1.0000
• Series Heliface
• Shank Length (Decimal Inch) 4.2700
• Overall Length (Decimal Inch) 6.0000
• Multi-use Tool Yes
• Cutting Tool Application Facing
• Maximum Workpiece Diameter (Decimal Inch) 2.3600
• Back of Bar to Cutting Edge (Decimal Inch) 1.0200
• Head Height (Decimal Inch) 1.4700
• Head Length (Decimal Inch) 1.7300
• Primary Workpiece Material Universal
• Primary Workpiece Material Code P; S; H; K; M; N
• Multi-Use Application Turning
• Standards ISO 13399
• Maximum Groove Outside Diameter (Decimal Inch) 2.3600
• Minimum Axial Groove Inside Diameter (Decimal Inch) 1.8900
• Complete Insert Compatibility HGPL 4020Y; HFPL 4004; HGPL 4004Y; HGPL 4002Y; HFPL 4020
• Coolant Through No

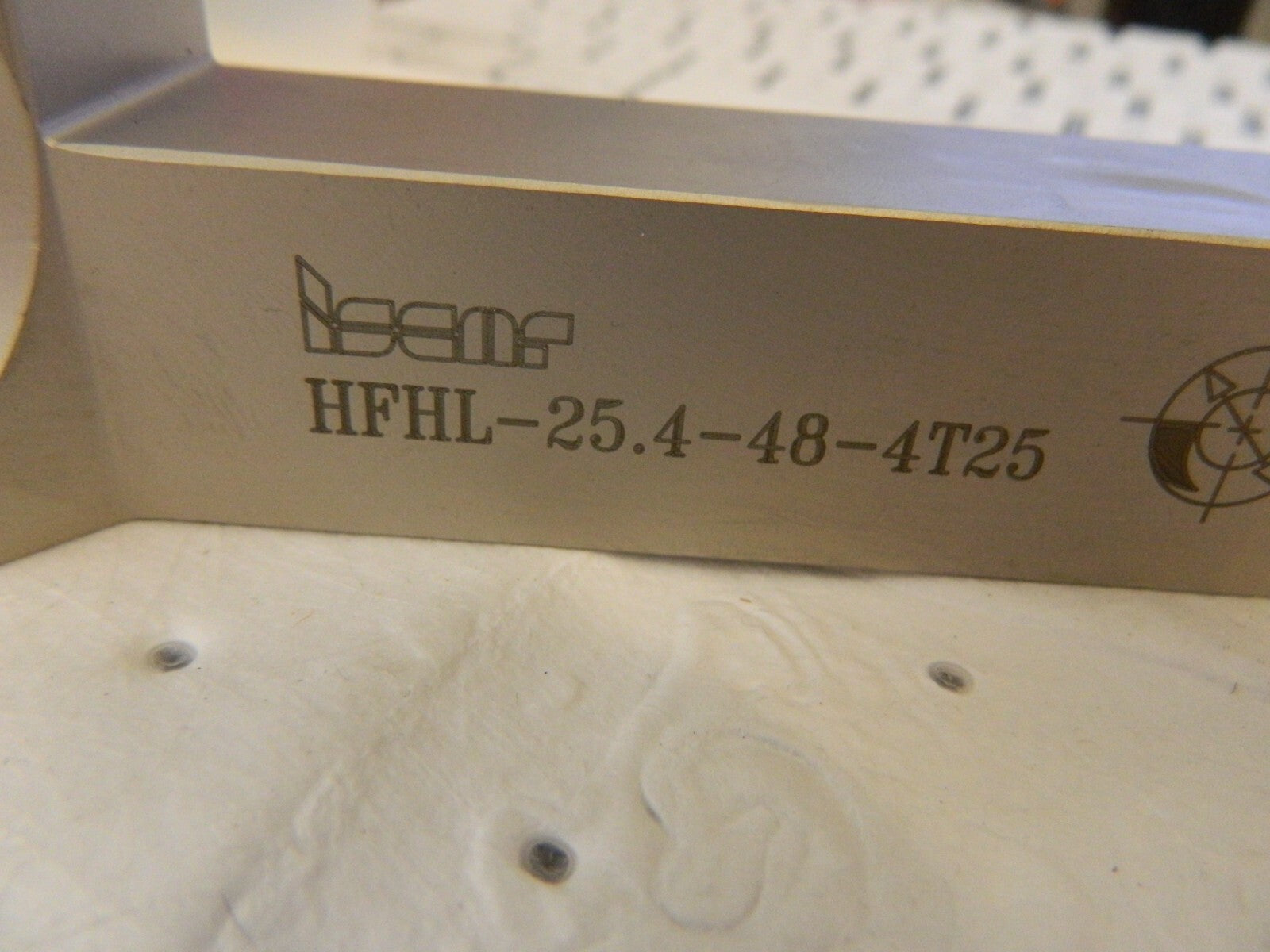

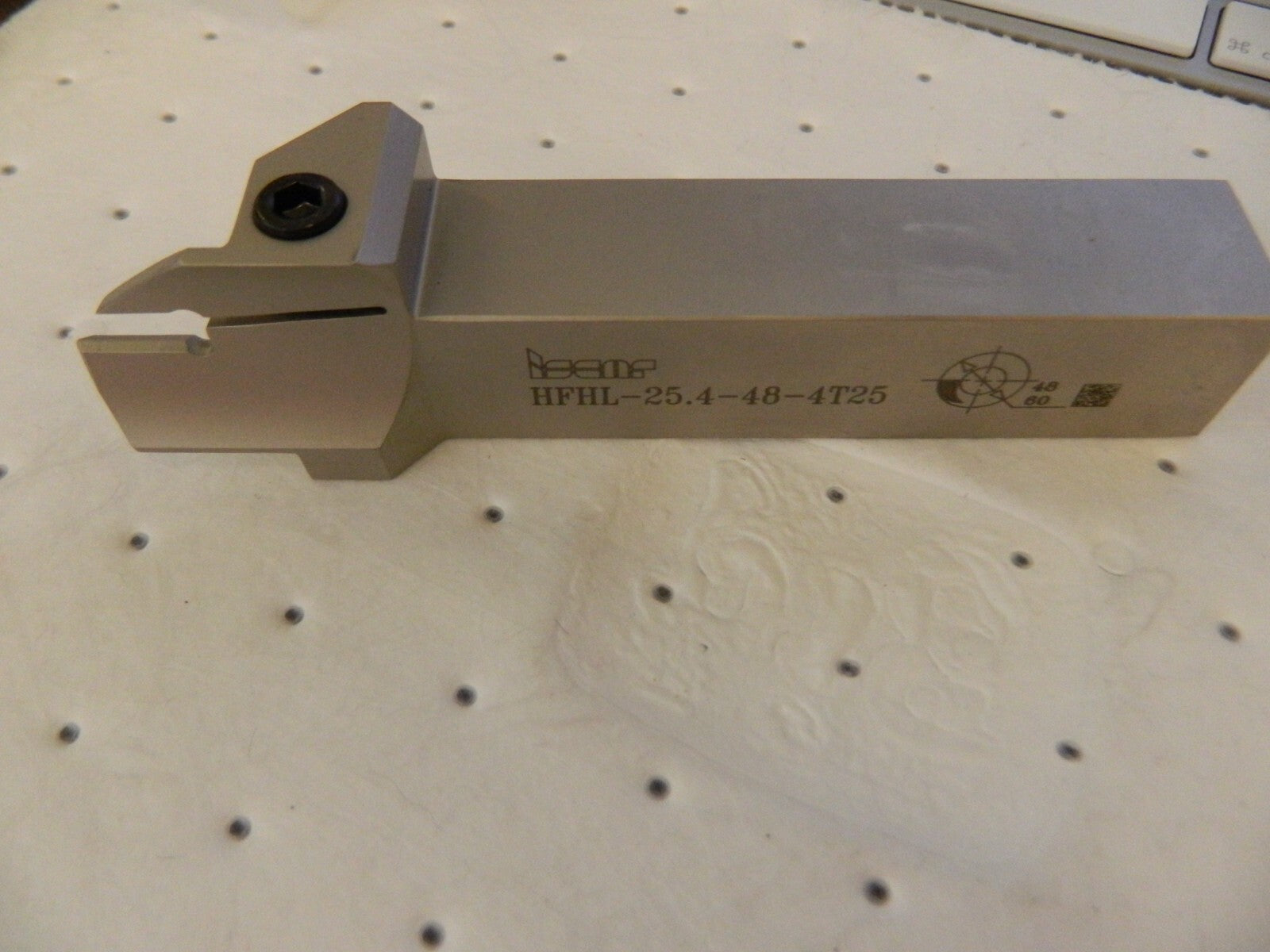

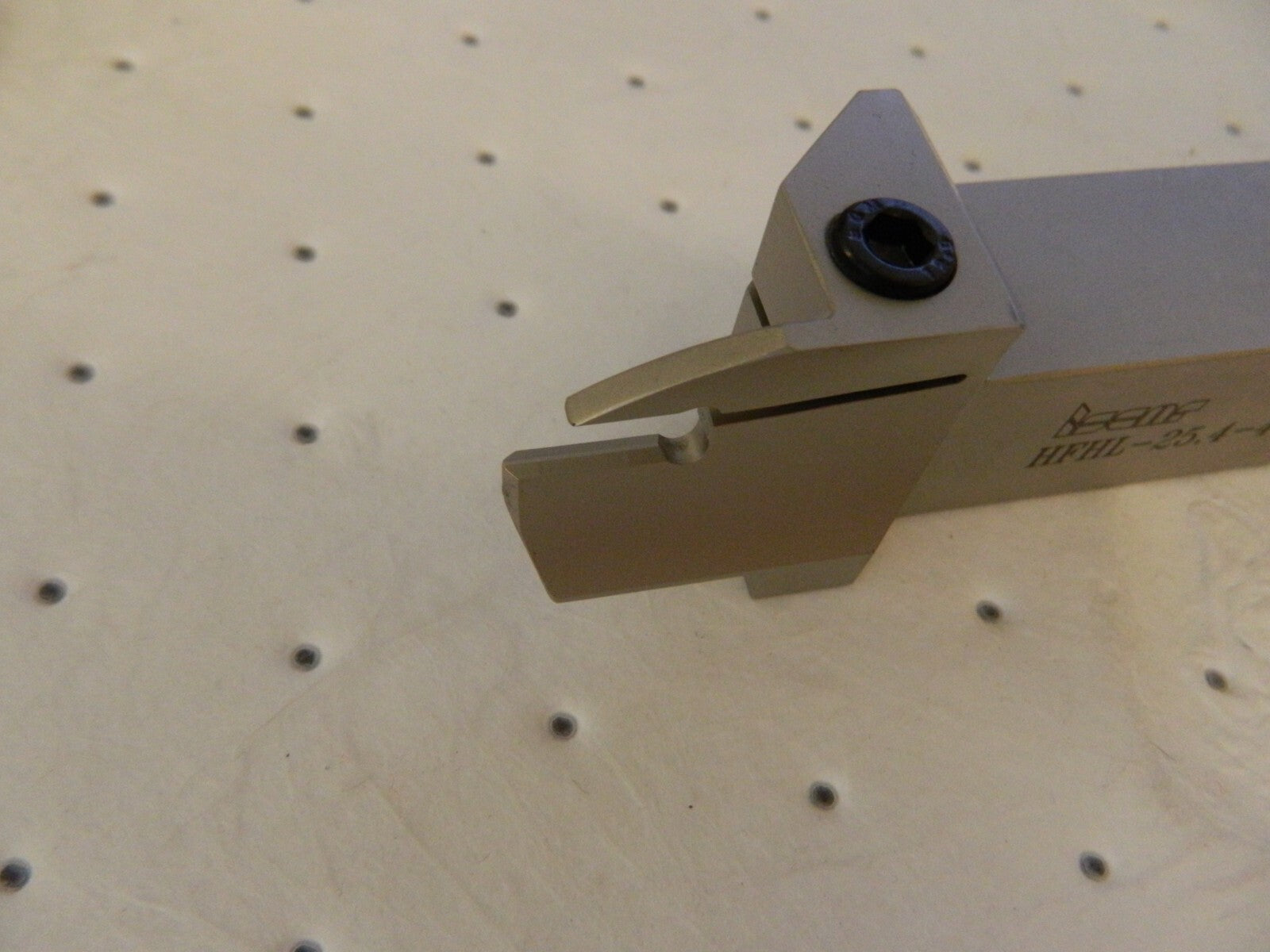

 Please review photos, comes as shown.
