Interstate VNMG332 Grade I22 Carbide Turning Insert QTY 10 04154100
Interstate VNMG332 Grade I22 Carbide Turning Insert QTY 10 04154100
Regular price
$58.74 USD
Regular price
$120.00 USD
Sale price
$58.74 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Interstate
MSRP: $120.00
Model: 04154100
Description:
Insert Style VNMG
Insert Size 332
Material Carbide
Length (mm) 16.60
Inscribed Circle (Decimal Inch) 0.3752
Inscribed Circle (Inch) 3/8
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1875
Corner Radius (Inch) 1/32
Corner Radius (Decimal Inch) 0.0315
Manufacturer's Grade I22
Coating Uncoated
Material Grade C2
Hole Diameter (mm) 3.81
Hole Diameter (Decimal Inch) 0.1500
Relief Angle 0
Primary Workpiece Material M; K; N; S
Included Angle 35
Insert Holding Method Pin & Clamp
Shape Diamond

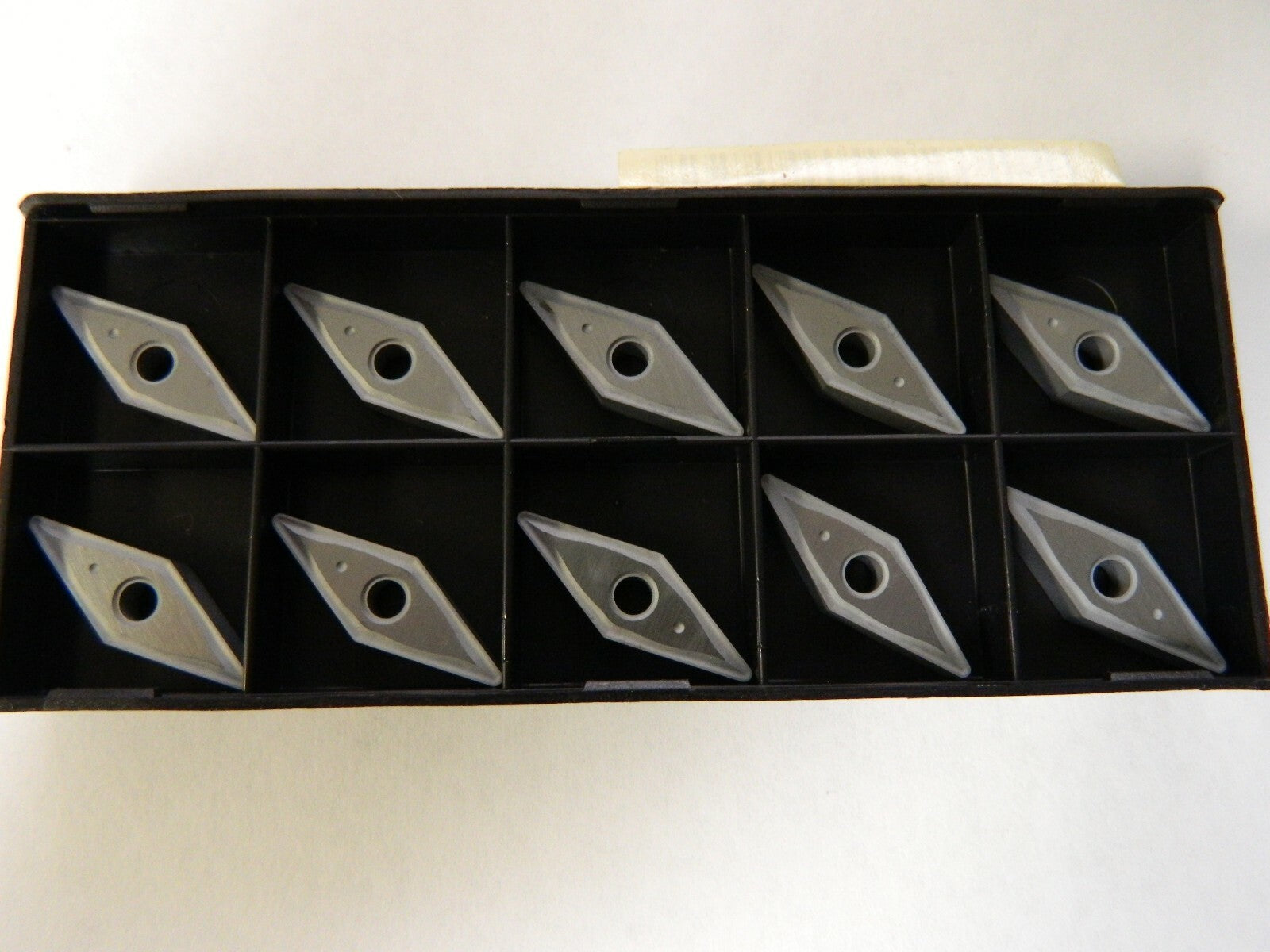

This listing is for One Pack of 10 inserts that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
