Interstate Turning Insert TNMG542 TCN55 KENLOC Carbide 41128

Interstate
Turning Insert

MSRP: $350.00

• Insert Style: TNMG
• ANSI Size Code: 542
• ISO Size Code: 270608
• Insert Shape: T - Triangle
• Included Angle: 60.00
• Inscribed Circle (Decimal Inch): 0.6250
• Inscribed Circle (Inch): 5/8
• Corner Radius (Inch): 1/32
• Corner Radius (Decimal Inch): 0.0312
• Insert Material: Carbide
• Manufacturer Grade: TCN55
• Relief Angle: 0.000
• Insert Thickness (Inch): 1/4
• Insert Thickness (Decimal Inch): 0.2500
• Series: KENLOC
• Side Clearance: Negative
• Hole Diameter (Decimal Inch): 0.2500
• Maximum Depth of Cut (mm): 1.25
• Maximum Depth of Cut (Decimal Inch): 0.0492
• ANSI Insert Code: TNMG542
• ISO Insert Code: TNMG270608
• Insert Holding Method: Pin; Clamp
• Clearance Code: N
• Tolerance Code: M
• Primary Workpiece Material Code: P; M
• Material Grade: C5
• Chip Breaker: G
• UNSPSC Code: 23242105

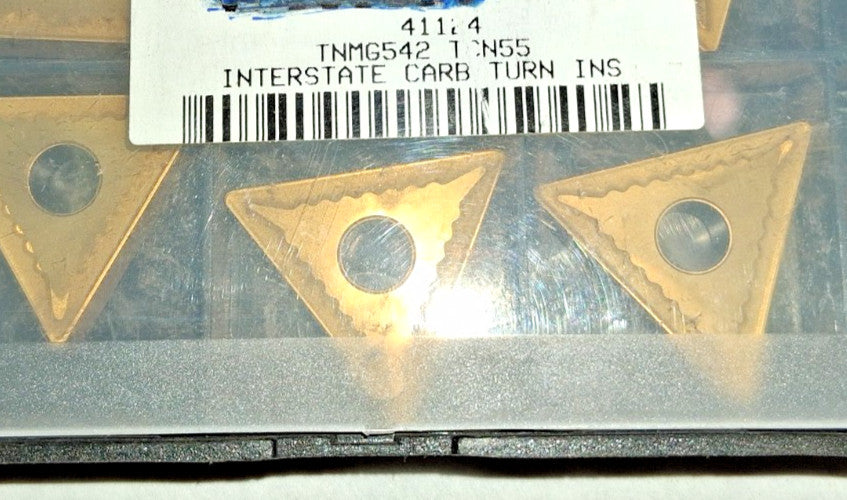

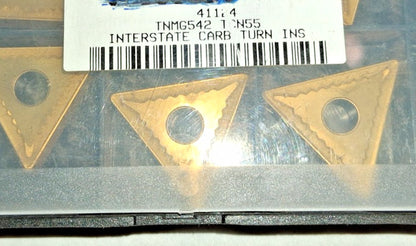

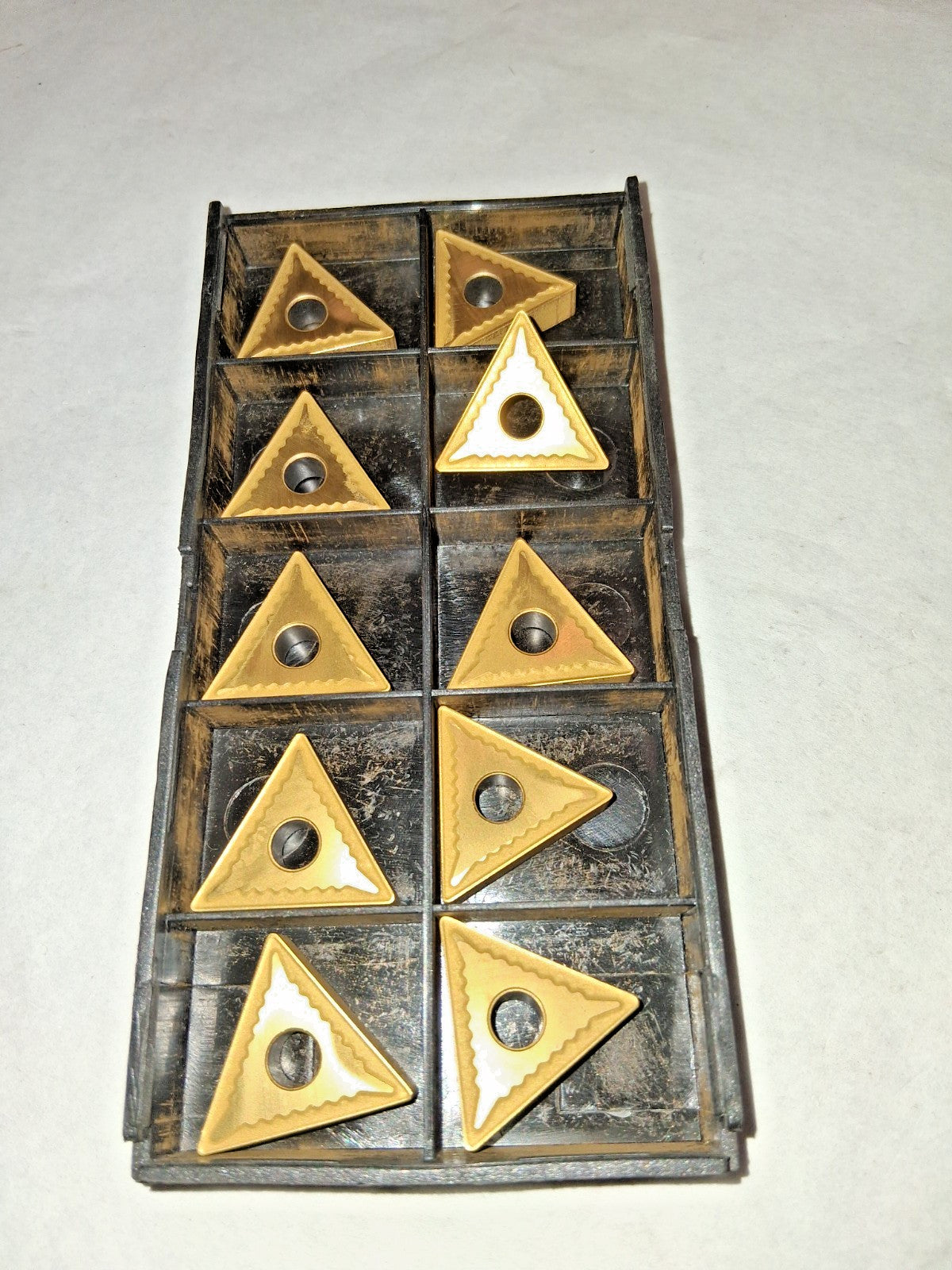

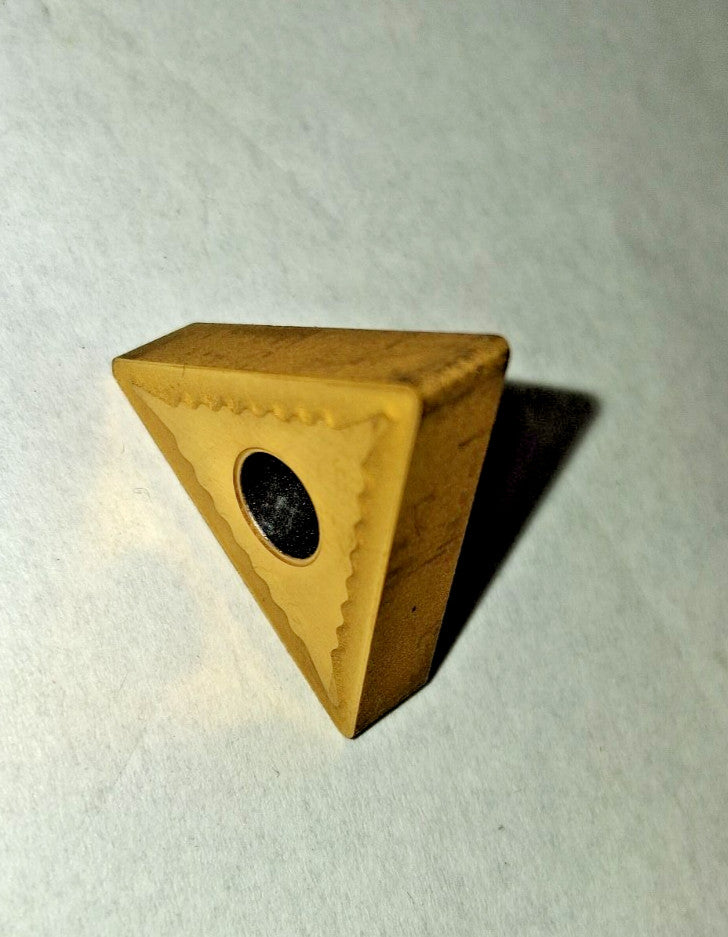

Please review photos, comes as shown.
