Interstate SNMA 644 ICP55 Indexable Carbide Turning Inserts
Interstate SNMA 644 ICP55 Indexable Carbide Turning Inserts
Couldn't load pickup availability
Intestate Indexable Carbide Turning Inserts
Material
Carbide
Insert Style
SNMA
Insert Size
644
Chipbreaker
KEU
Shape
Square
Inscribed Circle (mm)
19.05
Inscribed Circle (Decimal Inch)
0.7500
Inscribed Circle (Inch)
3/4
Thickness (Inch)
1/4
Thickness (Decimal Inch)
0.2500
Thickness (mm)
6.35
Corner Radius (Inch)
1/16
Corner Radius (mm)
1.59
Corner Radius (Decimal Inch)
0.0625
Relief Angle (Degree)
Insert Length (Decimal Inch)
0.7500
Hole Diameter (mm)
7.92
Hole Diameter (Decimal Inch)
0.3120
Rake
Negative
Material Grade
C1/C2
Coating
TiN/TiCNB/Al2/TiO2/3Al2O3
Coating Process
CVD
Included Angle (Degree)
90
Cutting Direction
Neutral
Maximum Depth of Cut (mm)
11.99
Maximum Depth of Cut (Decimal Inch)
0.4720
Insert Holding Method
Screw
Cutting Edge Style
Honed
MultiUseTool (Yes/No)
No
MFG # SNMA644
Grade: ICP55
MSRP $66

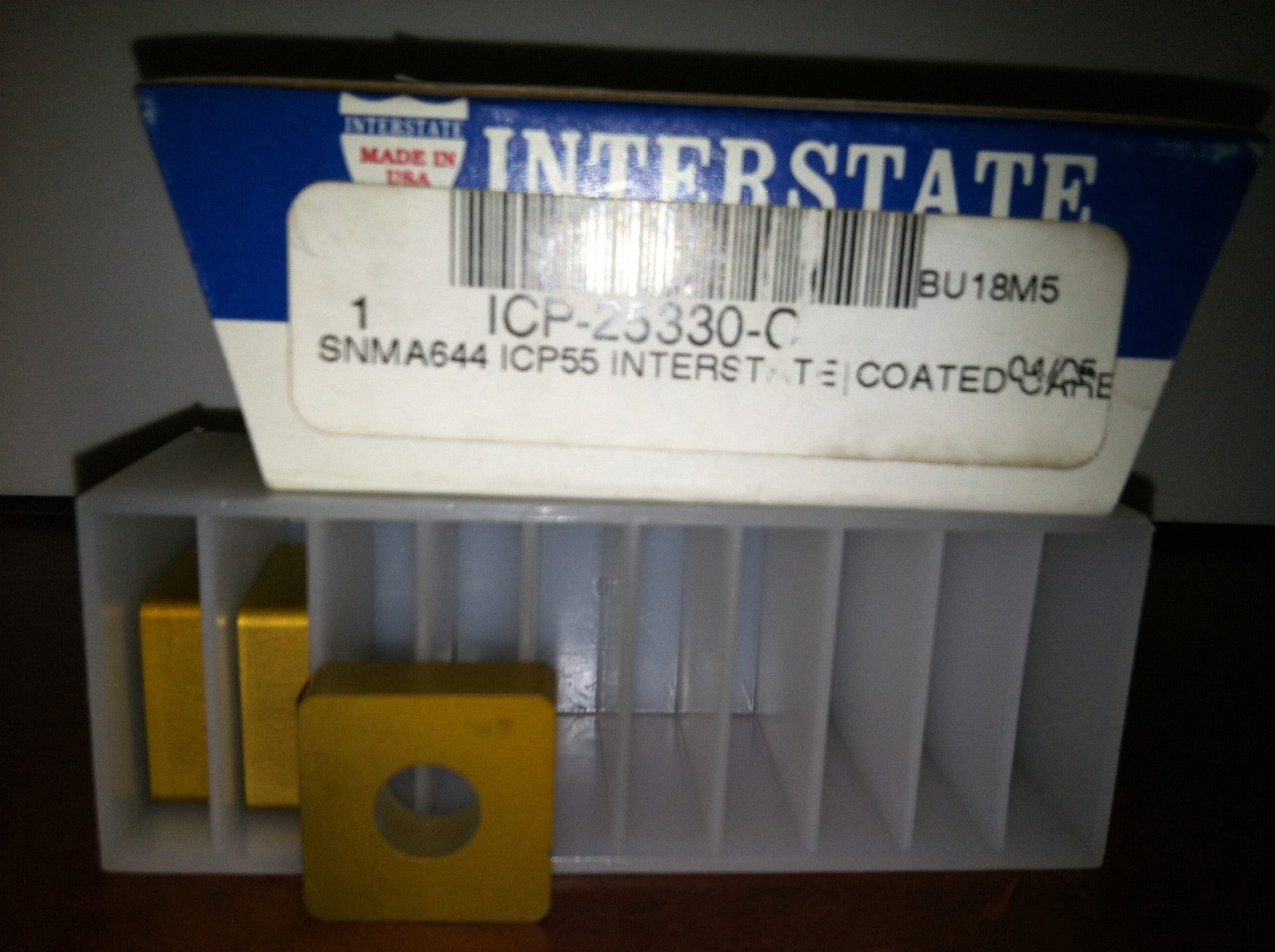

You are buying one box of 3 inserts.
You will receive one box of 3 inserts after purchase.
