Interstate Carbide Turning Insert VNMG431 TCN55 Qty 5 51517845

Interstate
Carbide turning Insert QTY 5

MSRP: $200

• Insert Style: VNMG
• ANSI Size Code: 431
• ISO Size Code: 220404
• ISO Size Code: 220404
• Included Angle: 35.00 Insert Shape:
• V - Diamond (Rhombic) 35-Deg
• Inscribed Circle (Inch): 1/2 Included
• Angle: 35.00
• Corner Radius (Inch): 1/64
• Inscribed Circle (Decimal Inch): 0.5000
• Insert Material: Carbide
• Inscribed Circle (Inch): 1/2
• Coating/Finish: TiN
• Inscribed Circle (mm): 12.70
• Insert Thickness (Inch): 3/16
• Corner Radius (Inch): 1/64
• Side Clearance: Negative
• Corner Radius (Decimal Inch): 0.0156
• Hole Diameter (Decimal Inch): 0.2030
• Insert Material: Carbide
• ISO Insert Code: VNMG220404
• Manufacturer Grade: TCN55
• Clearance Code: N
• Coating/Finish: TiN
• Primary Workpiece Material Code: P; M
• Relief Angle: 0.000
• Chip Breaker: G
• Insert Thickness (Inch): 3/16
• Insert Size Code: 431
• Insert Thickness (Decimal Inch): 0.1875

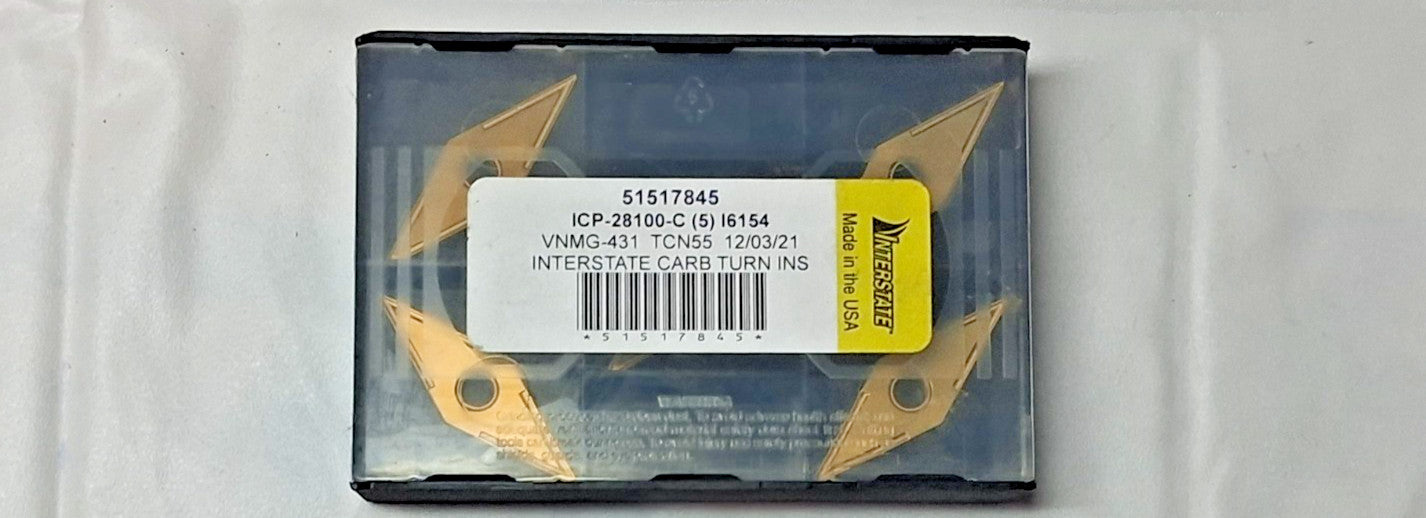

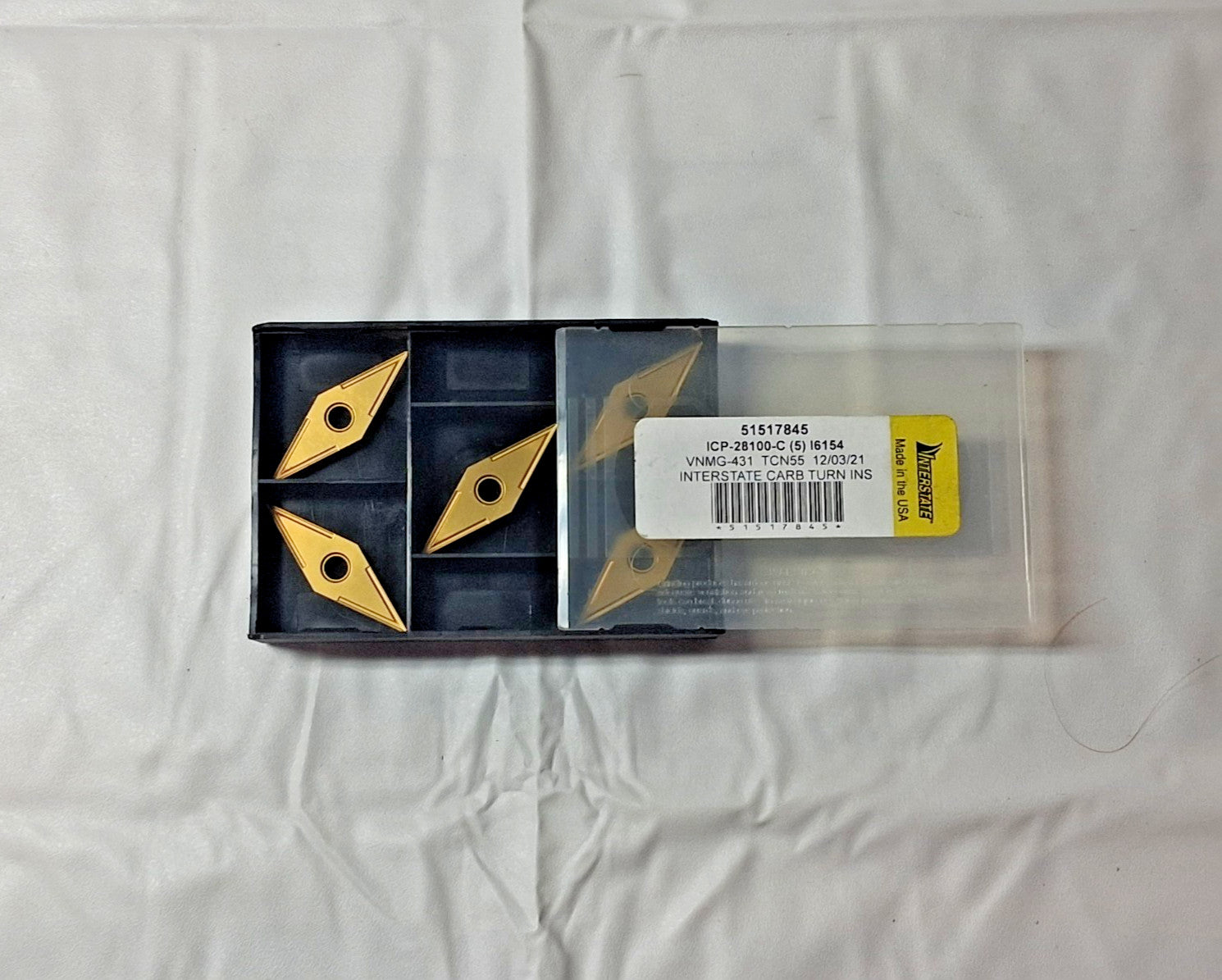

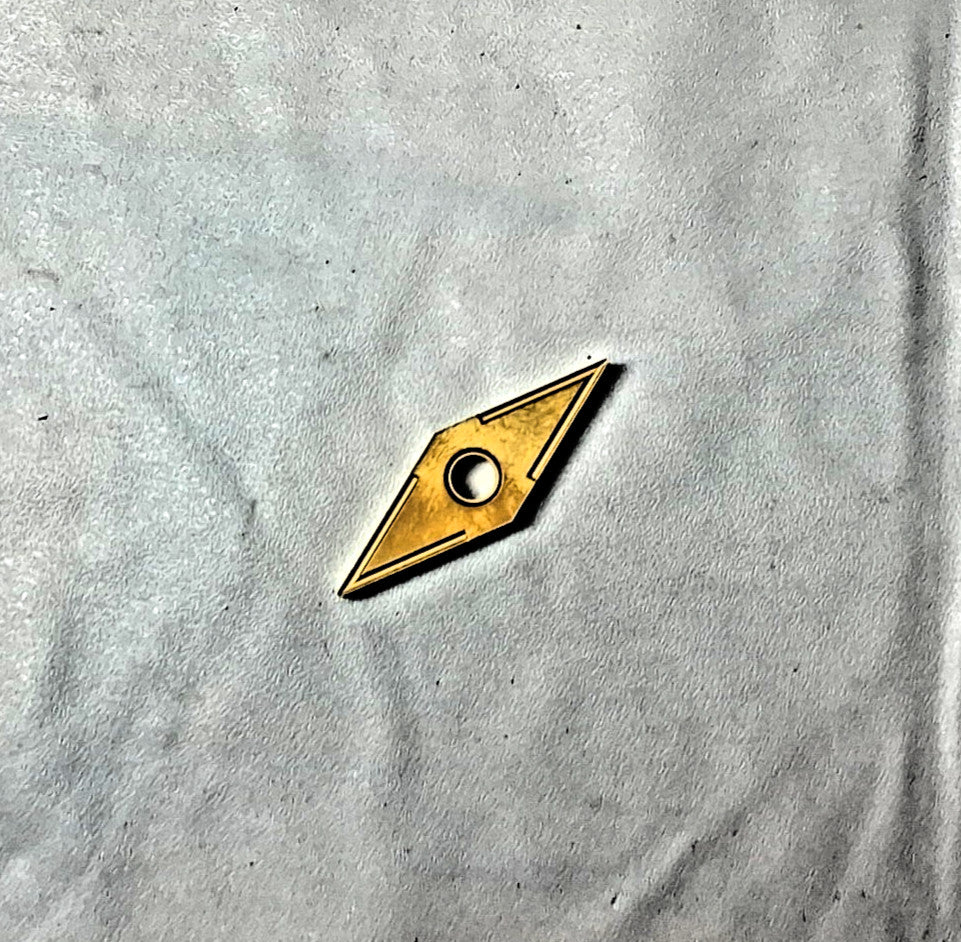

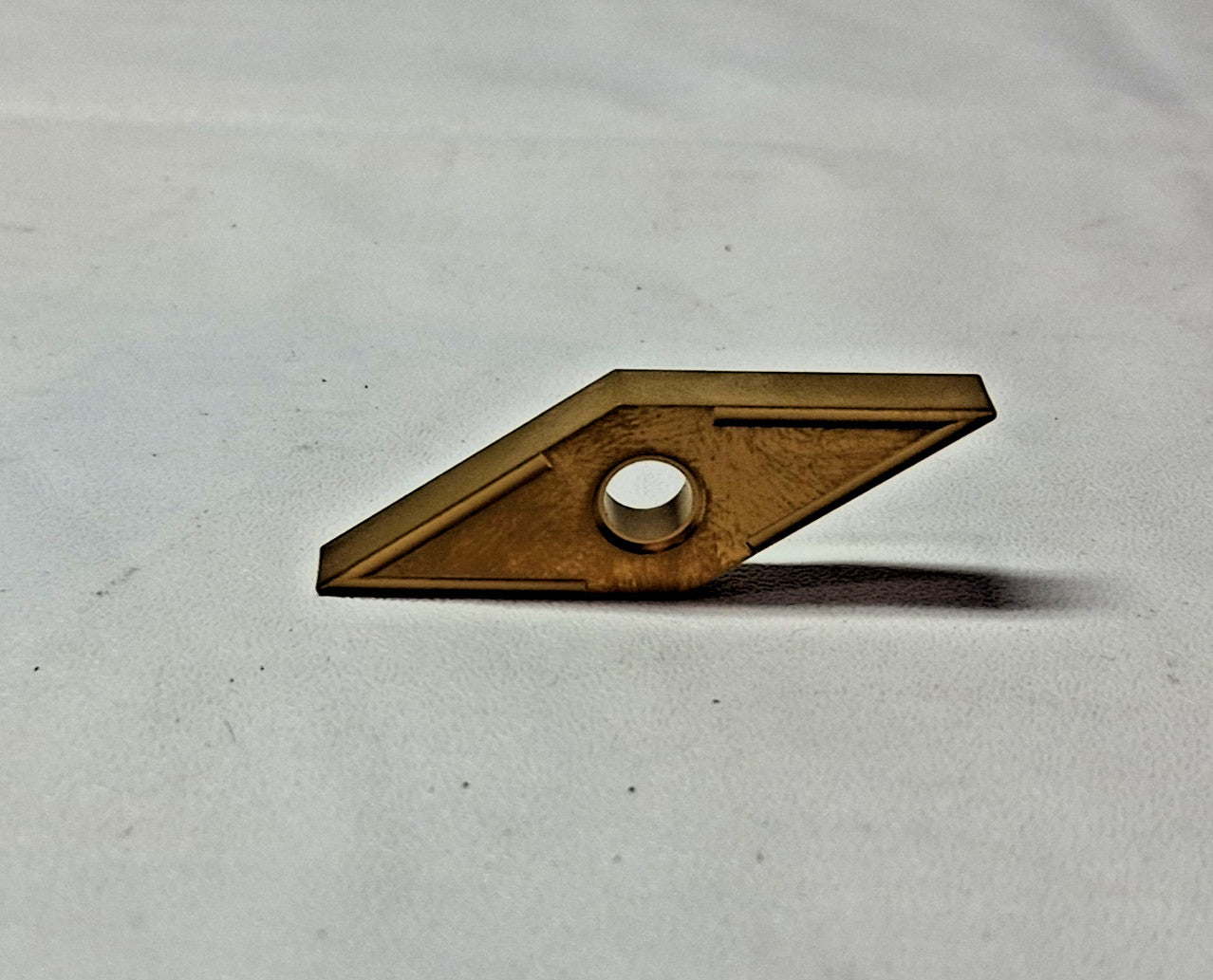

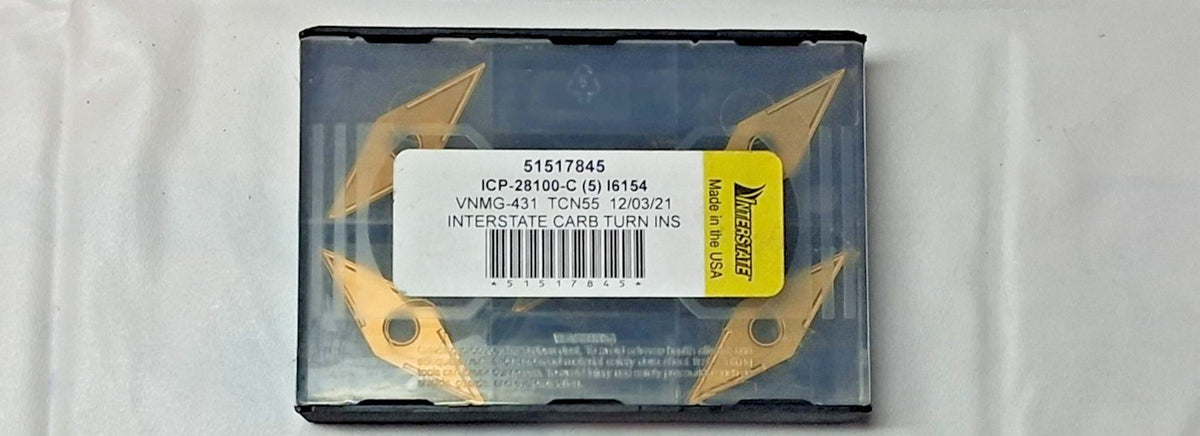

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
