Ingersoll VNGA332LS2 TB730 Turning Insert Lot of 6
Ingersoll VNGA332LS2 TB730 Turning Insert Lot of 6
Regular price
$46.28 USD
Regular price
$100.00 USD
Sale price
$46.28 USD
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND Ingersoll
Item Lot of 6
MSRP: $100.00
- specs
Insert Style VNGA
Insert Size Code 332LS2
Insert Shape Code V
Insert Shape Diamond
Clearance Code N
Tolerance Code G
Hole/Chipbreaker A
Manufacturer's Grade TB730
Inscribed Circle (Decimal Inch) 0.3750in
Width (Inch) 0.3750in
Insert Material Cubic Boron Nitride (CBN)
Coated Uncoated
Corner Radius (Decimal Inch) 0.0310 in
Maximum Depth Of Cut 0.0910in
Insert Thickness 0.1870in
Wiper Edge No
Insert Length 0.6540in
Coating Process Uncoated
Overall Width 0.3750in
Number Of Cutting Edges 2
Primary Workpiece Material Code K; H
Ansi Code VNGA332LS2 TB730
Iso Code VNGA160408LS2 TB730
Hole Diameter (Decimal Inch) 0.1500in
ISO Number VNGA160408LS2 TB730
Rake Negative
Relief Angle 0?
Primary Workpiece Material Cast Iron; Hardened Steel
Included Angle 35?
Insert Hand Neutral
Chipbreaker None
Thickness (mm) 0.1870in
Thickness (Decimal Inch) 0.1870in
Coating Uncoated
Series VNGA
Insert Holding Method Screw
(Description).

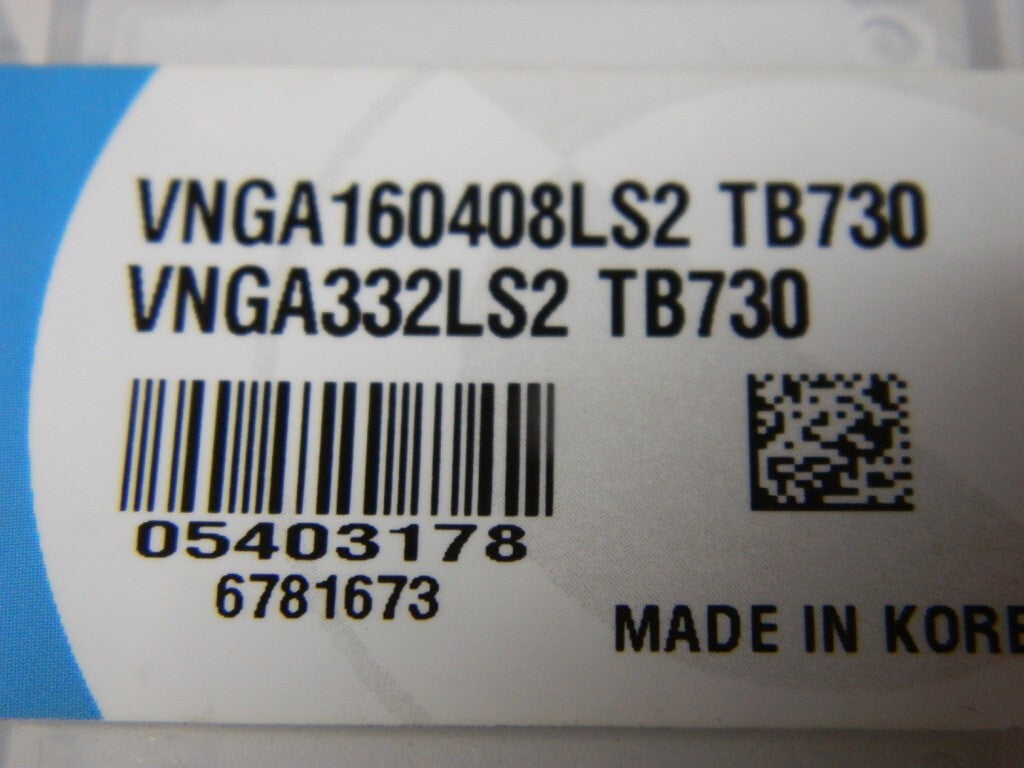

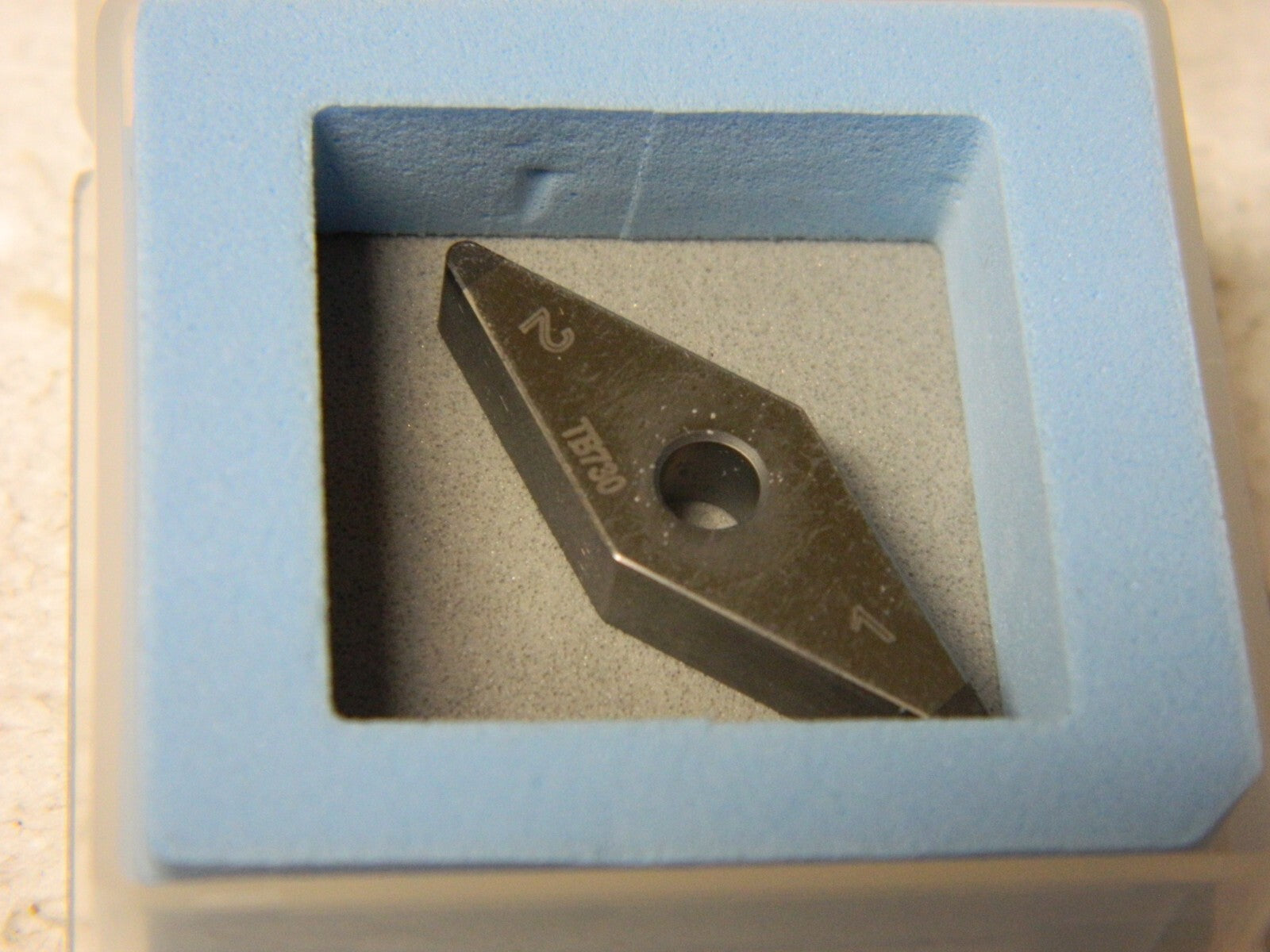

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
