Ingersoll Milling Insert AOMT120408R IN2510 Qty 10 5873197

Ingersoll
1 Lot of 10 Inserts

MSRP: $150.00

• Insert Style AOMT
• Insert Size 12
• Insert Material Solid Carbide
• Insert Shape Parallelogram
• Manufacturer Grade IN2505
• Corner Radius (Decimal Inch) 0.0310
• Number Of Cutting Edges 2
• Thickness (Decimal Inch - 4 Decimals) 0.1900
• Coating/Finish TiN; TiAlN
• Insert Size Code 120408
• Material Grade Micrograin
• Inscribed Circle (Decimal Inch) 0.3250
• Thickness Range (Decimal Inch) 0.1850 to 0.2000
• Corner Radius (Inch) 1/32
• Inscribed Circle Range (Decimal Inch) 0.3000 to 0.3500
• Length Range (Decimal Inch) 0.5000 to 0.6000
• Insert Hand Right Hand
• Series AOMT
• Coating Process PVD
• Rake Positive
• Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; H; K; M
• Ansi Code AOMT120408R IN2505

These items appear to be new and in good condition. SOLD AS IS.

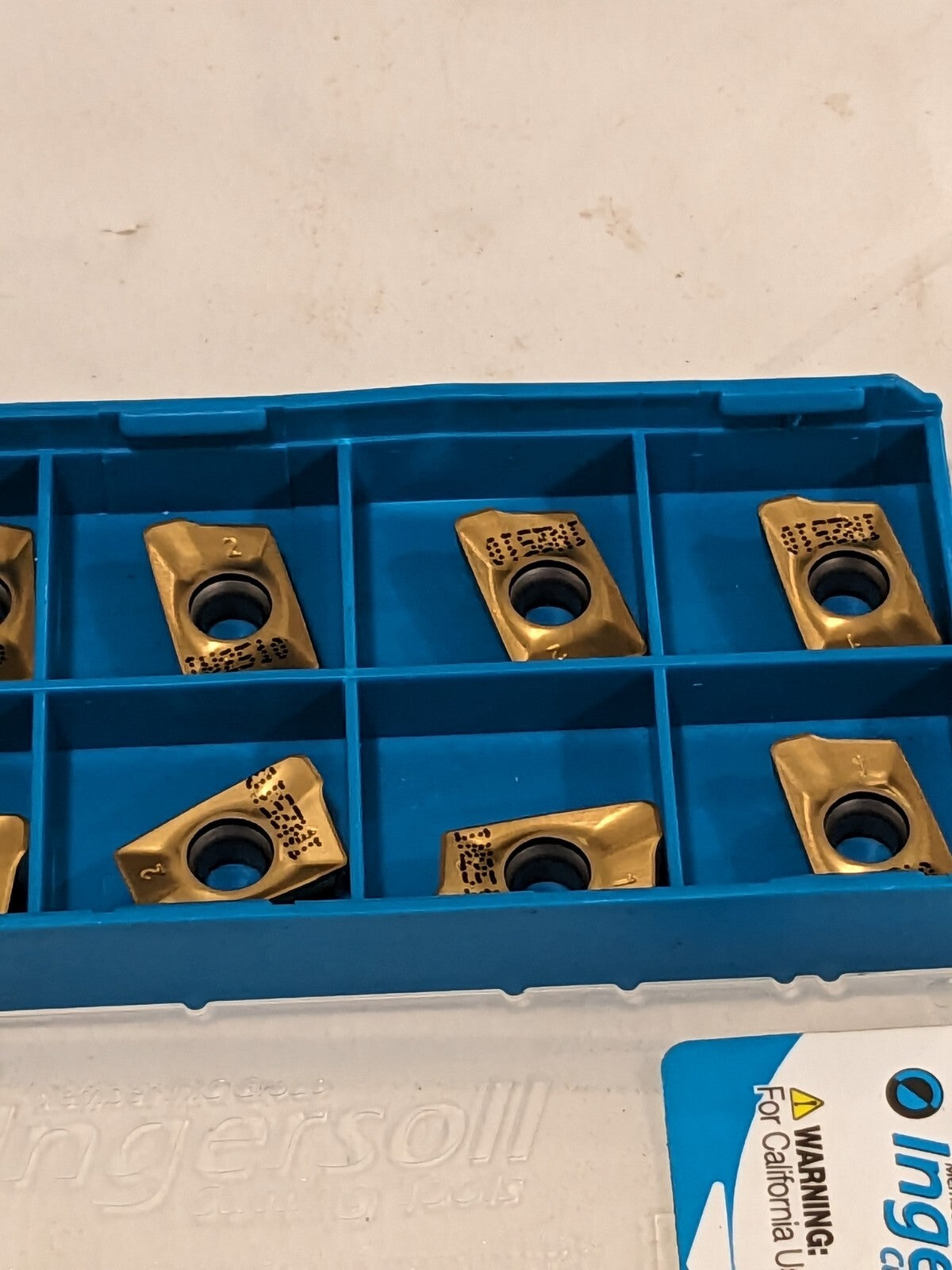

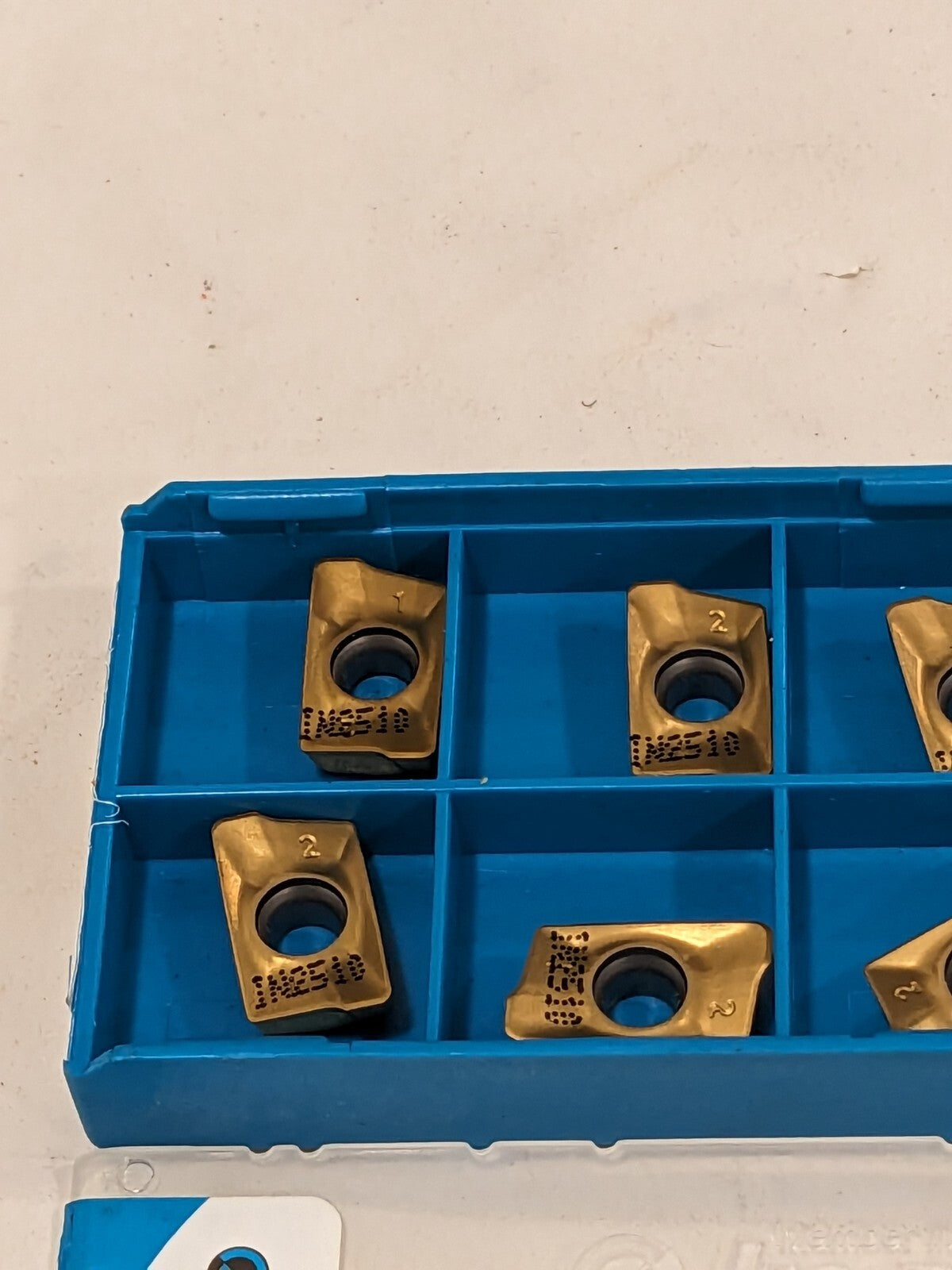

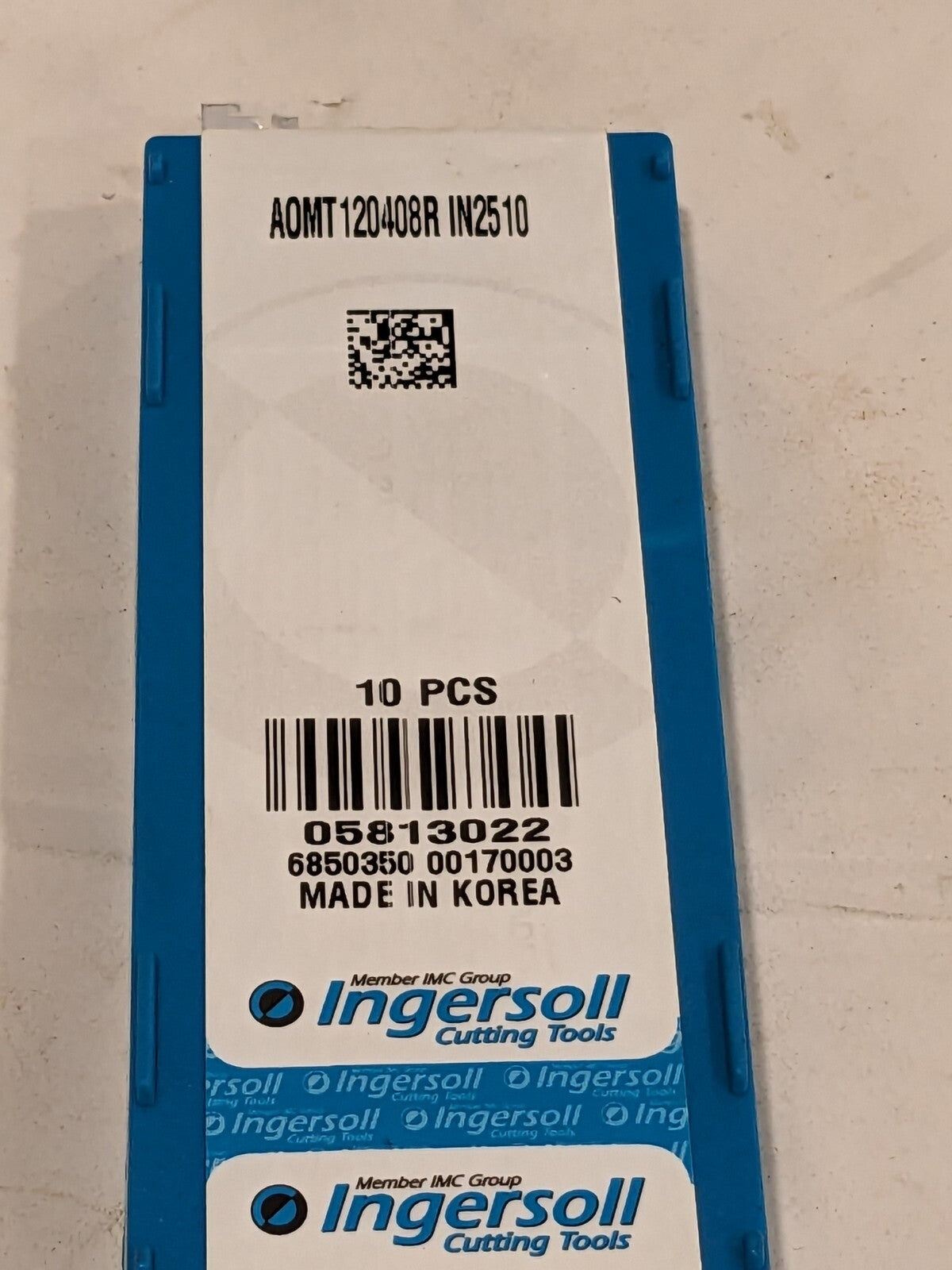

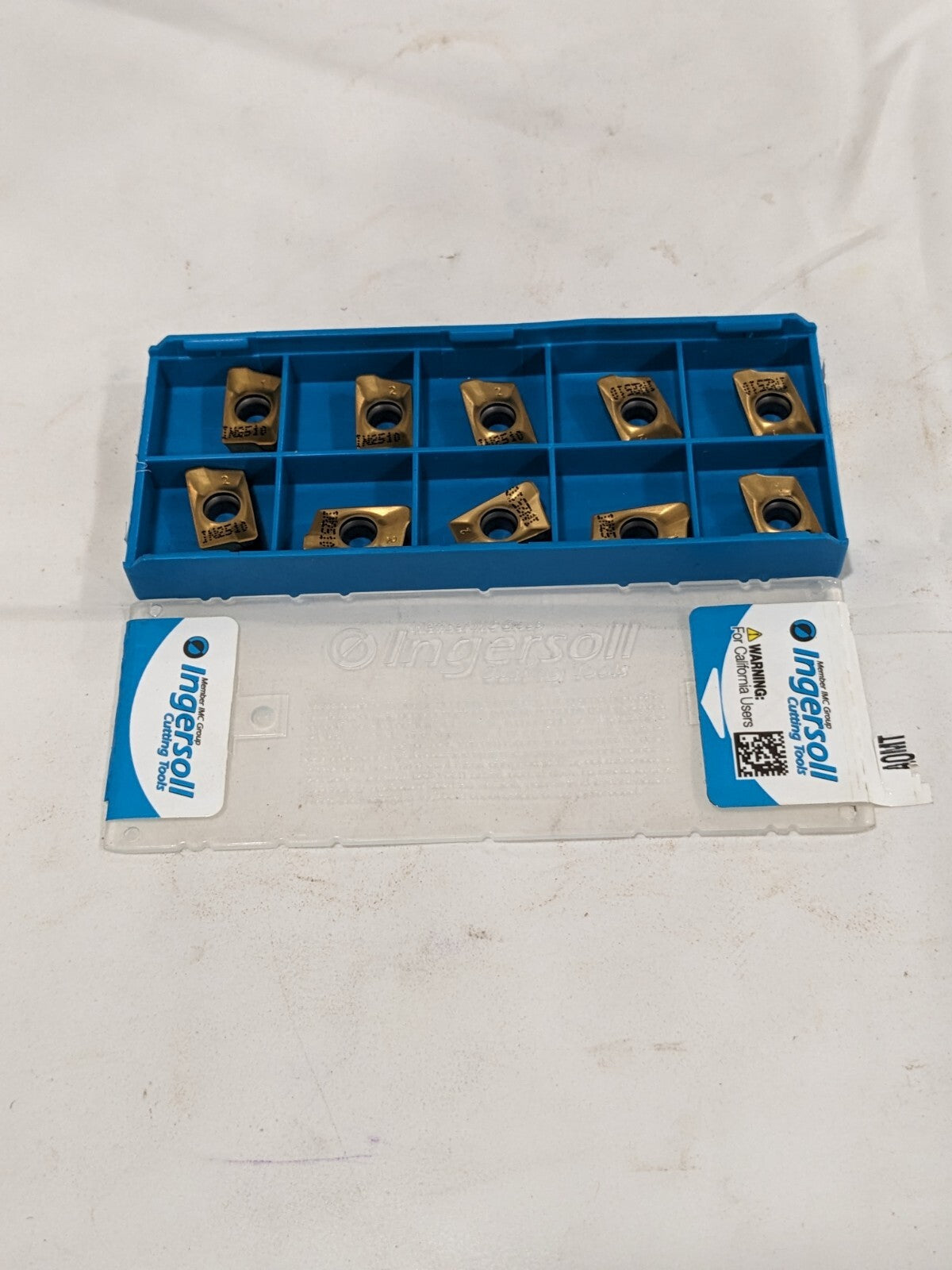

Please review photos, comes as shown.
