Ingersoll Cutting Tools Replaceable Drill Tip Coolant Through 5120175

Ingersoll Cutting Tools
Replaceable Drill Tip

MSRP: $160.00

• Cutting Diameter (mm): 17.40
• Tip Material: Solid Carbide
• Manufacturer Grade: IN2505
• Material Grade: M15; M35
• Series: TMA
• Coating Process: PVD
• Insert Geometry: M
• Insert Seat Size: 17
• Functional Length (Decimal Inch): 0.2850
• Primary Workpiece Material: Stainless Steel
• Primary Workpiece Material Code: M
• Standards: ANSI
• Height (mm): 10.00
• Overall Length/Projection (Decimal Inch): 0.3900
• Drill Point Angle: 140
• Flute Type: Helical
• Insert Holding Method: Clamp
• ISO Number: TMA1740R01 IN2505
• Coolant Through: Yes
• Flute Length (mm): 7.00
• Point Type: Standard
• Overall Length/Projection (mm): 9.91
• Spiral Type: Regular Spiral
• Style: TMA
• Applications: Drilling; Coolant-Thru; Spot Drilling
• UNSPSC Code: 23242105
• Coating/Finish: TiN; TiAlN
• Included Angle Degree: 140
• Number Of Flutes: 2

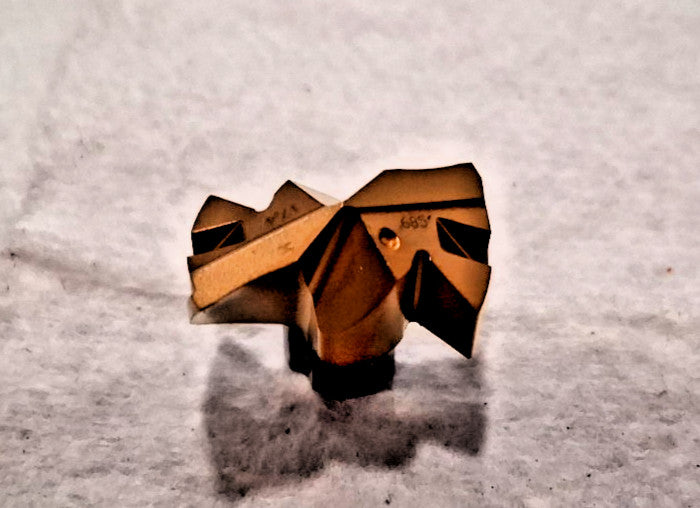

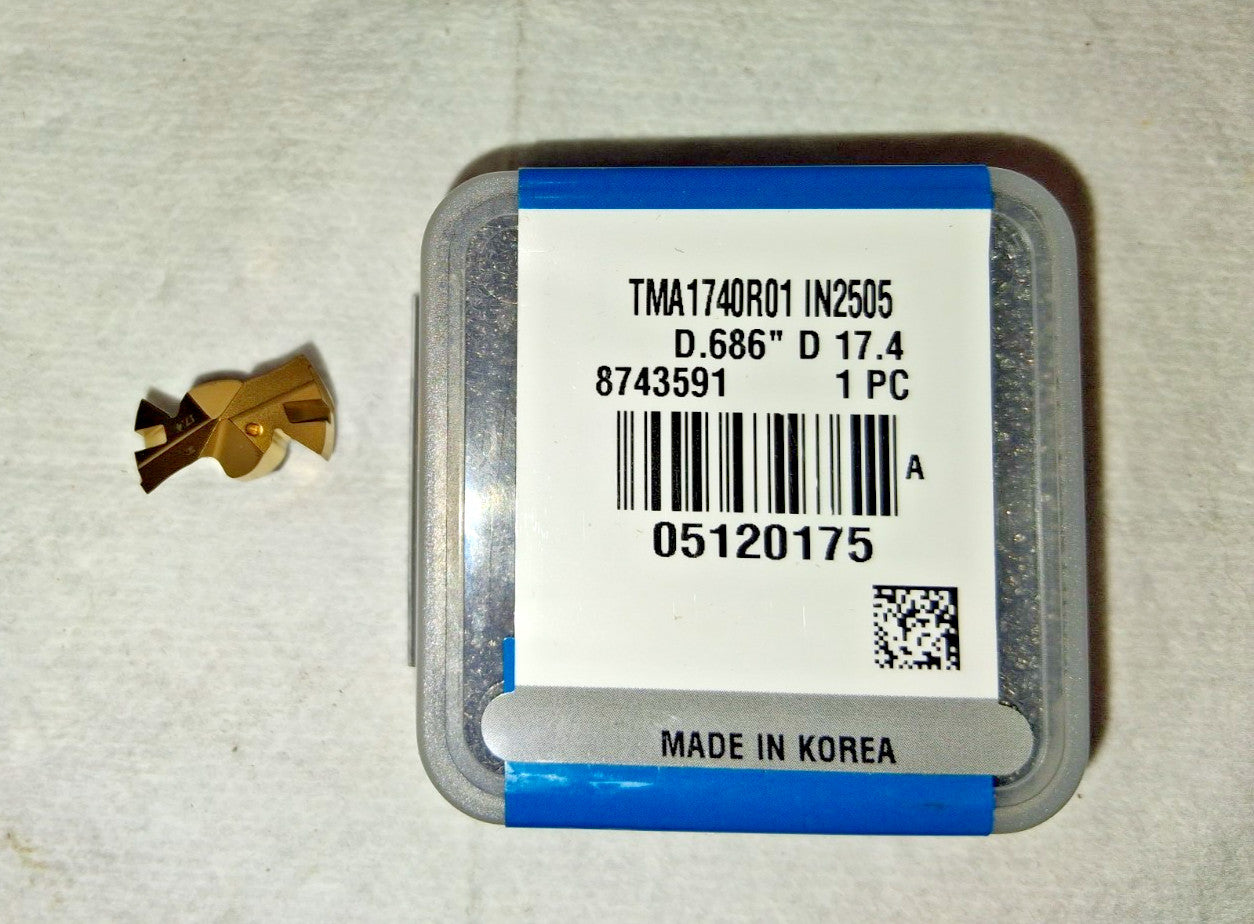

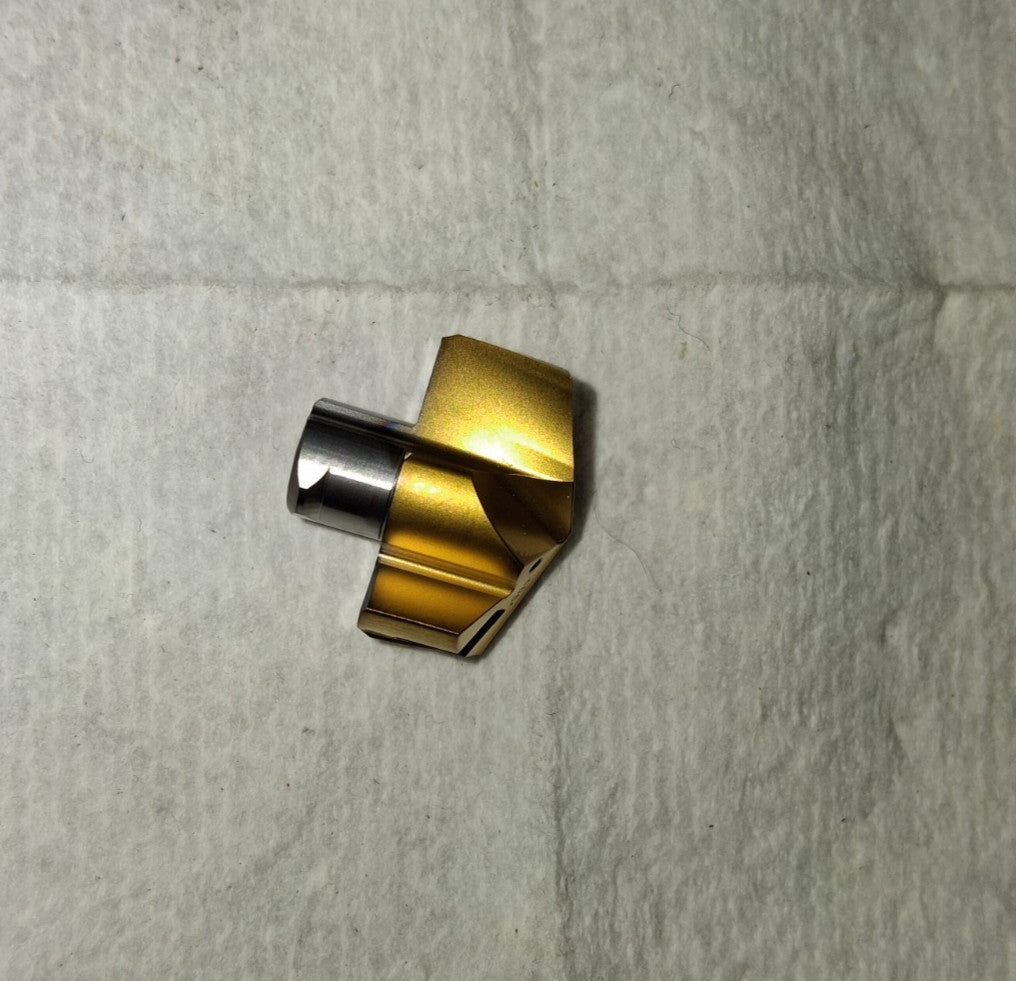

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
