Ingersoll Cutting Tools Carbide Turning Inserts CNMG332MT TT8125B QTY 10 6212521

Ingersoll Cutting Tools
Carbide Turning Inserts

MSRP: $120

• Insert Style CNMG
• ISO Size Code 090408
• ANSI Size Code 332
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.3750
• Inscribed Circle (Inch) 3/8
• Corner Radius (Decimal Inch) 0.0310
• Insert Material Carbide
• Manufacturer Grade TT8125B
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 0
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.1870
• Insert Hand Neutral
• Series CNMG
• Grade Characteristics Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Chip Breaker Operation Medium Machining; Roughing
• Number Of Cutting Edges 4
• Side Clearance Negative
• Insert Shape Code C
• Maximum Depth of Cut (Decimal Inch) 0.1250
• ISO Insert Code CNMG090408
• ANSI Insert Code CNMG332
• Insert Holding Method Clamp
• Clearance Code N
• Tolerance Code M
• Coating Process CVD
• Rake Negative
• Insert Length (Decimal Inch) 0.3820
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Iso Code CNMG090408MT TT8125B
• Chip Breaker MT
• UNSPSC Code 23242105
• Insert Size Code 332

*NIB*

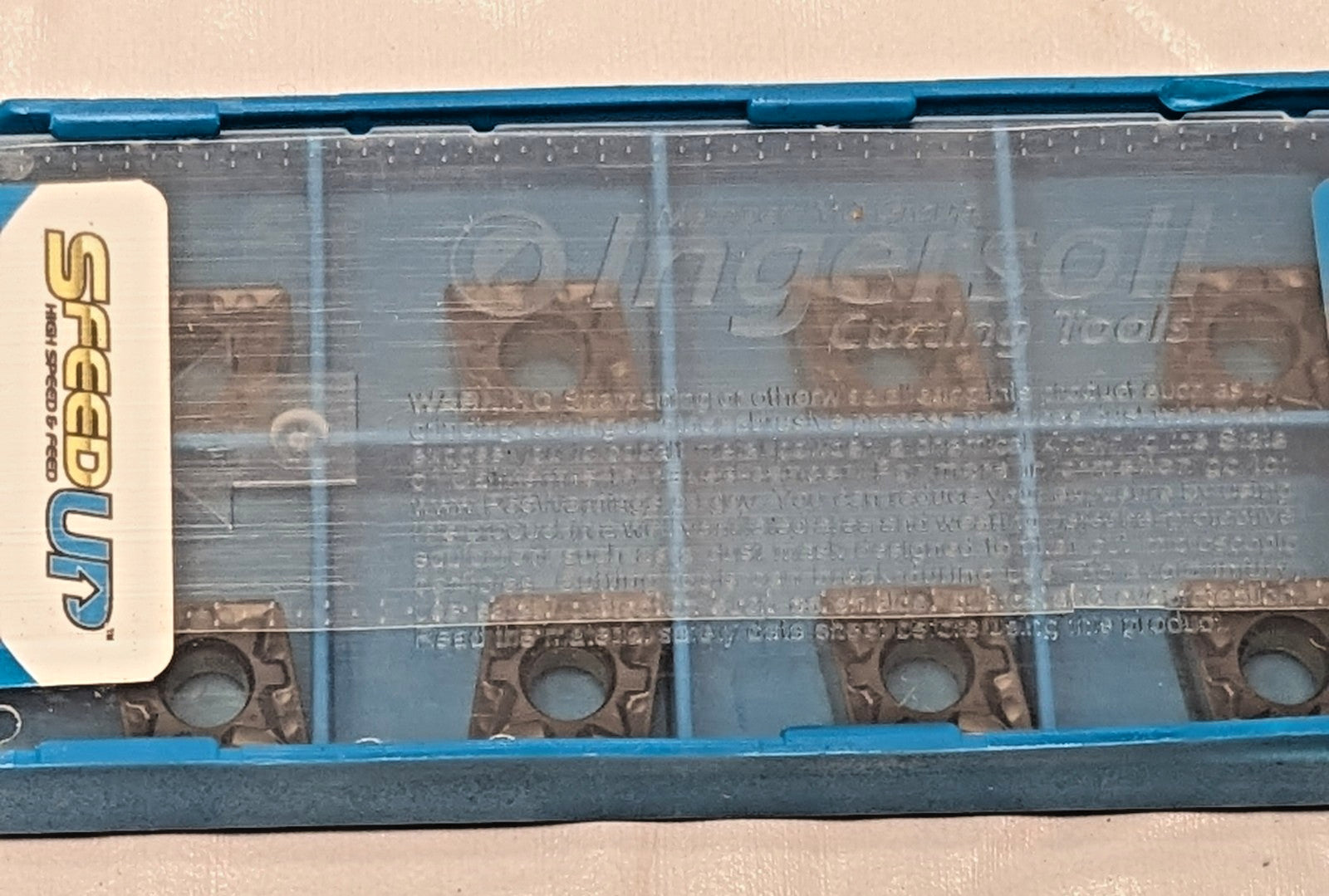

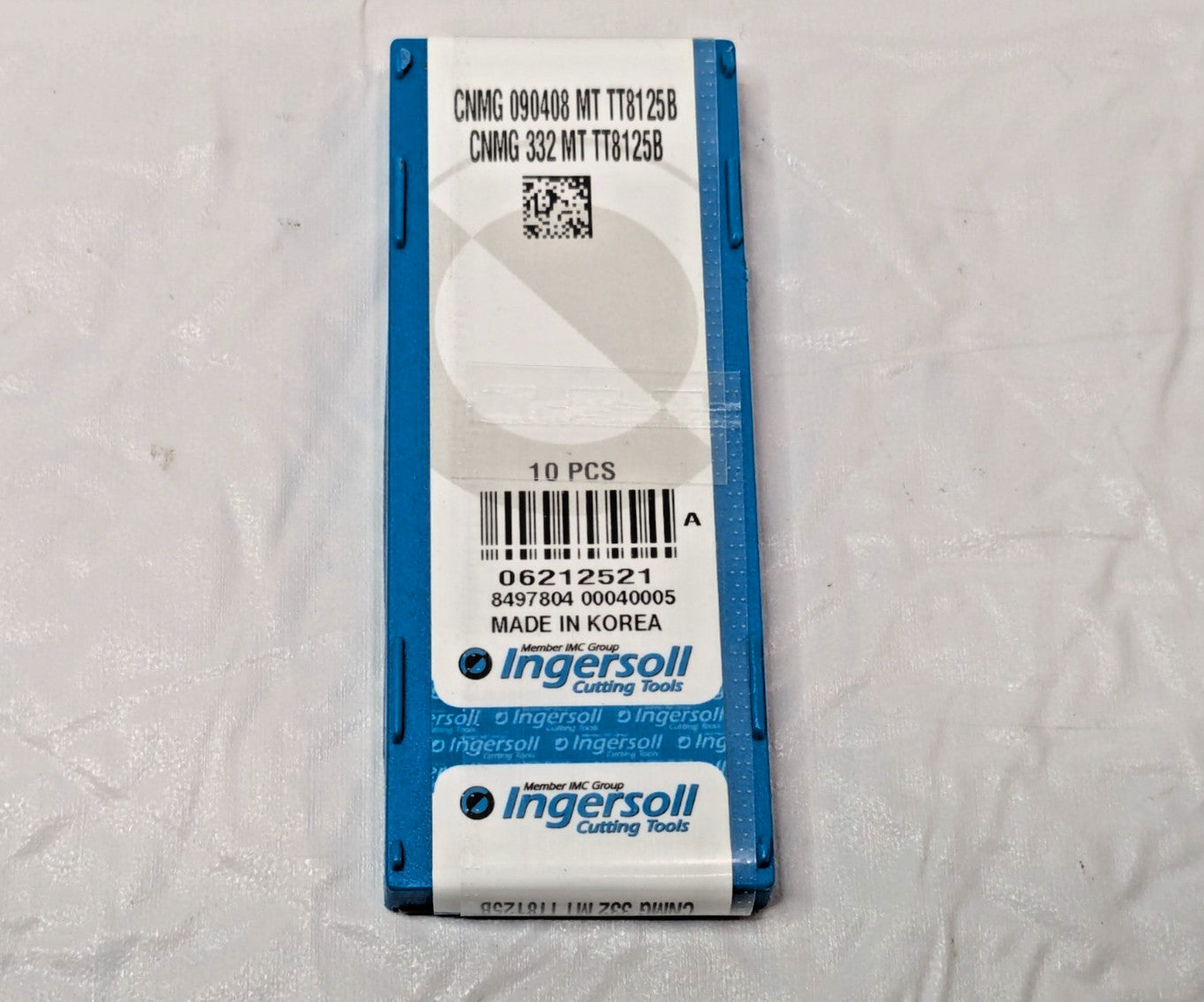

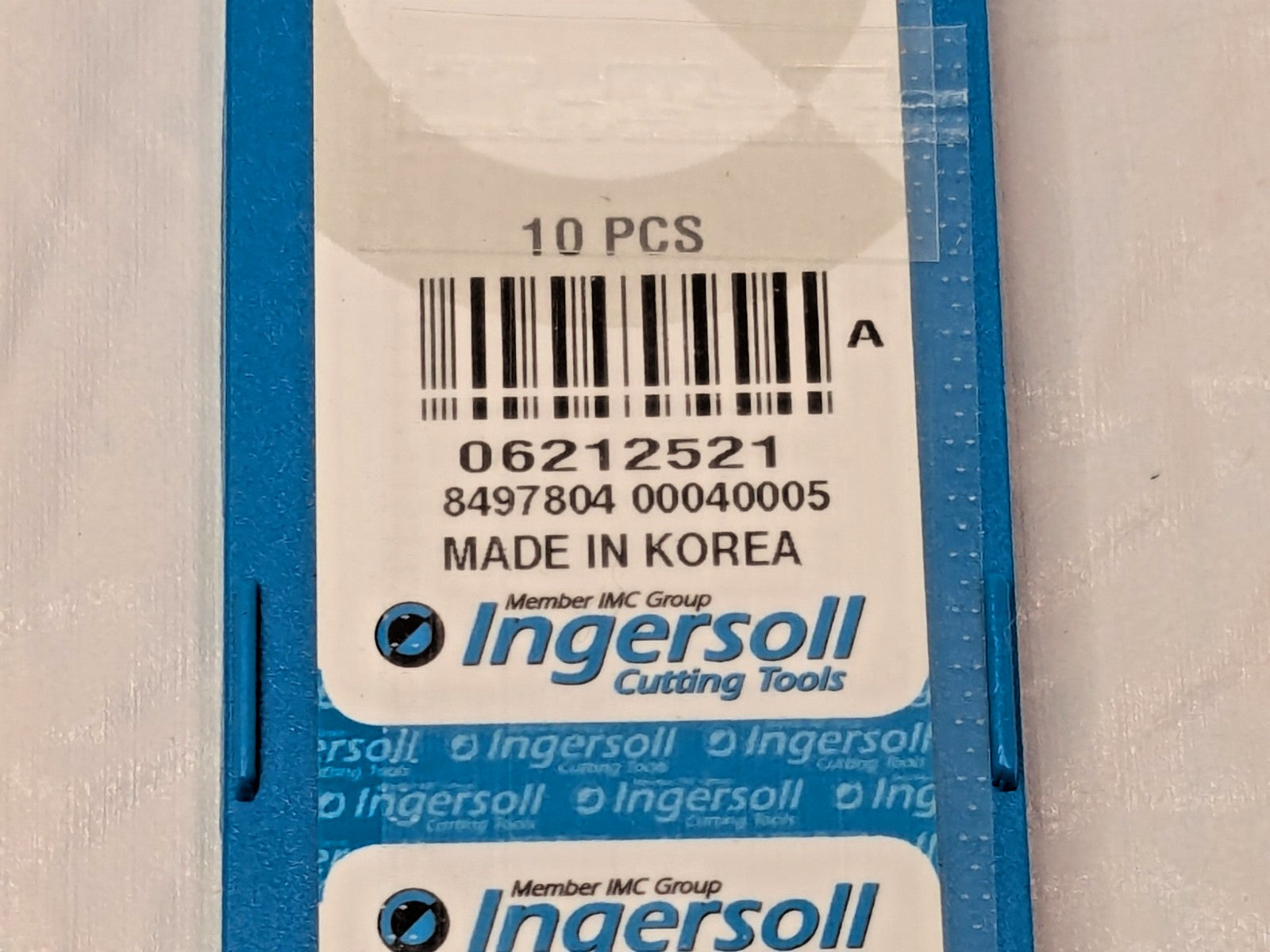

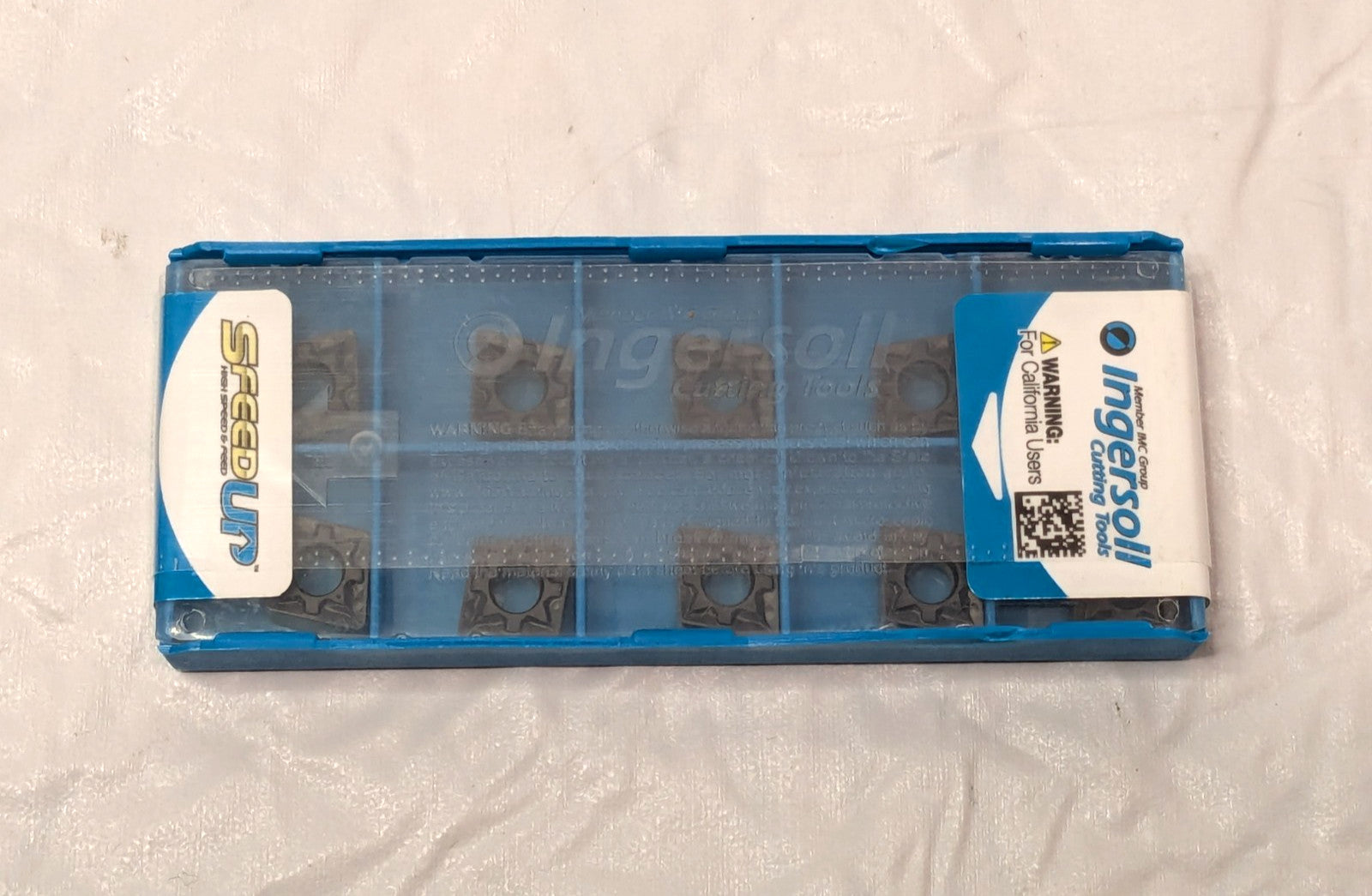

Please review photos, comes as shown.
