HERTEL Turning Inserts 10ct : CNMA 433 HC305T, Carbide 1001830

HERTEL Turning Inserts 10ct : CNMA 433 HC305T, Carbide 1001830

MSRP: $170

• Insert Style CNMA
• Insert Size Code 433
• Insert Shape Diamond
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.5000
• Corner Radius (Decimal Inch) 0.0469
• Insert Material Carbide
• Manufacturer Grade HC305T
• Coating/Finish Al2O3
• Relief Angle 0
• Insert Thickness (Decimal Inch) 0.1875
• Insert Shape Code C
• Corner Radius (Inch) 3/64
• Hole Diameter (Mm) ( - 0 Decimals) 5.16
• Hole Diameter (Decimal Inch) 0.2031
• Inscribed Circle (Inch) 1/2
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Coating Process CVD
• Rake Positive
• Primary Workpiece Material Code K
• Iso Code CNMA120412
• Material Grade HC305T
• Proprietary Coating Designation FF
• UNSPSC Code 23242105
• Chip Breaker A
• Cutting Edge Style Honed

(Description).

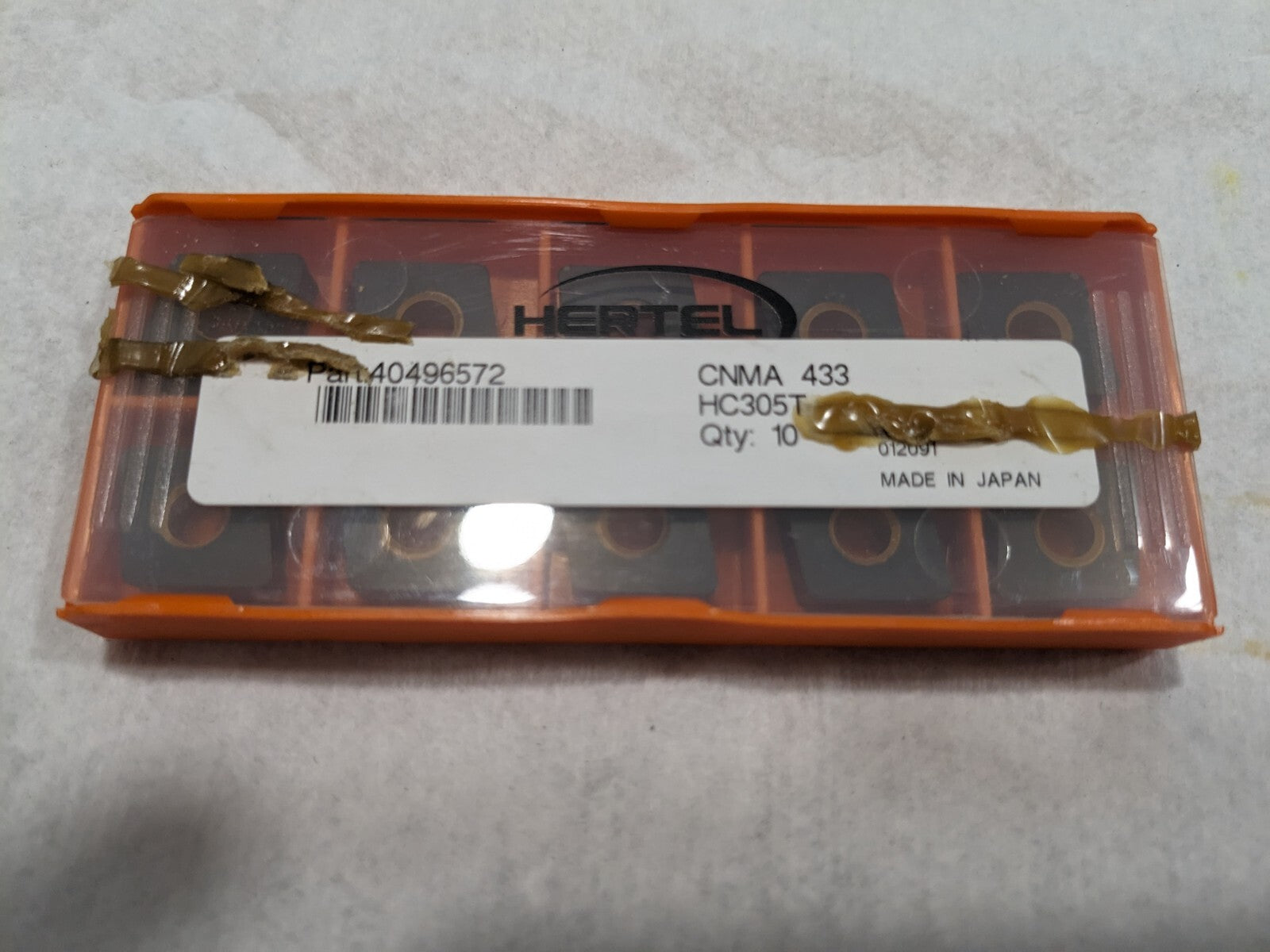

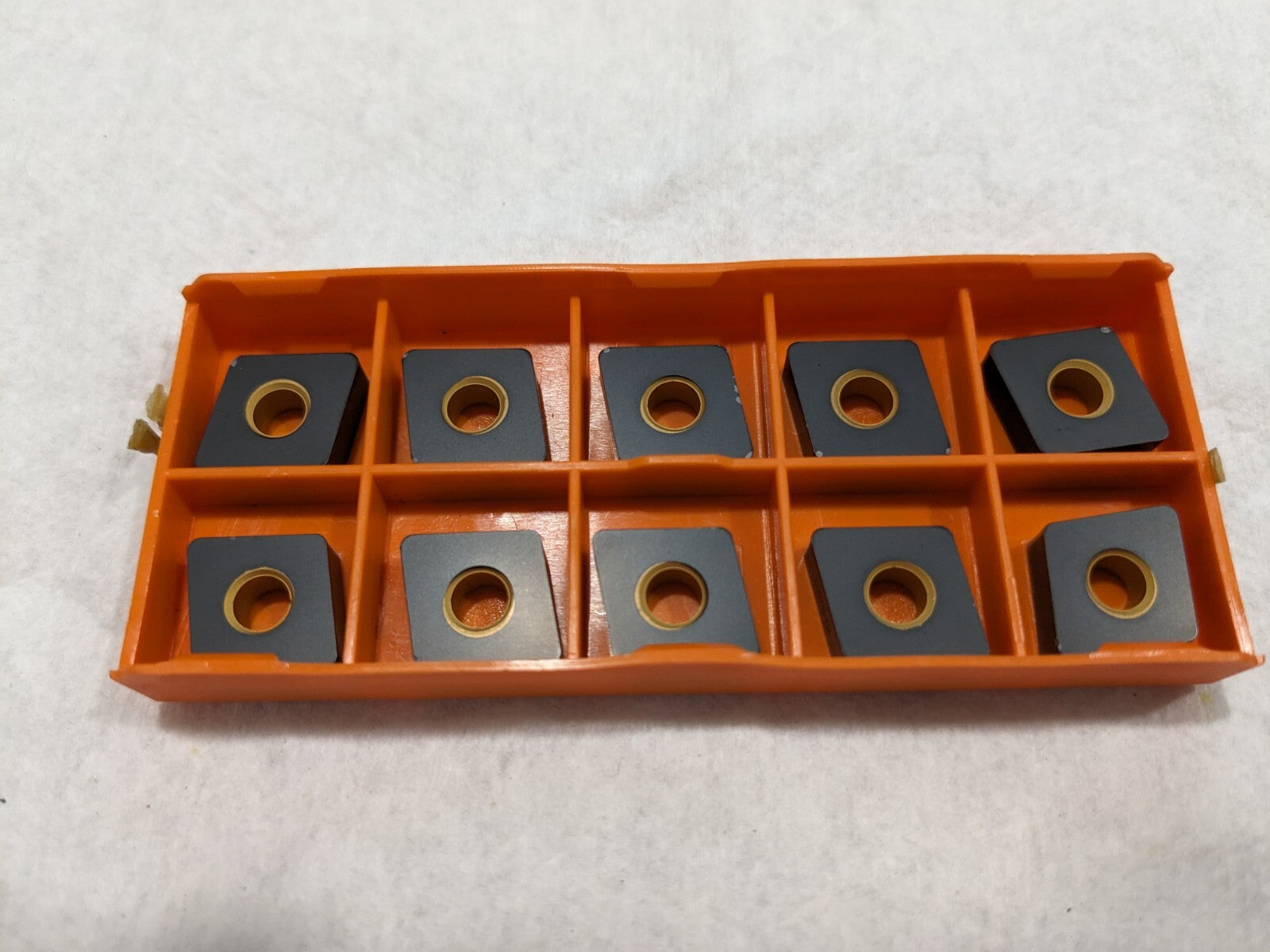

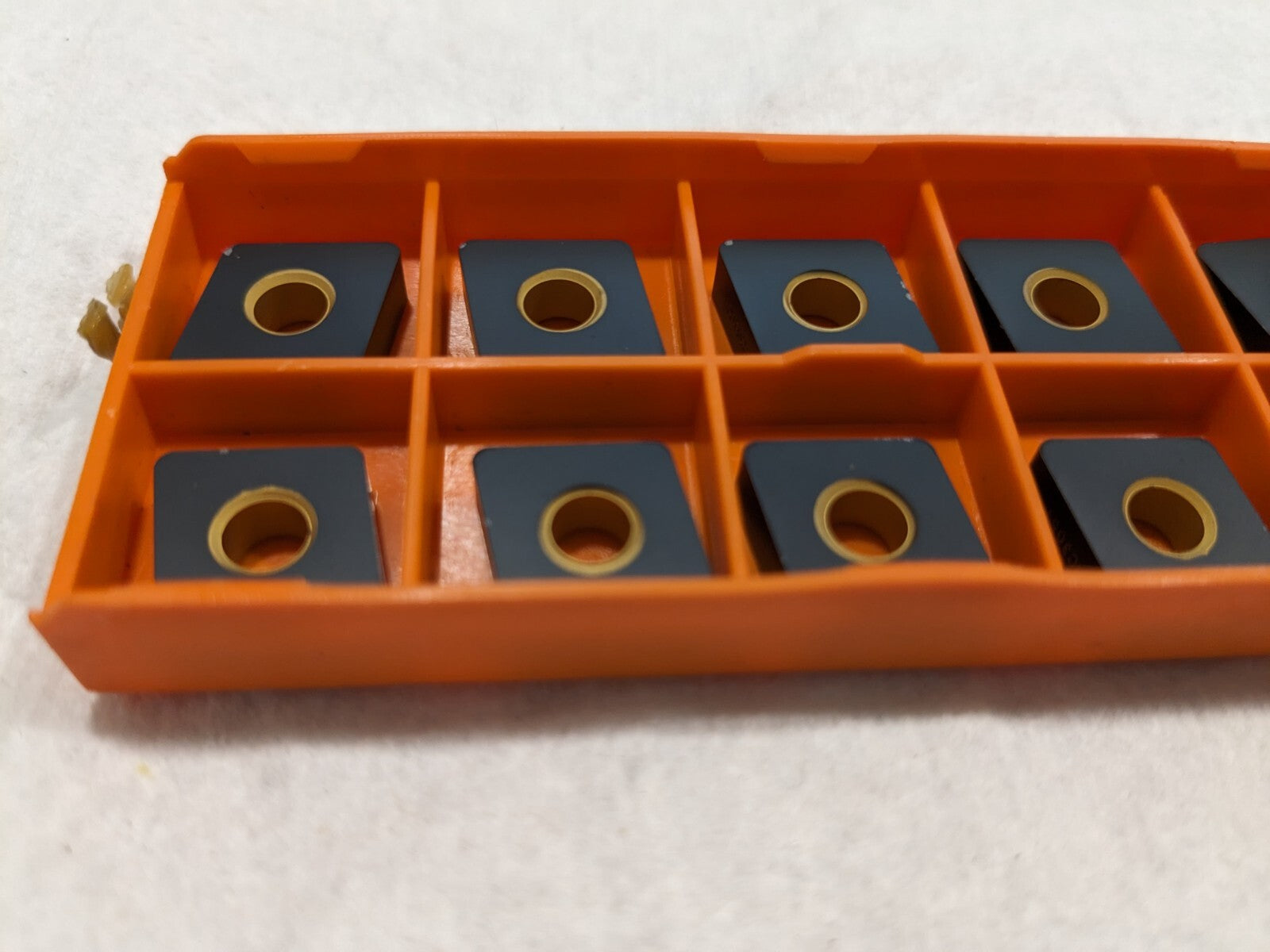

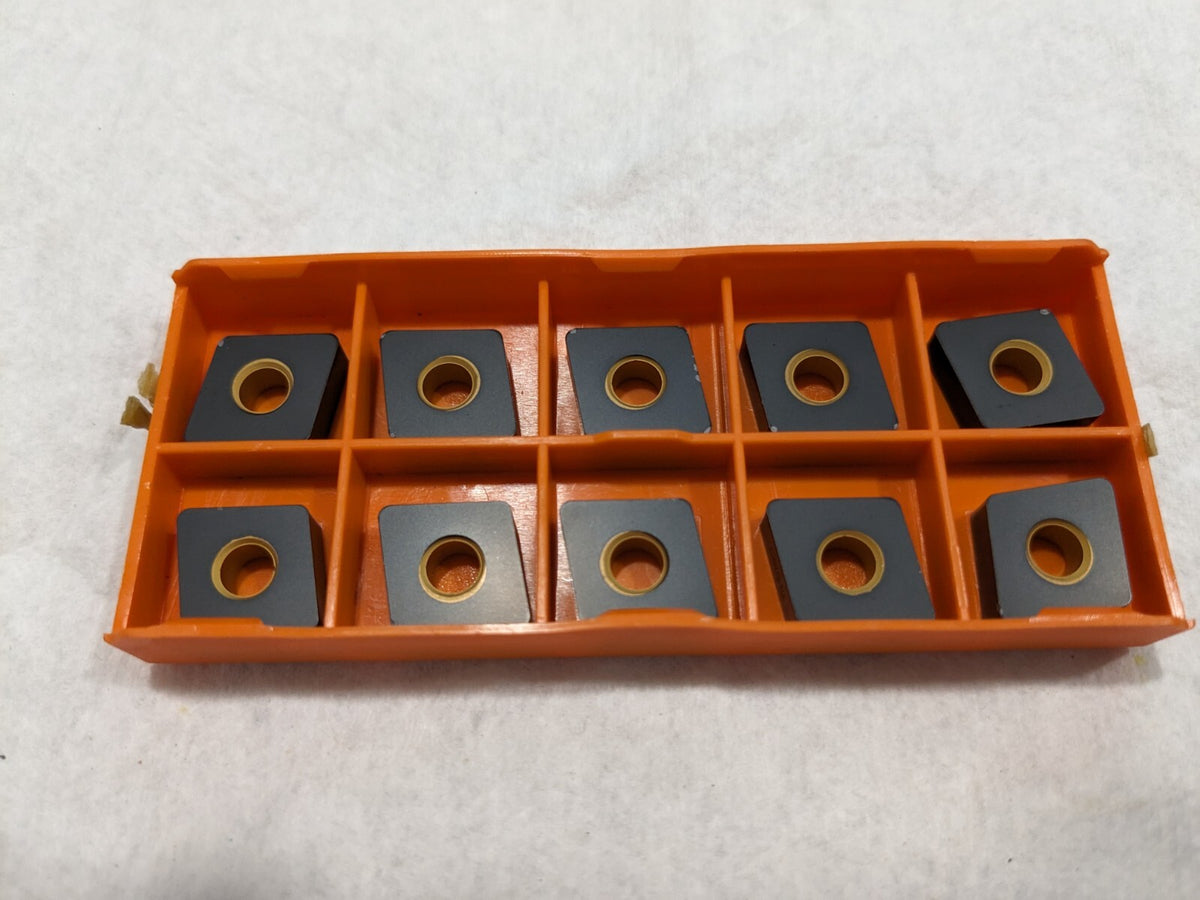

Please review photos, comes as shown.
