HERTEL Turning Insert: TNMG666R HC335, Solid Carbide Qty 5 84285816

Hertel
1 Lot of 5 Inserts

MSRP: $100.00

• Insert Style TNMG
• Insert Shape Code T
• Insert Size Code 666
• Insert Shape Triangle
• Coating/Finish TiCN; TiN; TiC
• Manufacturer Grade HC335
• Corner Radius (Inch) 3/32
• Corner Radius (Decimal Inch) 0.0938
• Insert Material Solid Carbide
• Hole Diameter (Decimal Inch) 0.3150
• Inscribed Circle (Inch) 3/4
• Inscribed Circle (mm) 19.05
• Inscribed Circle (Decimal Inch) 0.7500
• Insert Holding Method Pin; Clamp
• Insert Hand Neutral
• Insert Thickness (Inch) 3/8
• Insert Thickness (Decimal Inch) 0.3750
• Clearance Code N
• Tolerance Code M
• Included Angle 60.0
• Relief Angle 0
• Coating Process CVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Insert Length (Decimal Inch) 1.2990
• Primary Workpiece Material P
• Secondary Workpiece Material M
• Material Grade C5; C6
• Chip Breaker G
• Style TNMG666

These items are new and in great condition. SOLD AS IS.

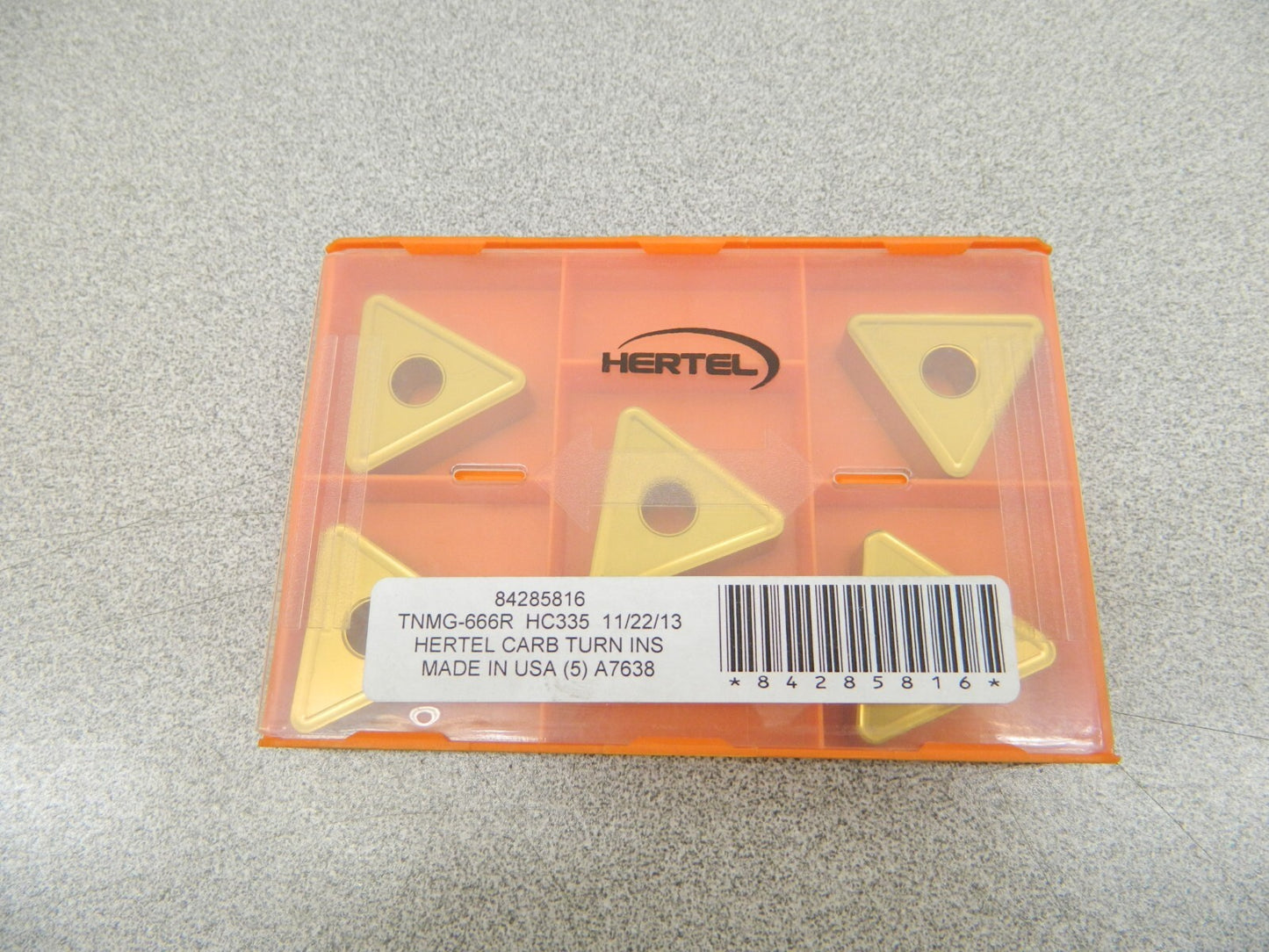

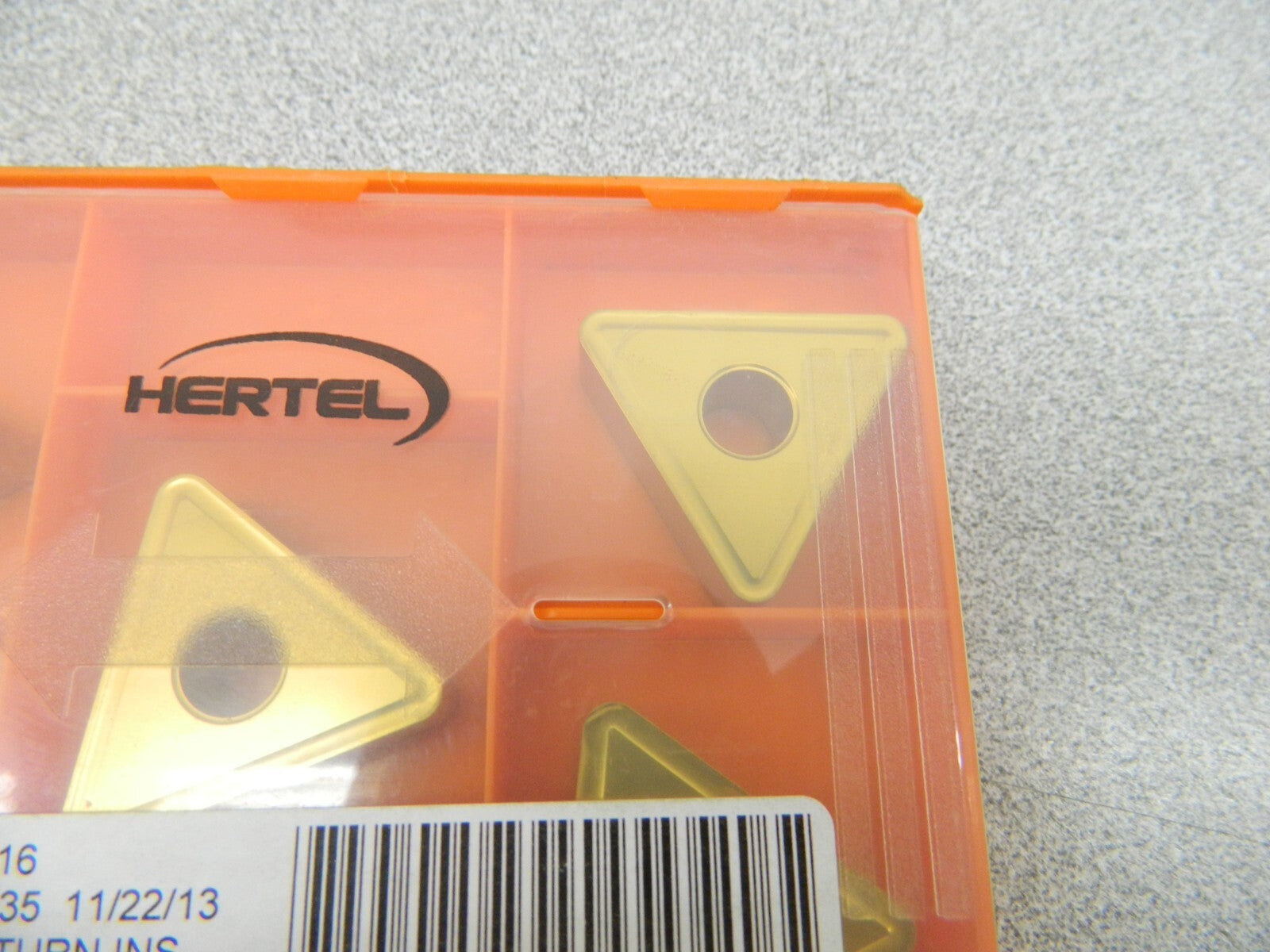

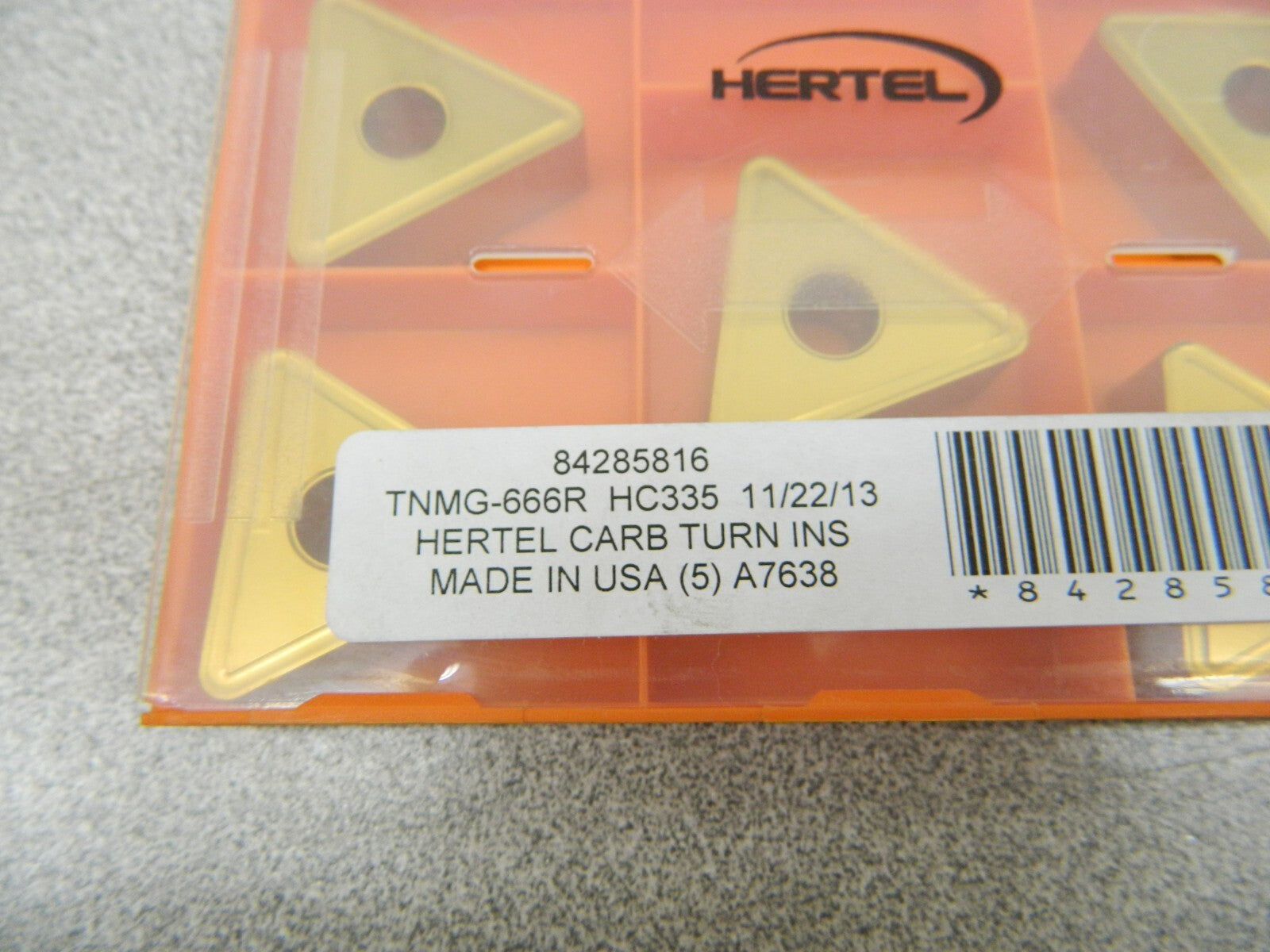

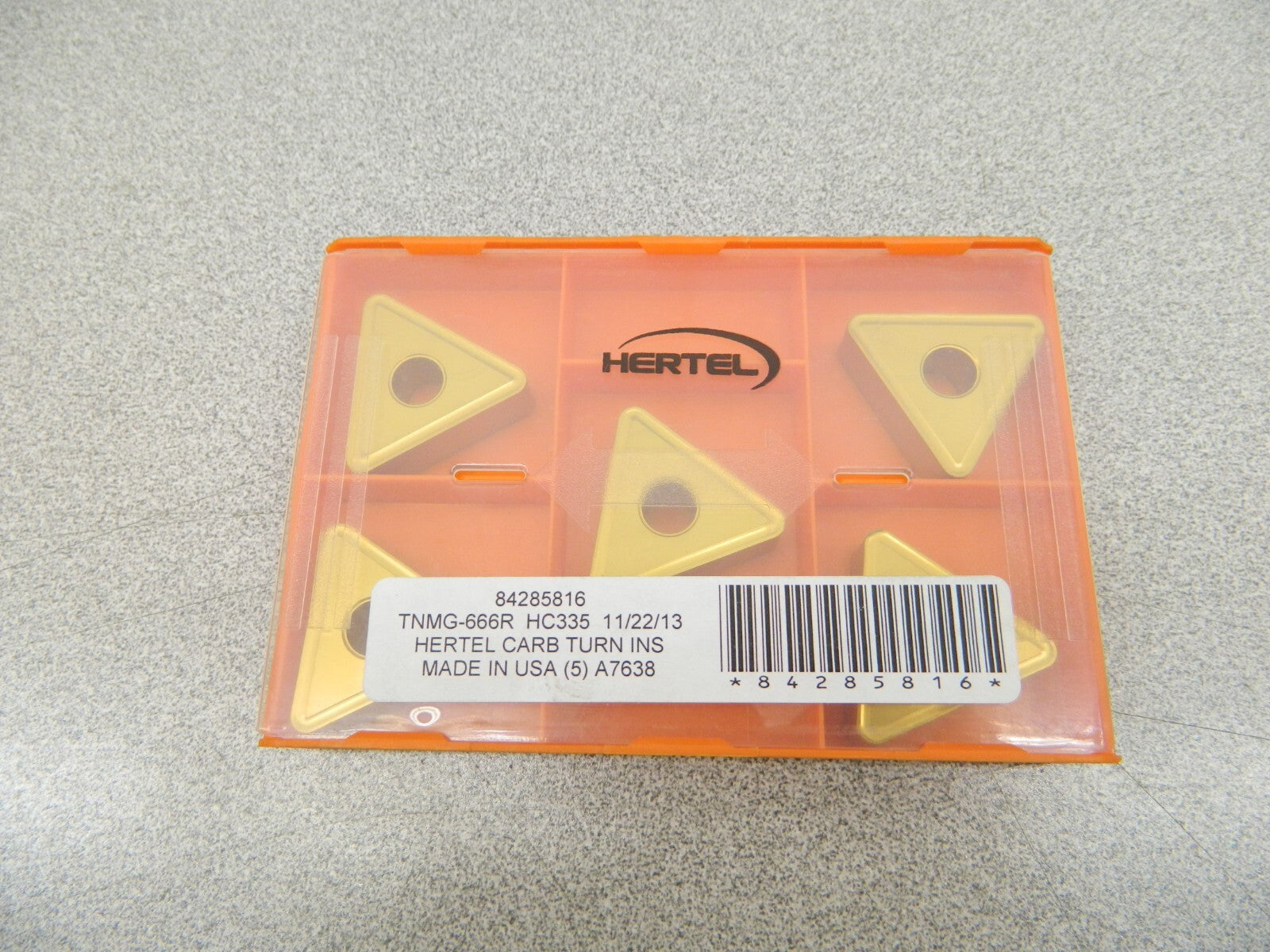

Please review photos, comes as shown.
