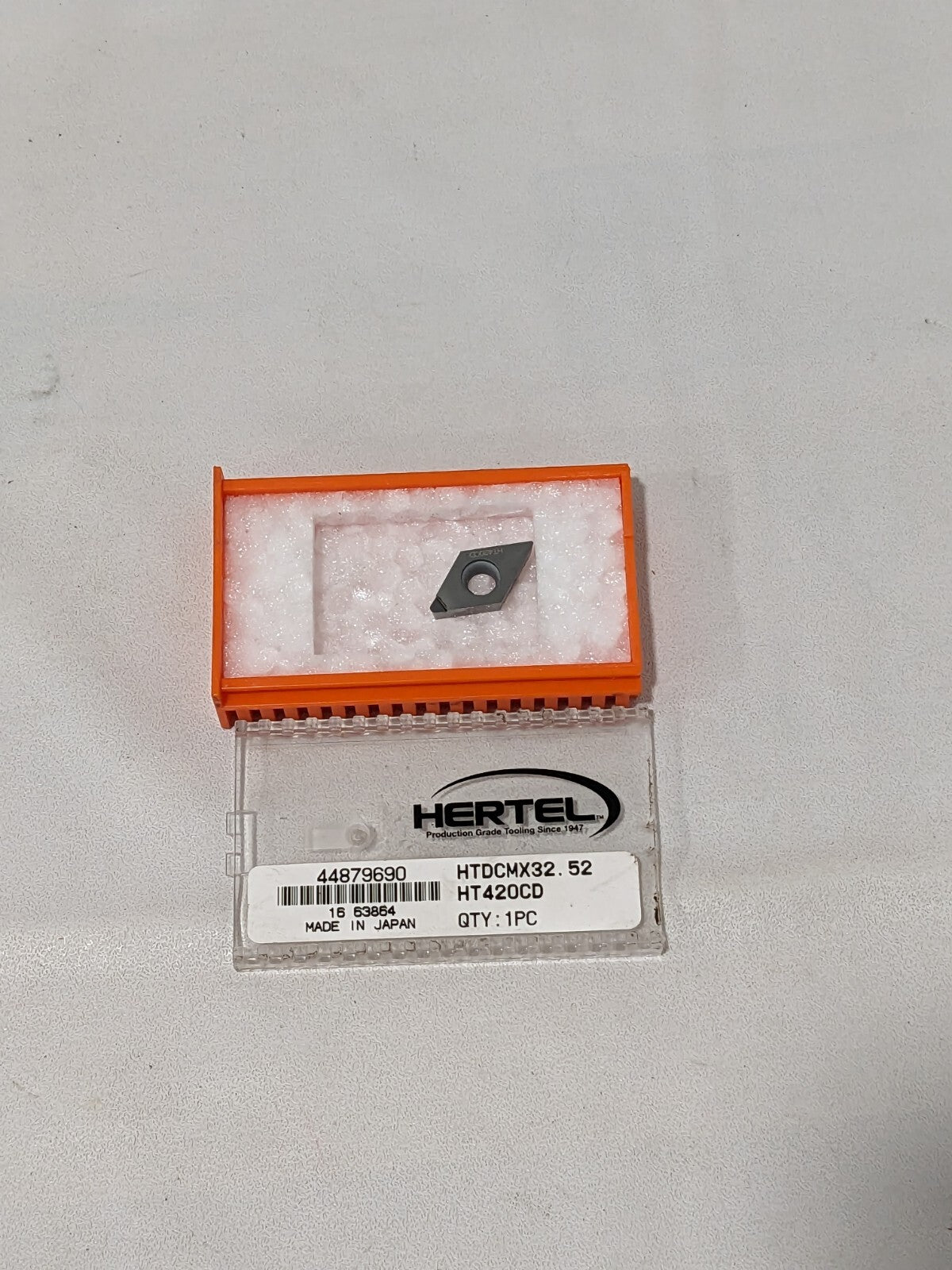

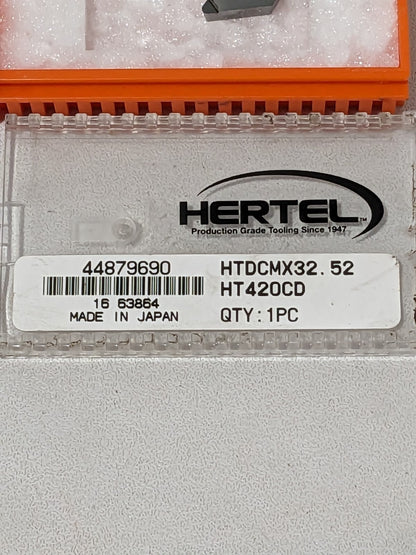

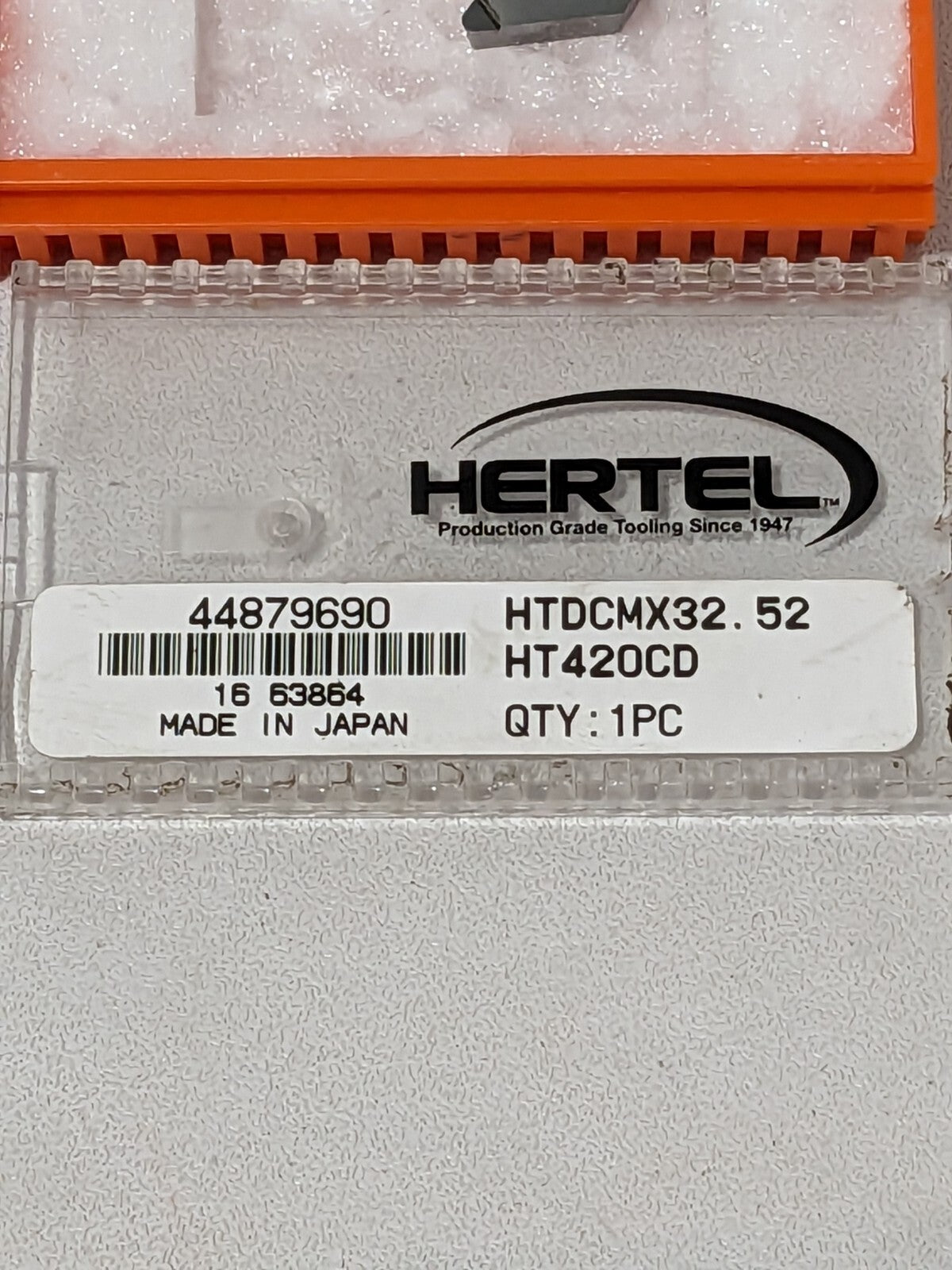

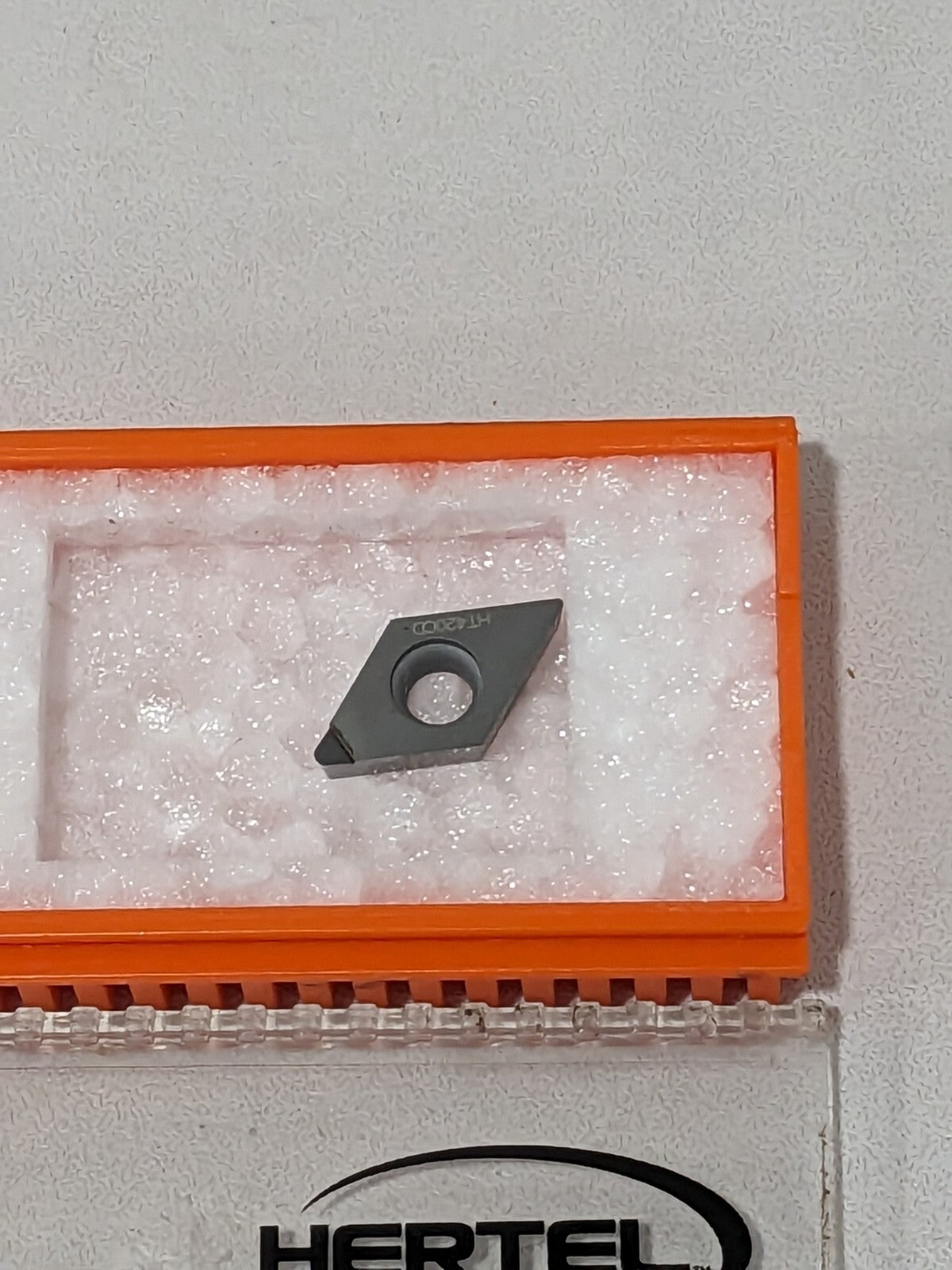

HERTEL Turning Insert: HTDCMX32.52 HT420CD, PCD 44879690

Hertel
Turning Insert

MSRP: $30.00

• Insert Style DCMX
• ISO Size Code 11T308
• ANSI Size Code 32.52
• Insert Shape D - Diamond (Rhombic) 55-Deg
• Inscribed Circle (Decimal Inch) 0.3750
• Inscribed Circle (Inch) 3/8
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0313
• Insert Material PCD
• Manufacturer Grade HT420CD
• Coating/Finish Bright/Uncoated
• Insert Thickness (Decimal Inch) 0.1560
• Insert Thickness (Inch) 5/32
• Grade Characteristics Hardened Materials (H) - High Wear-Resistance
• Side Clearance Negative
• Insert Shape Code D
• Hole Diameter (Decimal Inch) 0.2030
• ISO Insert Code DCMX11T308
• ANSI Insert Code DCMX32.52
• Insert Holding Method Screw
• Clearance Code C
• Tolerance Code M
• Primary Workpiece Material Code H
• Material Grade C2
• Chip Breaker X
• UNSPSC Code 23242105
• Insert Size Code 32.52

This item appears to be new and in good condition. SOLD AS IS.

Please review photos, comes as shown.
