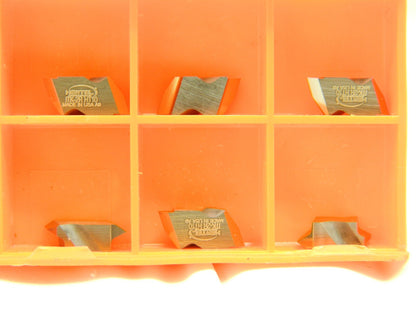

Hertel Solid Carbide Threading Insert:2 Size ITK Style HT10 Grade Qty 10 5002909

Hertel
1 Lot of 10 Inserts

MSRP: $60.00

• Insert Style: ITK
• Insert Material: Solid Carbide
• Manufacturer Grade: HT10
• Thread Type: Internal & External
• Thread Standard: Partial Profile 60 Deg
• Insert Hand: Right Hand
• Internal Pitch: 12 to 24 TPI; 1.00 to 2.00 mm
• External Pitch: 14-44 TPI; 0.60-1.75 mm
• Included Angle: 60
• Series: HertelNotch
• Tip to Top of Insert (Decimal Inch): 0.1100
• Minimum Corner Radius (Decimal Inch): 0.0020
• Maximum Corner Radius (Decimal Inch): 0.0040
• Insert Size: 2
• Thickness (Decimal Inch - 4 Decimals): 0.1500
• Finish Coating: Uncoated

These items are new and in great condition. SOLD AS IS.

Please review photos, comes as shown.
