Hertel Neutral Rake Indexable Turning Toolholder 3/8" x 3/8" SCGCR062 1002875
Hertel Neutral Rake Indexable Turning Toolholder 3/8" x 3/8" SCGCR062 1002875
Regular price
$30.66 USD
Regular price
$65.00 USD
Sale price
$30.66 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Hertel
MSRP: $65
Model: 1002875
Description:
Hand of Holder Right Hand
Toolholder Style SCGC
Rake Neutral
Rake Angle 0
Series Screw-On
Lead Angle 0
Shank Width (Inch) 3/8
Shank Width (Decimal Inch) 0.3750
Shank Height (Inch) 3/8
Shank Height (mm) 9.53
Shank Height (Decimal Inch) 0.3750
Overall Length (Inch) 2-1/2
Overall Length (mm) 63.50
Overall Length (Decimal Inch) 2.5000
Insert Compatibility CC..21.5.
Multi-Use Tool No
Insert Holding Method Screw
Back of Bar to Cutting Edge (Inch) 1/2
Back of Bar to Cutting Edge (Decimal Inch) 0.5000
Head Length (Decimal Inch) 0.5000
Insert Inscribed Circle (Inch) 1/4
Insert Inscribed Circle (Decimal Inch) 0.2500
Toolholder Material Steel

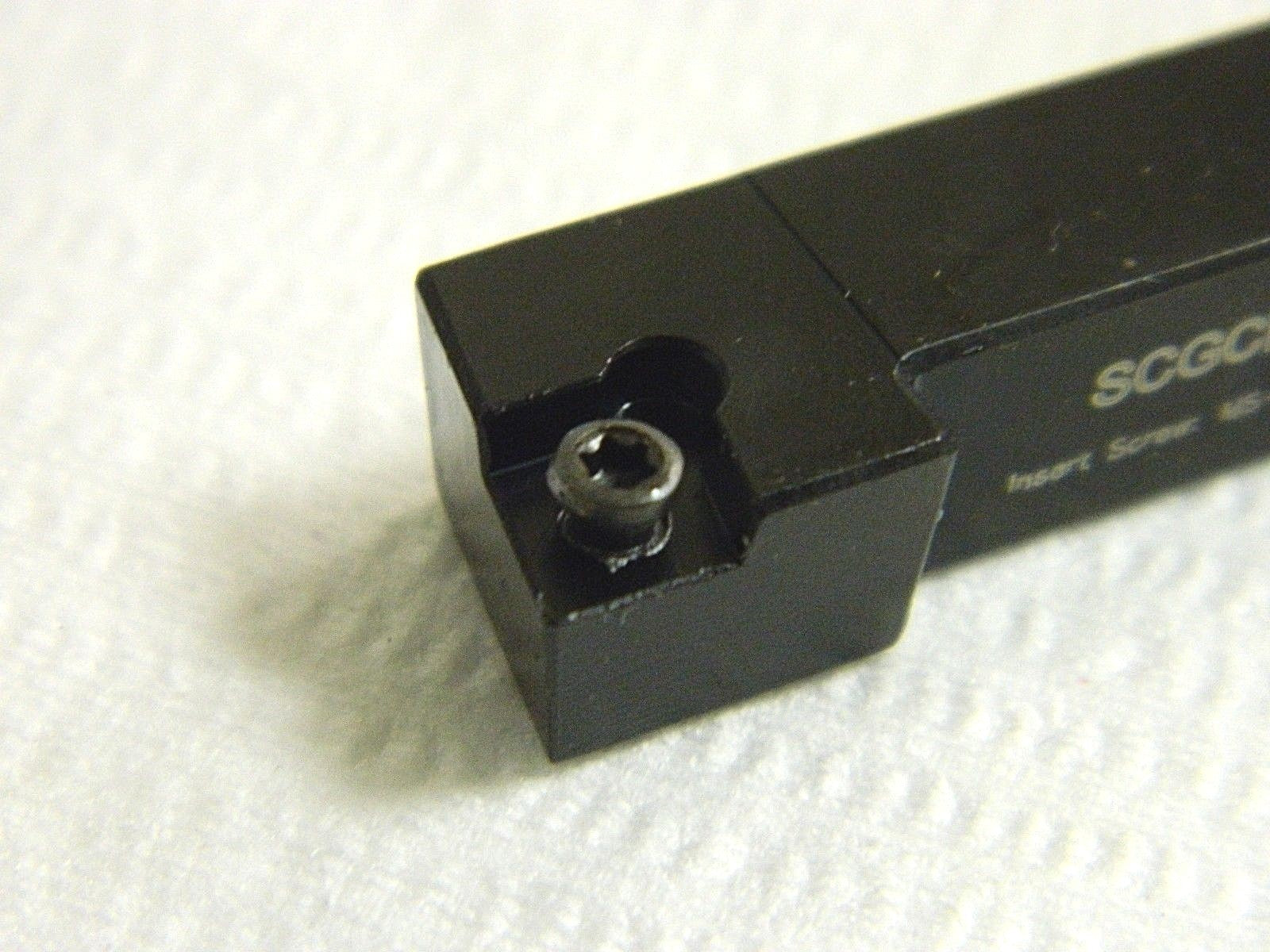

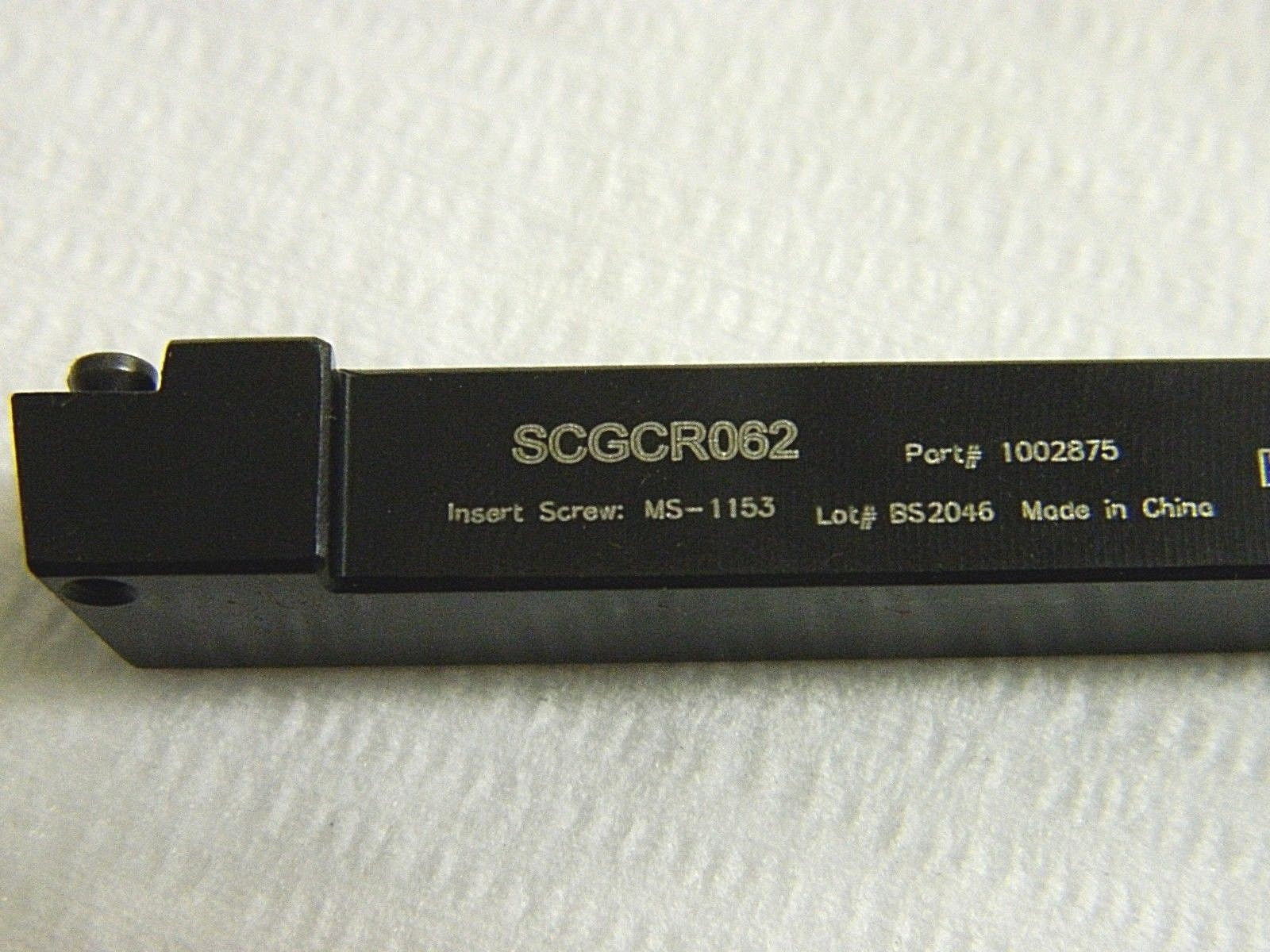

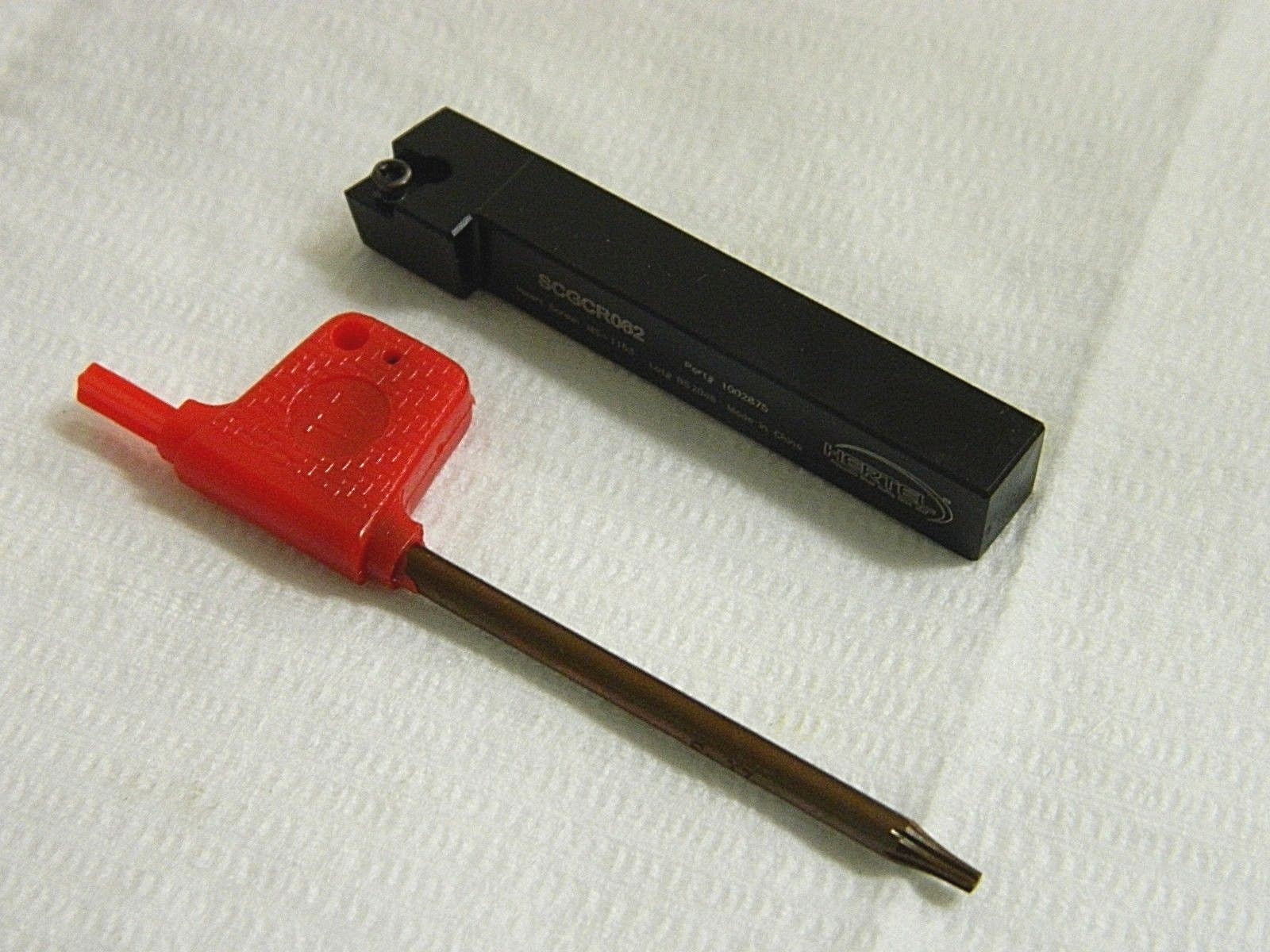

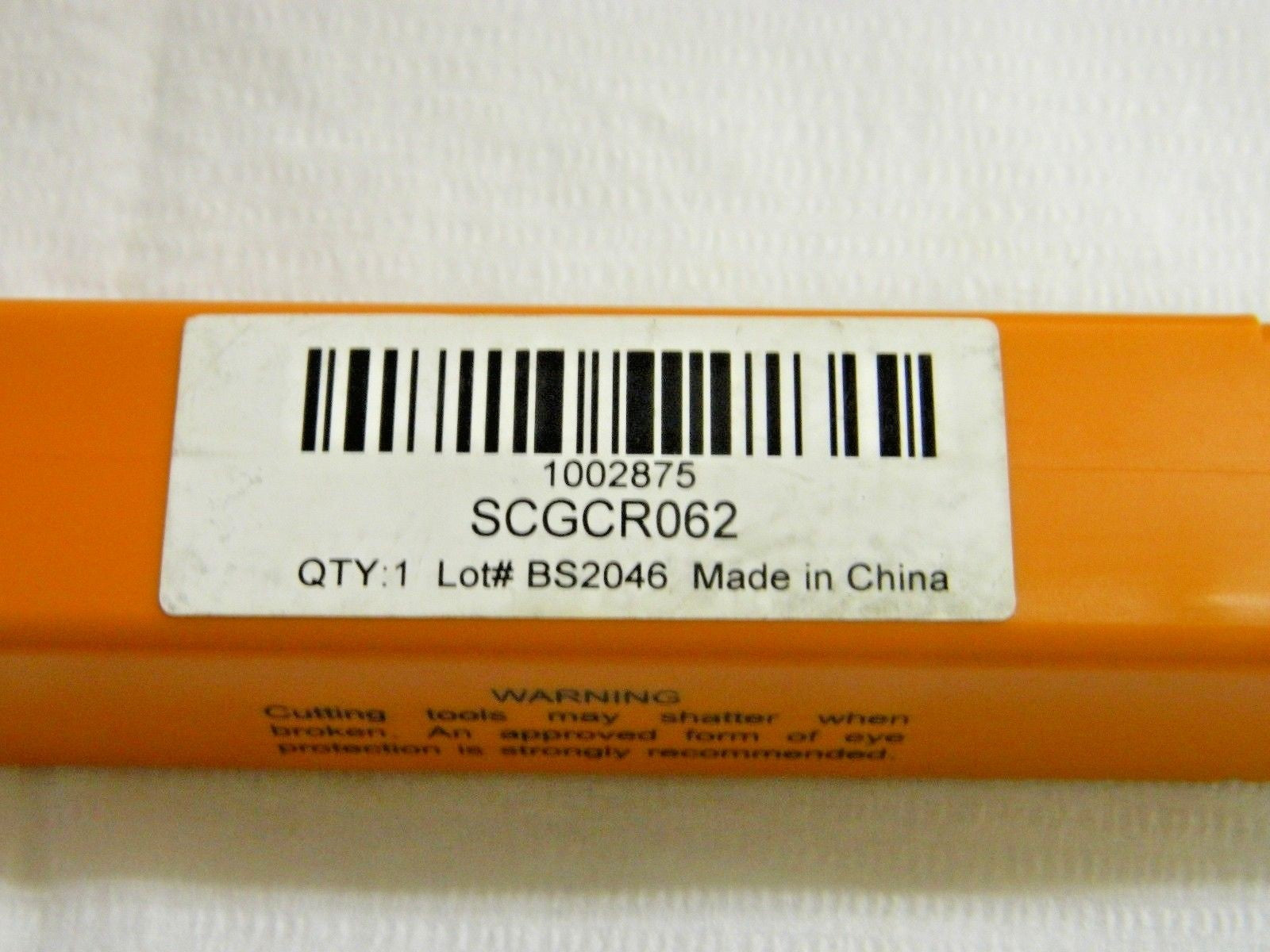

This listing is for One Neutral Rake Indexable Turning Toolholder that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
Vivian August 0618
VM3634
Cab R Bin 17
