Hertel Indexable Turning Toolholder SCLC Right Hand 5° 3/8" Shank Height 1002880
Hertel Indexable Turning Toolholder SCLC Right Hand 5° 3/8" Shank Height 1002880
Regular price
$33.02 USD
Regular price
$70.00 USD
Sale price
$33.02 USD
Shipping calculated at checkout.
Hertel
MSRP: $70
Model: 1094491
Description:
Hand of Holder Right Hand
Toolholder Style SCLC
Rake Neutral
Rake Angle 0
Series Screw-On
Lead Angle 5
Shank Width (Inch) 3/8
Shank Width (Decimal Inch) 0.3750
Shank Height (Inch) 3/8
Shank Height (mm) 9.53
Shank Height (Decimal Inch) 0.3750
Overall Length (Inch) 6
Overall Length (mm) 152.40
Overall Length (Decimal Inch) 6.0000
Insert Compatibility CC..21.5.
Multi-Use Tool No
Insert Holding Method Screw
Back of Bar to Cutting Edge (Inch) 3/8
Back of Bar to Cutting Edge (Decimal Inch) 0.3750
Head Length (Decimal Inch) 0.5000
Insert Inscribed Circle (Inch) 1/4
Insert Inscribed Circle (Decimal Inch) 0.2500
Toolholder Material Steel

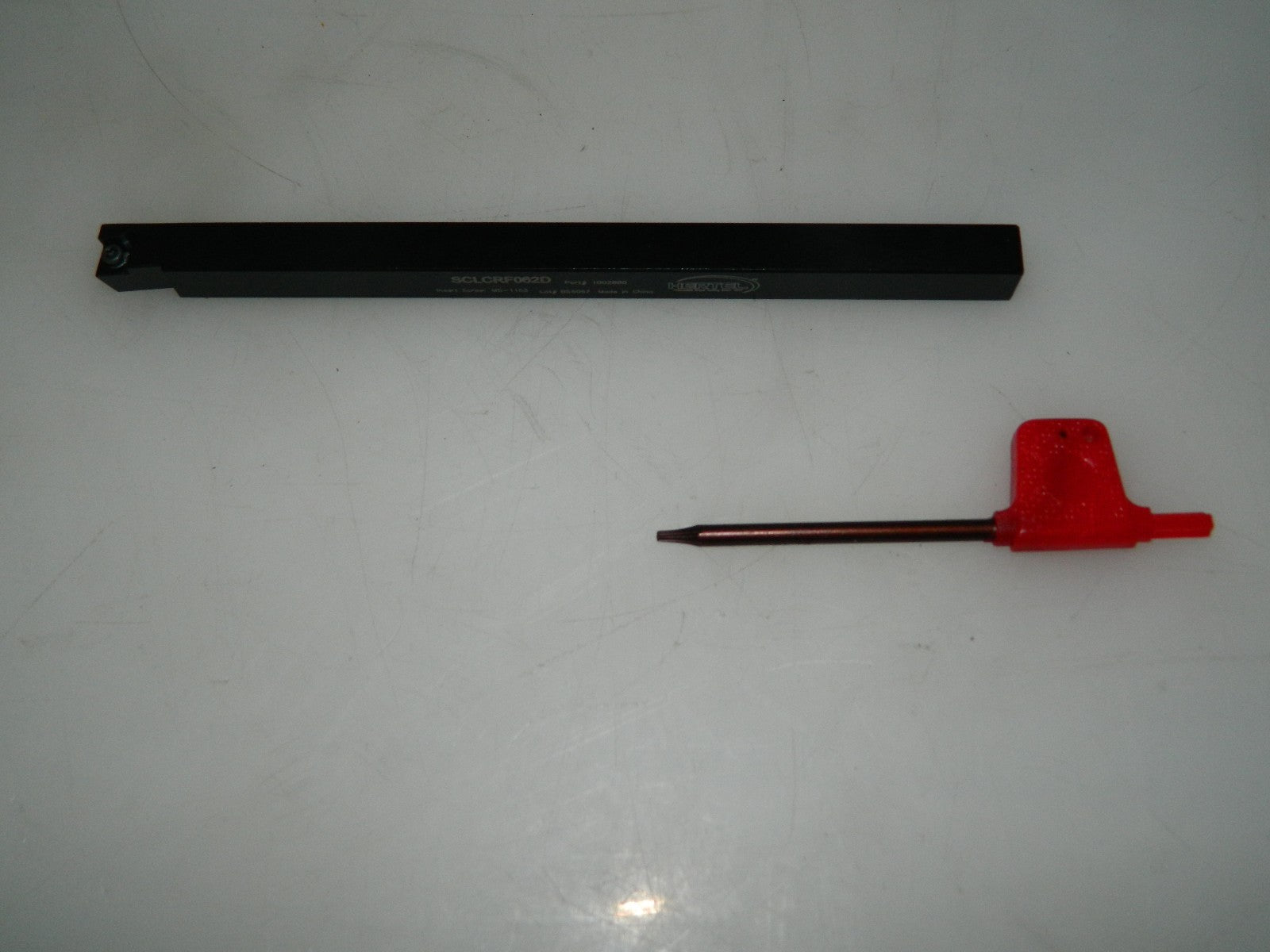

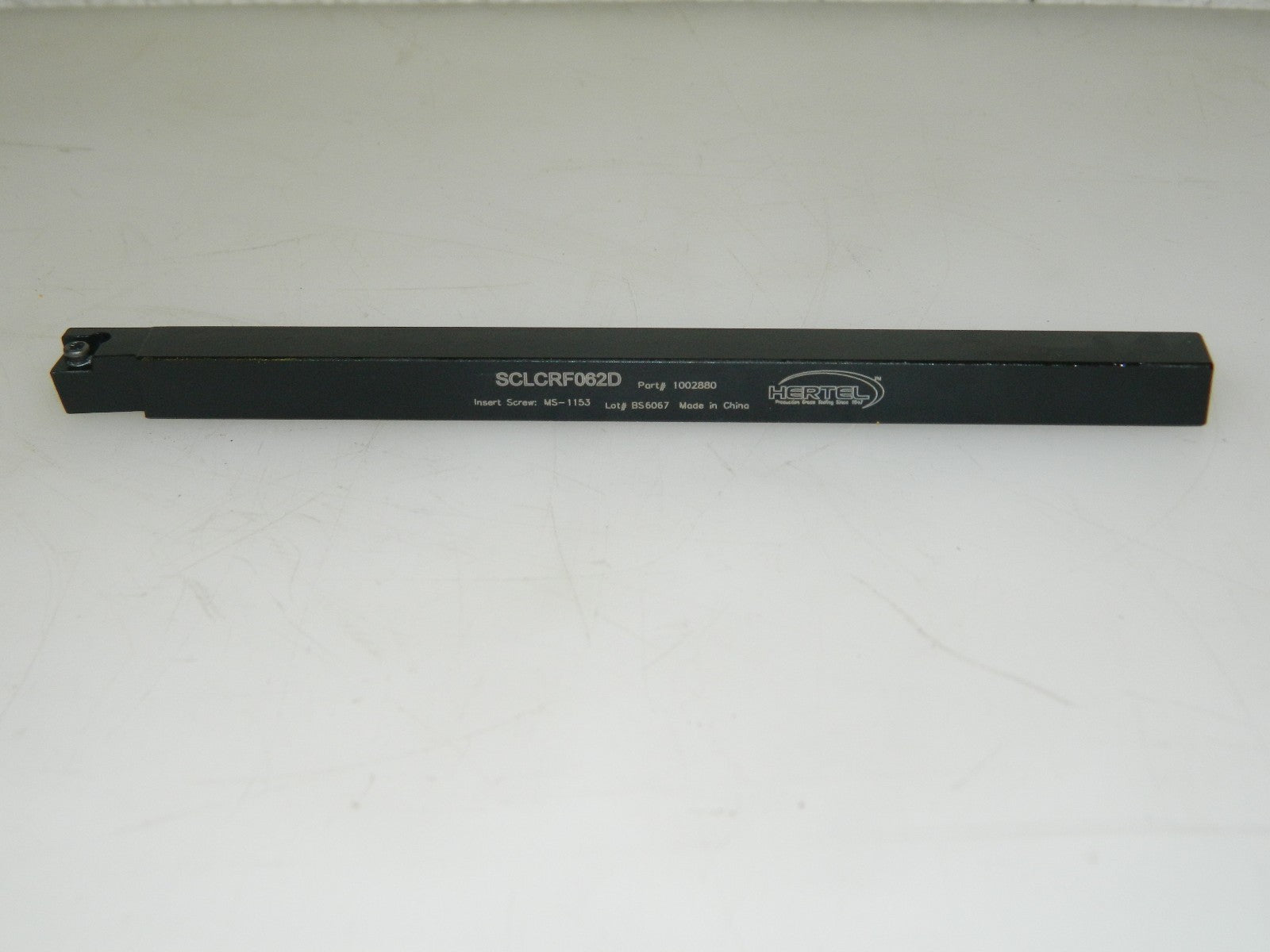

This listing is for One indexable turning toolholder that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
