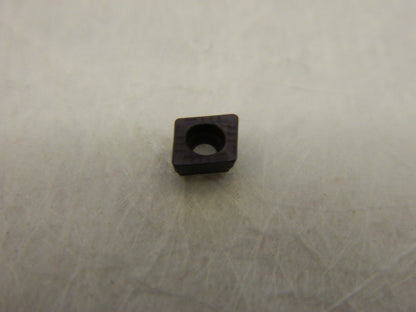

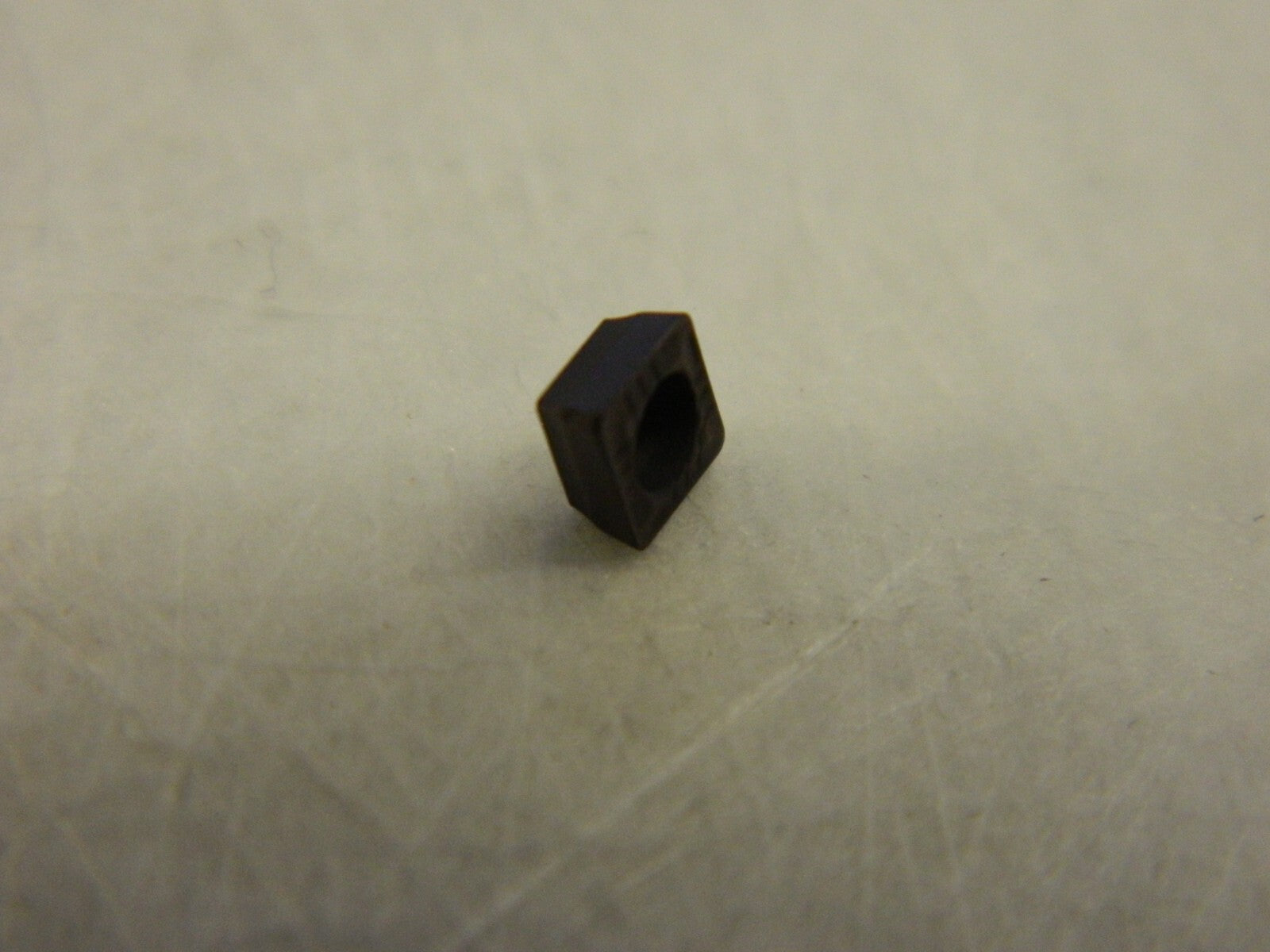

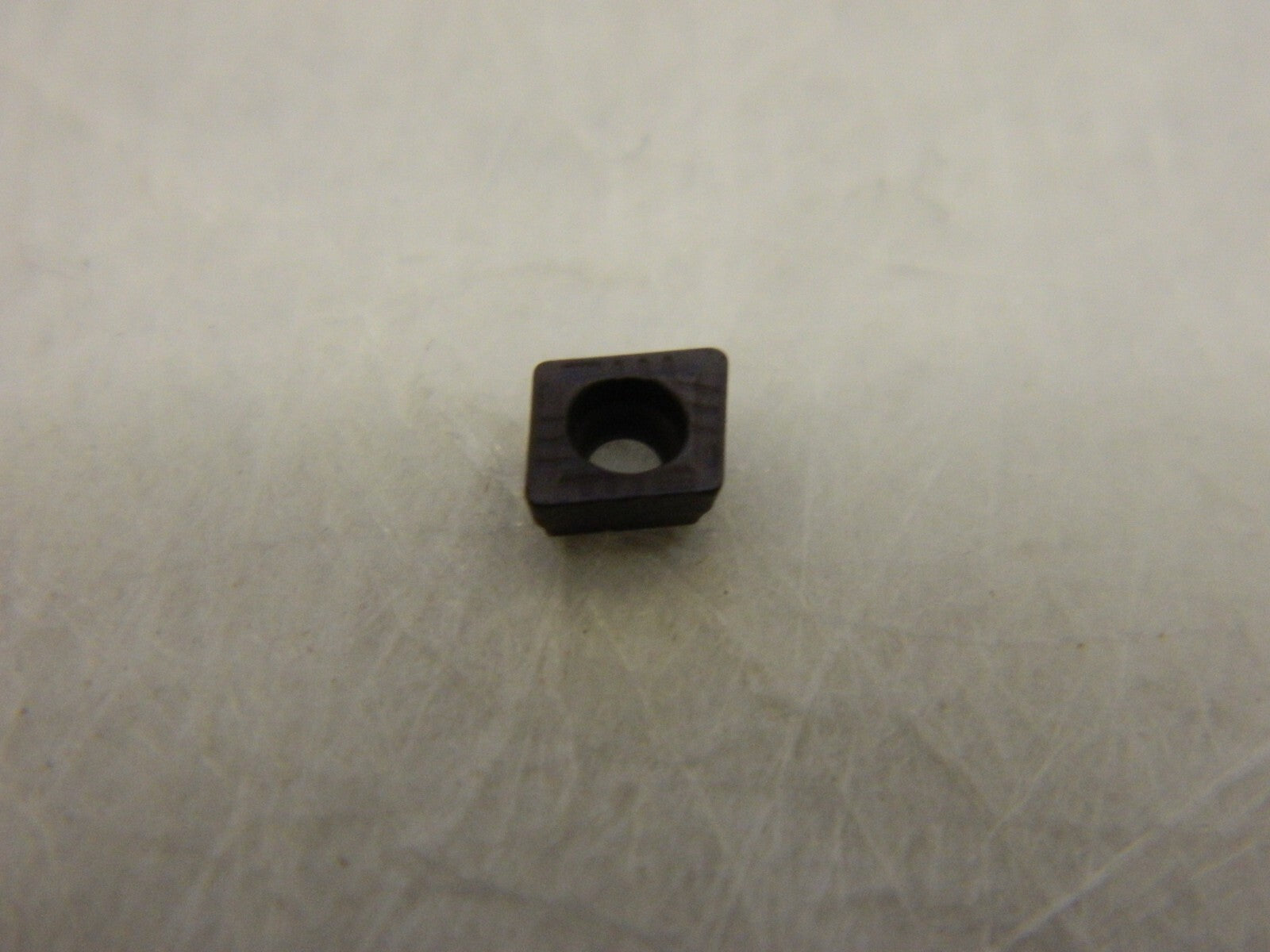

HERTEL Indexable Drill Insert: HPMTGP HP130D, Carbide 4006154

HERTEL

Indexable Drill Insert: HPMTGP HP130D, Carbide 4006154
MSRP: $120

• Insert Style HPMT
• Insert Material Solid Carbide
• Manufacturer Grade HP130D
• Inscribed Circle (Decimal Inch) 0.1654
• Inscribed Circle (mm) 4.20
• Cutting Direction Neutral
• Corner Radius (Decimal Inch) 0.0157
• Corner Radius (mm) 0.40
• Chipbreaker GP
• Coating Process PVD
• Shape Diamond
• Hole Diameter (Decimal Inch) 0.0709
• Hole Diameter (Mm) ( - 0 Decimals) 1.80
• Relief Angle 11
• Insert Size 042004
• Width (Decimal Inch - 4 Decimals) 0.1654
• Length (Decimal Inch - 4 Decimals) 0.1654
• Included Angle Degree 80
• Thickness (Decimal Inch - 4 Decimals) 0.0788
• Coating/Finish AlCrN; TiAlN

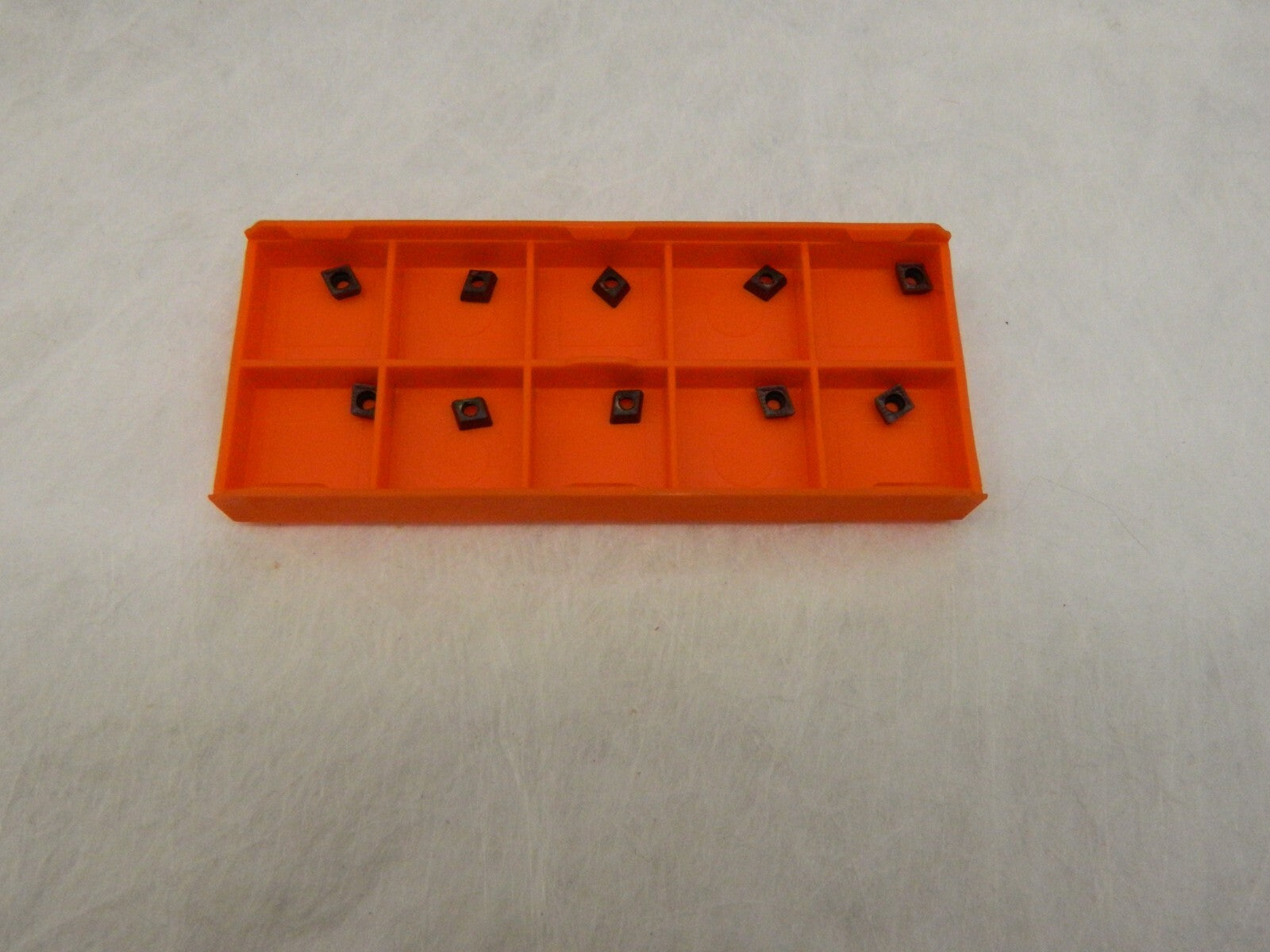

 Please review photos, comes as shown.
