Hertel DCMT21.51 LF Grade HC210 Carbide Turning Insert QTY 5 05694575
Hertel DCMT21.51 LF Grade HC210 Carbide Turning Insert QTY 5 05694575
Regular price
$29.37 USD
Regular price
$60.00 USD
Sale price
$29.37 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Hertel
MSRP: $60.00
Model: 05694575
Description:
Insert Style DCMT
Insert Size 21.51
Material Carbide
Length (mm) 7.75
Length (Decimal Inch) 0.3051
Inscribed Circle (Inch) 1/4
Thickness (Inch) 3/32
Thickness (Decimal Inch) 0.0938
Corner Radius (Inch) 1/64
Corner Radius (Decimal Inch) 0.0160
Manufacturer's Grade HC210
Coating TiN
Material Grade C2/C4
Chip Breaker LF
Hole Diameter (mm) 2.80
Hole Diameter (Decimal Inch) 0.1102
Rake Positive
Relief Angle 7
Coating Process PVD
Primary Workpiece Material N; S; M
Secondary Workpiece Material K
Included Angle 55
Insert Hand Neutral
Series Screw-On
Maximum Depth of Cut (mm) 1.25
Maximum Depth of Cut (Decimal Inch) 0.0492
Insert Holding Method Screw
Shape Diamond

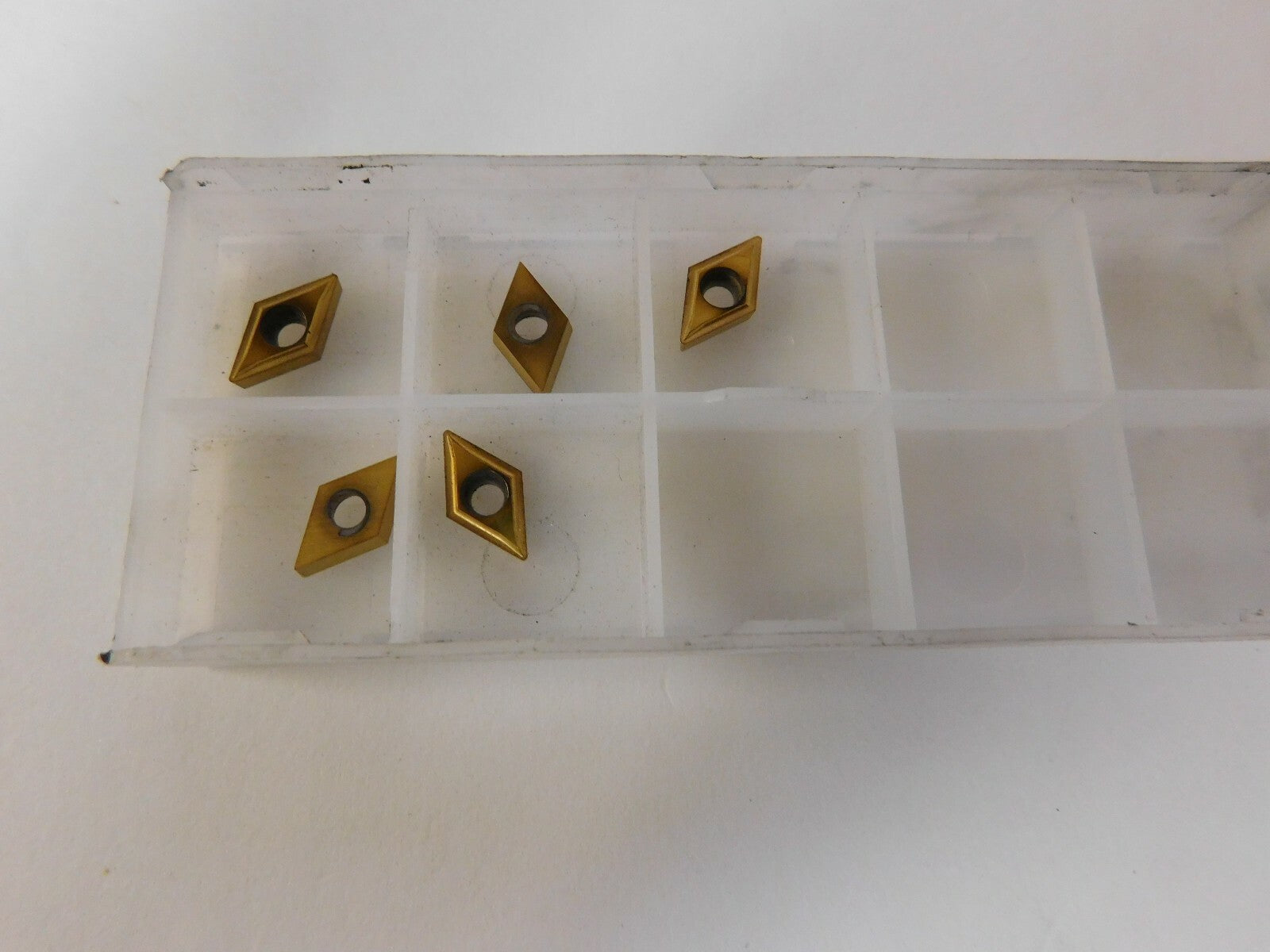

This listing is for One Lot of 5 inserts that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
Cristy june 19 2019
CM 3054
XX 29
