Hertel Carbide Turning Inserts SNG432 Grade-HT10 05692751 box of 10

Hertel

1 Lot of 10 Inserts

MSRP: $80.00

• ANSI Insert Code SNG432
• ISO Insert Code SNG120408
• Relief Angle 0
• Insert Style SNG
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0310
• Included Angle 90
• Manufacturer Grade HT10
• Coating/Finish Bright/Uncoated
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Series KENDEX
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch) 1/2
• Insert Material Carbide
• Insert Shape S - Square
• Side Clearance Negative
• Insert Shape Code S
• Maximum Depth of Cut (mm) 1.25
• Maximum Depth of Cut (Decimal Inch) 0.0492
• Insert Holding Method Clamp
• Rake Negative
• Primary Workpiece Material Code S; N
• Secondary Workpiece Material Code K; M
• Iso Code SNG432
• Material Grade C2
• ANSI Size Code 432
• ISO Size Code 120408
• UNSPSC Code 23242105
• Insert Size Code 432

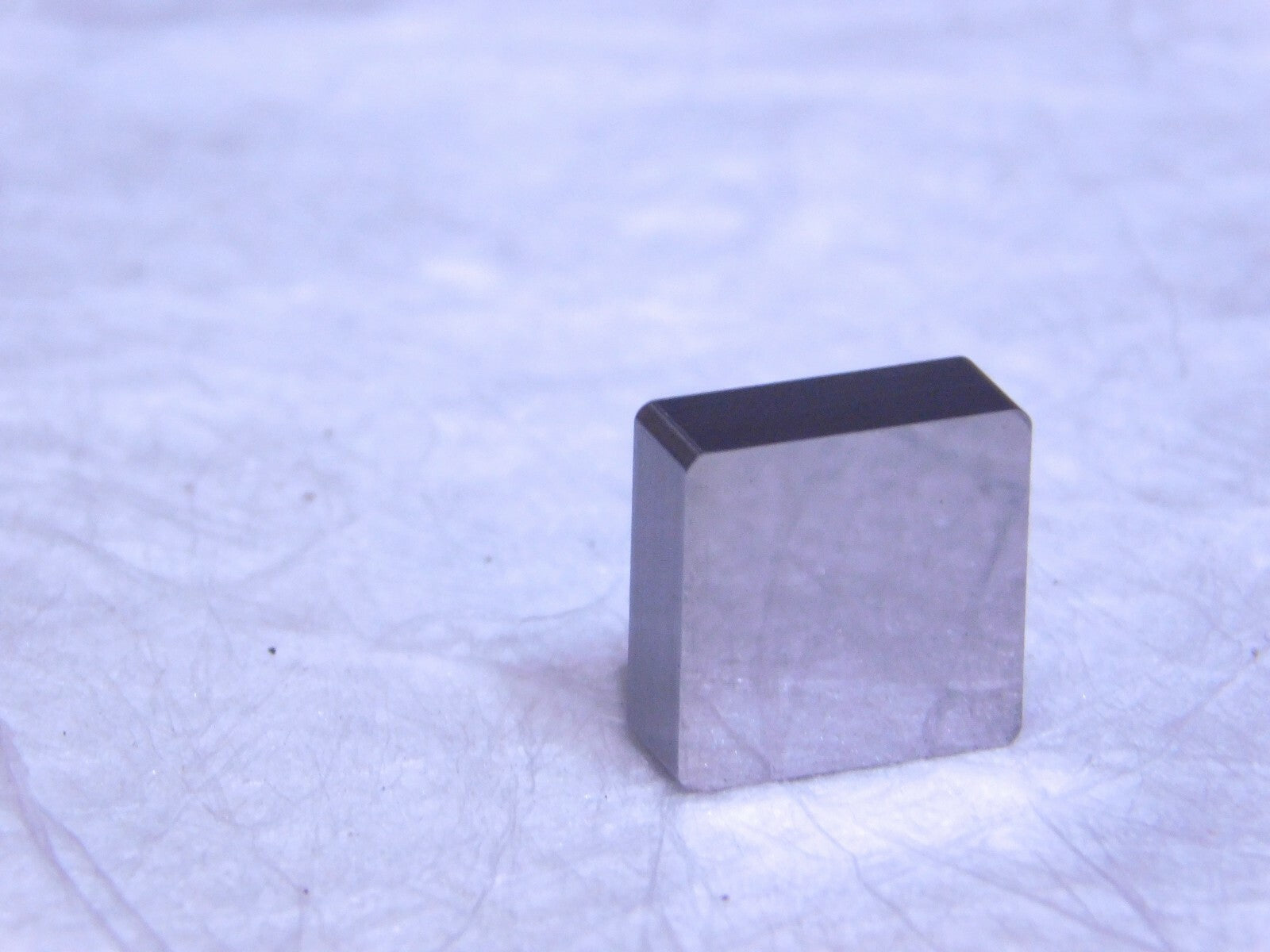

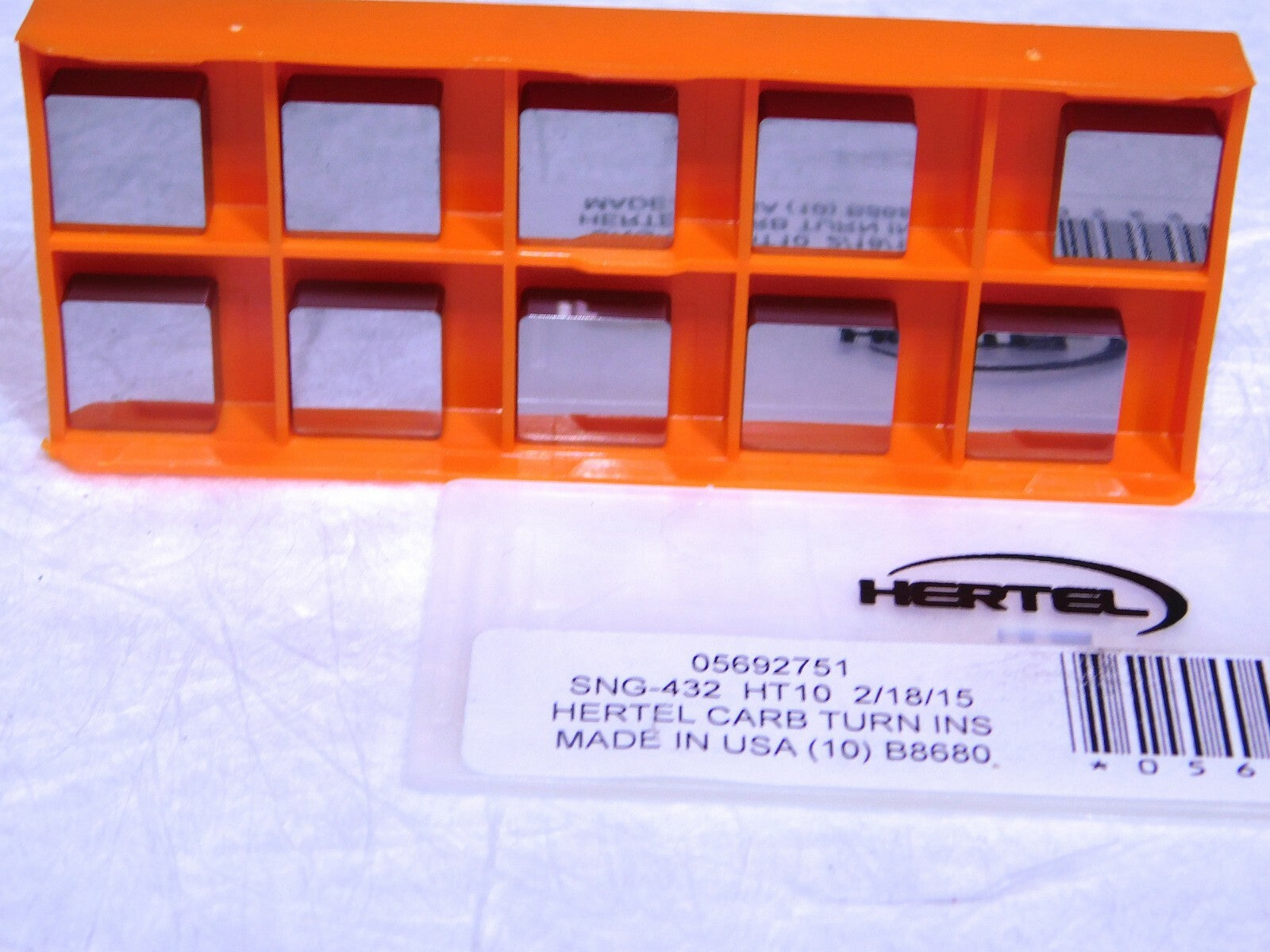

Please review photos, comes as shown.
