Hertel Carbide Turning Insert TNG222 Grade HC335 QTY 10 05692918
Hertel Carbide Turning Insert TNG222 Grade HC335 QTY 10 05692918
Regular price
$48.95 USD
Regular price
$100.00 USD
Sale price
$48.95 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Hertel
MSRP: $100.00
Model:05692918
Description:
Insert Style TNG
Insert Size 222
Material Carbide
Length (Decimal Inch) 0.4330
Inscribed Circle (Inch) 1/4
Thickness (Inch) 1/8
Thickness (Decimal Inch) 0.1250
Corner Radius (Inch) 1/32
Corner Radius (Decimal Inch) 0.0310
Manufacturer's Grade HC335
Coating TiC/TiCN/TiN
Material Grade C5/C6
Relief Angle 0
Coating Process CVD
Included Angle 60
Insert Hand Neutral
Series KENDEX
Maximum Depth of Cut (mm) 1.25
Maximum Depth of Cut (Decimal Inch) 0.0492
Insert Holding Method Clamp
Shape Triangle

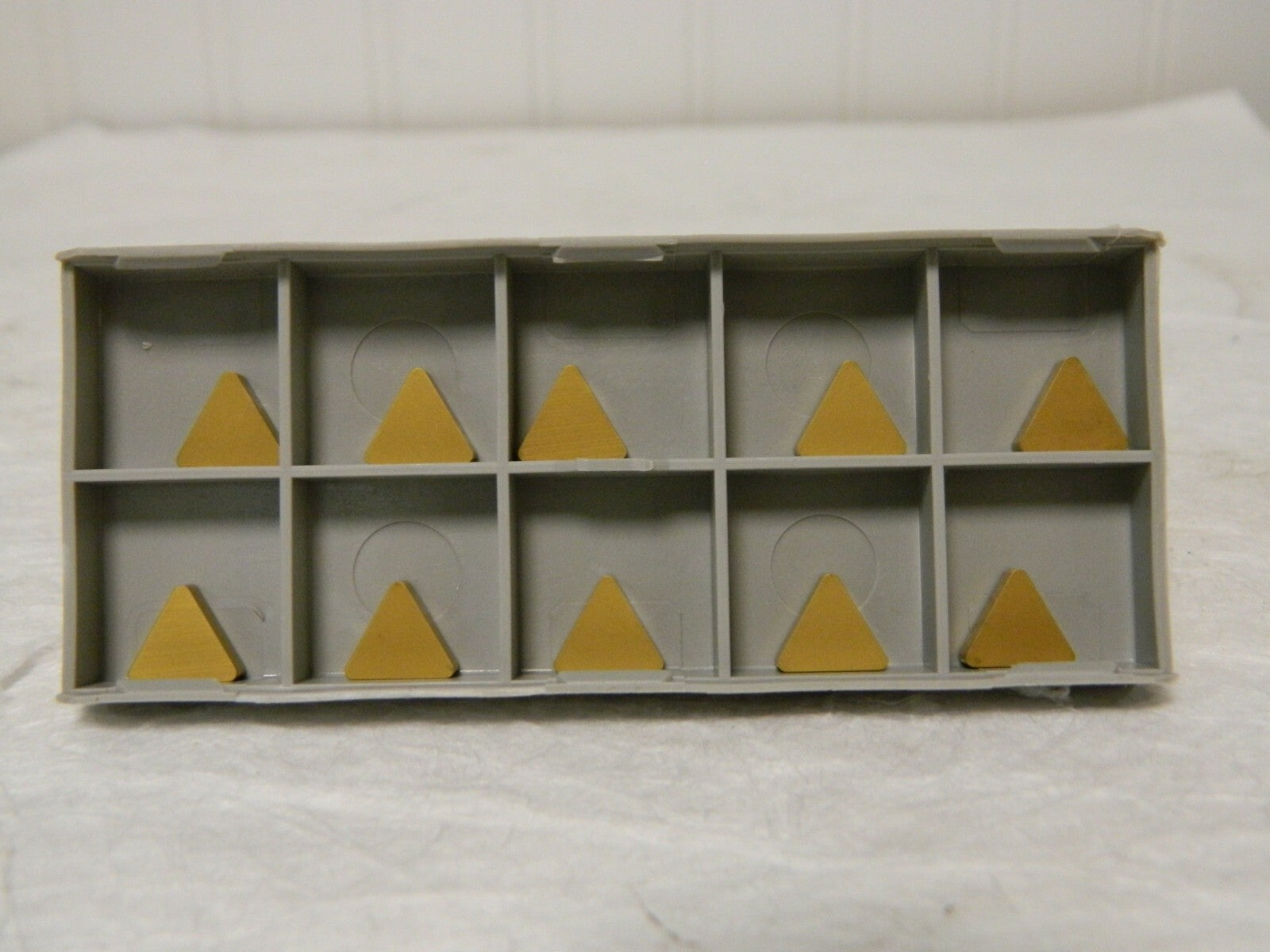

This listing is for One pack of 10 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
