Hertel Carbide Turning Insert SPU633 Grade HT10 QTY 10 91789404
Hertel Carbide Turning Insert SPU633 Grade HT10 QTY 10 91789404
Regular price
$82.55 USD
Regular price
$175.00 USD
Sale price
$82.55 USD
Shipping calculated at checkout.
Hertel
MSRP: $175.00
Model:91789404
Description:
Insert Style SPU
Insert Size 633
Material Carbide
Inscribed Circle (Decimal Inch) 0.7500
Inscribed Circle (Inch) 3/4
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1875
Corner Radius (Inch) 3/64
Corner Radius (Decimal Inch) 0.0470
Manufacturer's Grade HT10
Coating Uncoated
Material Grade C2
Rake Positive
Relief Angle 11
Primary Workpiece Material N; S
Secondary Workpiece Material M; K
Included Angle 90
Insert Hand Neutral
Series KENDEX
Maximum Depth of Cut (mm) 1.25
Maximum Depth of Cut (Decimal Inch) 0.0500
Insert Holding Method Clamp
Shape Square

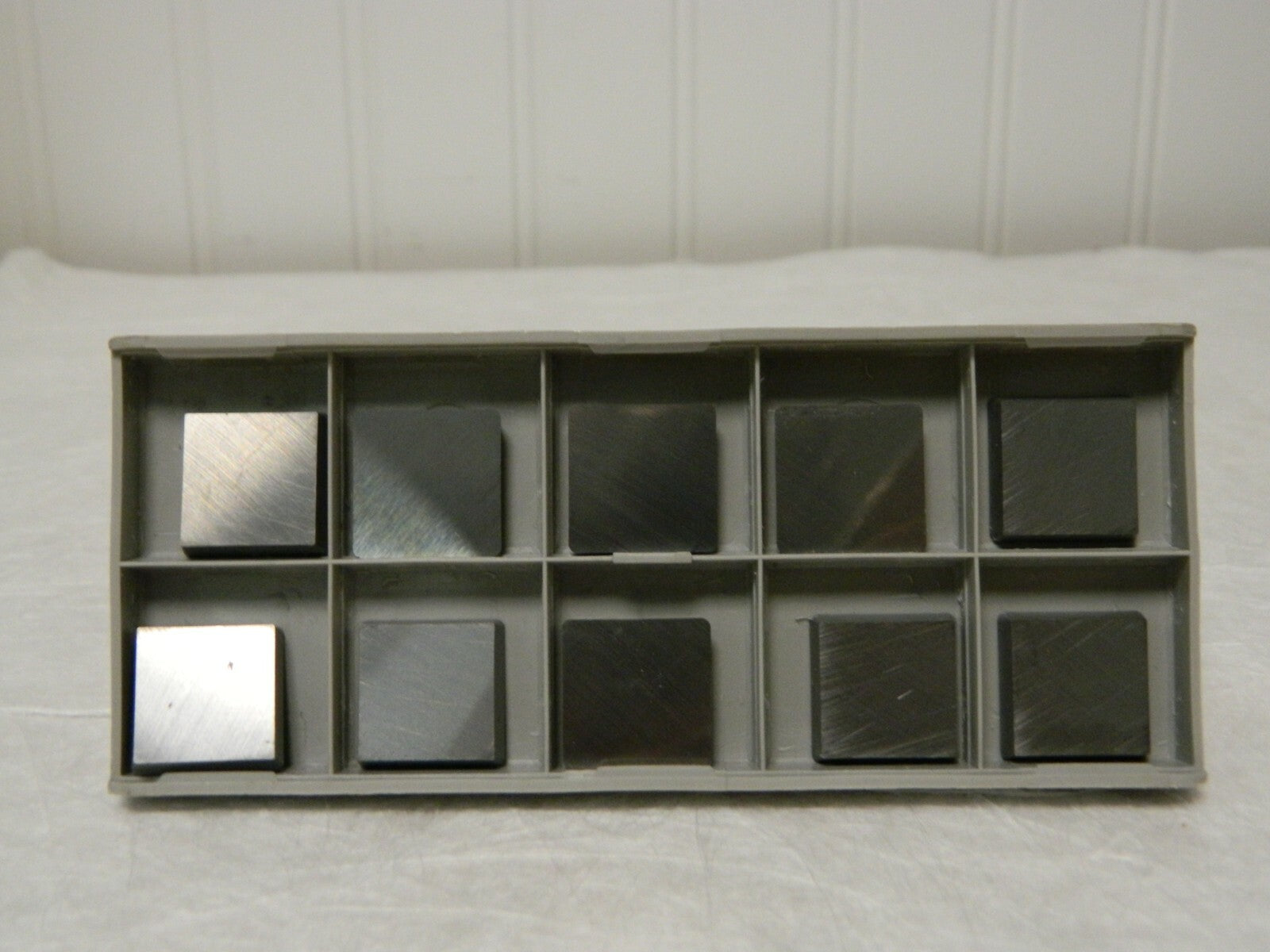

This listing is for One lot of 10 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
