Hertel Carbide Turning Insert SPMR421 Grade HC335 QTY 10 05692637

Hertel
1 Lot of 10 Inserts

• Insert Style SPMR
• Insert Size 421
• Material Carbide
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch) 1/2
• Thickness (Inch) 1/8
• Thickness (Decimal Inch) 0.1250
• Corner Radius (Inch) 1/64
• Corner Radius (Decimal Inch) 0.0156
• Manufacturer's Grade HC335
• Coating TiC/TiCN/TiN
• Material Grade C5/C6
• Rake Positive
• Relief Angle 11
• Coating Process CVD
• Primary Workpiece Material P
• Secondary Workpiece Material M
• Included Angle 90
• Insert Hand Neutral
• Corner Radius (Decimal Inch) 1/64
• Shape Square

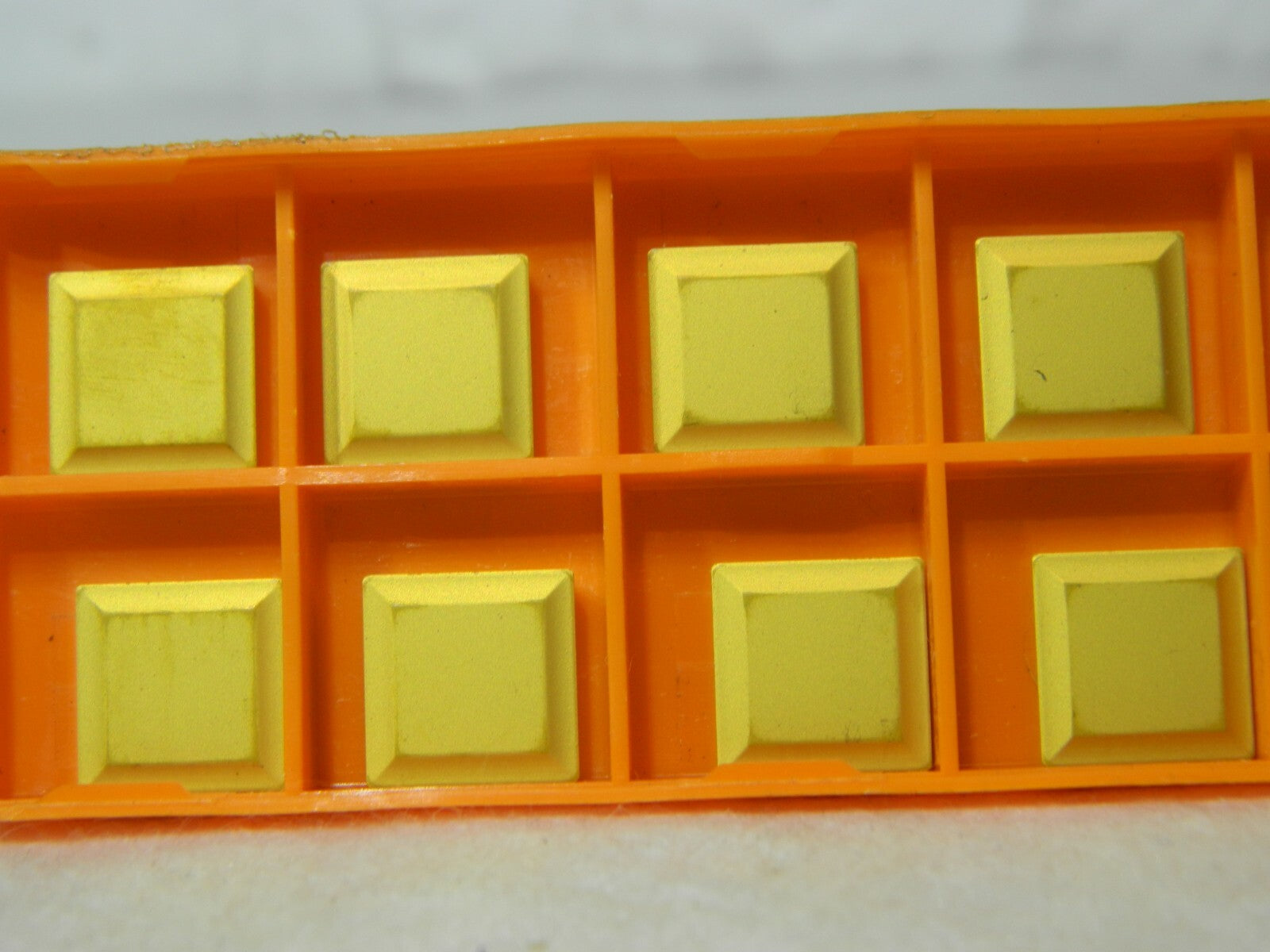

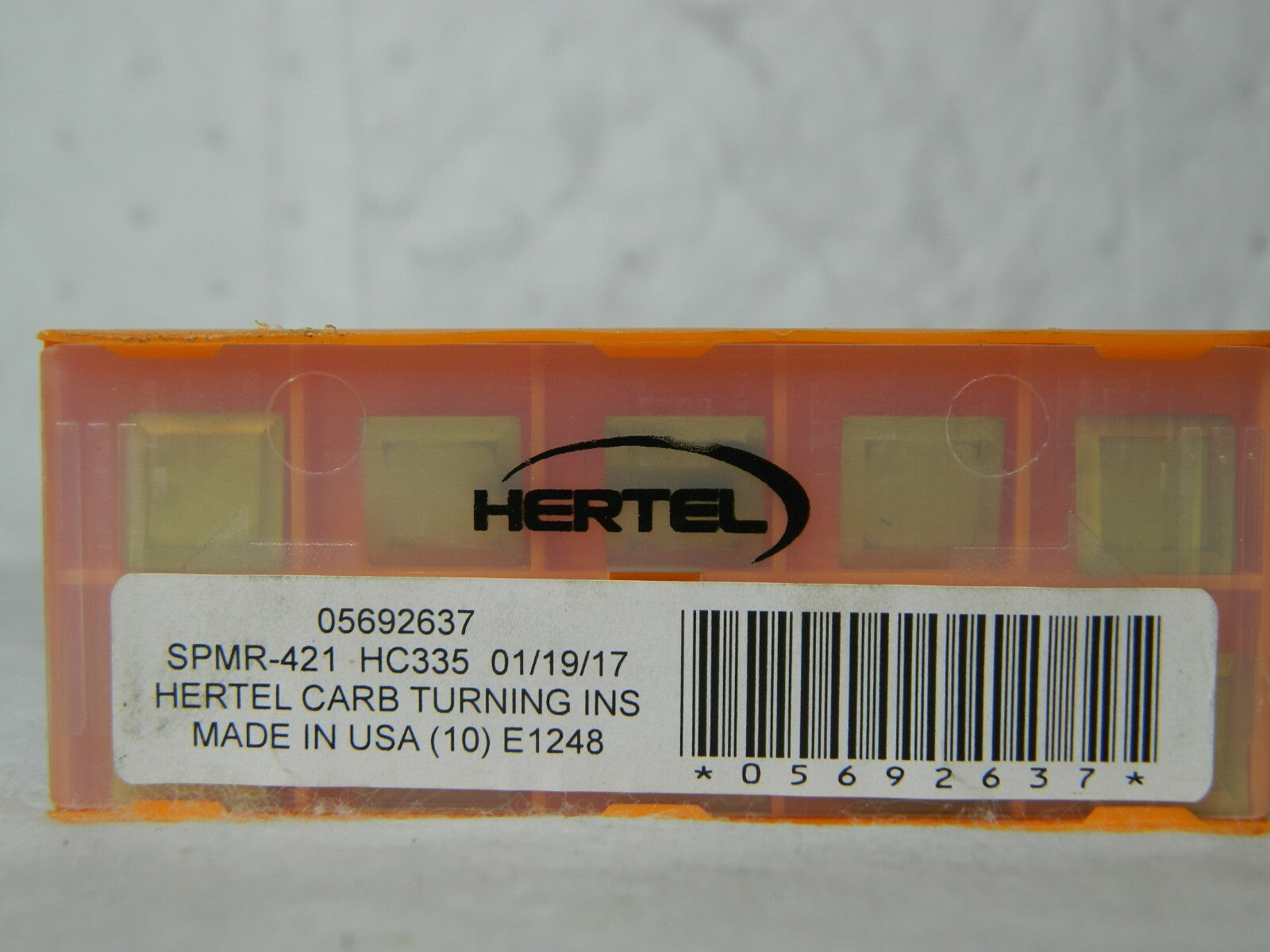

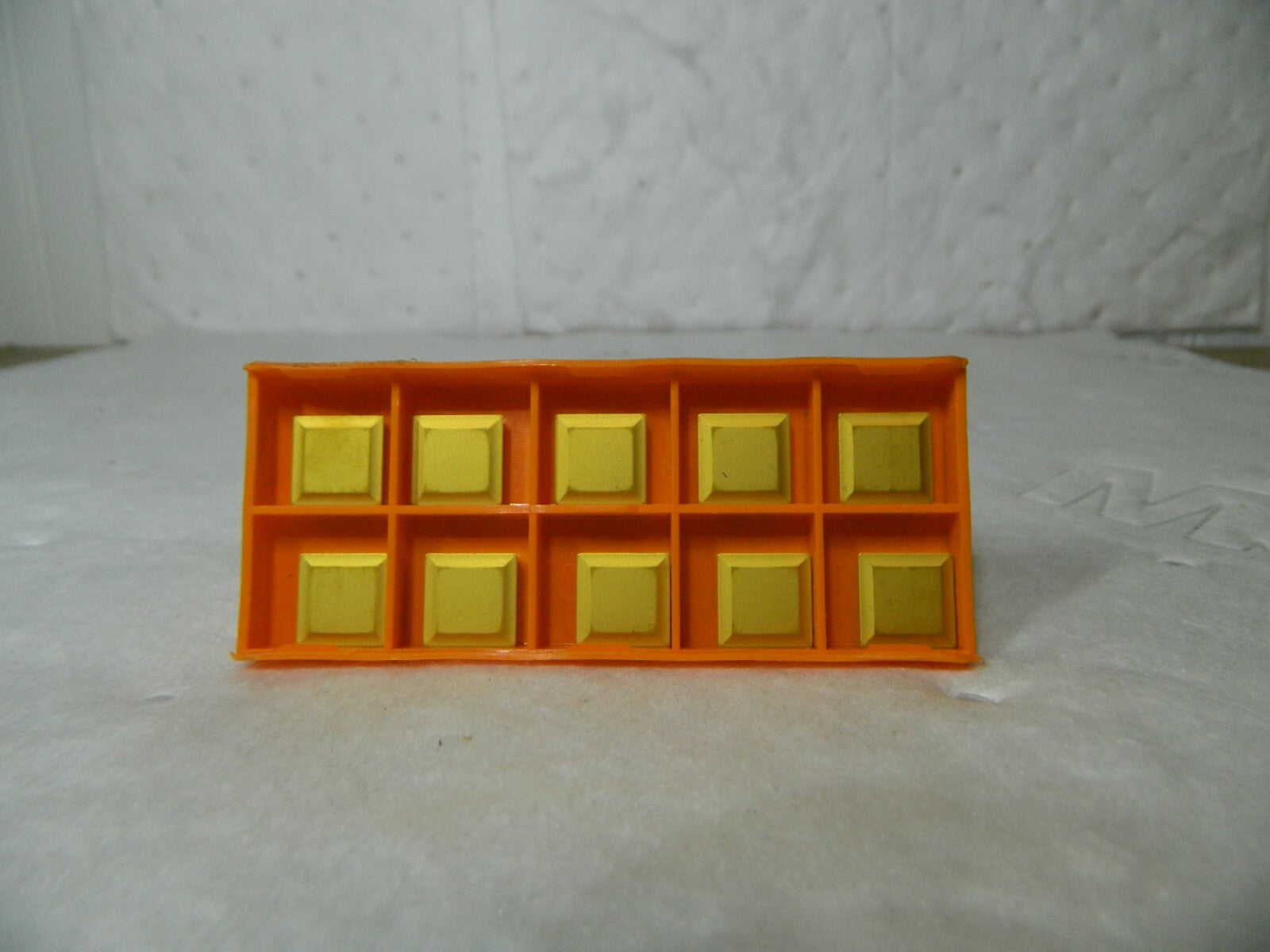

Please review photos, comes as shown.
