Hertel Carbide Turning Insert SNG424 Grade HC335 QTY 10 05692850
Hertel Carbide Turning Insert SNG424 Grade HC335 QTY 10 05692850
Regular price
$46.28 USD
Regular price
$100.00 USD
Sale price
$46.28 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Hertel
MSRP: $100.00
Model: 05692850
Description:
Insert Style SNG
Insert Size 424
Material Carbide
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Thickness (Inch) 1/8
Thickness (Decimal Inch) 0.1250
Corner Radius (Inch) 1/16
Corner Radius (Decimal Inch) 0.0625
Manufacturer's Grade HC335
Coating TiC/TiCN/TiN
Material Grade C5/C6
ISO Number SNG424
Relief Angle 0
Coating Process CVD
Primary Workpiece Material P
Secondary Workpiece Material M
Included Angle 90
Insert Hand Neutral
Maximum Depth of Cut (mm) 1.25
Maximum Depth of Cut (Decimal Inch) 0.0492
Insert Holding Method Clamp
Shape Square

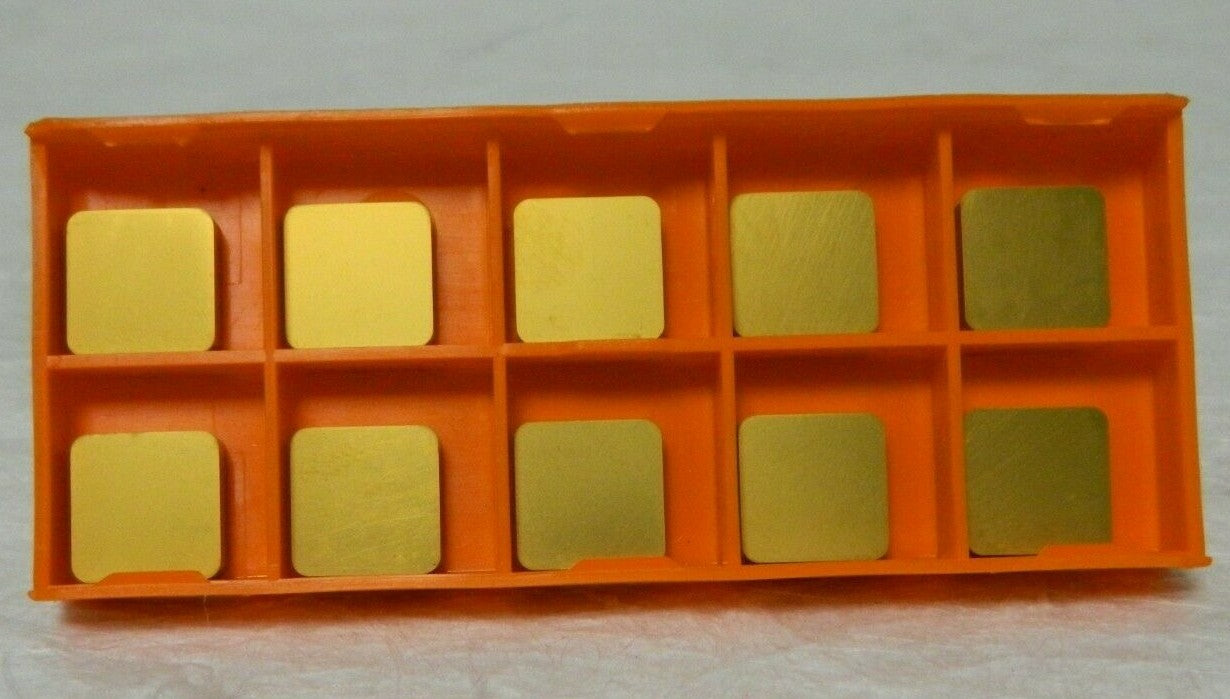

This listing is for One Pack of 10 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
