Hertel 3.622" Max Drill Depth 4xD 0.9055" Diam Indexable Insert Drill 39270178
Hertel 3.622" Max Drill Depth 4xD 0.9055" Diam Indexable Insert Drill 39270178
Regular price
$156.64 USD
Regular price
$320.00 USD
Sale price
$156.64 USD
Shipping calculated at checkout.
Hertel
MSRP: $320.00
Model: 39270178
Description:
Drill Style HID
Drill Diameter (mm) 23.00
Drill Diameter (Inch) 0.9055
Drill Diameter (Decimal Inch) 0.9055
Maximum Drill Depth (mm) 92.00
Maximum Drill Depth (Decimal Inch) 3.6220
Maximum Drill Depth (Inch) 3.622
Shank Type Straight
Shank Diameter (mm) 25.00
Shank Diameter (Decimal Inch) 0.9843
Shank Diameter (Inch) 0.9843
Cutting Direction Right Hand
Through Coolant Through Coolant
Drill Depth by Diameter Ratio 4xD
Toolholder Material Steel
Number of Drill Inserts 2
Maximum Drill Diameter (Decimal Inch) 0.9330
Overall Length/Projection (mm) 113.00
Overall Length/Projection (Decimal Inch) 4.4488
Insert Compatibility (Outside or Peripheral) None
Insert Compatibility HPMT074006-GP
Flute Length (mm) 95.00
Flute Length (Decimal Inch) 3.7402
Body Length (Decimal Inch) 6.6535
Body Length (mm) 169.00
Shank Length (mm) 56.00
Shank Length (Decimal Inch) 2.2047
Collar Diameter (mm) 37.00
Collar Diameter (Decimal Inch) 1.4567
Radius (Decimal Inch) 0.0236

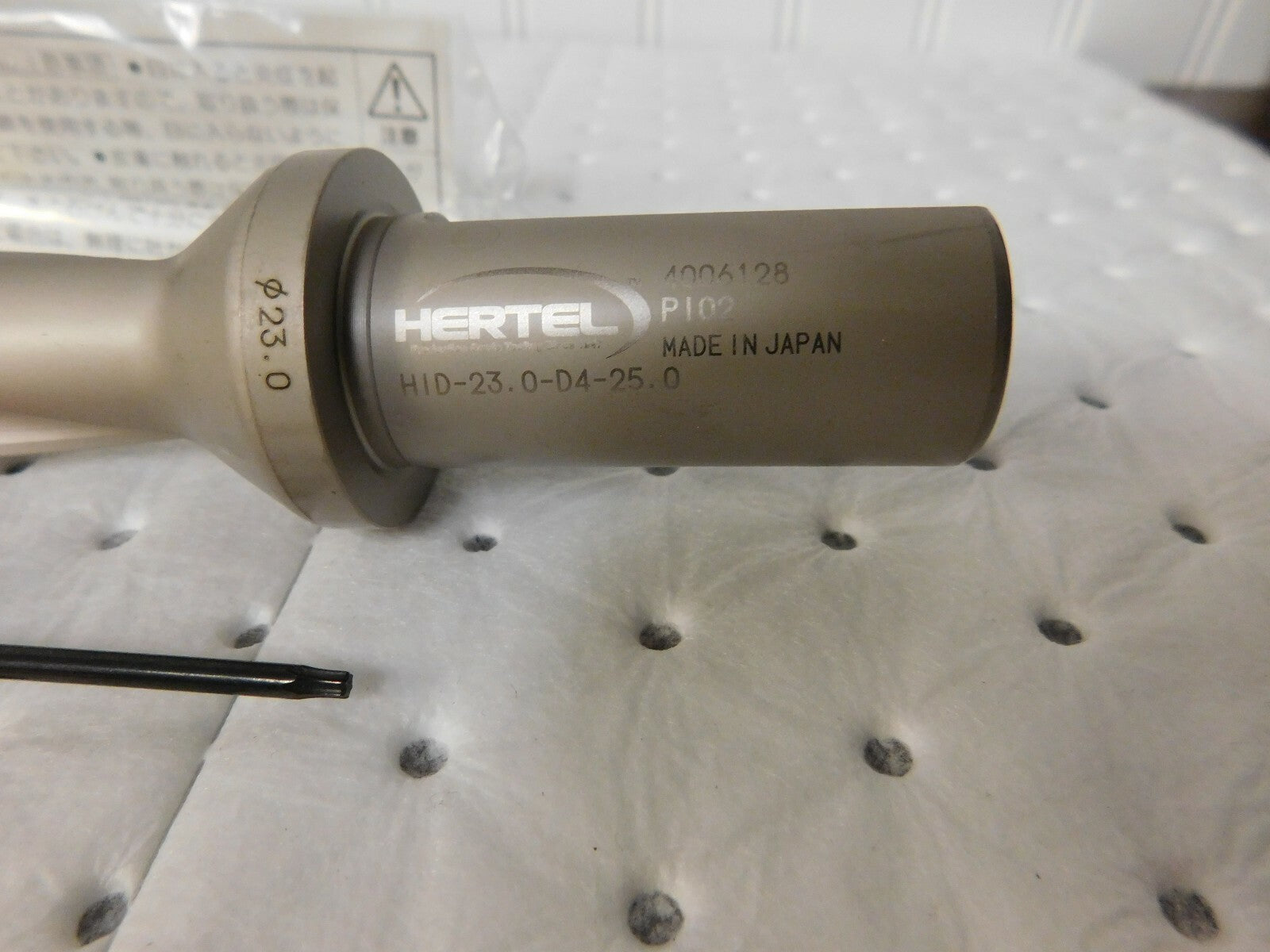

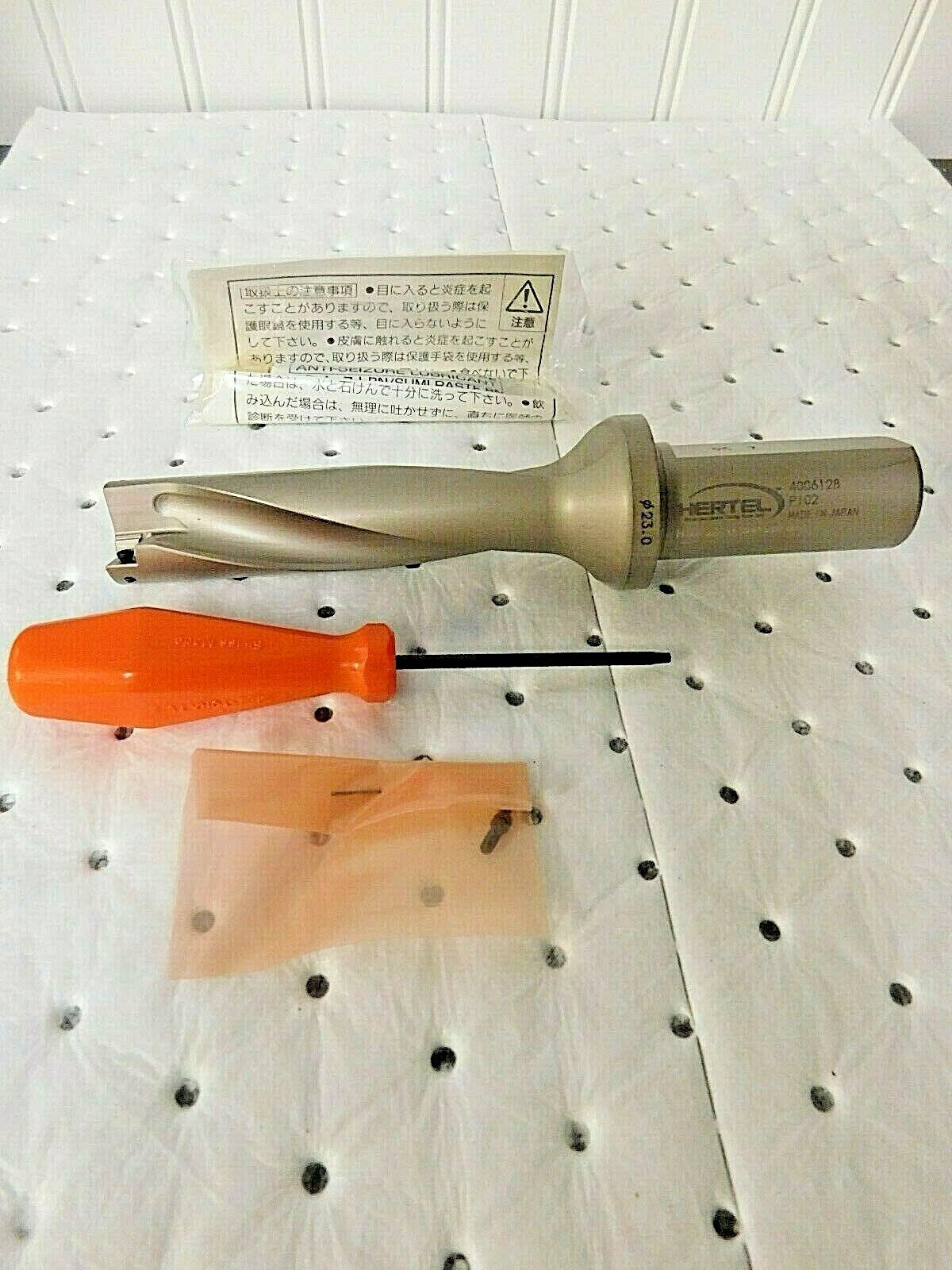

This listing is for One Indexable Insert Drill that is in the picture as well as described. Please ask any questions prior to buying!
