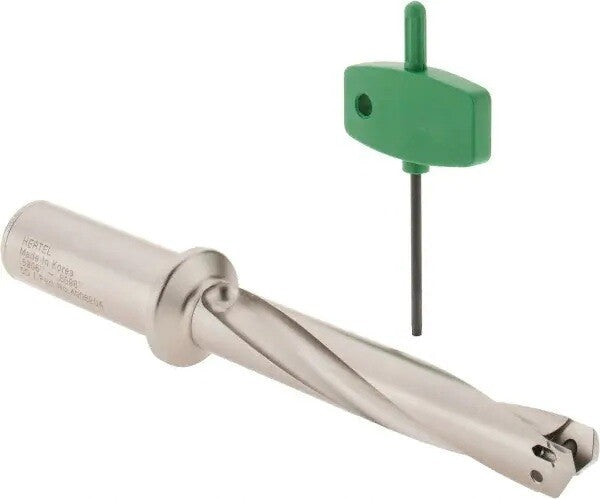

Hertel 13.5 to 13.99mm 5xD 67.5mm MD 3/4" SD 84mm FL Replaceable-Tip Drill
Hertel 13.5 to 13.99mm 5xD 67.5mm MD 3/4" SD 84mm FL Replaceable-Tip Drill
Regular price
$58.74 USD
Regular price
$120.00 USD
Sale price
$58.74 USD
Shipping calculated at checkout.
Couldn't load pickup availability
MSRP: $120.00
Model:
Description:
Series HMD
Minimum Drill Diameter (mm) 13.50
Minimum Drill Diameter (Decimal Inch) 0.5315
Maximum Drill Diameter (mm) 13.99
Maximum Drill Diameter (Decimal Inch) 0.5510
Drill Depth by Diameter Ratio 5xD
Maximum Drill Depth (Decimal Inch) 2.6575
Maximum Drill Depth (mm) 67.50
Shank Diameter (Inch) 0.75
Shank Diameter (Decimal Inch) 0.75
Toolholder Style HMD-MAD
Through Coolant Through Coolant
Shank Type Straight
Flute Length (mm) 84.00
Flute Length (Decimal Inch) 3.3125
Body Length (Decimal Inch) 5.6719
Toolholder Material Steel
Shank Length (mm) 50.80
Shank Length (Decimal Inch) 2.0000
This listing is for One that is in the picture as well as described. Please ask any questions prior to buying!
