Hertel 1.6535" Max Drill Depth 2xD 0.8268" Diam Indexable Insert Drill 39270285
Hertel 1.6535" Max Drill Depth 2xD 0.8268" Diam Indexable Insert Drill 39270285
Regular price
$166.43 USD
Regular price
$340.00 USD
Sale price
$166.43 USD
Shipping calculated at checkout.
Hertel
MSRP: $340.00
Model: 39270285
Description:
Drill Style HID
Drill Diameter (mm) 21.00
Drill Diameter (Inch) 0.8268
Drill Diameter (Decimal Inch) 0.8268
Maximum Drill Depth (mm) 42.00
Maximum Drill Depth (Decimal Inch) 1.6535
Maximum Drill Depth (Inch) 1.654
Shank Type Straight
Shank Diameter (mm) 25.00
Shank Diameter (Decimal Inch) 0.9843
Shank Diameter (Inch) 0.9843
Cutting Direction Right Hand
Through Coolant Through Coolant
Drill Depth by Diameter Ratio 2xD
Toolholder Material Steel
Number of Drill Inserts 2
Maximum Drill Diameter (Decimal Inch) 0.8520
Overall Length/Projection (mm) 60.00
Overall Length/Projection (Decimal Inch) 2.3622
Insert Compatibility (Outside or Peripheral) None
Insert Compatibility HPMT063306-GP
Flute Length (mm) 45.00
Flute Length (Decimal Inch) 1.7717
Body Length (Decimal Inch) 4.5669
Body Length (mm) 116.00
Shank Length (mm) 56.00
Shank Length (Decimal Inch) 2.2047
Collar Diameter (mm) 33.00
Collar Diameter (Decimal Inch) 1.2992
Radius (Decimal Inch) 0.0236

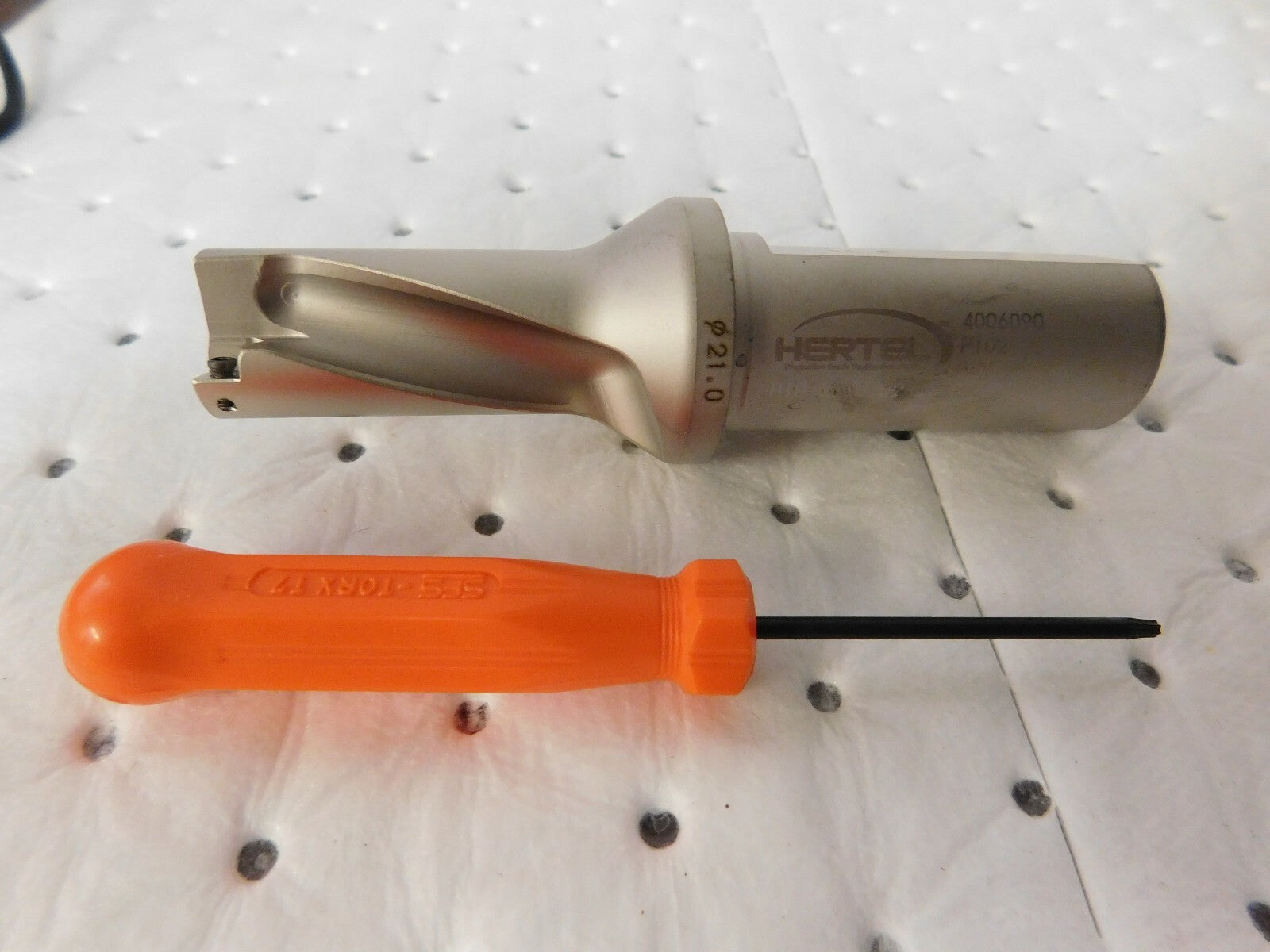

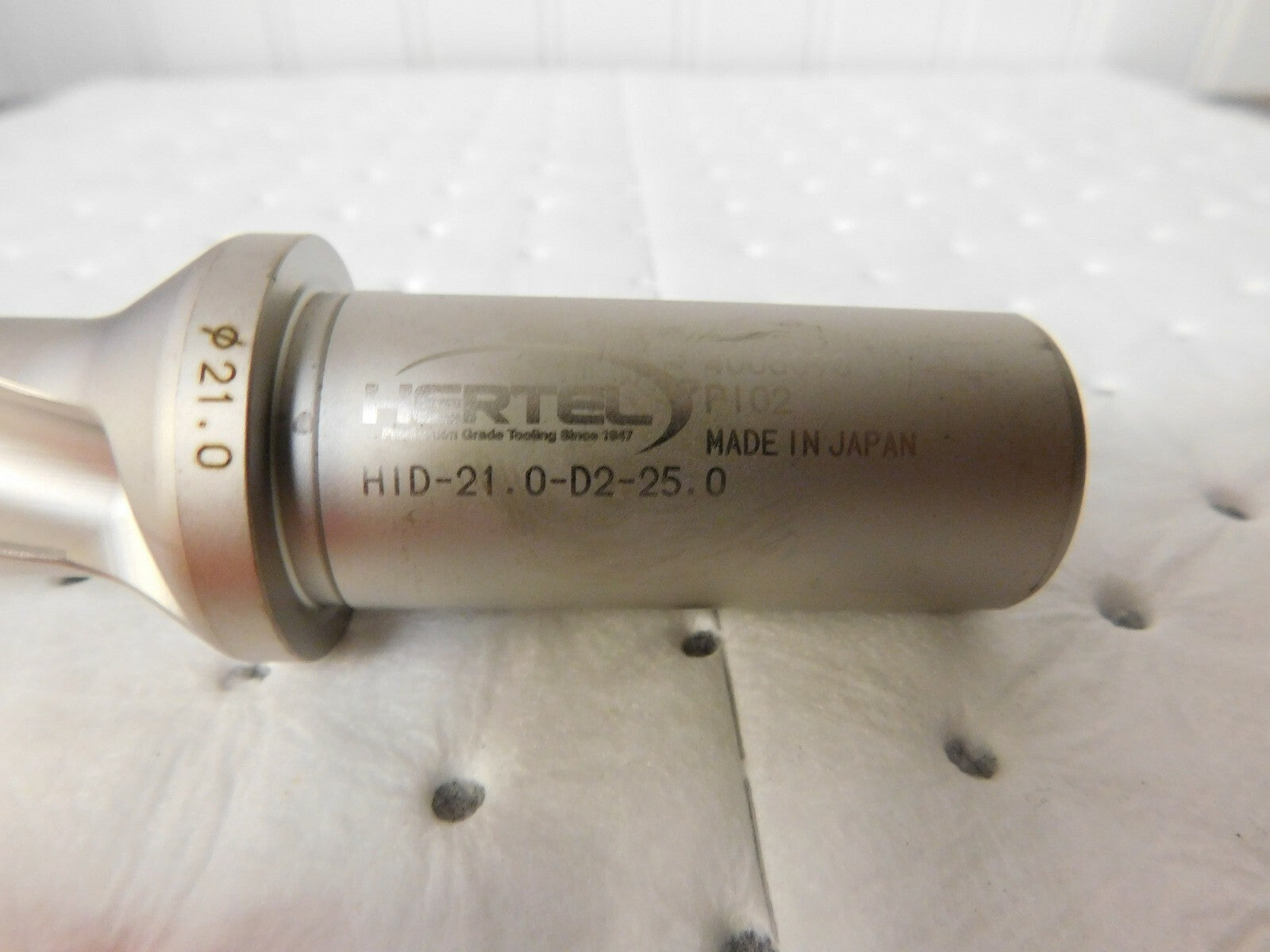

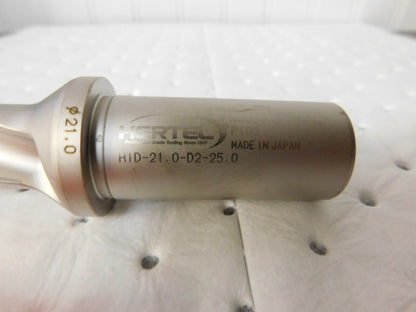

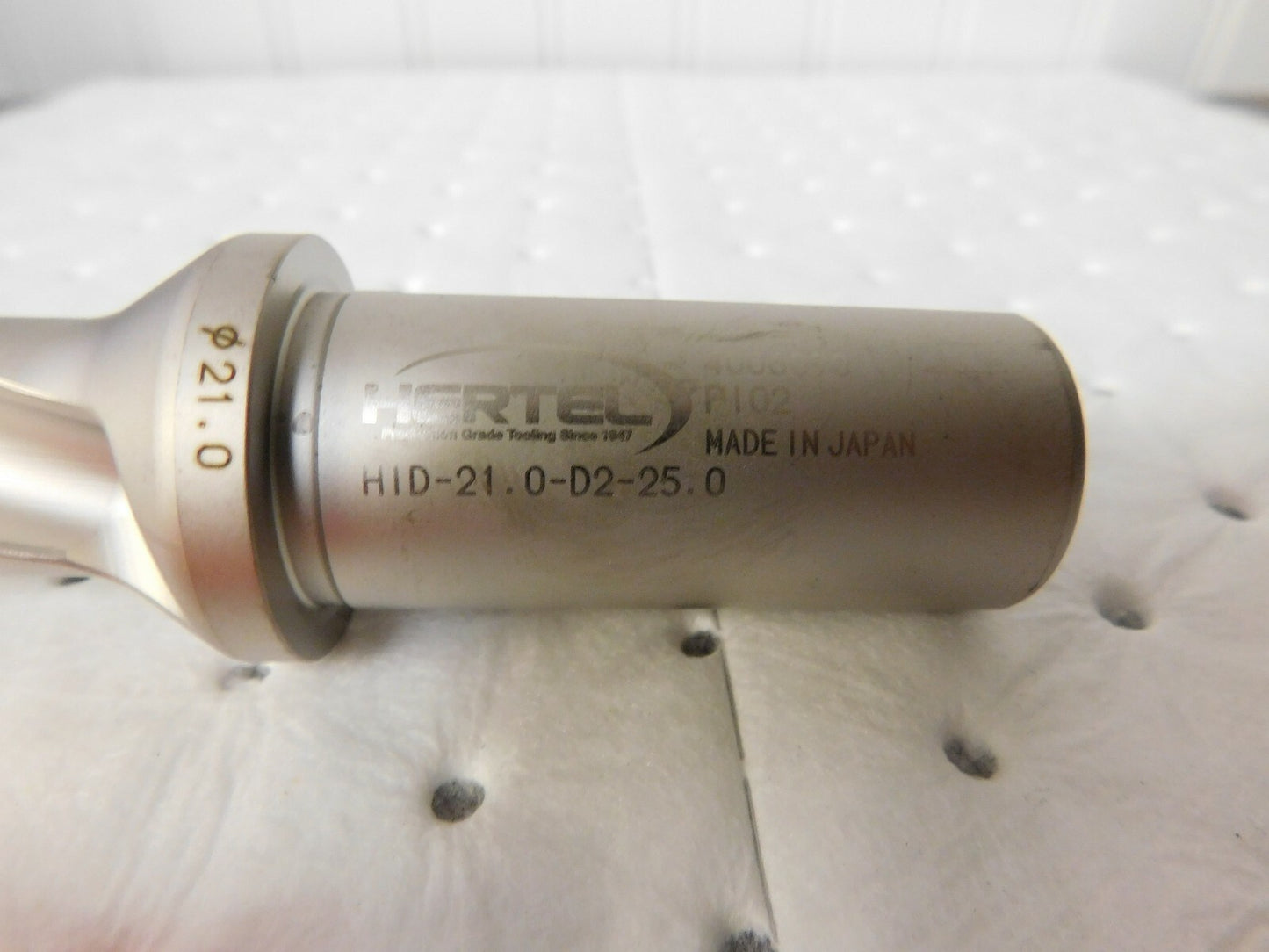

This listing is for One Indexable Insert Drill that is in the picture as well as described. Please ask any questions prior to buying!
