Thread Size 3/8-24
Overall Insert Length (Decimal Inch) 0.3750
Tang Tangless
Length to Diameter Ratio 1D
Number of Inserts 1
Material Stainless Steel
Minimum Outside Diameter (Decimal Inch) 0.4480
Maximum Outside Diameter (Decimal Inch) 0.4680
Finish/Coating Bright
Number of Free Coils 6-7/8
Maximum Locking Torque (In/Lb) 80
Mininum Break Away Torque (oz-in) 9.50
Thread Standard UNF
Material Grade 304

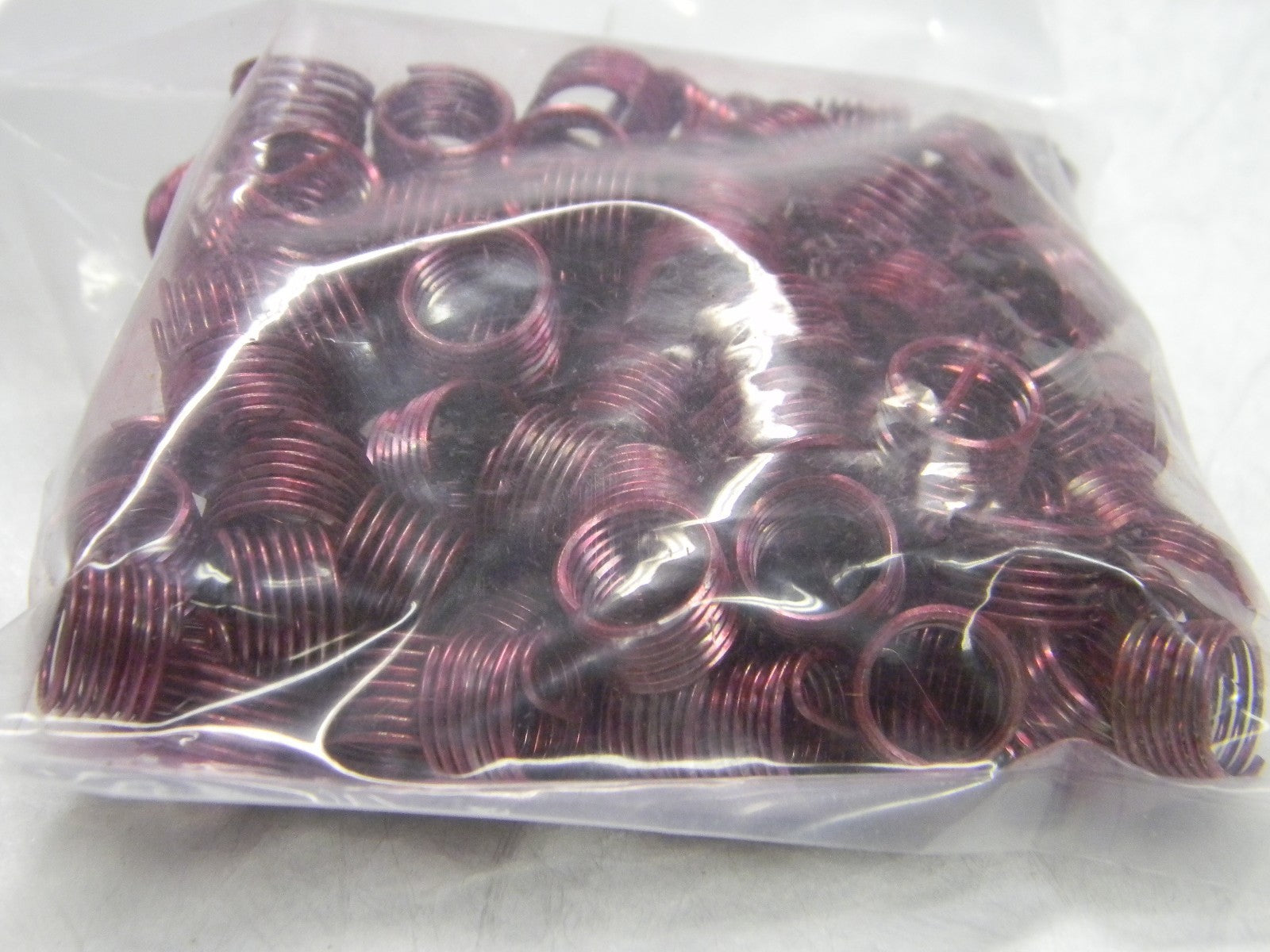

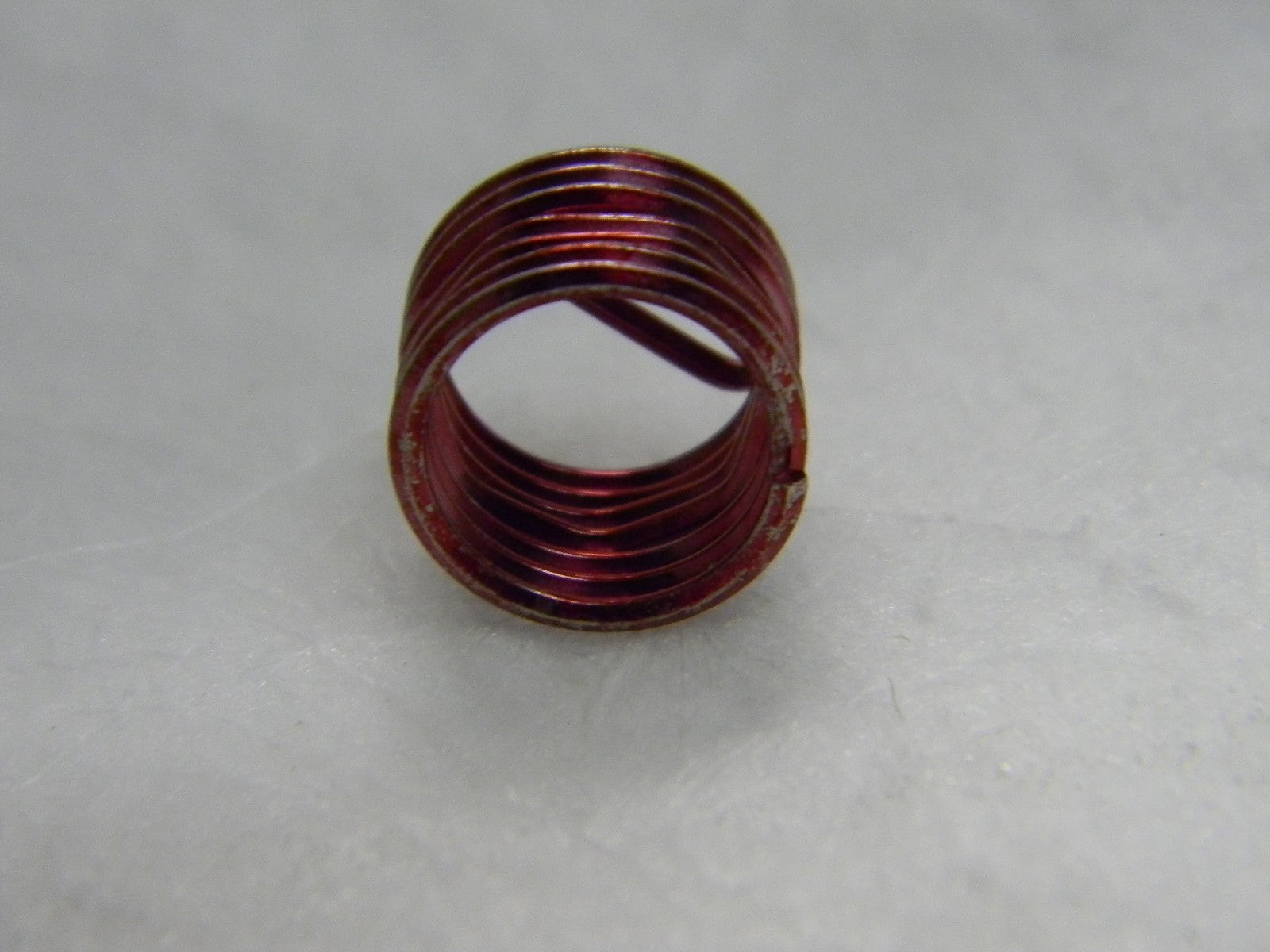

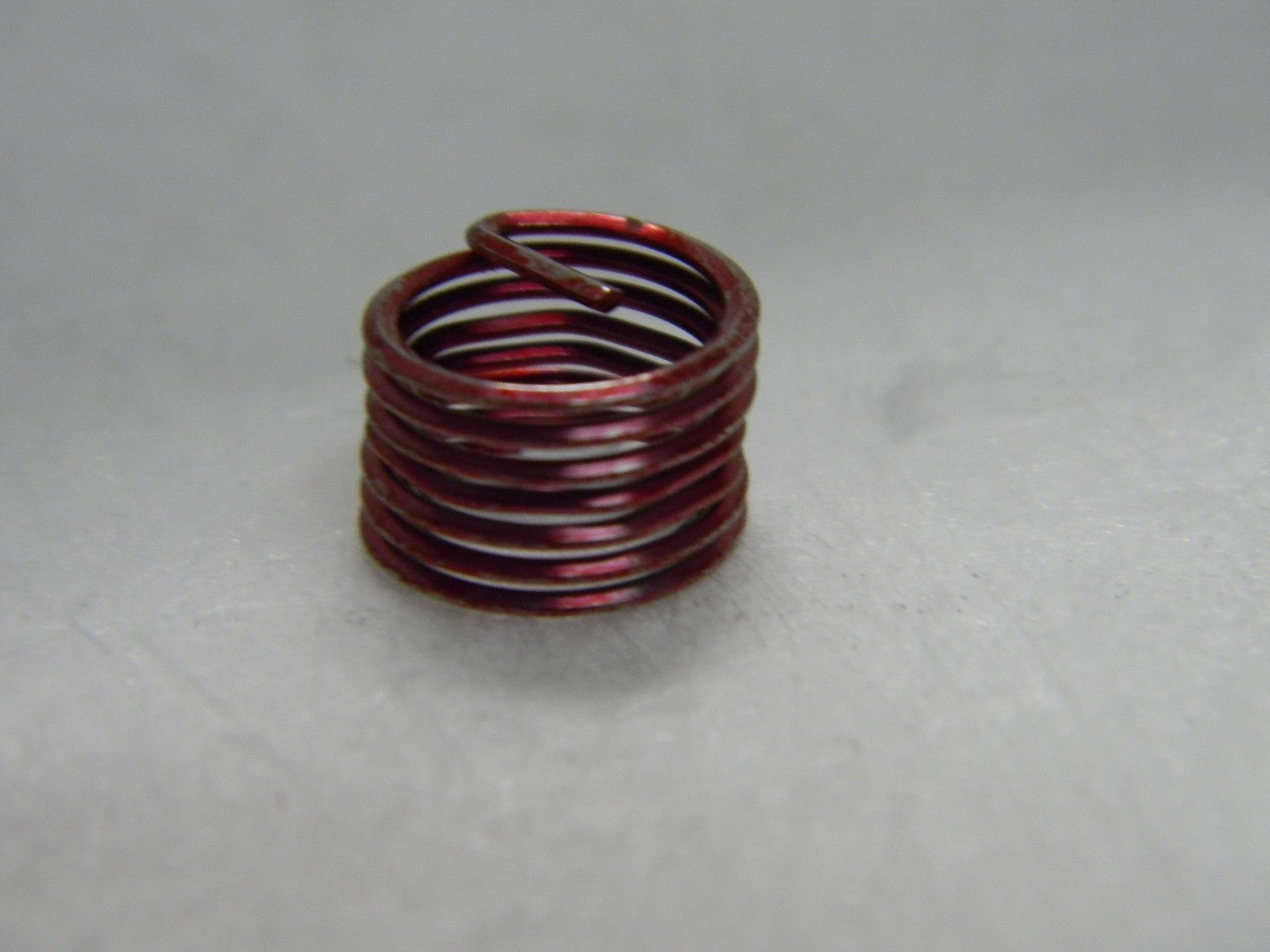

This listing is for One Lot of 100 spring inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
