HARVEY TOOL Square End Mill: 5/64" Dia 2 Fl Solid Carbide 72078-C4

HARVEY TOOL

 Square End Mill: 5/64" Dia 2 Fl Solid Carbide 72078-C4

MSRP: $30

• Mill Diameter (Decimal Inch) 0.0780
• Mill Diameter (Inch) 5/64
• Number Of Flutes 2
• End Mill Material Solid Carbide
• Length of Cut (Decimal Inch) 0.2340
• Length of Cut (Inch) 15/64
• Shank Diameter (Inch) 1/8
• Shank Diameter (Decimal Inch) 0.1250
• Overall Length (Decimal Inch) 1.5000
• Overall Length (Inch) 1-1/2
• Single Or Double End Single
• Coating/Finish Family PVD Diamond
• Centercutting Yes
• Cutting Direction Right Hand
• Flute Direction Right Hand
• Extended Reach No
• Coolant Through No
• Helix Angle 30
• Primary Workpiece Material Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; CFRP Materials; Steel
• Primary Workpiece Material Code P; C; K; M; N
• Coating/Finish Amorphous Diamond
• Variable Helix No
• Variable Index No
• Chipbreaker No
• Flute Type Spiral
• Length Of Cut Range (Decimal Inch) 0.2000 - 0.3000
• Series Miniature End Mills - Square - Stub & Standard
• System Of Measurement Fractional Inch
• UNSPSC Code 27112803
• Country of Origin UNITED STATES
• Ordered as Part # 72078-C4

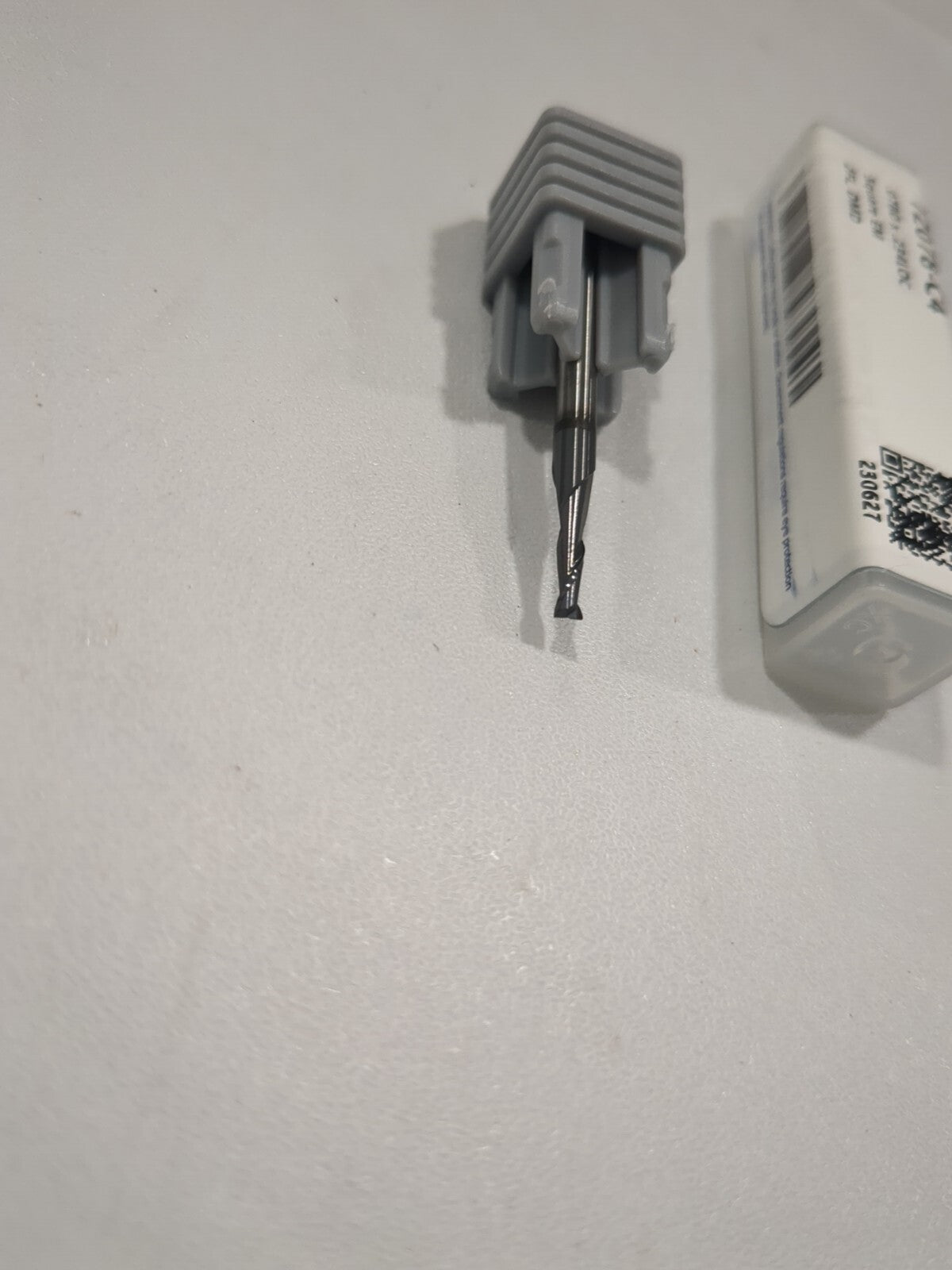

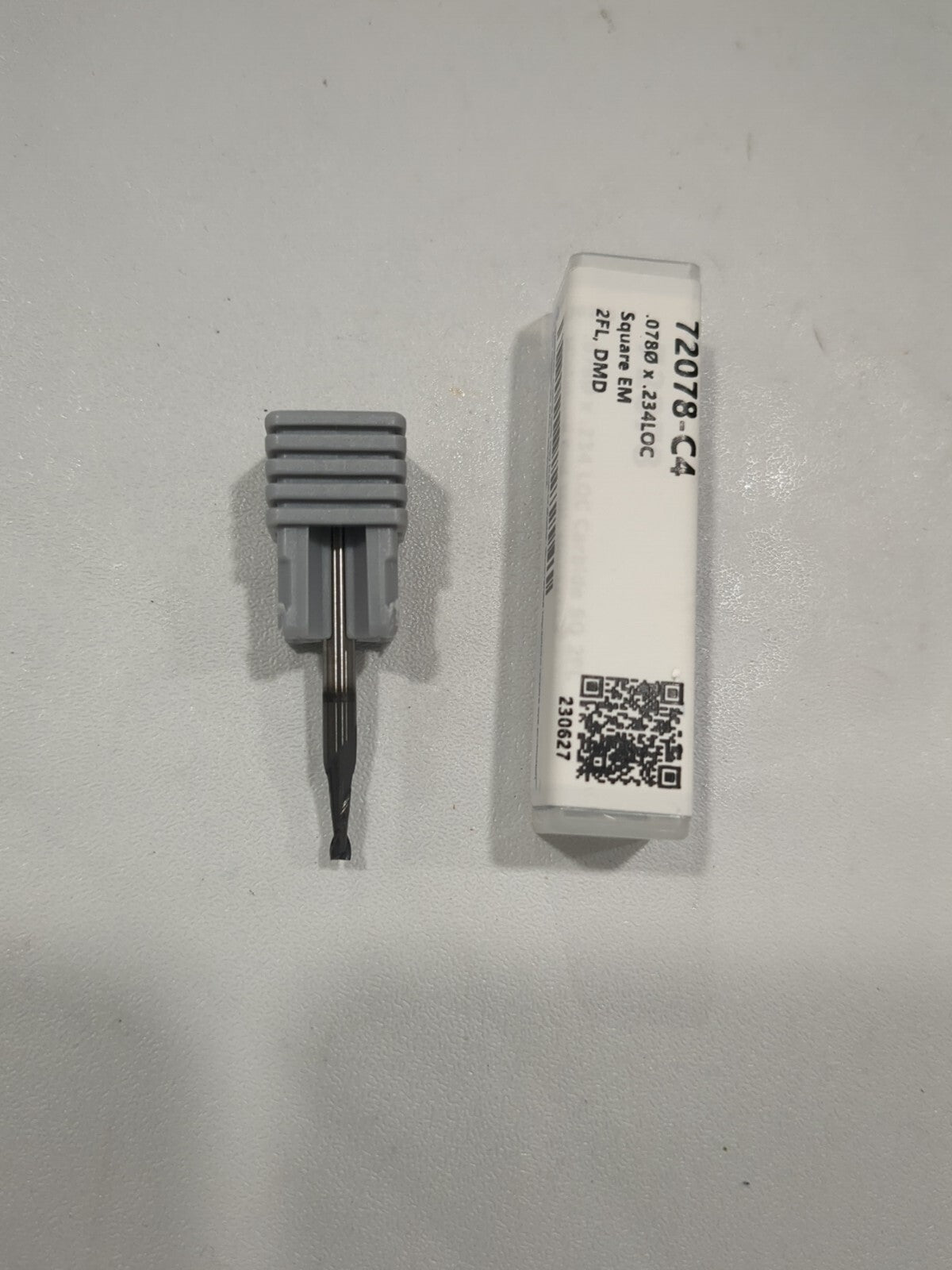

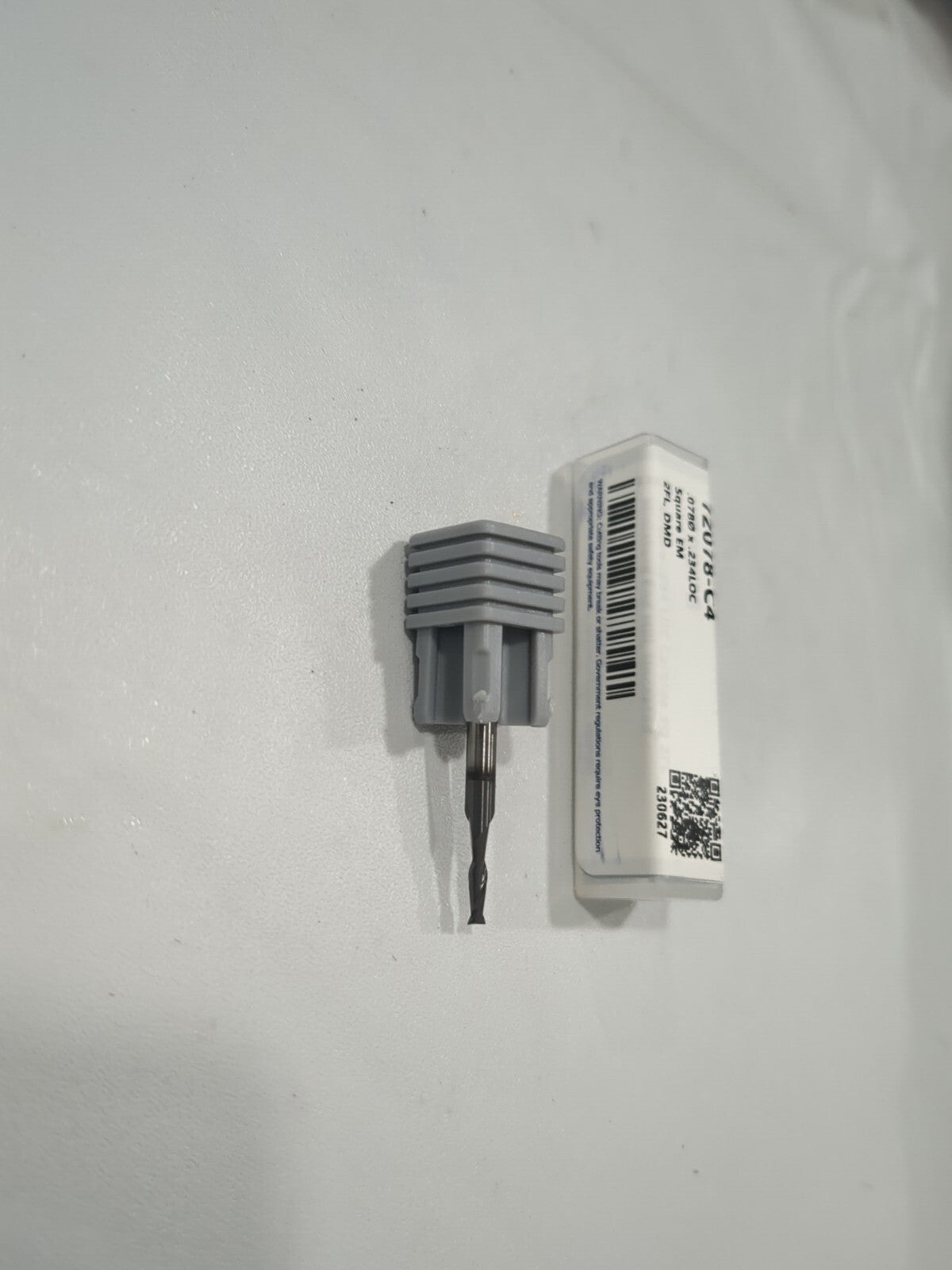

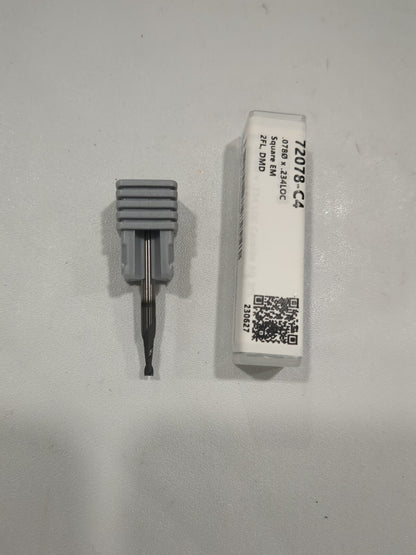

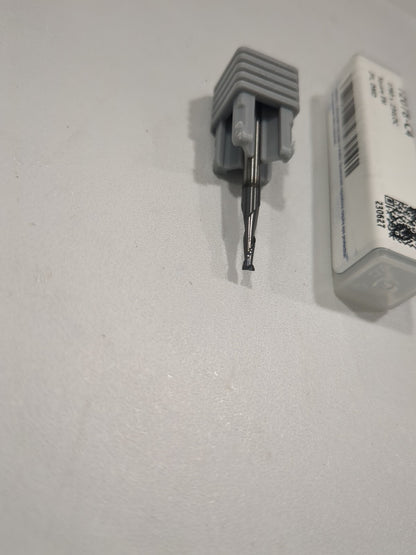

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
