HARVEY TOOL Square End Mill: 0.90 mm Dia 3 Fl Solid Carbide 33235-C3

HARVEY TOOL

Square End Mill: 0.90 mm Dia 3 Fl Solid Carbide 33235-C3

MSRP: $40

• Mill Diameter (mm) 0.90
• Mill Diameter (Decimal Inch) 0.0350
• Number Of Flutes 3
• End Mill Material Solid Carbide
• Length of Cut (Decimal Inch) 0.0530
• Shank Diameter (Inch) 1/8
• Shank Diameter (Decimal Inch) 0.1250
• Overall Length (Decimal Inch) 2.5000
• Overall Length (Inch) 2-1/2
• Single Or Double End Single
• Coating/Finish Family AlTiN
• Centercutting Yes
• Cutting Direction Right Hand
• Flute Direction Right Hand
• Extended Reach Yes
• Coolant Through No
• Helix Angle 30
• Primary Workpiece Material Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; CFRP Materials; Steel
• Primary Workpiece Material Code P; C; K; M; N
• Coating/Finish AlTiN
• Variable Helix No
• Variable Index No
• Chipbreaker No
• Flute Type Spiral
• Reach Length (Inch) 3/16
• Reach Length (Decimal Inch) 0.1870
• Series Miniature End Mills - Square - Long Reach, Stub Flute
• System Of Measurement Decimal Inch
• UNSPSC Code 27112803
• Country of Origin UNITED STATES
• Ordered as Part # 33235-C3

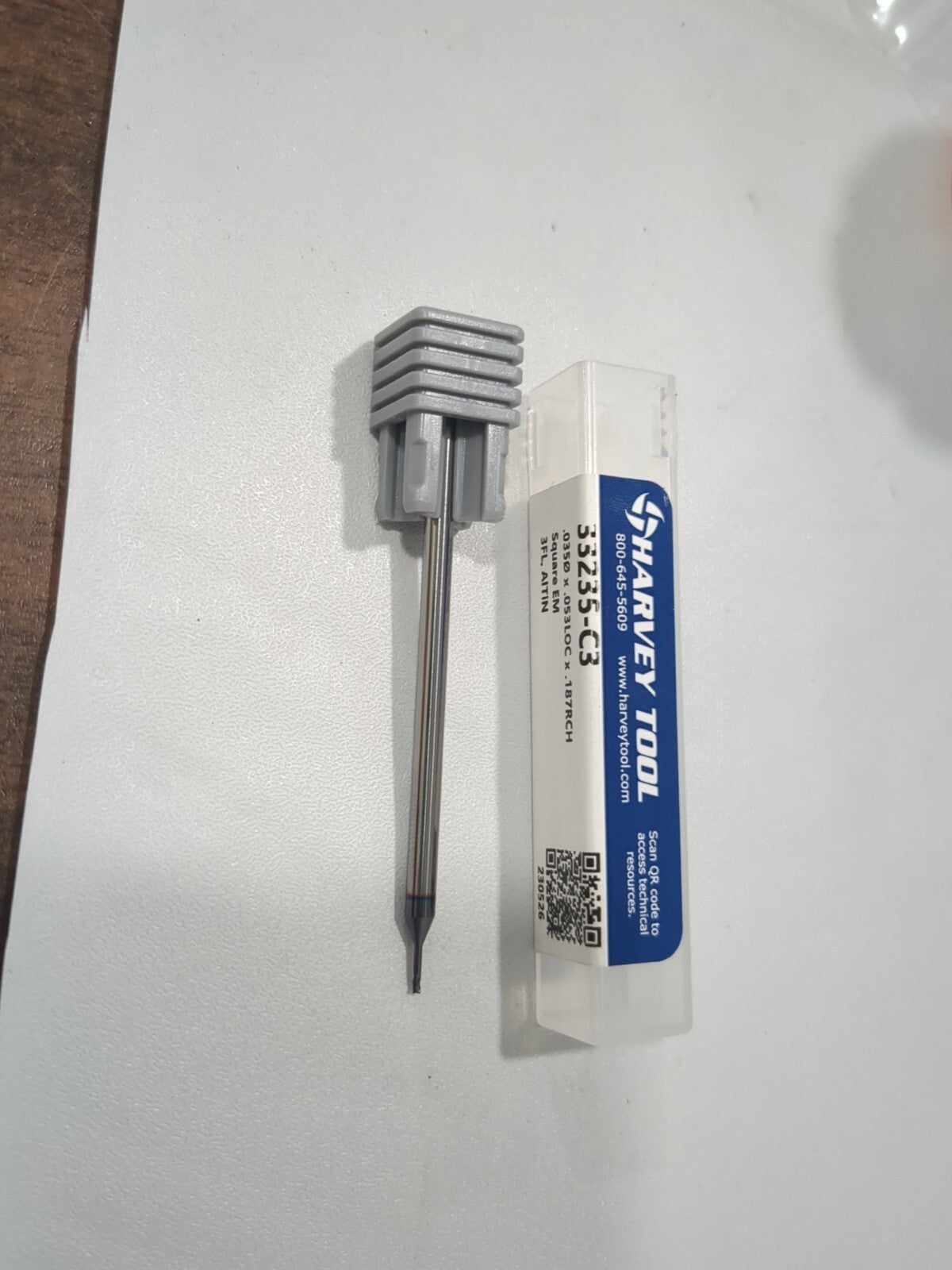

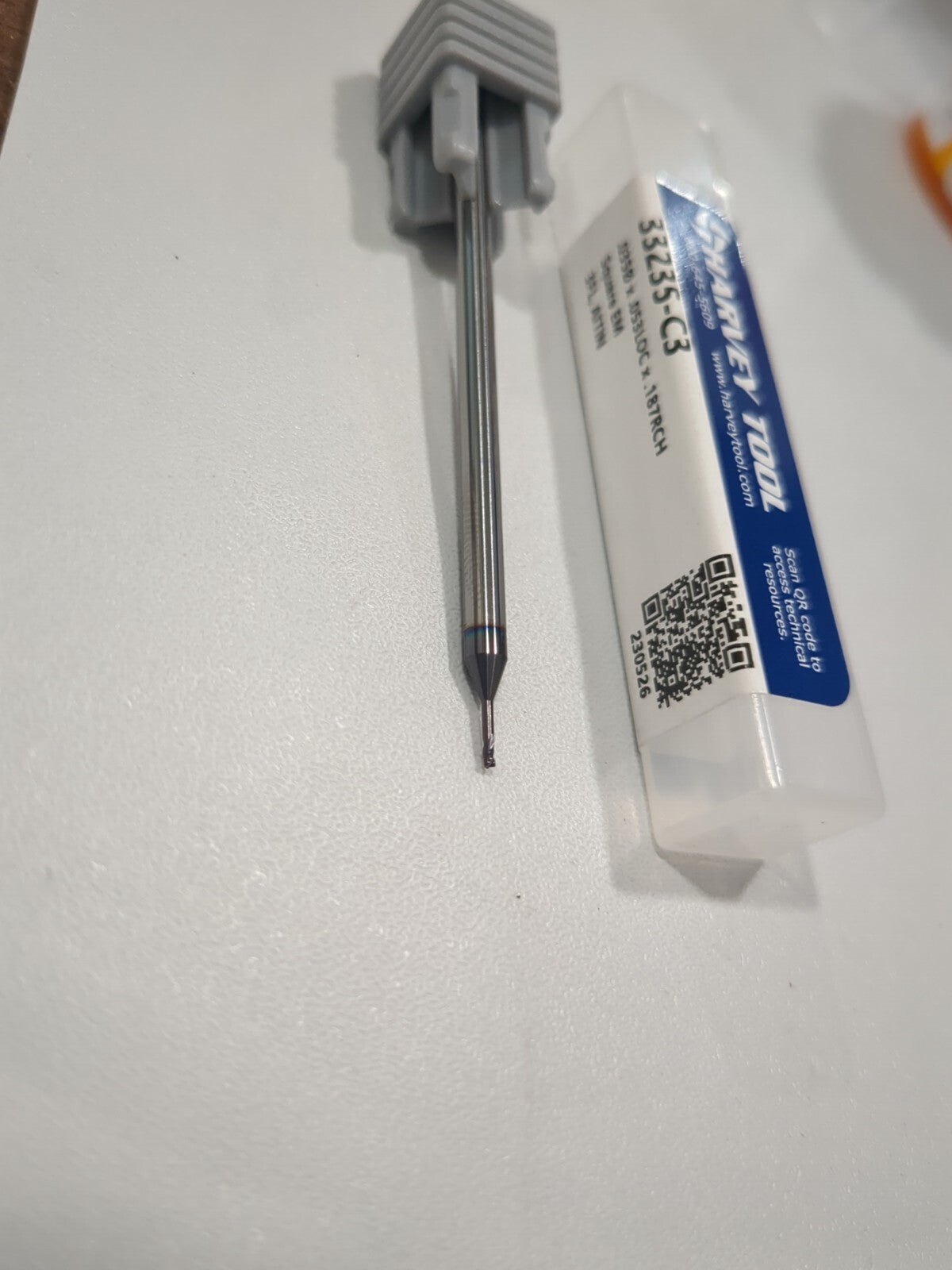

Please review photos, comes as shown.
