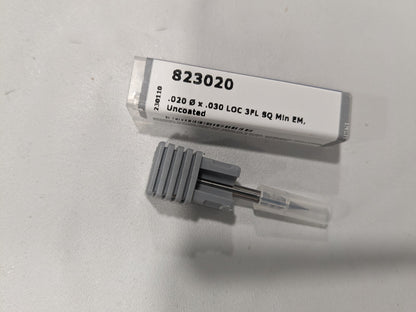

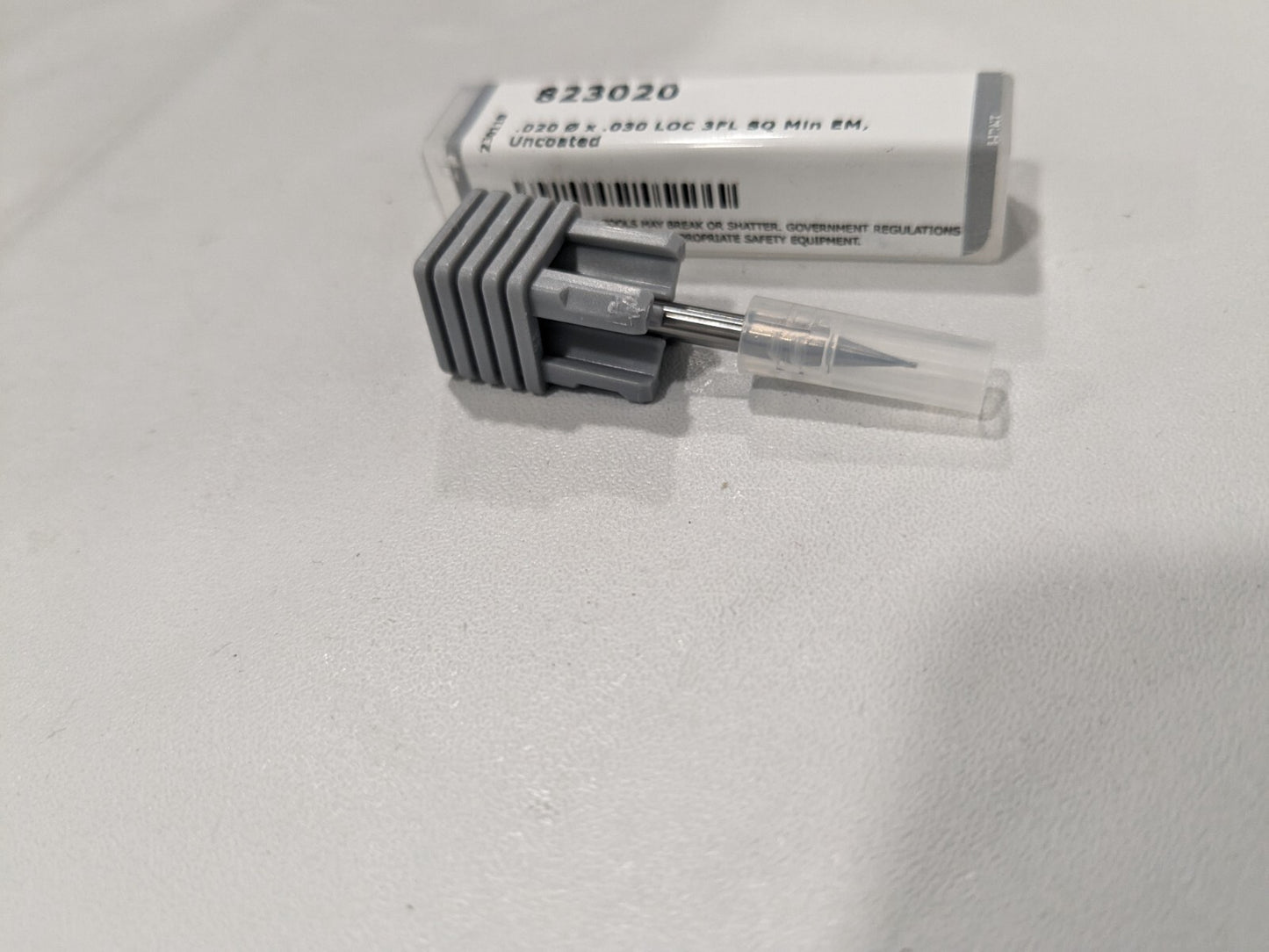

HARVEY TOOL Square End Mill: 0.50 mm Dia, 3 Flute, Solid Carbide 823020

HARVEY TOOL Square End Mill: 0.50 mm Dia, 3 Flute, Solid Carbide 823020

MSRP: $30

• Mill Diameter (mm) 0.50
• Mill Diameter (Decimal Inch) 0.0200
• Number Of Flutes 3
• End Mill Material Solid Carbide
• Length of Cut (Decimal Inch) 0.0300
• Length of Cut (Inch) 1/32
• Shank Diameter (Inch) 1/8
• Shank Diameter (Decimal Inch) 0.1250
• Overall Length (Decimal Inch) 1.5000
• Overall Length (Inch) 1-1/2
• Single Or Double End Single
• Coating/Finish Family Bright/Uncoated
• Centercutting Yes
• Cutting Direction Right Hand
• Flute Direction Right Hand
• Extended Reach No
• Coolant Through No
• Helix Angle 30
• Primary Workpiece Material Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; CFRP Materials; Steel
• Primary Workpiece Material Code P; C; K; M; N
• Coating/Finish Bright/Uncoated
• Variable Helix No
• Variable Index No
• Chipbreaker No
• Flute Type Spiral
• Length Of Cut Range (Decimal Inch) 0.0000 - 0.1000
• Series Miniature End Mills - Square - Stub & Standard
• System Of Measurement Decimal Inch
• UNSPSC Code 27112803
• Country of Origin UNITED STATES
• Ordered as Part # 823020

(Description).

Please review photos, comes as shown.
