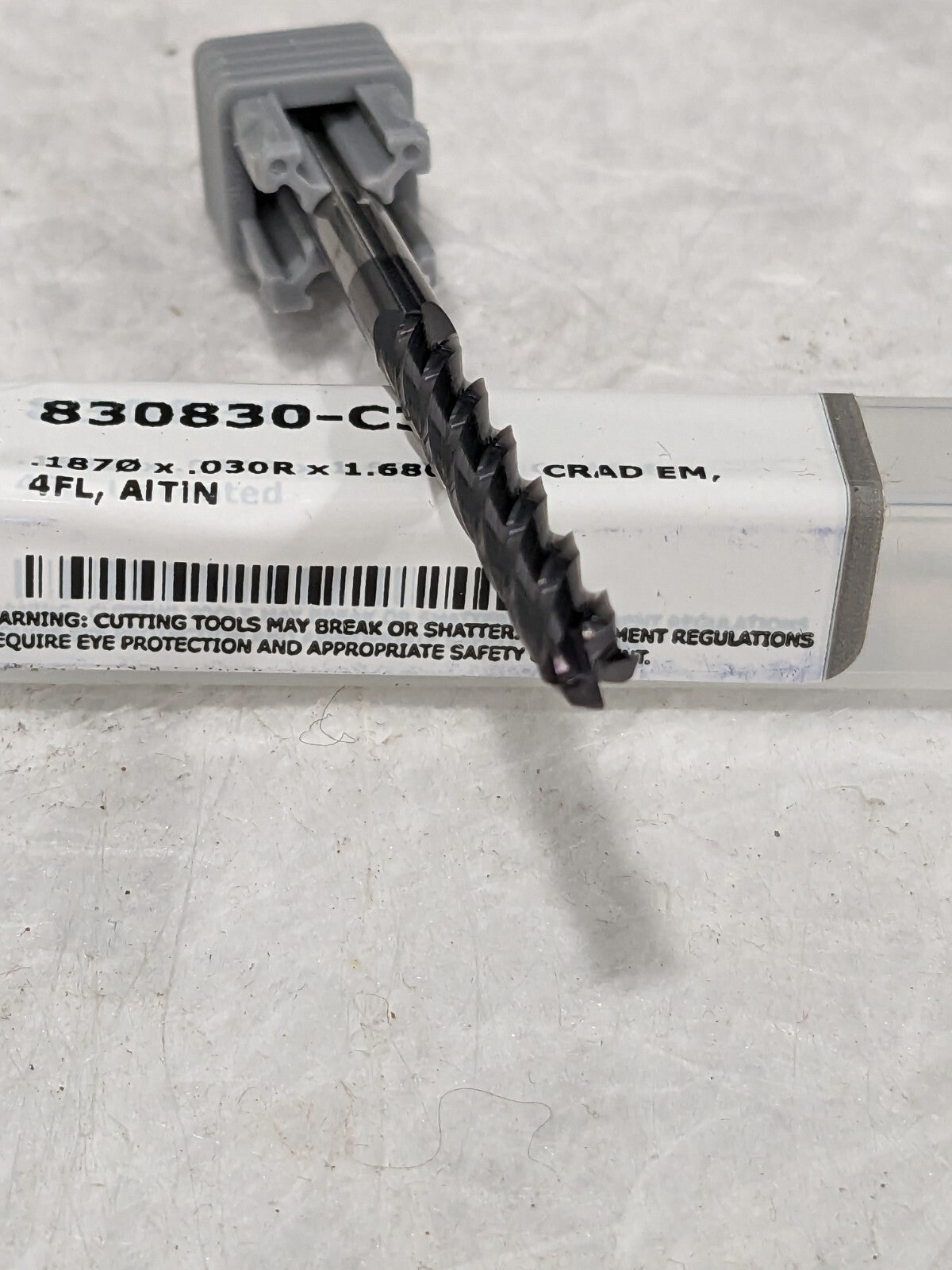

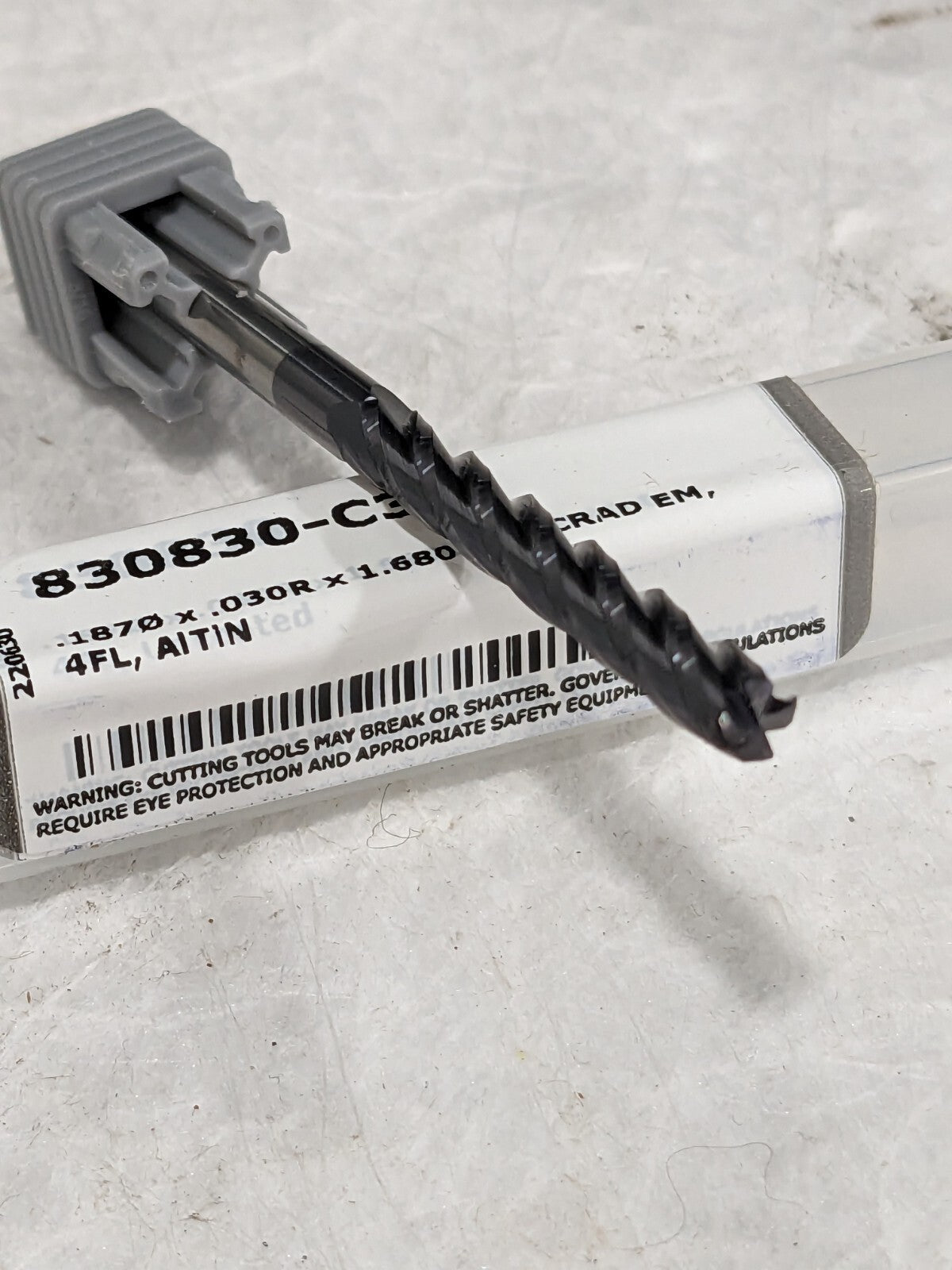

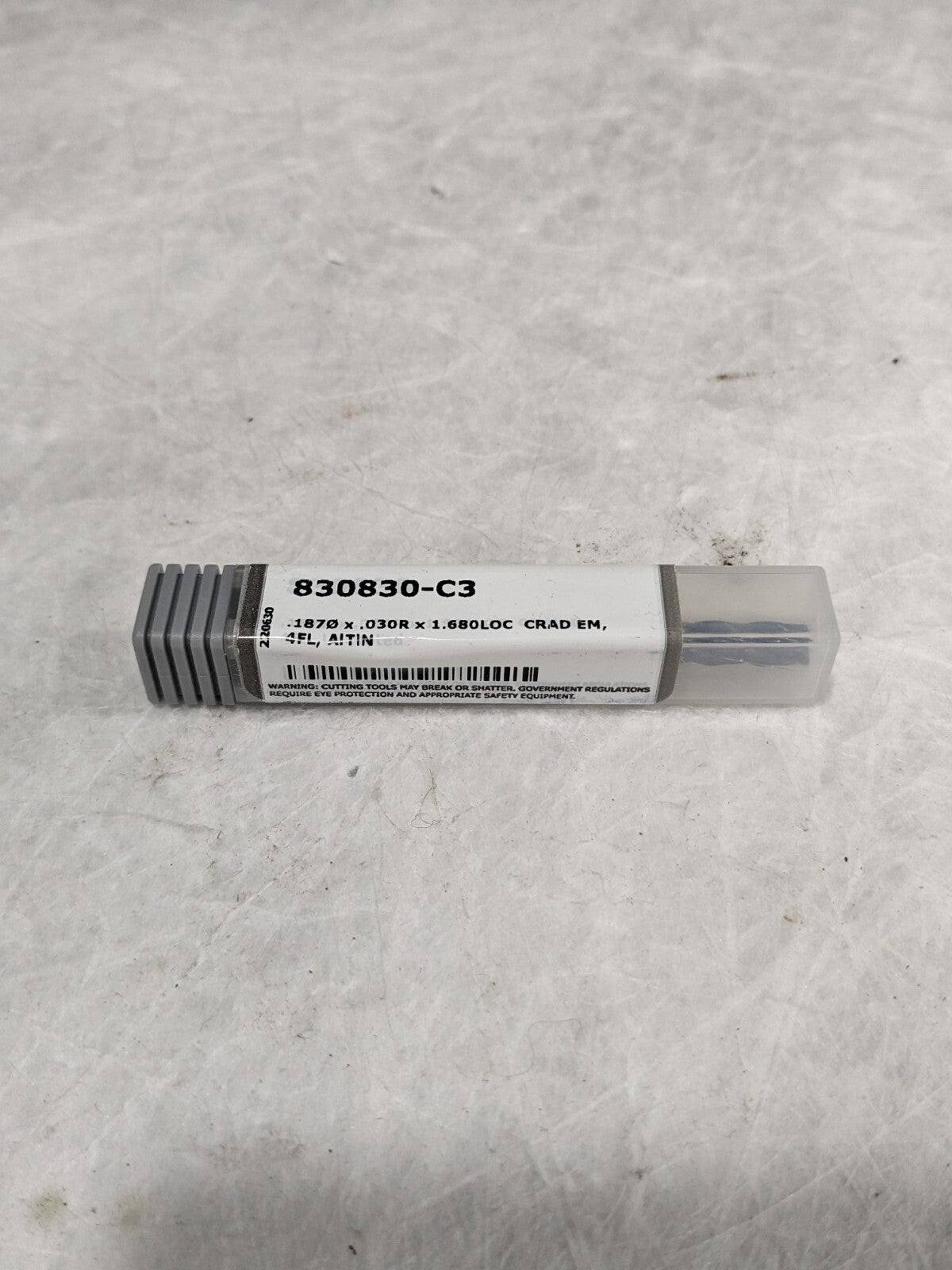

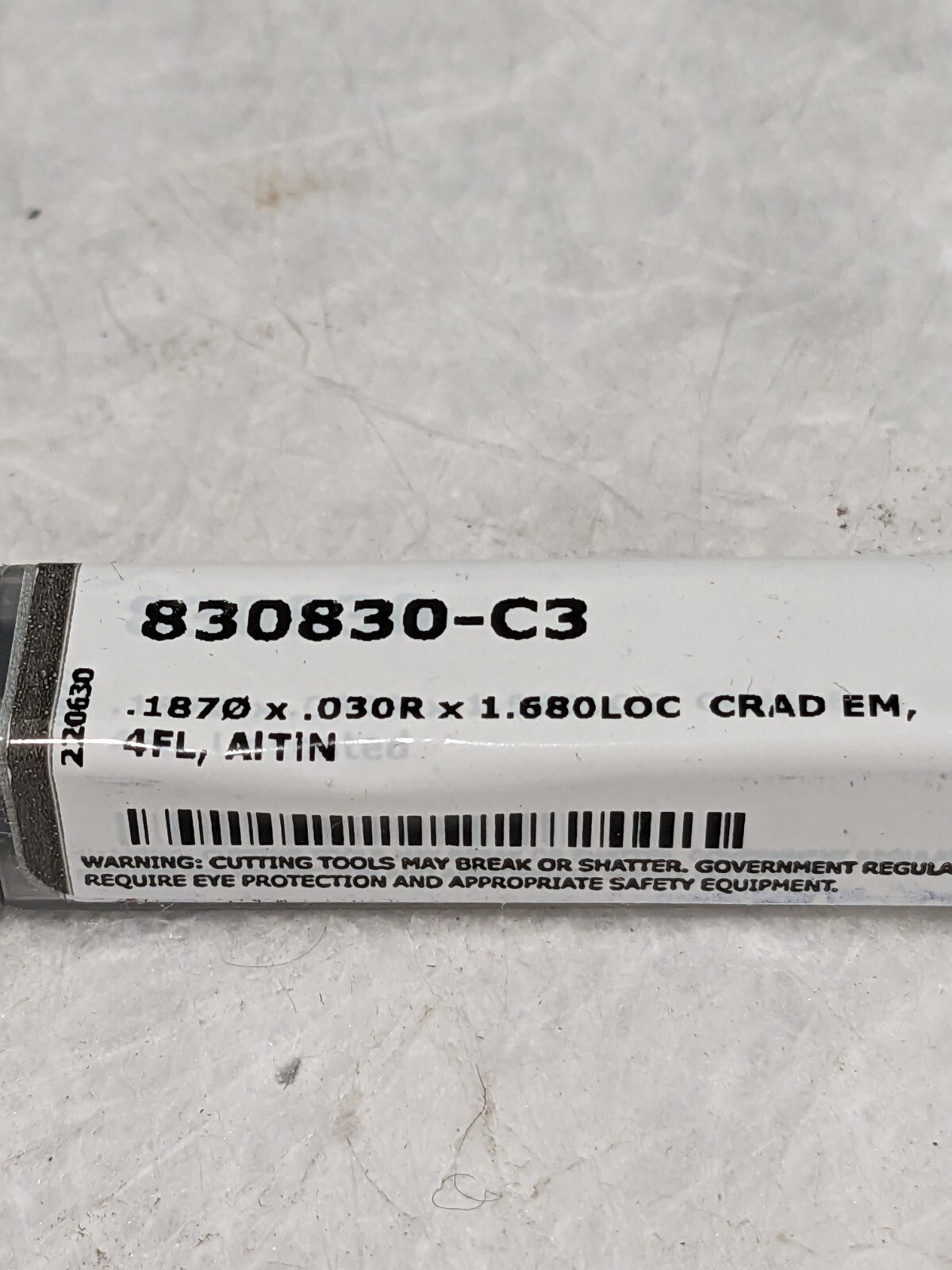

HARVEY TOOL Corner Radius End Mill: 3/16" Dia, 1-1/2" LOC, 4 FL 830830-C3

Harvey Tool
Corner Radius End Mill

MSRP: $40.00

• Mill Diameter (Inch) 3/16
• Mill Diameter (Decimal Inch) 0.1875
• Number Of Flutes 4
• Length of Cut (Inch) 1-1/2
• Single Or Double End Single
• End Mill Material Solid Carbide
• Coating/Finish AlTiN
• Overall Length (Inch) 3
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0300
• Variable Index No
• Variable Helix No
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 3.0000
• Chipbreaker No
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 1.5000
• Length Type Extra Long
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Material Removal Type Finishing
• Shank Diameter (Decimal Inch) 0.1875
• Shank Diameter (Inch) 3/16
• Corner Radius Tolerance 0.0010 to -0.0010 in
• Mill Diameter Tolerance 0.0000/-0.0020 in
• Overall Length Tolerance 0.0100/-0.0000 in
• Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Non-ISO; Steel
• Primary Workpiece Material Code P; K; M; N; O
• UNSPSC Code 27112803
• Series Miniature End Mills - Corner Radius - Long Flute; Miniature End Mills
• Material Application Non-Ferrous Metal; Composite; Stainless Steel; Cast Iron; Steel
• Coating Classification PVD
• For Use With. Toolholders

This item appears to be new and in good condition. SOLD AS IS.

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
