HARVEY TOOL Corner Radius End Mill 1/16" Dia 4 Fl Solid Carbide 787362-C3

HARVEY TOOL

Corner Radius End Mill 1/16" Dia 4 Fl Solid Carbide 787362-C3

MSRP: $40

• Mill Diameter (Inch) 1/16
• Mill Diameter (Decimal Inch) 0.0620
• Number Of Flutes 4
• Length of Cut (Inch) 1/4
• Single Or Double End Single
• End Mill Material Solid Carbide
• Chipbreaker No
• Coating/Finish AlTiN
• Overall Length (Inch) 2-1/2
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0100
• Variable Index No
• Variable Helix No
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 2.5000
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 0.2500
• Length Type Long
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Material Removal Type Finishing
• Shank Diameter (Decimal Inch) 0.1250
• Shank Diameter (Inch) 1/8
• Corner Radius Tolerance 0.0002 to -0.0002 in
• Mill Diameter Tolerance 0.0005/-0.0005 in
• Overall Length Tolerance 0.0100/-0.0000 in
• Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Non-ISO; Steel
• UNSPSC Code 27112803
• Primary Workpiece Material Code P; K; M; N; O
• Series Miniature End Mills - Corner Radius - Long Flute; Miniature End Mills
• Material Application Non-Ferrous Metal; Composite; Stainless Steel; Cast Iron; Steel
• Coating Classification PVD
• For Use With. Toolholders
• Country of Origin UNITED STATES
• Ordered as Part # 787362-C3

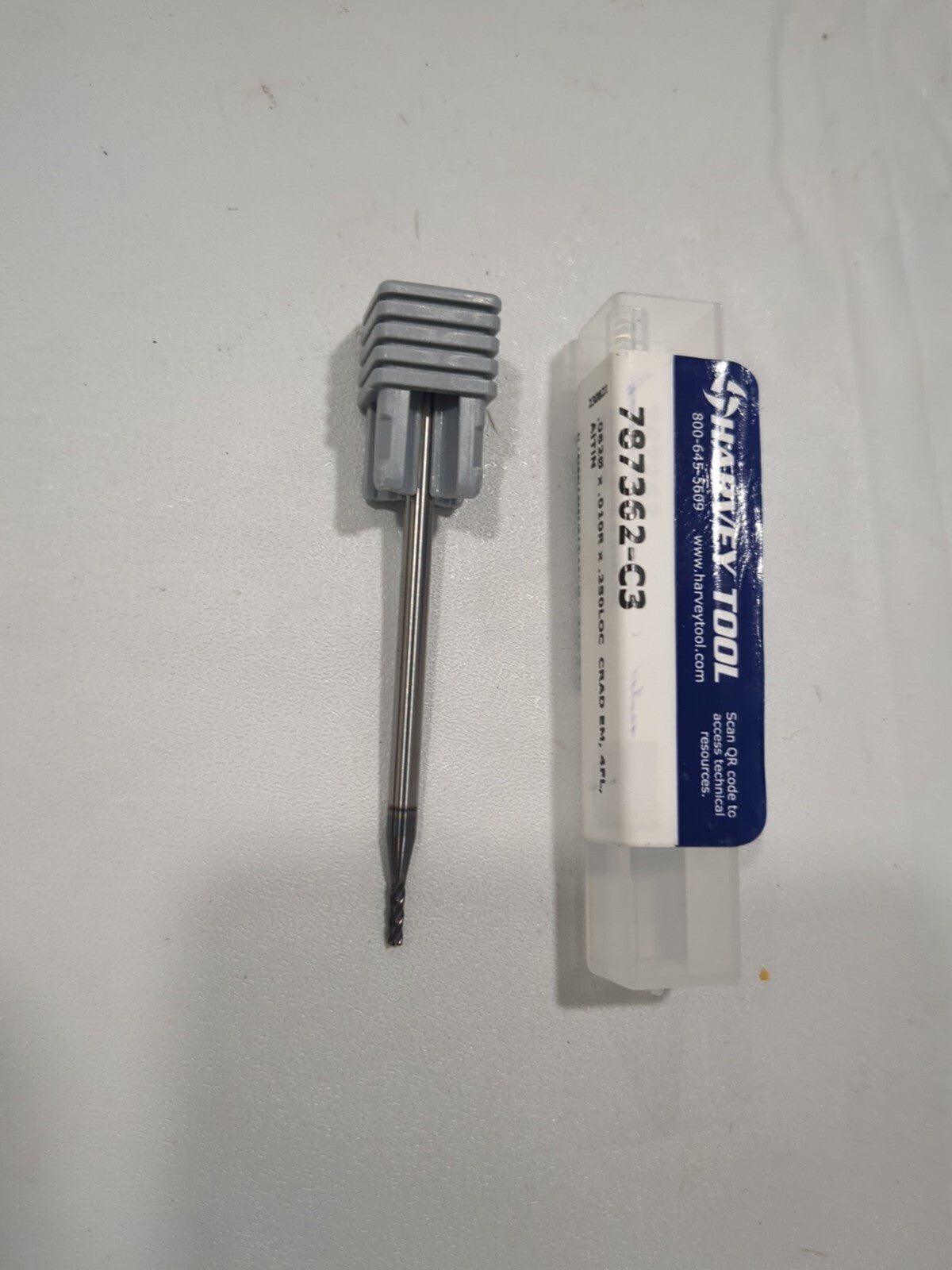

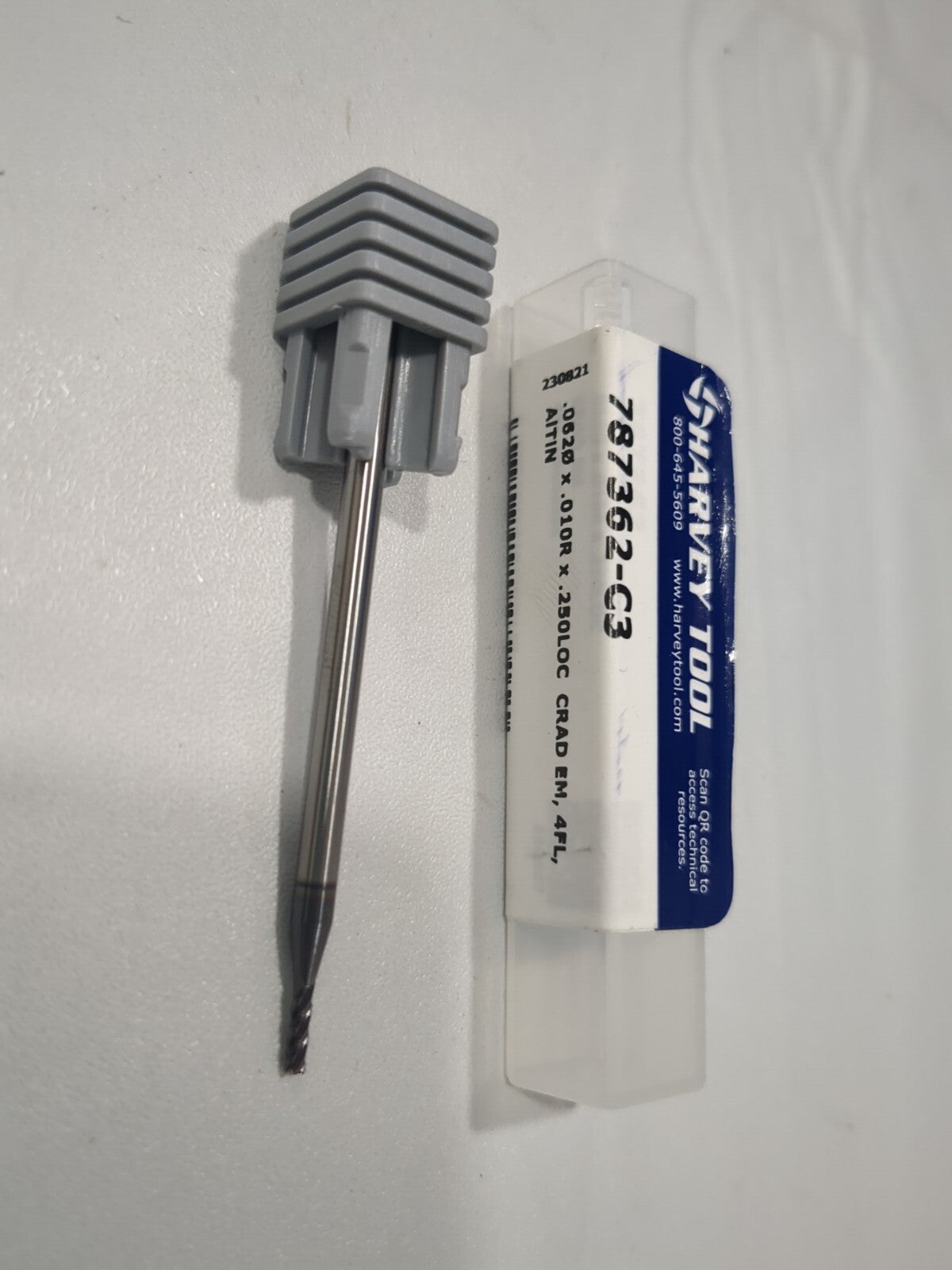

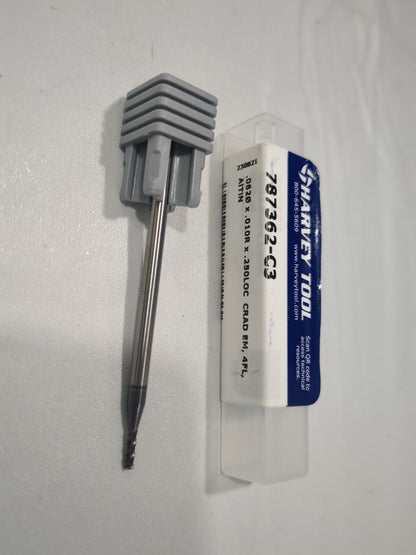

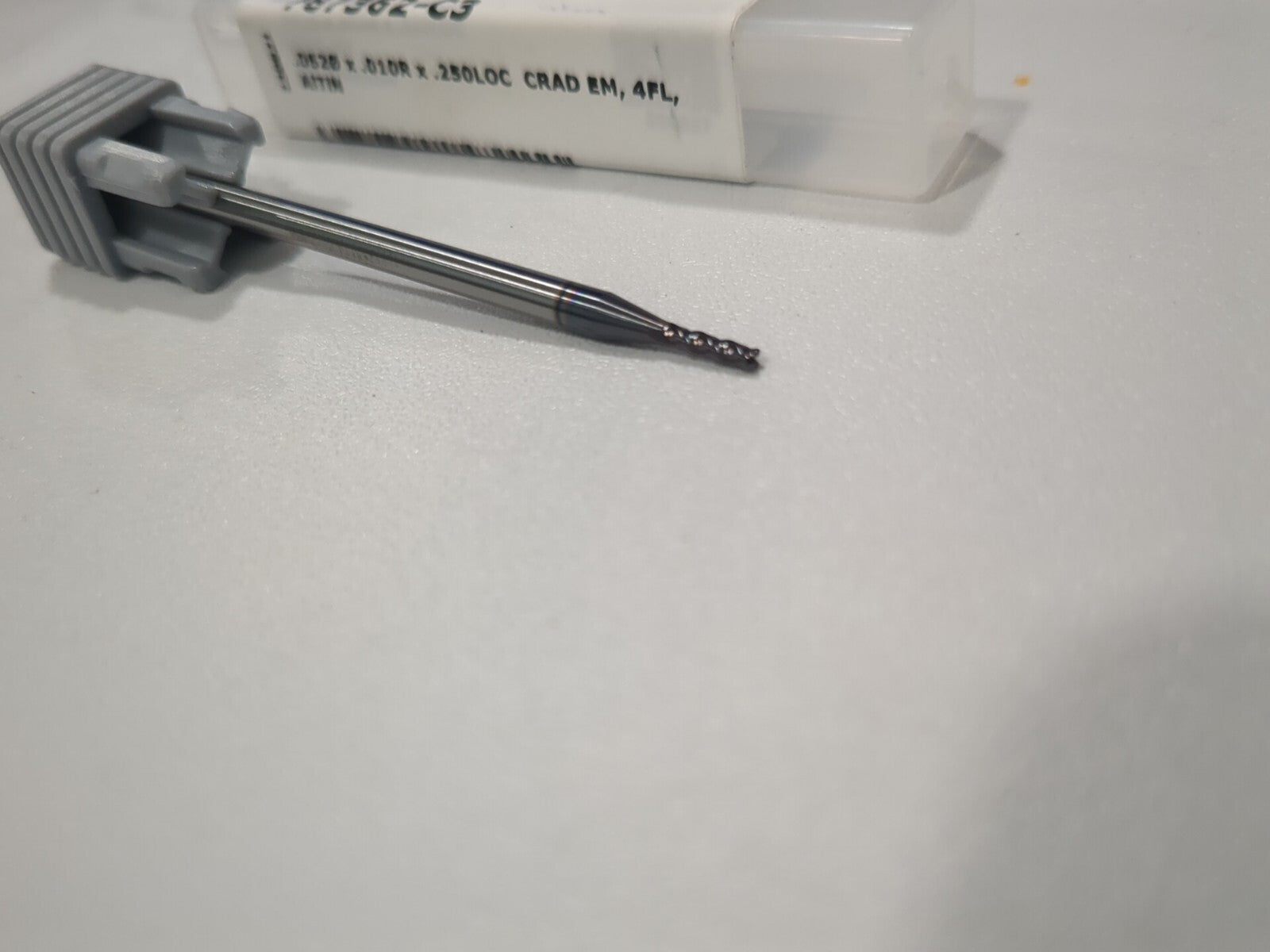

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
