HARVEY TOOL Corner Radius End Mill 0.0930"Dia 3 Fl Solid Carbide 54893-C6

HARVEY TOOL

 Corner Radius End Mill 0.0930"Dia 3 Fl Solid Carbide 54893-C6
MSRP: $55

• Mill Diameter (Decimal Inch) 0.0930
• Number Of Flutes 3
• Length of Cut (Inch) 9/64
• Single Or Double End Single
• End Mill Material Solid Carbide
• Chipbreaker No
• Coating/Finish AlTiN
• Overall Length (Inch) 2-1/2
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0100
• Variable Index No
• Variable Helix Yes
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 2.5000
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 0.1400
• Length Type Extended
• Flute Type Spiral
• Extended Reach Yes
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (Decimal Inch) 0.1250
• Shank Diameter (Inch) 1/8
• Reach Length (Decimal Inch) 0.7500
• Reach Length (Inch) 3/4
• Corner Radius Tolerance 0.0010 to -0.0010 in
• Mill Diameter Tolerance 0.0005/-0.0005 in
• Shank Diameter Tolerance h6
• Overall Length Tolerance 0.0100/-0.0000 in
• Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Steel
• UNSPSC Code 27112803
• Primary Workpiece Material Code P; H; K; M
• Series Material Specific End Mills; Variable Helix End Mills for High Temp Alloys - Corner Radius - Long Reach; Stub Flute
• Material Application Stainless Steel; Cast Iron; Hard Alloy; Steel
• Coating Classification PVD
• For Use With. High Precision Toolholders
• Country of Origin UNITED STATES
• Ordered as Part # 54893-C6

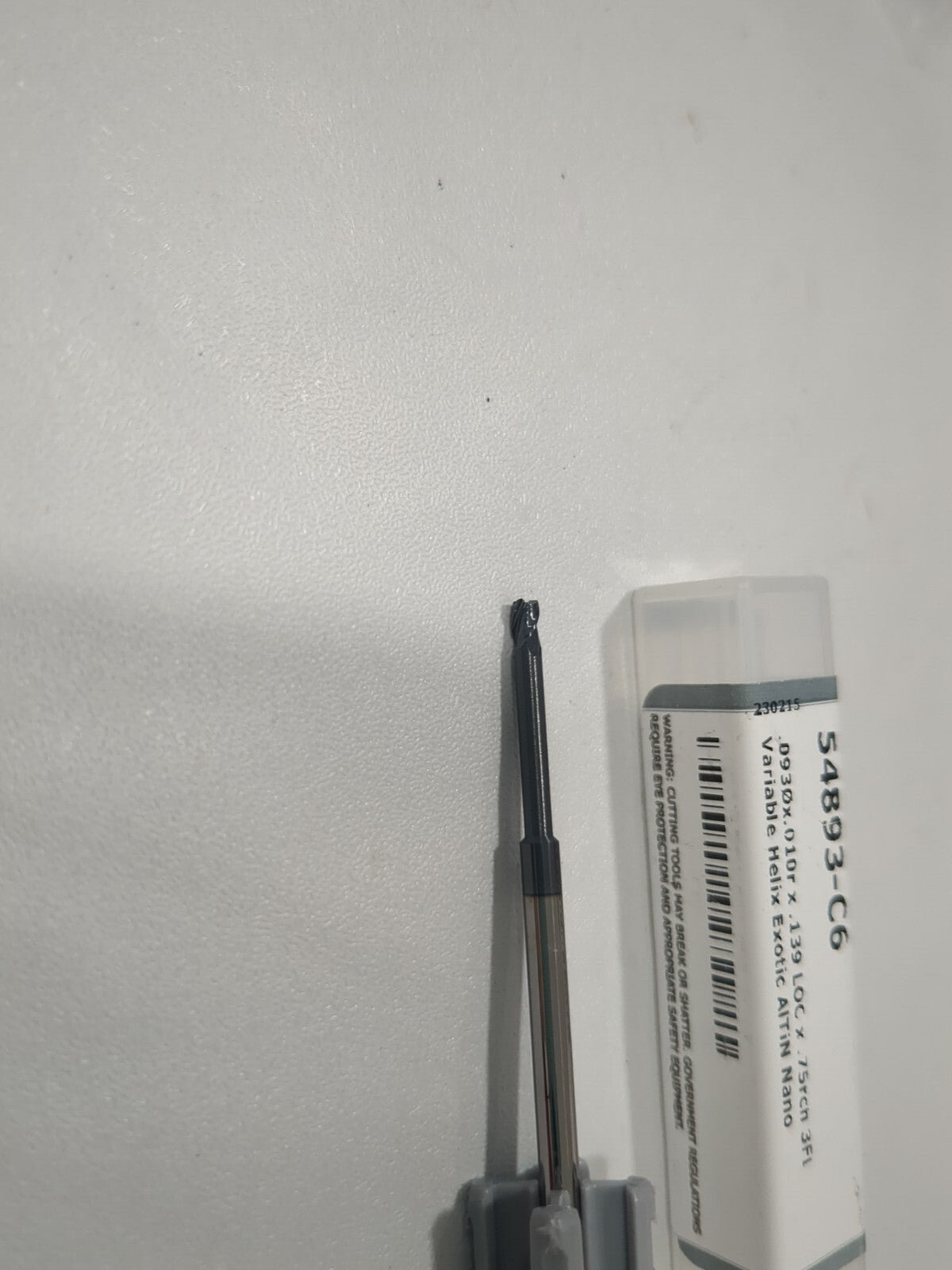

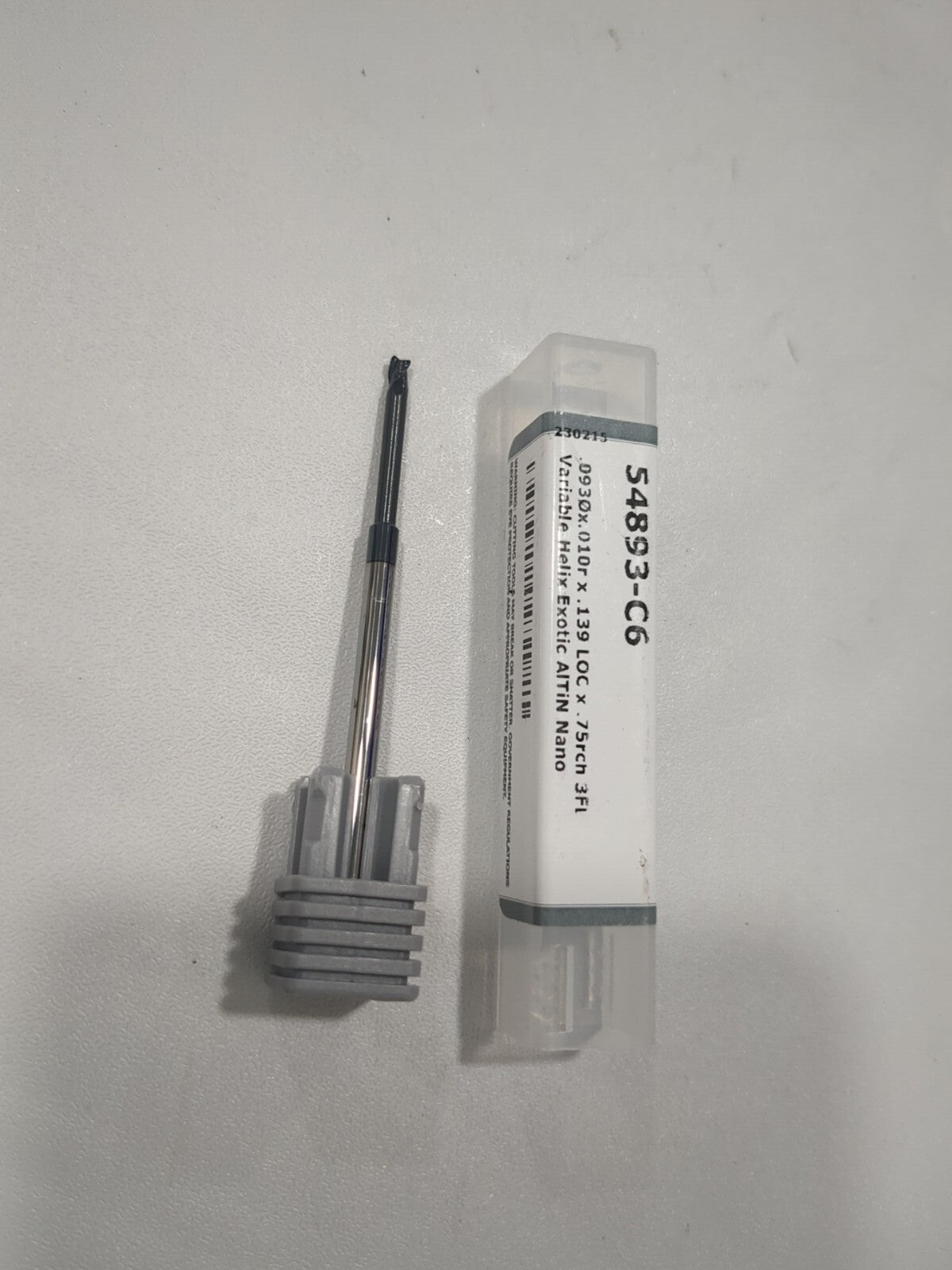

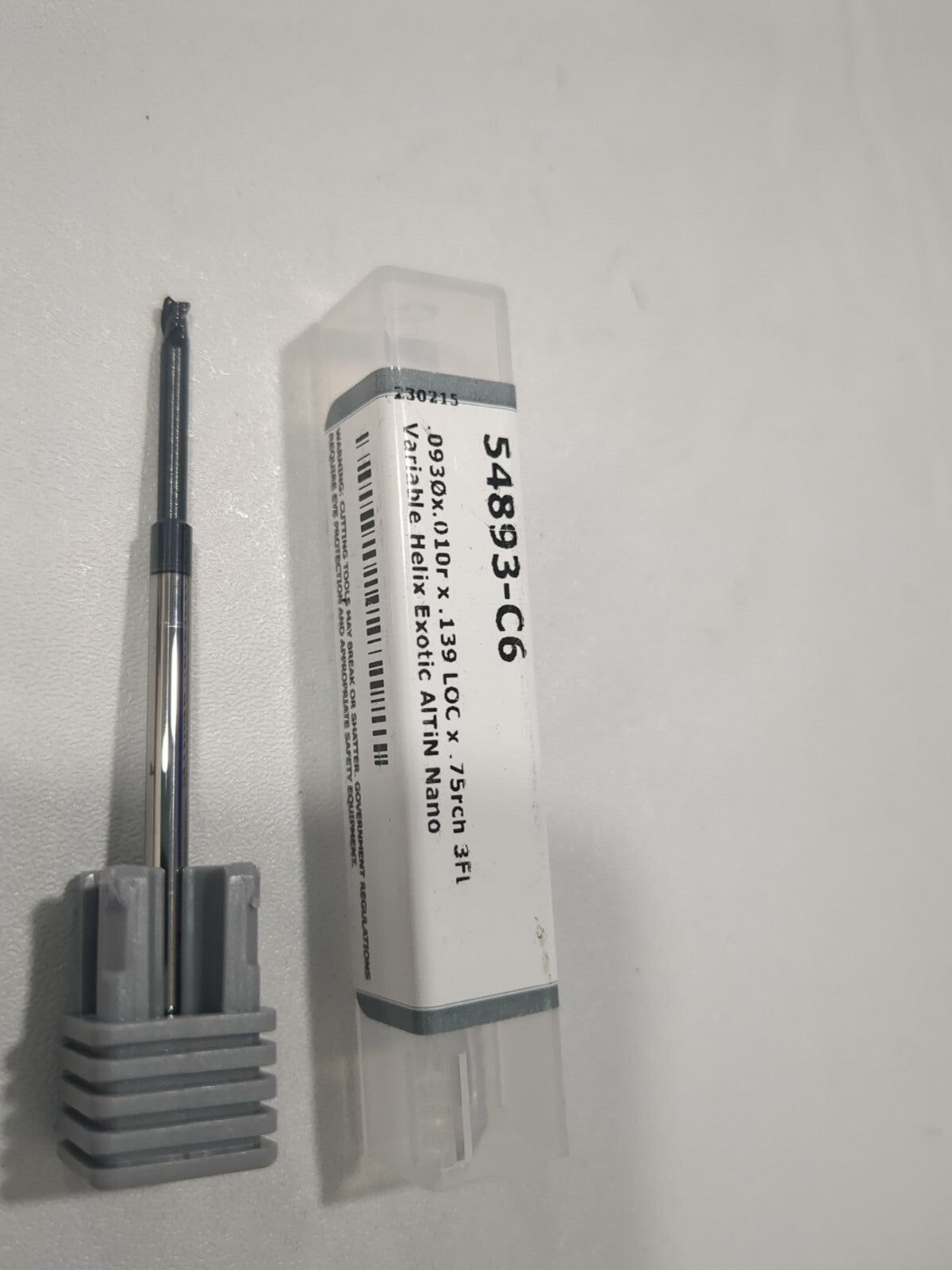

Please review photos, comes as shown.
