Harvey Tool Corner Radius Carbide End Mill 1/8" Dia X 3/8" LOC 4FL 848908-C6

HARVEY TOOL
Carbide End Mill

MSRP: $40.00

• Mill Diameter (Inch) 1/8
• Mill Diameter (Decimal Inch) 0.1250
• Number Of Flutes 4
• Length of Cut (Inch) 3/8
• Single Or Double End Single
• End Mill Material Solid Carbide
• Chipbreaker No
• Coating/Finish AlTiN
• Overall Length (Inch) 1-1/2
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0250
• Variable Index No
• Variable Helix Yes
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 1.5000
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 0.3750
• Length Type Regular
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (Decimal Inch) 0.1250
• Shank Diameter (Inch) 1/8
• Corner Radius Tolerance 0.0010 to -0.0010 in
• Mill Diameter Tolerance 0.0000/-0.0020 in
• Shank Diameter Tolerance h6
• Overall Length Tolerance 0.0100/-0.0000 in
• Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Steel
• UNSPSC Code 27112803
• Primary Workpiece Material Code P; H; K; M
• Series Material Specific End Mills; Variable Helix End Mills for High Temp Alloys - Corner Radius
• Material Application Stainless Steel; Cast Iron; Hard Alloy; Steel
• Coating Classification PVD
• For Use With. High Precision Toolholders

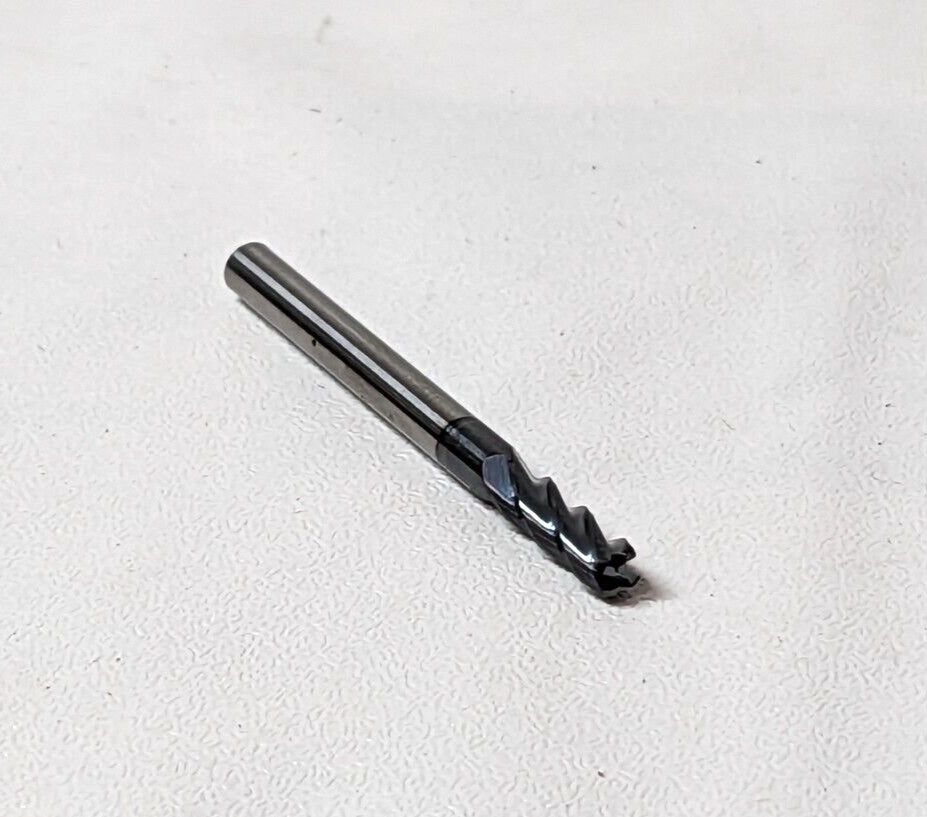

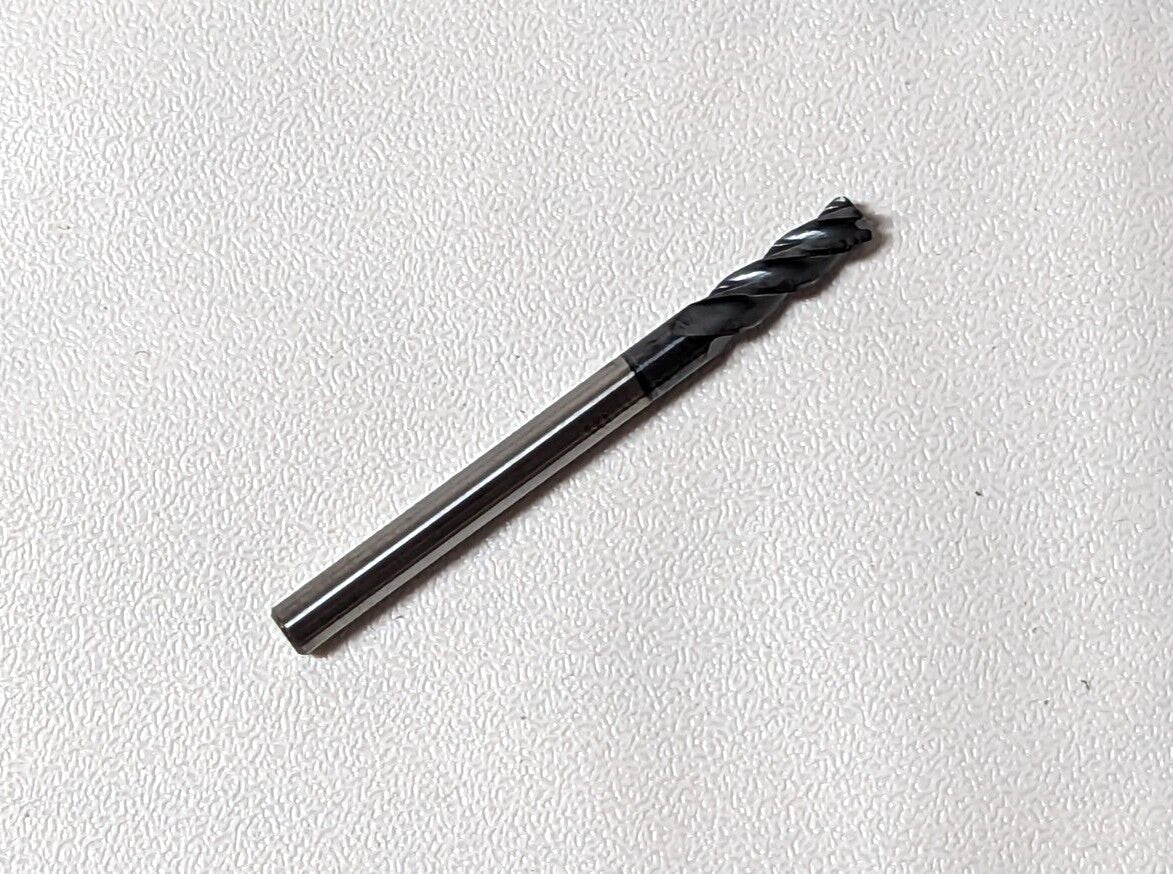

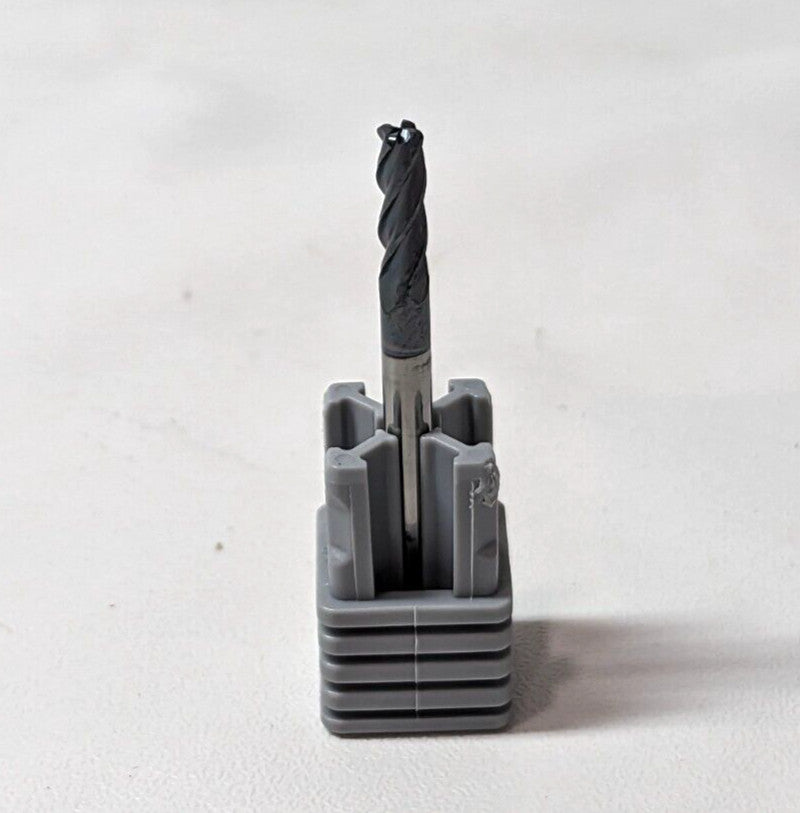

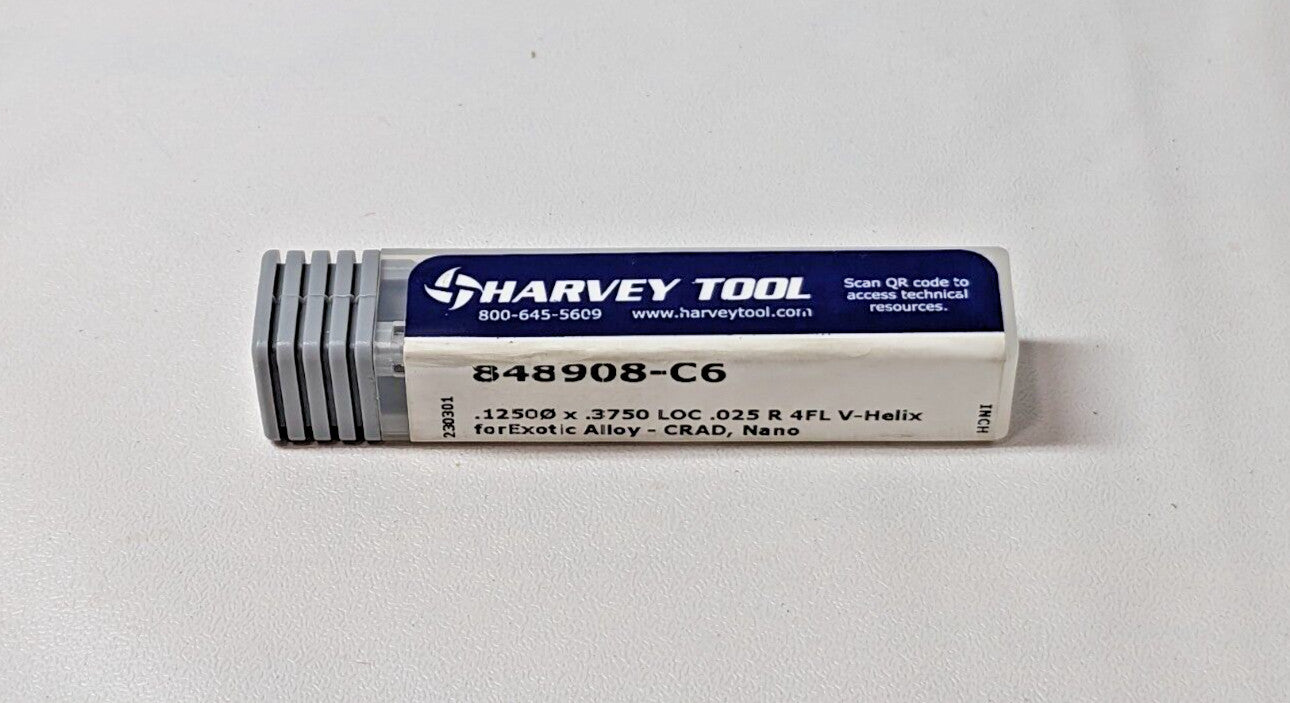

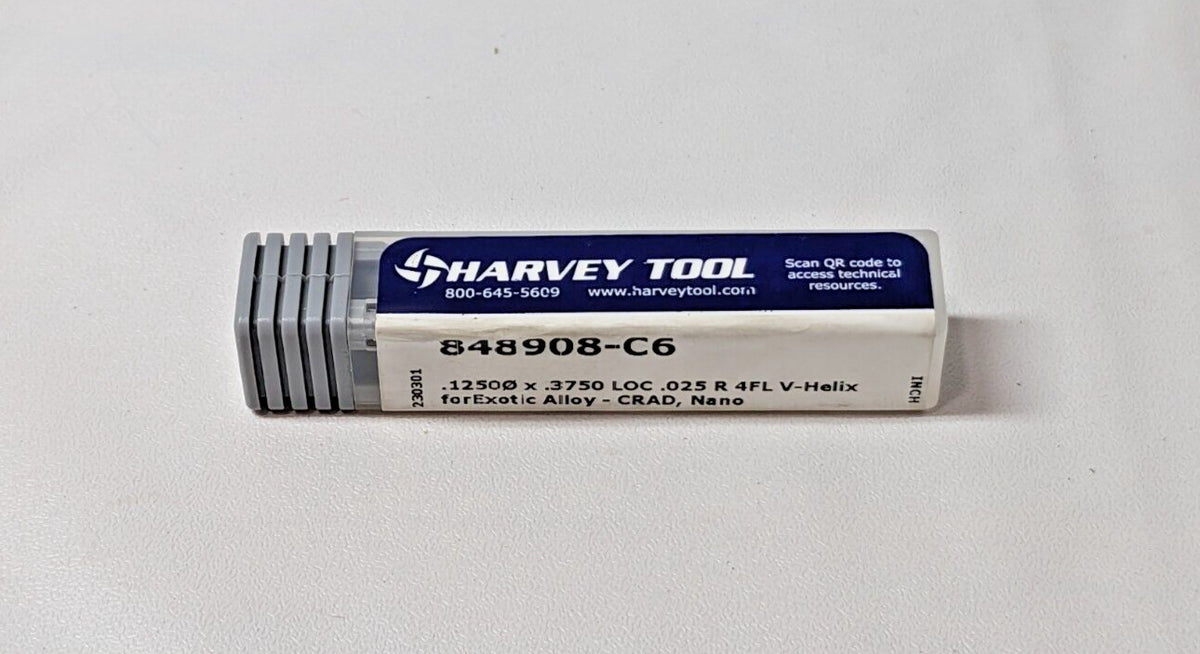

Please review photos, comes as shown.
