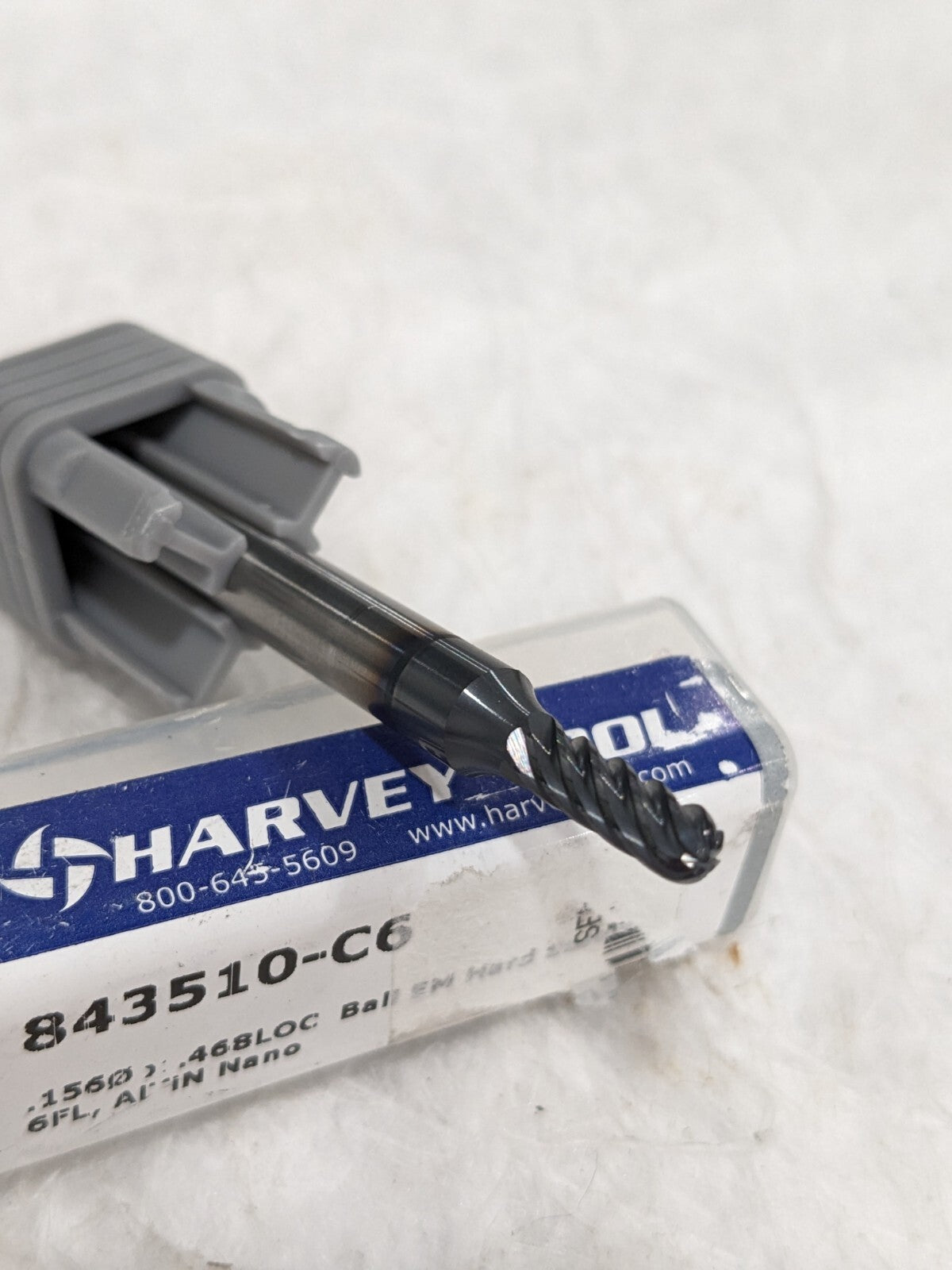

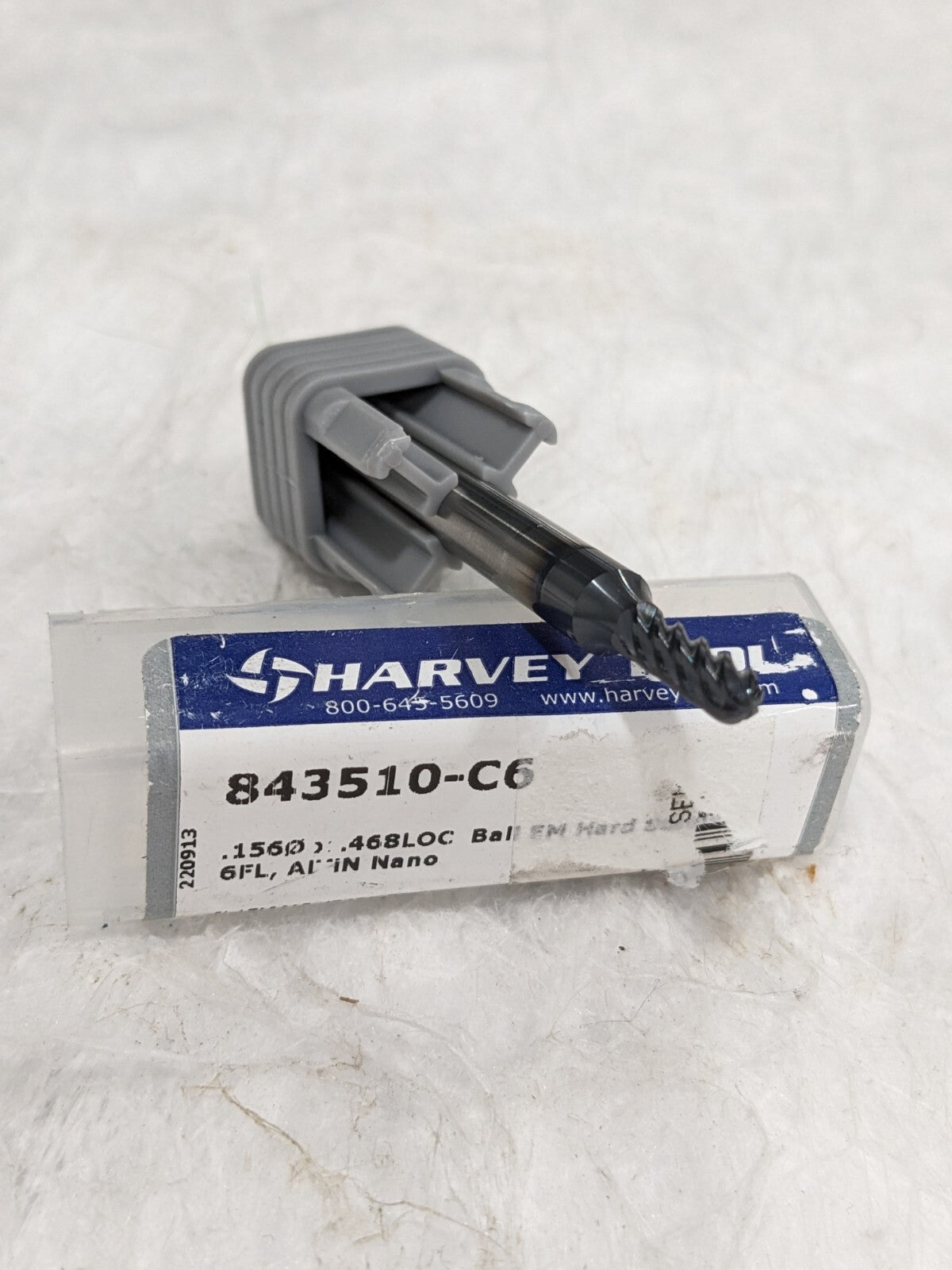

HARVEY TOOL Ball End Mill: 5/32" Dia, 15/32" LOC, 6 Flute 843510-C6

Harvey Tool
Ball End Mill

MSRP: $40.00

• Mill Diameter (Inch) 5/32
• Mill Diameter (Decimal Inch) 0.1562
• Number Of Flutes 6
• End Mill Material Solid Carbide
• Length of Cut (Inch) 15/32
• Coating/Finish AlTiN Nano
• Overall Length (Inch) 2-1/2
• Shank Diameter (Inch) 1/4
• Extended Reach No
• Variable Helix Yes
• Variable Index No
• Helix Angle 37
• Overall Length (Decimal Inch) 2.5000
• Chipbreaker No
• Undercutting No
• Length Of Cut Range (Decimal Inch) 0.4000 - 0.7000
• Length Type Standard
• Helix Style Variable
• Material Removal Type Roughing
• Shank Diameter (Decimal Inch) 0.2500
• Nose Radius (Decimal Inch) 0.0781
• Reach Length (Decimal Inch) 0.4680
• Mill Diameter Tolerance +0.0000/-0.0020 in
• Shank Diameter Tolerance h6
• Primary Workpiece Material Hard Material
• Primary Workpiece Material Code H
• Secondary Workpiece Material Stainless Steel; Superalloys & Titanium
• Secondary Workpiece Material Code S; M
• Material Grade Carbide
• Flute Direction Right Hand
• Cutting Direction Right Hand
• Series End Mills for Hardened Steels - Ball - For Steels Up to 55 Rc, Material Specific End Mills
• Flute Type Spiral
• UNSPSC Code 27112803
• Centercutting Yes
• Coating Classification PVD
• Single Or Double End Single
• Shank Type Straight-Cylindrical
• Pitch Close
• Coolant Through No
• Length Of Cut (Decimal Inch - 4 Decimals) 0.4680
• Manufacturers Catalog Number 843510-C6
• System Of Measurement Fractional Inch

This item appears to be new and in good condition. SOLD AS IS.

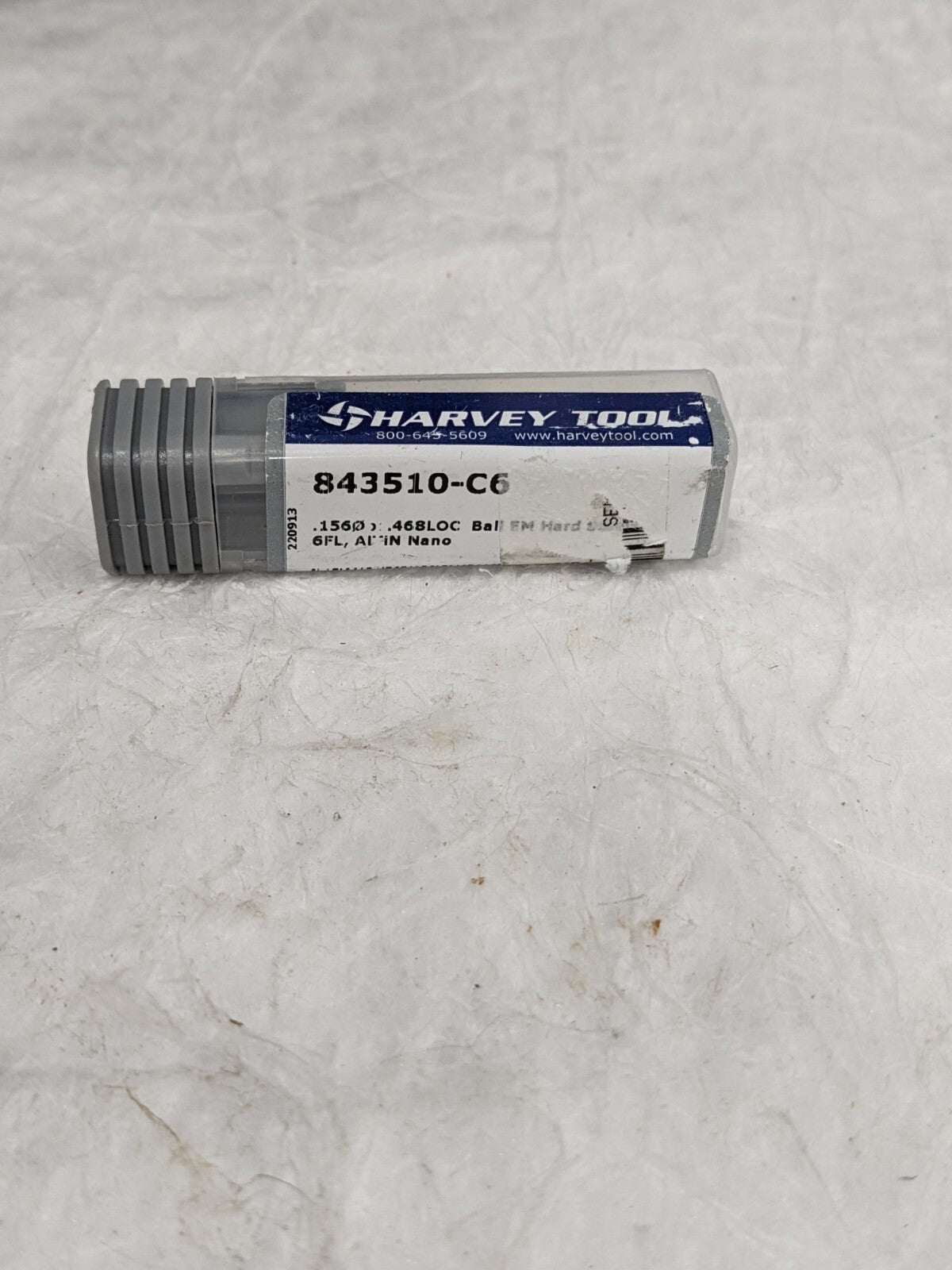

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
