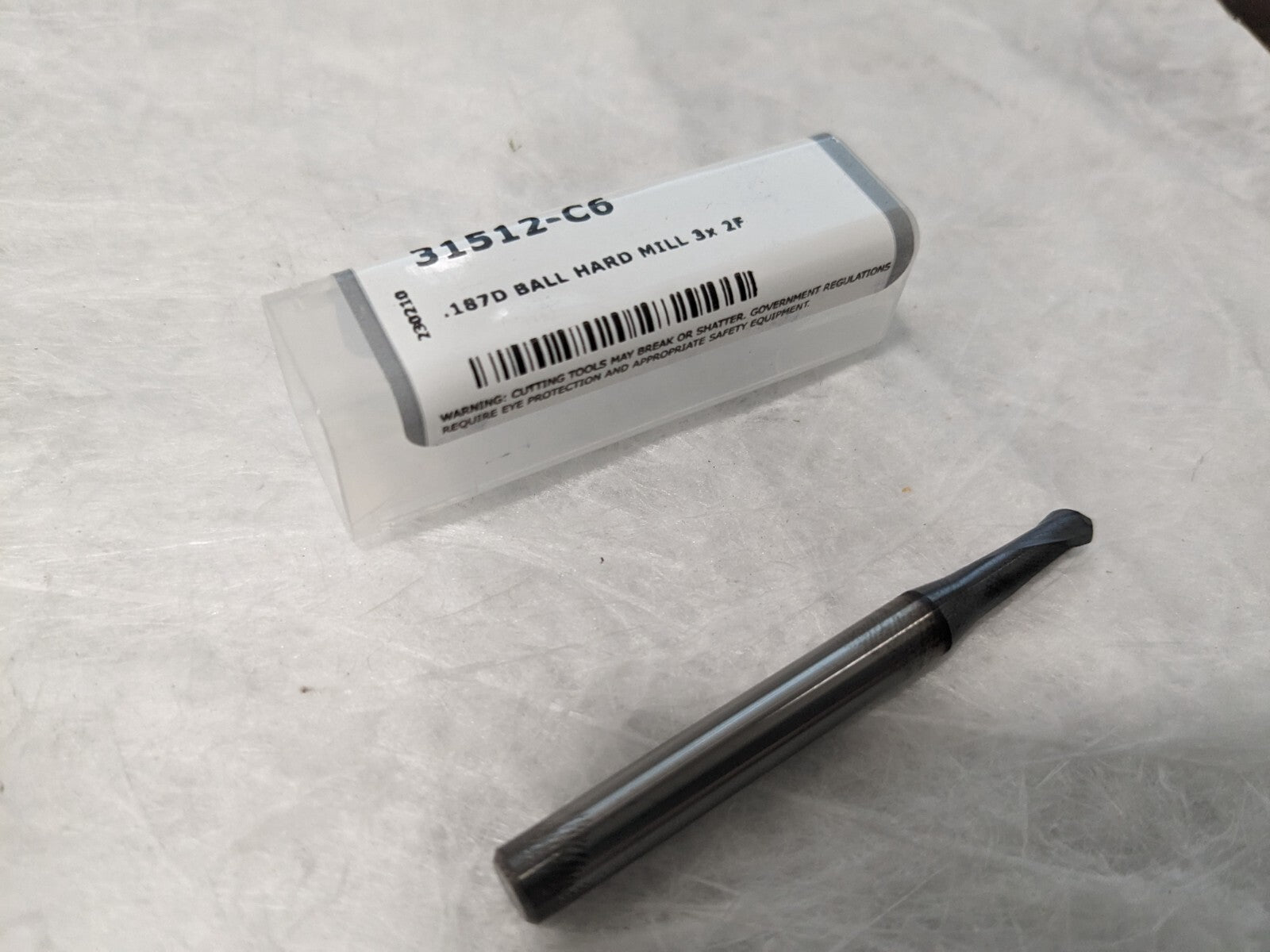

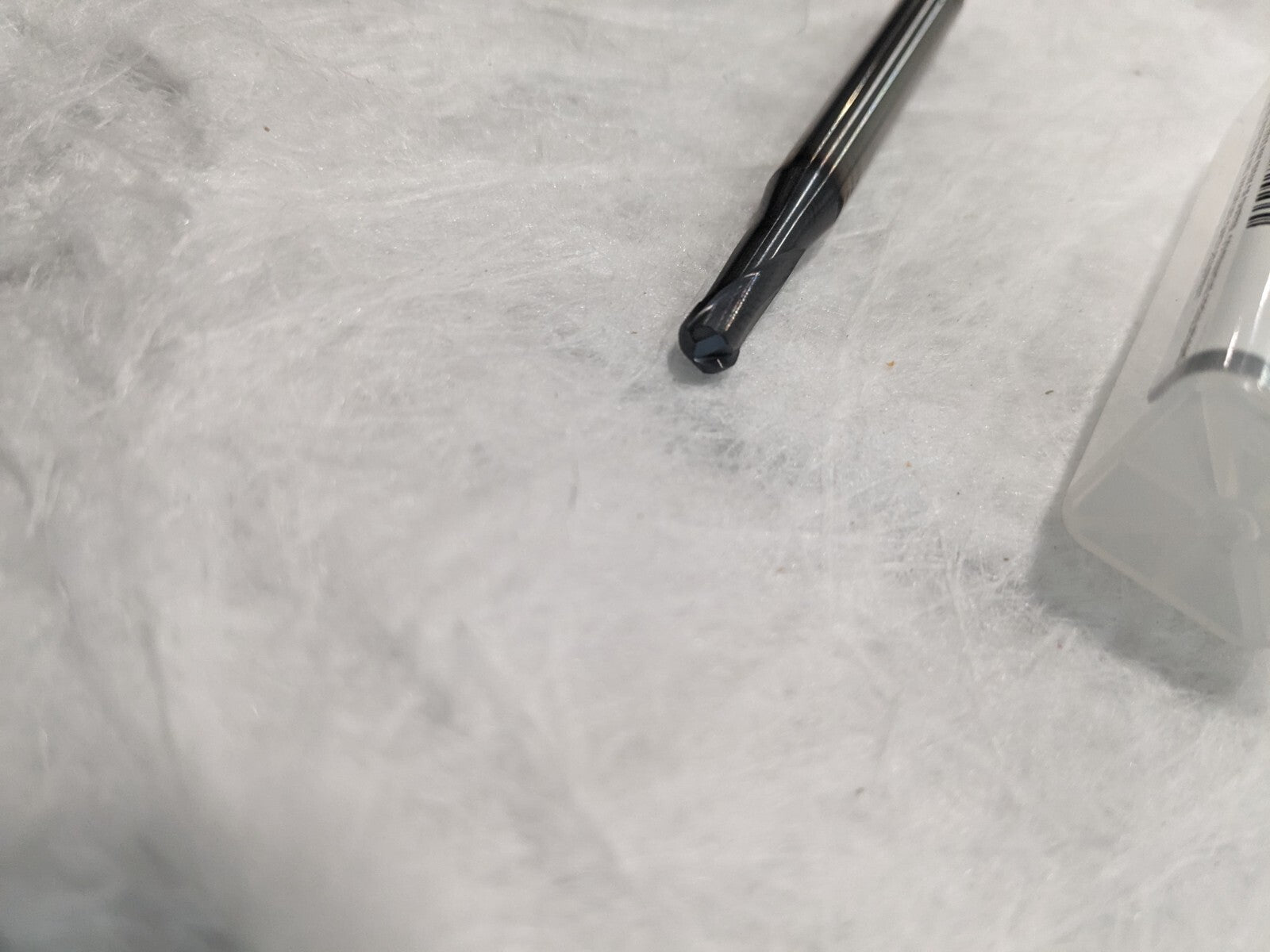

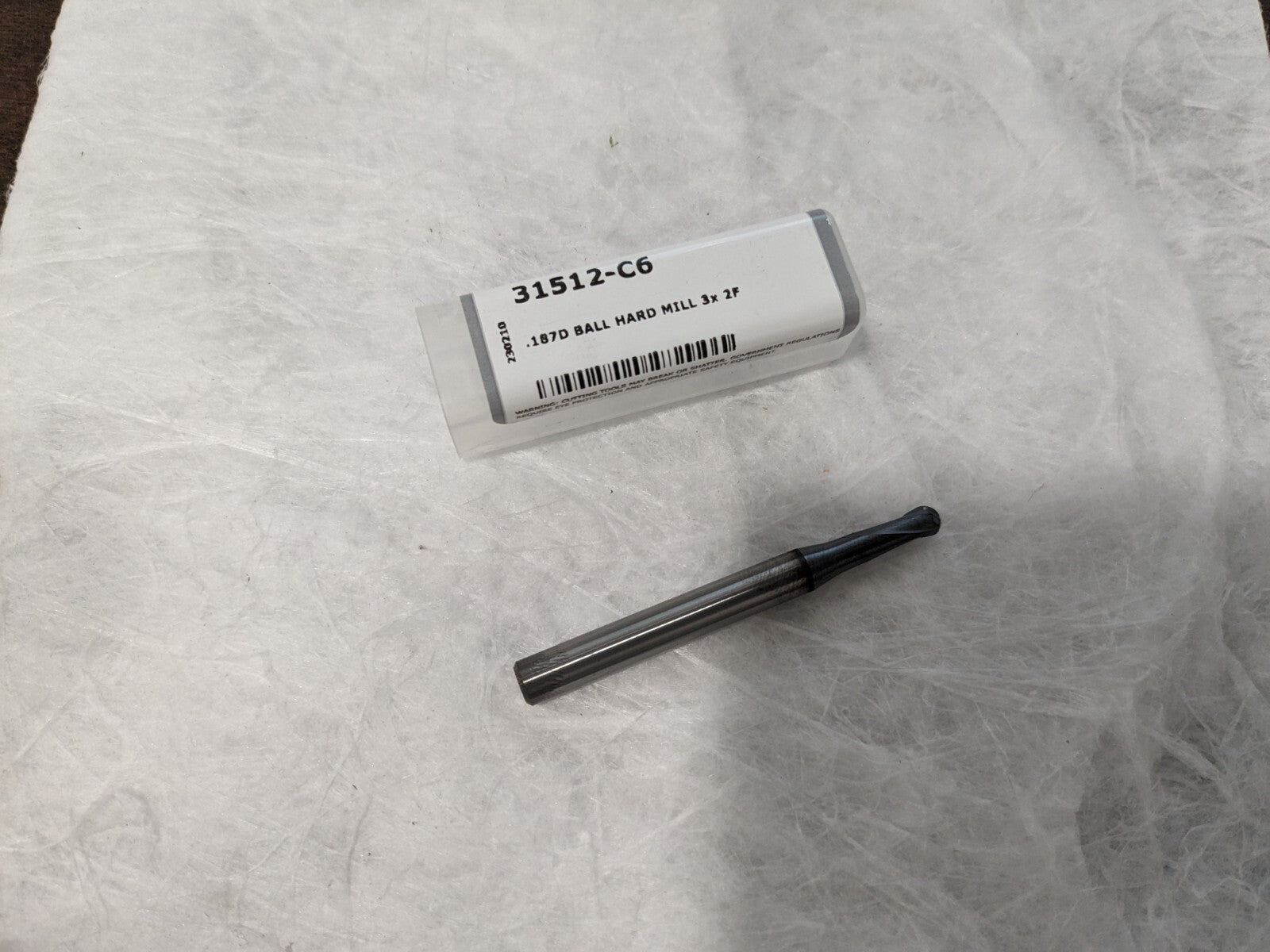

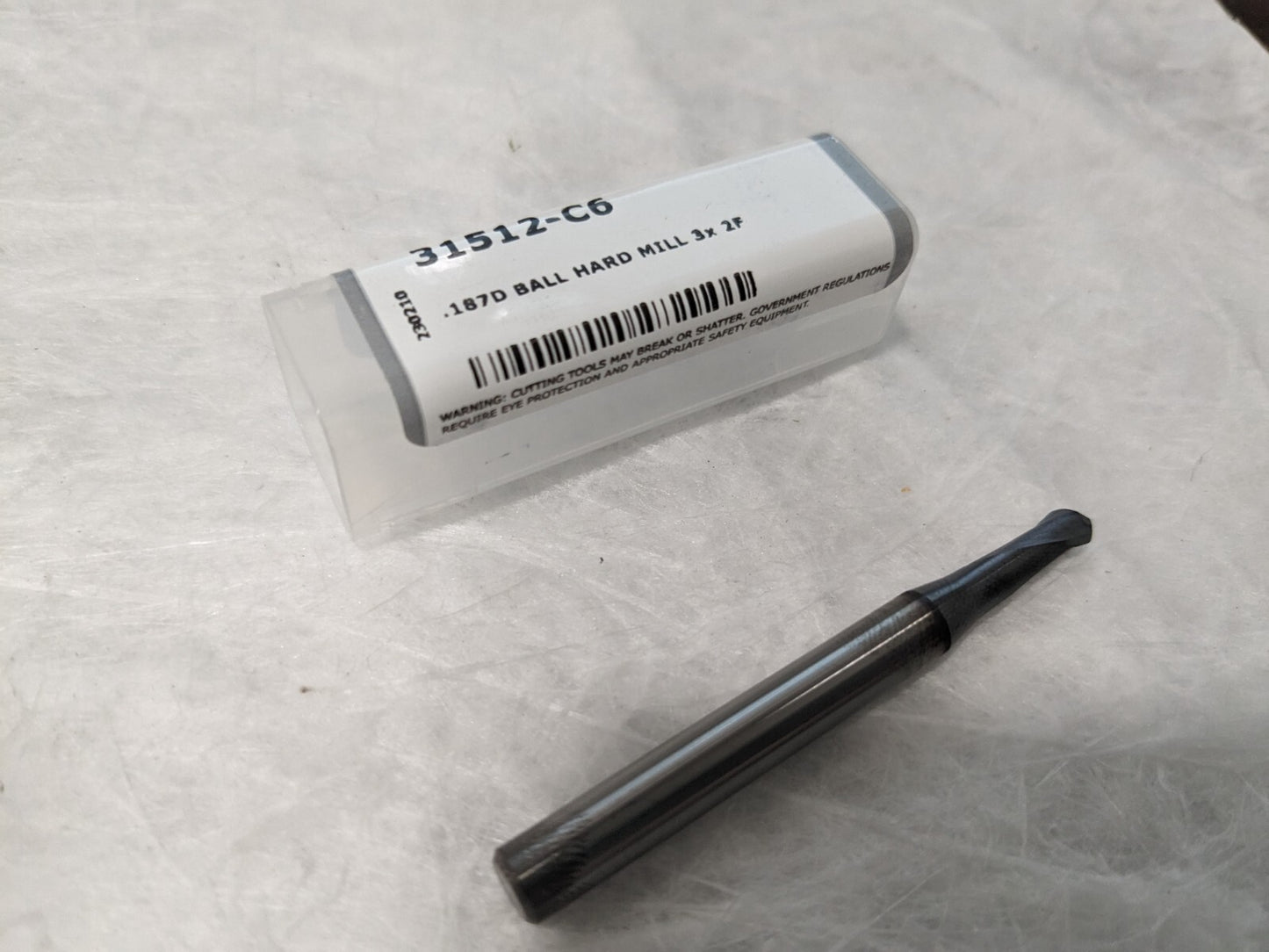

HARVEY TOOL Ball End Mill: 3/16″ Dia, 0.1500″ LOC, 2 Fl 31512-C6

HARVEY TOOL Ball End Mill: 3/16″ Dia, 0.1500″ LOC, 2 Fl 31512-C6

MSRP: $70

• Mill Diameter (Inch) 3/16
• Mill Diameter (Decimal Inch) 0.1875
• Number Of Flutes 2
• End Mill Material Solid Carbide
• Coating/Finish AlTiN Nano
• Overall Length (Inch) 2-1/2
• Shank Diameter (Inch) 1/4
• Extended Reach Yes
• Variable Helix No
• Variable Index No
• Helix Angle 20
• Overall Length (Decimal Inch) 2.5000
• Chipbreaker No
• Undercutting No
• Length Of Cut Range (Decimal Inch) 0.1000 - 0.2000
• Length Type Stub
• Material Removal Type Finishing
• Shank Diameter (Decimal Inch) 0.2500
• Nose Radius (Decimal Inch) 0.0938
• Neck Length (Decimal Inch) 0.4200
• Reach Length (Decimal Inch) 0.5700
• Mill Diameter Tolerance +0.0000/-0.0010 in
• Shank Diameter Tolerance h6
• Primary Workpiece Material Hard Material
• Primary Workpiece Material Code H
• Secondary Workpiece Material Stainless Steel; Cast Iron; Steel
• Secondary Workpiece Material Code P; K; M
• Material Grade Carbide
• Flute Direction Right Hand
• Cutting Direction Right Hand
• Series End Mills for Hardened Steels - Finishers - Ball, Material Specific End Mills
• Flute Type Spiral
• UNSPSC Code 27112803
• Centercutting Yes
• Coating Classification PVD
• Single Or Double End Single
• Shank Type Straight-Cylindrical
• Pitch Coarse
• Coolant Through No
• Length Of Cut (Decimal Inch - 4 Decimals) 0.1500
• Manufacturers Catalog Number 31512-C6
• System Of Measurement Fractional Inch

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
