HARVEY TOOL Ball End Mill: 0.1875″ Dia, 0.15″ LOC, 2 Flute 38812-C6

Harvey Tool
Ball End Mill

MSRP: $70.00

• Variable Helix No
• Secondary Workpiece Material Code P; K; M
• Overall Length (Decimal Inch) 2.5000 in
• Extended Reach Yes
• Undercutting No
• Overall Length (Inch) 2-1/2 in
• Material Removal Type Finishing
• Helix Angle 20
• Material Grade Carbide
• Secondary Workpiece Material Stainless Steel; Cast Iron; Steel
• Reach Length (Decimal Inch) 1.0000
• Length Type Stub
• Mill Diameter (Inch) 3/16 in
• Pitch Coarse
• Coating Classification PVD
• Mill Diameter (Decimal Inch) 0.1875 in
• Shank Type Straight-Cylindrical
• Shank Diameter (Decimal Inch) 0.2500
• Variable Index No
• Primary Workpiece Material Hard Material
• Shank Diameter Tolerance h6
• Length Of Cut Range (Decimal Inch) 0.1000 to 0.2000
• End Mill Material Solid Carbide
• Manufacturers Catalog Number 38812-C6
• Flute Direction Right Hand
• Centercutting Yes
• Single Or Double End Single
• Shank Diameter (Inch) 1/4 in
• Coolant Through No
• Neck Length (Decimal Inch) 0.8500
• Cutting Direction Right Hand
• Reach Length (Inch) 1
• Number Of Flutes 2
• Nose Radius (Decimal Inch) 0.0938
• Chipbreaker No
• Length Of Cut (Decimal Inch - 4 Decimals) 0.1500 in
• Coating/Finish AlTiN Nano
• System Of Measurement Fractional Inch
• Mill Diameter Tolerance +0.0000/-0.0010 in
• Series End Mills for Hardened Steels - Finishers - Ball, Material Specific End Mills
• UNSPSC Code 27112803
• Primary Workpiece Material Code H
• Flute Type Helical

This item appears to be new and in good condition. SOLD AS IS.

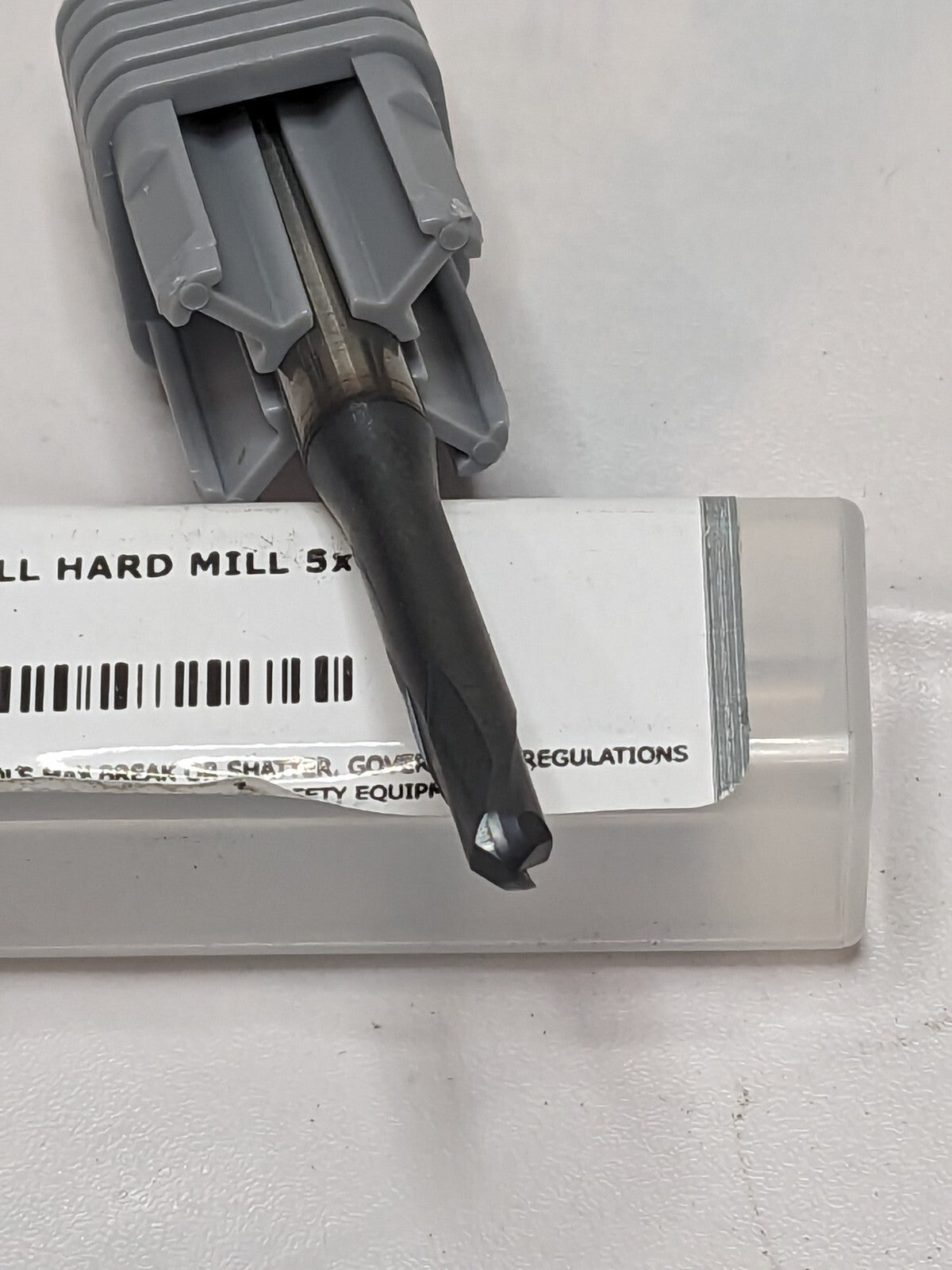

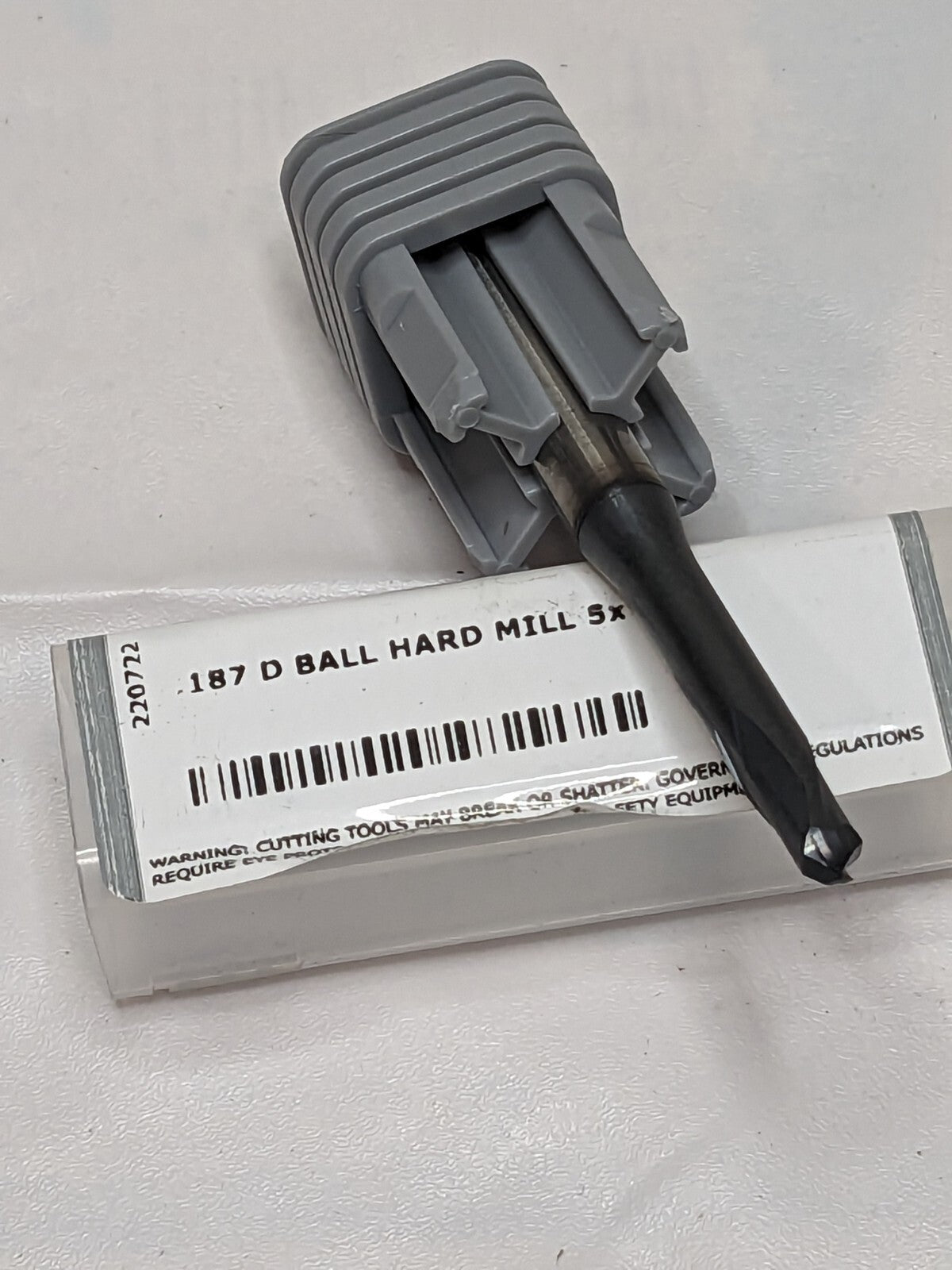

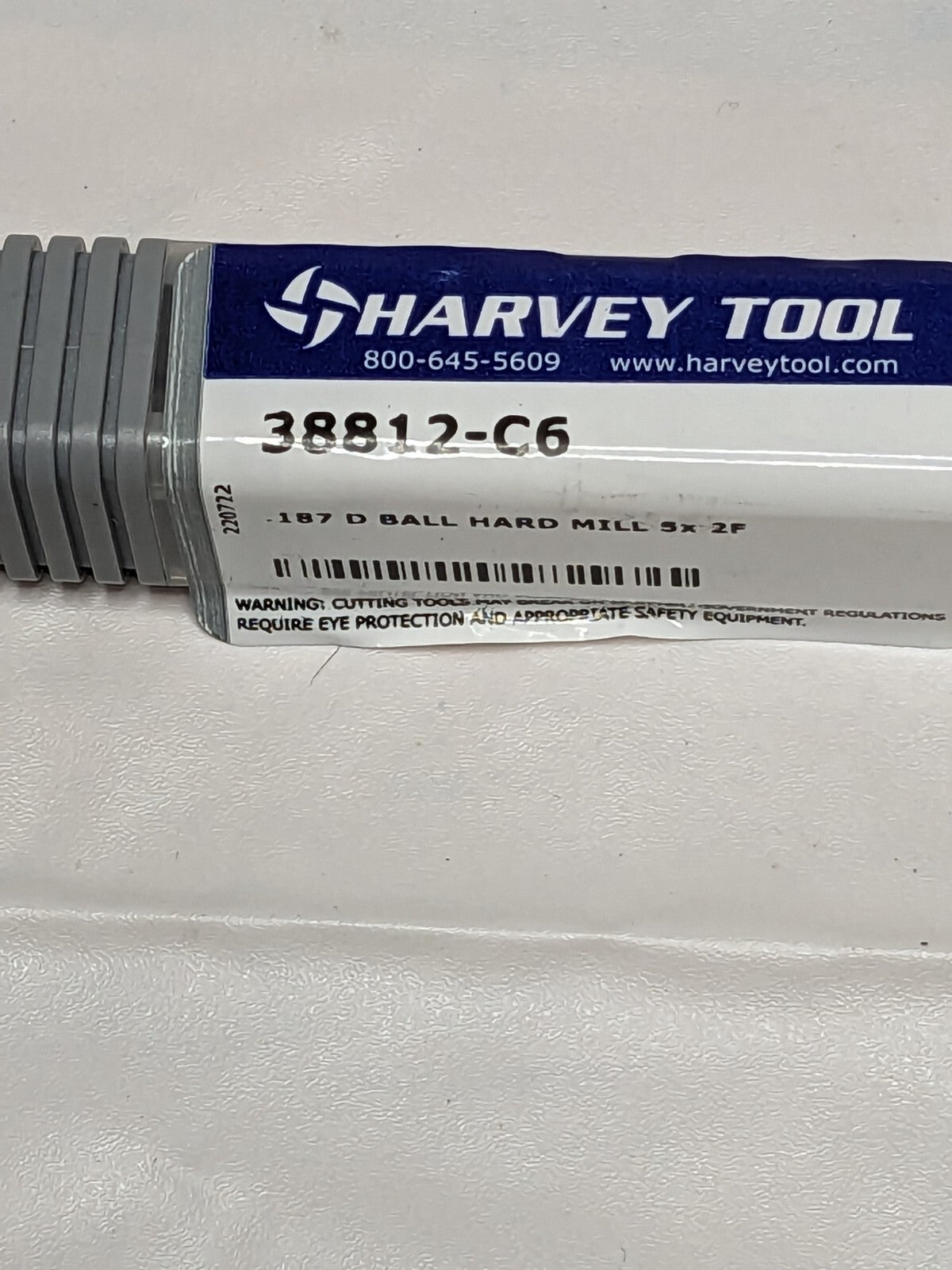

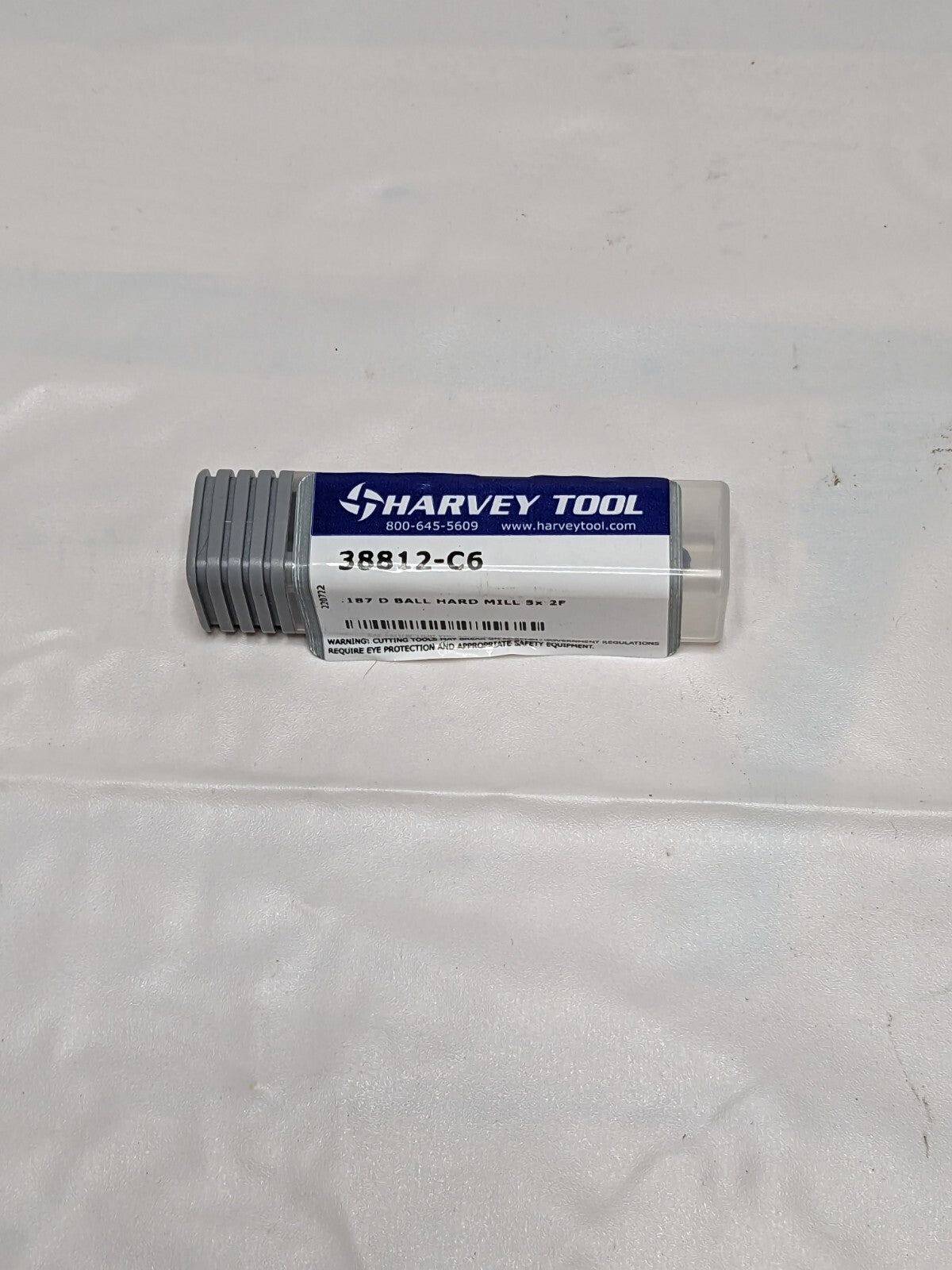

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
