HARVEY TOOL Ball End Mill: 0.0930" Dia 3 Fl Solid Carbide 34093

HARVEY TOOL

Ball End Mill: 0.0930" Dia 3 Fl Solid Carbide 34093

MSRP: $35

• Mill Diameter (Inch) 3/32
• Mill Diameter (Decimal Inch) 0.0930
• Number Of Flutes 3
• End Mill Material Solid Carbide
• Length of Cut (Decimal Inch) 0.7500
• Length of Cut (Inch) 3/4
• Shank Diameter (Decimal Inch) 0.1250
• Shank Diameter (Inch) 1/8
• Overall Length (Decimal Inch) 2.5000
• Overall Length (Inch) 2-1/2
• Single Or Double End Single
• Coating/Finish Family Bright/Uncoated
• Centercutting No
• Cutting Direction Right Hand
• Flute Direction Right Hand
• Extended Reach No
• Coolant Through No
• Helix Angle 20
• Primary Workpiece Material Stainless Steel; Cast Iron; Steel
• Primary Workpiece Material Code P; K; M
• Secondary Workpiece Material Stainless Steel; Cast Iron; Steel
• Secondary Workpiece Material Code P; K; M
• Coating/Finish Bright/Uncoated
• Variable Helix Yes
• Variable Index No
• Chipbreaker No
• Flute Type Spiral
• Shank Type Straight-Cylindrical
• Material Grade Carbide
• Length Type Extra Long
• Coating Classification Uncoated
• Helix Style Variable
• Nose Radius (Decimal Inch) 0.0465
• Reach Length (Inch) 3/4
• Reach Length (Decimal Inch) 0.7500
• Mill Diameter Tolerance +0.0005/-0.0005 in
• Shank Diameter Tolerance h6
• Series Miniature End Mills - Ball - Long Flute, Miniature End Mills
• System Of Measurement Decimal Inch
• Manufacturers Catalog Number 34093
• Material Removal Type Finishing
• UNSPSC Code 27112803
• Country of Origin UNITED STATES
• Ordered as Part # 34093

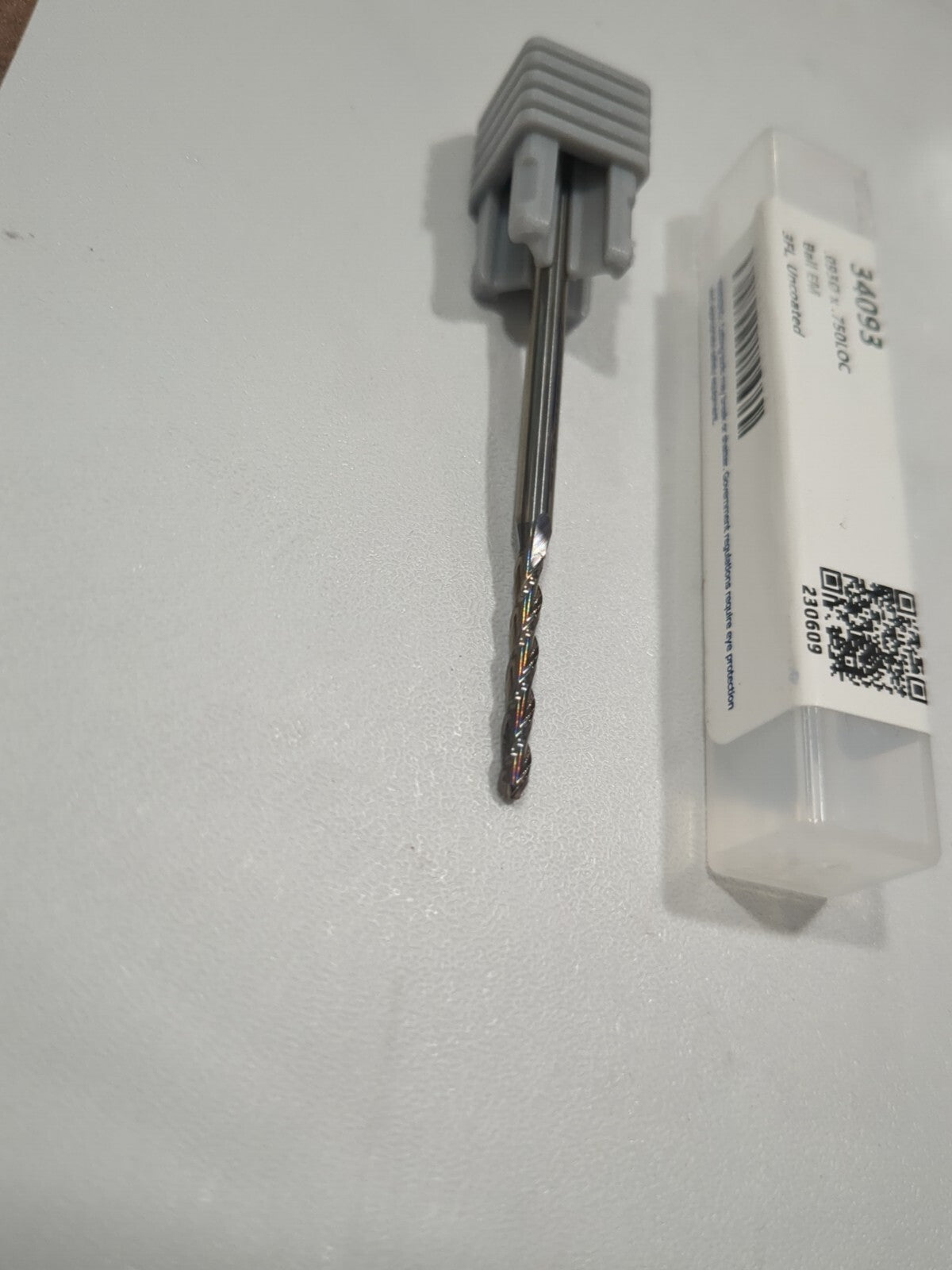

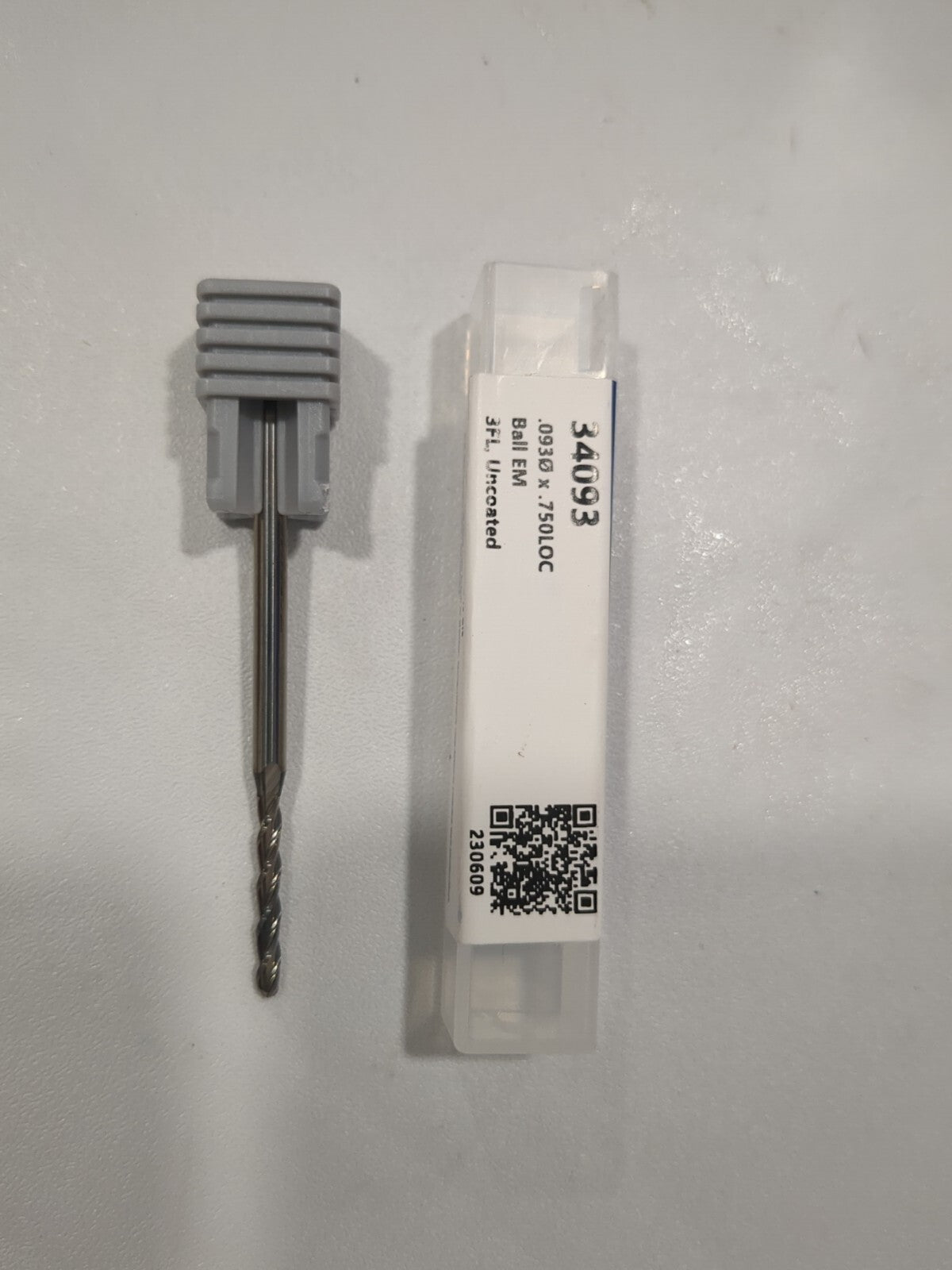

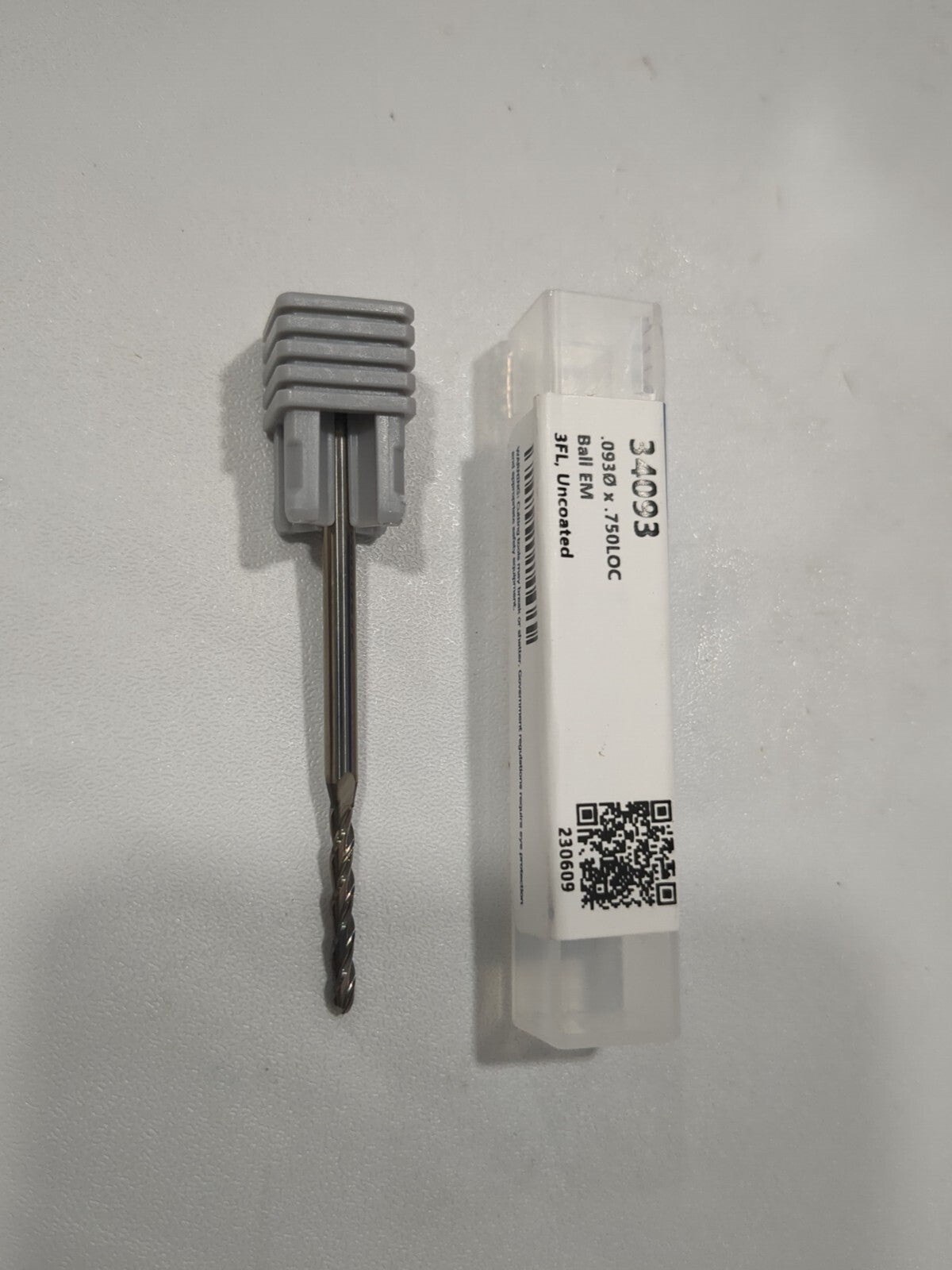

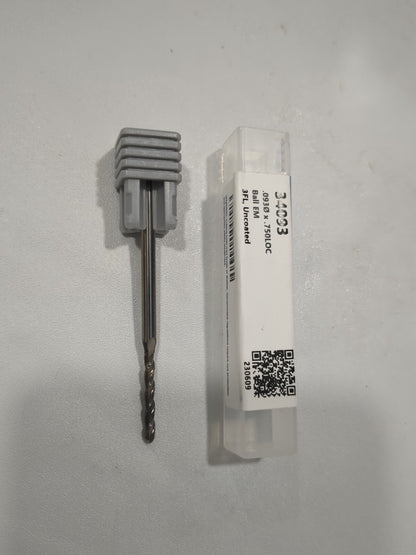

Please review photos, comes as shown.
