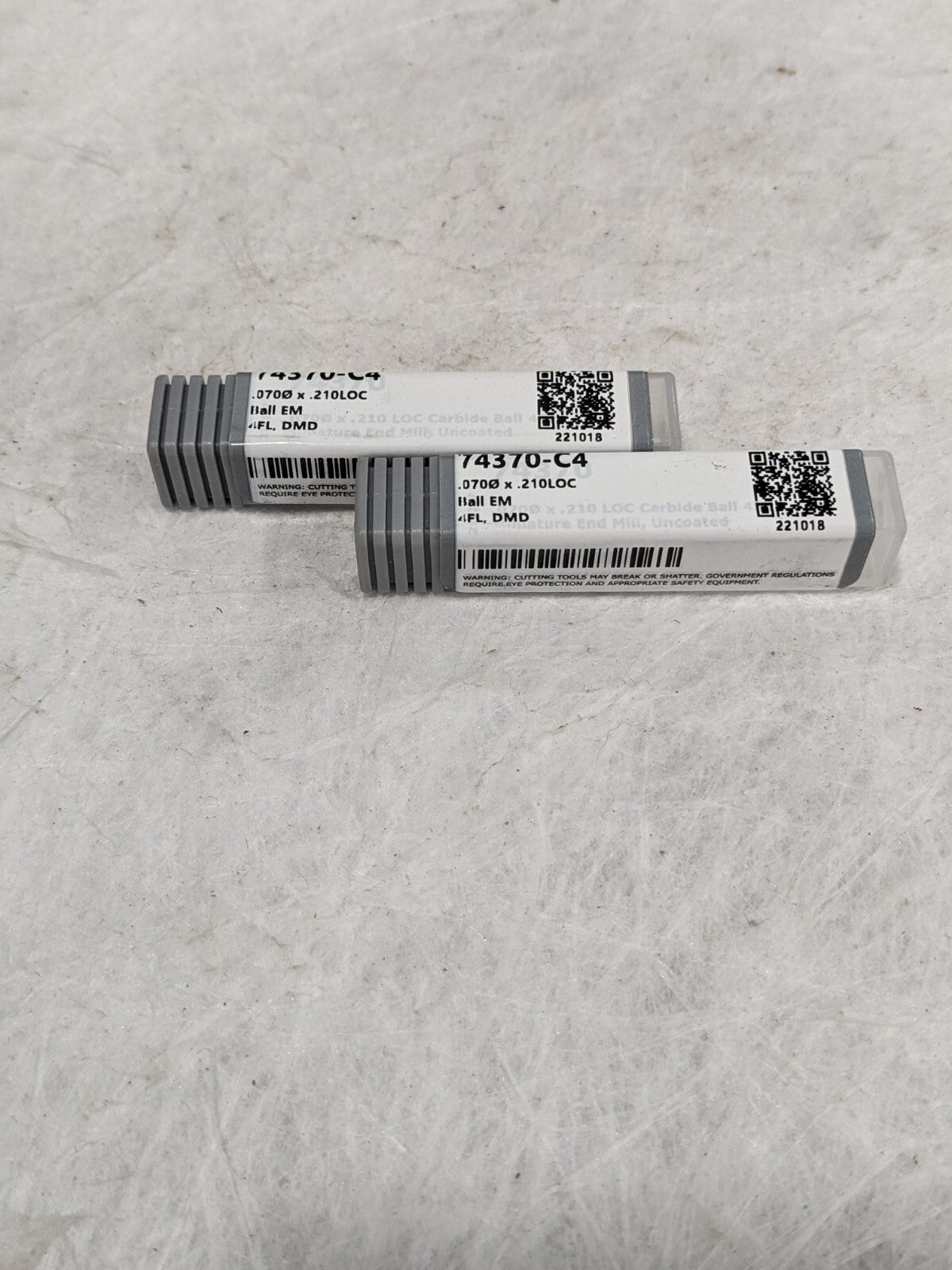

HARVEY TOOL Ball End Mill: 0.0700" Dia, 0.2100" LOC, 4 Flute Qty 2 74370-C4

Harvey Tool
1 Lot of 2 Ball End Mills

MSRP: $50.00

• Mill Diameter (Decimal Inch) 0.0700
• Number Of Flutes 4
• End Mill Material Solid Carbide
• Coating/Finish Amorphous Diamond
• Overall Length (Inch) 1-1/2
• Shank Diameter (Inch) 1/8
• Extended Reach No
• Variable Helix No
• Variable Index No
• Helix Angle 30
• Overall Length (Decimal Inch) 1.5000
• Chipbreaker No
• Undercutting No
• Length Of Cut Range (Decimal Inch) 0.2000 - 0.4000
• Length Type Standard
• Material Removal Type Roughing & Finishing
• Shank Diameter (Decimal Inch) 0.1250
• Nose Radius (Decimal Inch) 0.0350
• Reach Length (Decimal Inch) 0.2100
• Mill Diameter Tolerance +0.0005/-0.0005 in
• Primary Workpiece Material Non-Ferrous Metal
• Primary Workpiece Material Code N
• Material Grade Carbide
• Flute Direction Right Hand
• Cutting Direction Right Hand
• Series Miniature End Mills - Ball - Stub & Standard, Miniature End Mills
• Flute Type Spiral
• UNSPSC Code 27112803
• Centercutting Yes
• Coating Classification PVD
• Single Or Double End Single
• Shank Type Straight-Cylindrical
• Pitch Normal
• Coolant Through No
• Length Of Cut (Decimal Inch - 4 Decimals) 0.2100
• Manufacturers Catalog Number 74370-C4
• System Of Measurement Decimal Inch

These items appear to be new and in good condition. SOLD AS IS.

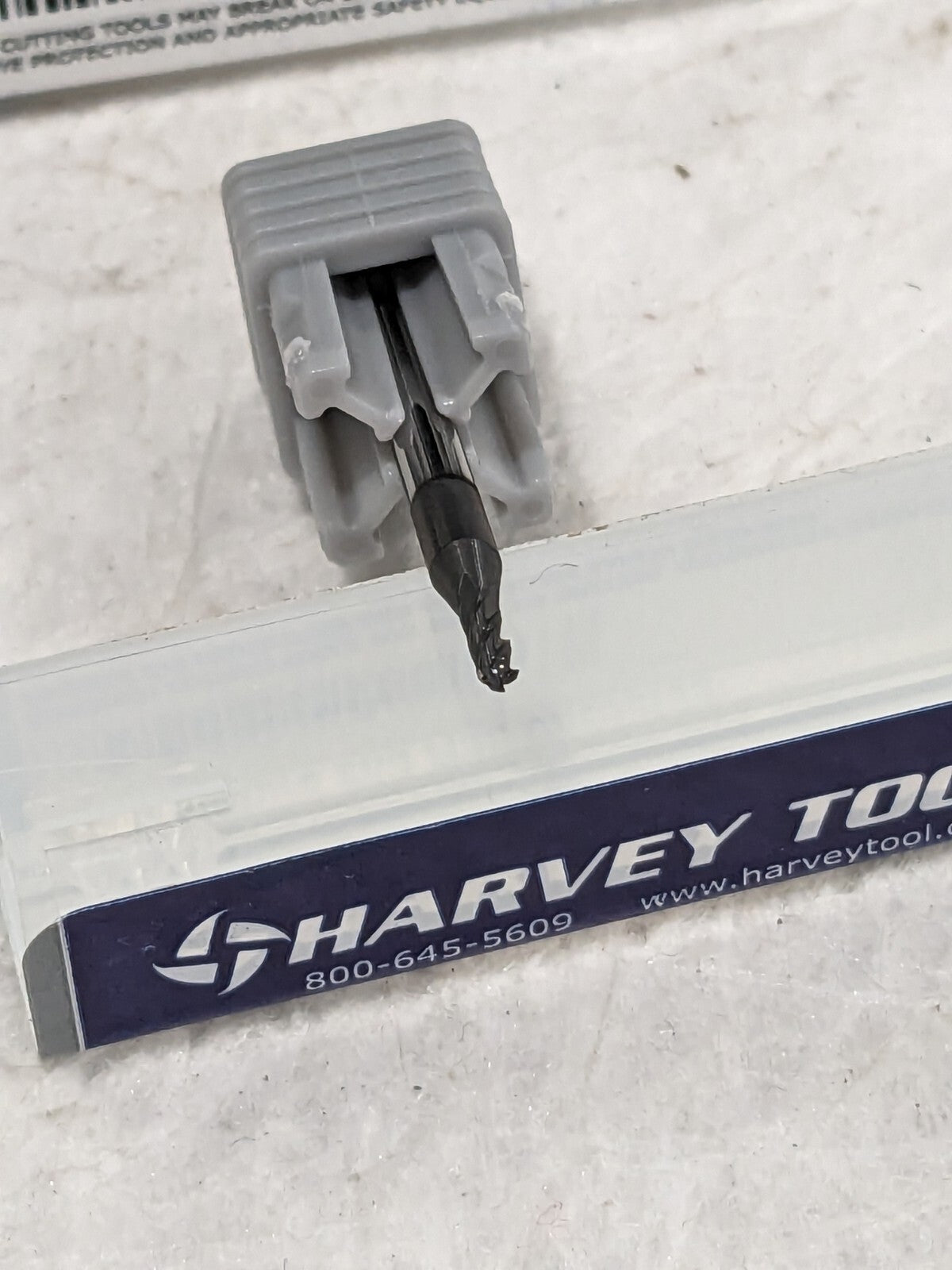

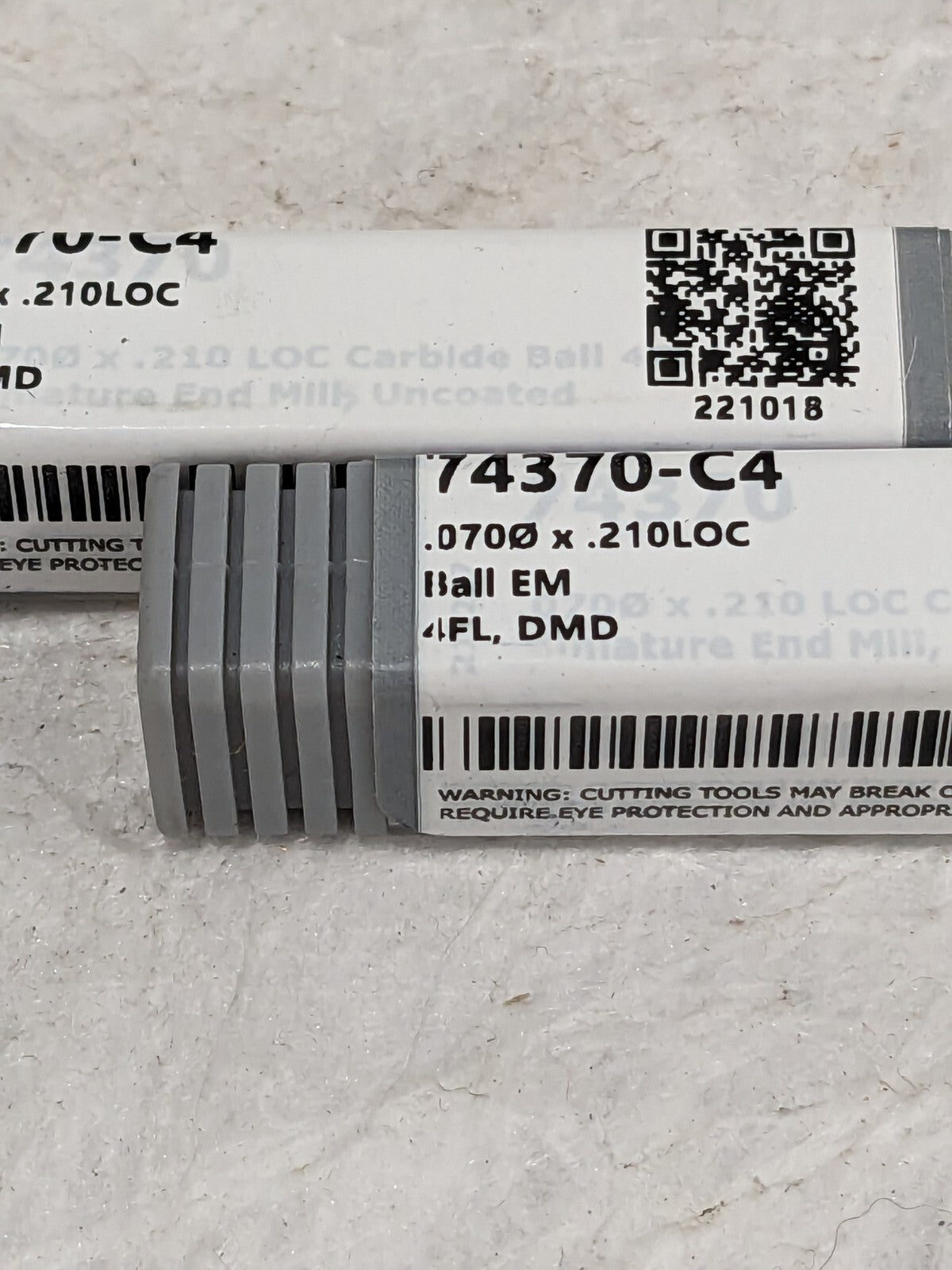

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
