HARVEY TOOL Ball End Mill 0.0620" Dia 3 Fl Solid Carbide 32262-C3

HARVEY TOOL

Ball End Mill 0.0620" Dia 3 Fl Solid Carbide 32262-C3

MSRP: $40

• Mill Diameter (Inch) 1/16
• Mill Diameter (Decimal Inch) 0.0620
• Number Of Flutes 3
• End Mill Material Solid Carbide
• Length of Cut (Decimal Inch) 0.3120
• Length of Cut (Inch) 5/16
• Shank Diameter (Decimal Inch) 0.1250
• Shank Diameter (Inch) 1/8
• Overall Length (Decimal Inch) 2.5000
• Overall Length (Inch) 2-1/2
• Single Or Double End Single
• Coating/Finish Family AlTiN
• Centercutting No
• Cutting Direction Right Hand
• Flute Direction Right Hand
• Extended Reach No
• Coolant Through No
• Helix Angle 20
• Primary Workpiece Material Stainless Steel; Cast Iron; Steel
• Primary Workpiece Material Code P; K; M
• Secondary Workpiece Material Stainless Steel; Cast Iron; Steel
• Secondary Workpiece Material Code P; K; M
• Coating/Finish AlTiN
• Variable Helix Yes
• Variable Index No
• Chipbreaker No
• Flute Type Spiral
• Shank Type Straight-Cylindrical
• Material Grade Carbide
• Length Type Long
• Coating Classification PVD
• Helix Style Variable
• Nose Radius (Decimal Inch) 0.0310
• Reach Length (Decimal Inch) 0.3120
• Mill Diameter Tolerance +0.0005/-0.0005 in
• Shank Diameter Tolerance h6
• Series Miniature End Mills - Ball - Long Flute, Miniature End Mills
• System Of Measurement Decimal Inch
• Manufacturers Catalog Number 32262-C3
• Material Removal Type Finishing
• UNSPSC Code 27112803
• Country of Origin UNITED STATES
• Ordered as Part # 32262-C3

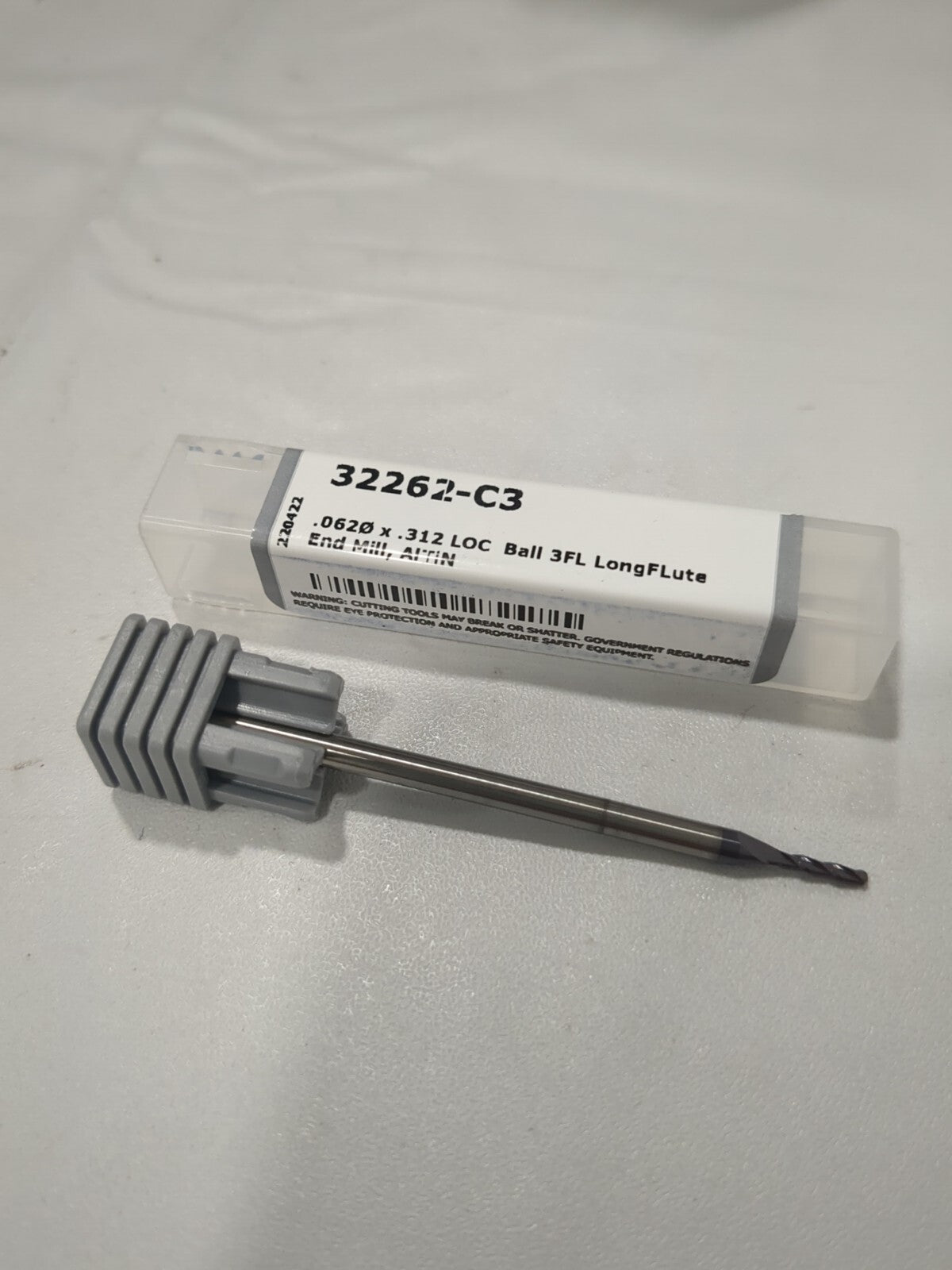

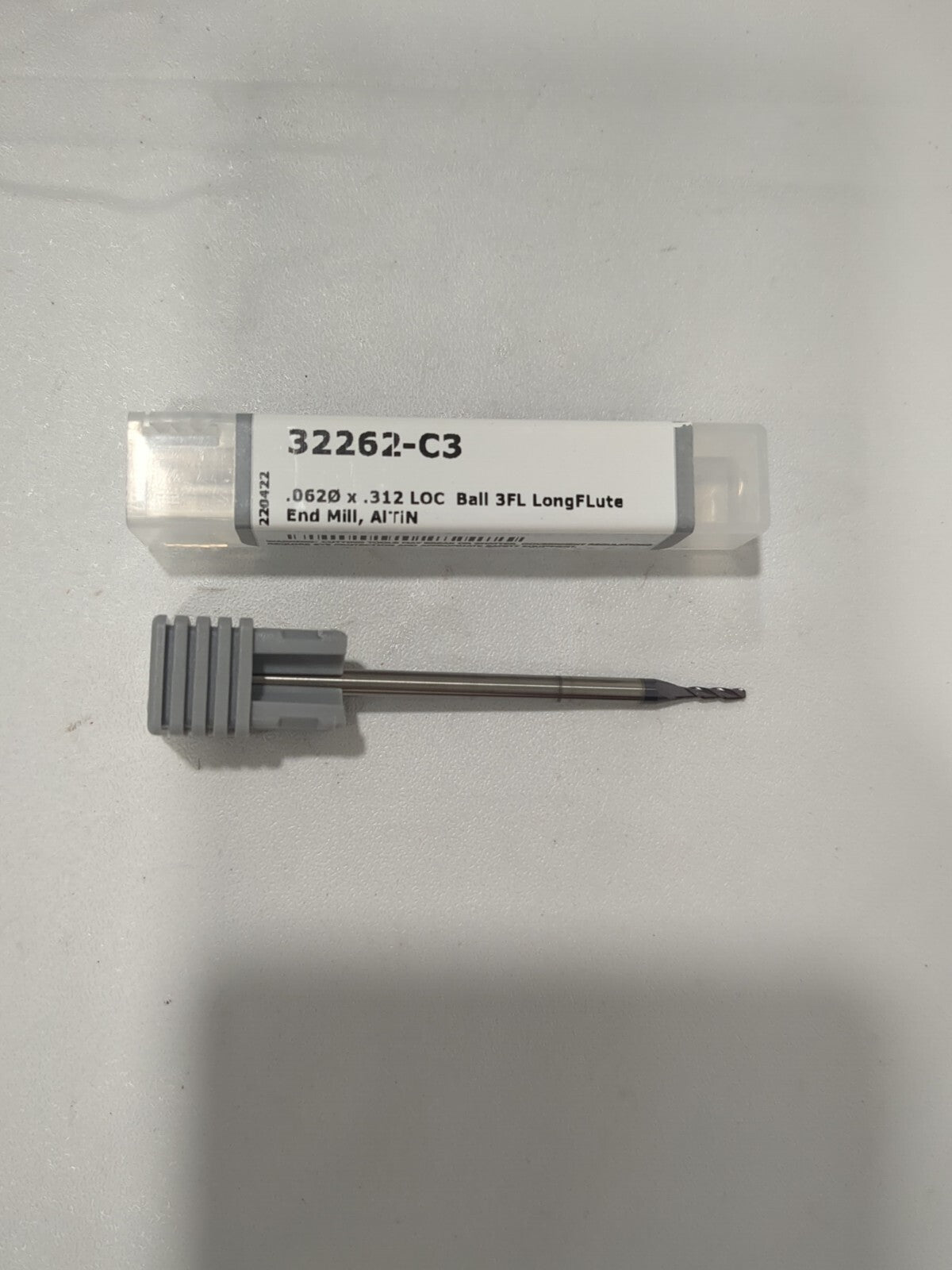

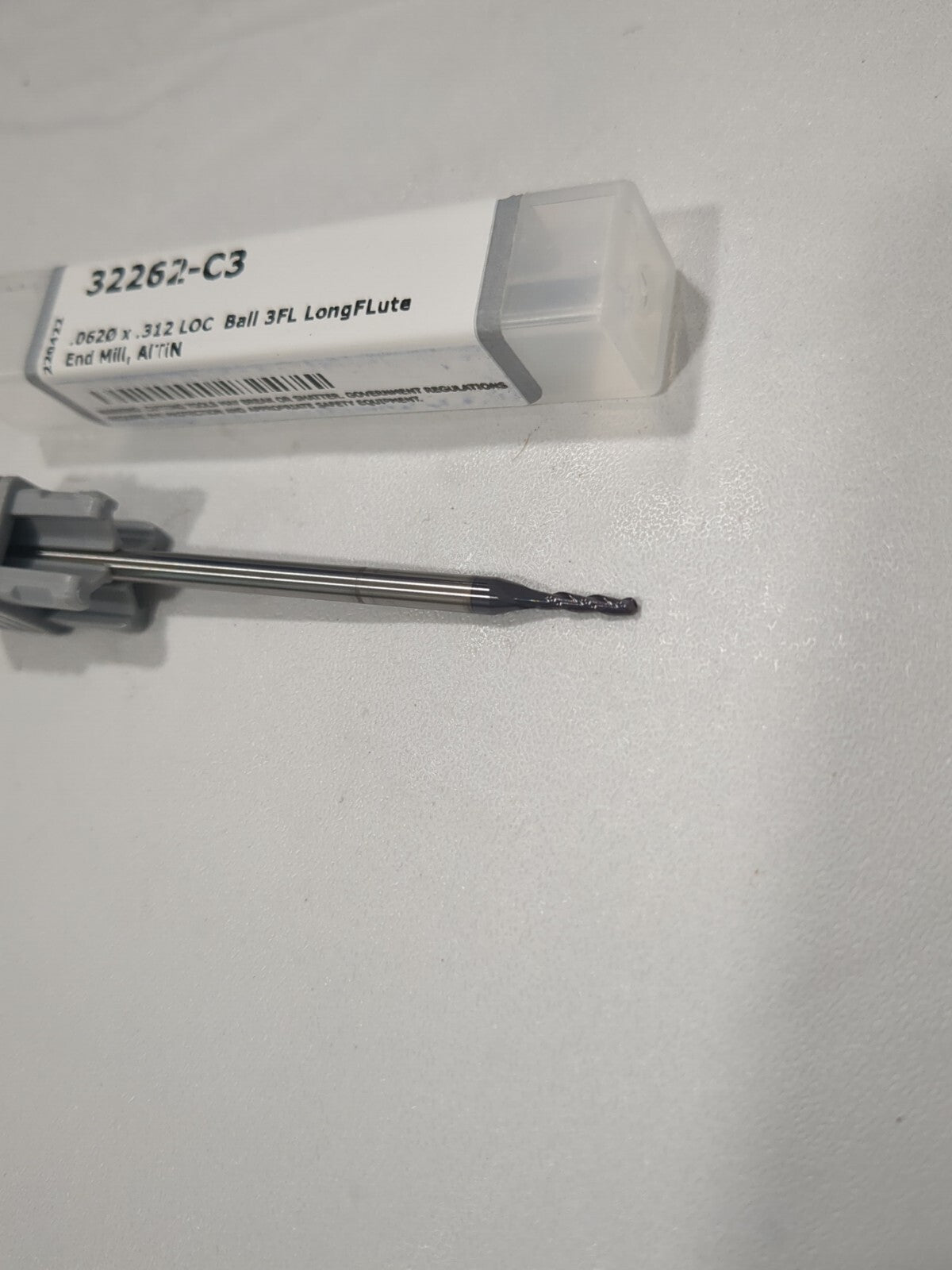

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
