HARVEY TOOL 4pk Square End Mills 3/64"Dia 4 Fl Solid Carbide 834147-C3

HARVEY TOOL

4pk Square End Mills 3/64"Dia 4 Fl Solid Carbide 834147-C3
MSRP: $150

• Mill Diameter (Decimal Inch) 0.0470
• Mill Diameter (Inch) 3/64
• Number Of Flutes 4
• End Mill Material Solid Carbide
• Length of Cut (Decimal Inch) 0.2500
• Length of Cut (Inch) 1/4
• Shank Diameter (Inch) 1/8
• Shank Diameter (Decimal Inch) 0.1250
• Overall Length (Decimal Inch) 2.5000
• Overall Length (Inch) 2-1/2
• Single Or Double End Single
• Coating/Finish Family AlTiN
• Centercutting Yes
• Cutting Direction Right Hand
• Flute Direction Right Hand
• Extended Reach No
• Coolant Through No
• Helix Angle 30
• Primary Workpiece Material Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; CFRP Materials; Steel
• Primary Workpiece Material Code P; C; K; M; N
• Coating/Finish AlTiN
• Variable Helix No
• Variable Index No
• Chipbreaker No
• Flute Type Spiral
• Length Of Cut Range (Decimal Inch) 0.2000 - 0.3000
• Series Miniature End Mills - Square - Long Flute
• System Of Measurement Fractional Inch
• UNSPSC Code 27112803
• Country of Origin UNITED STATES
• Ordered as Part # 834147-C3

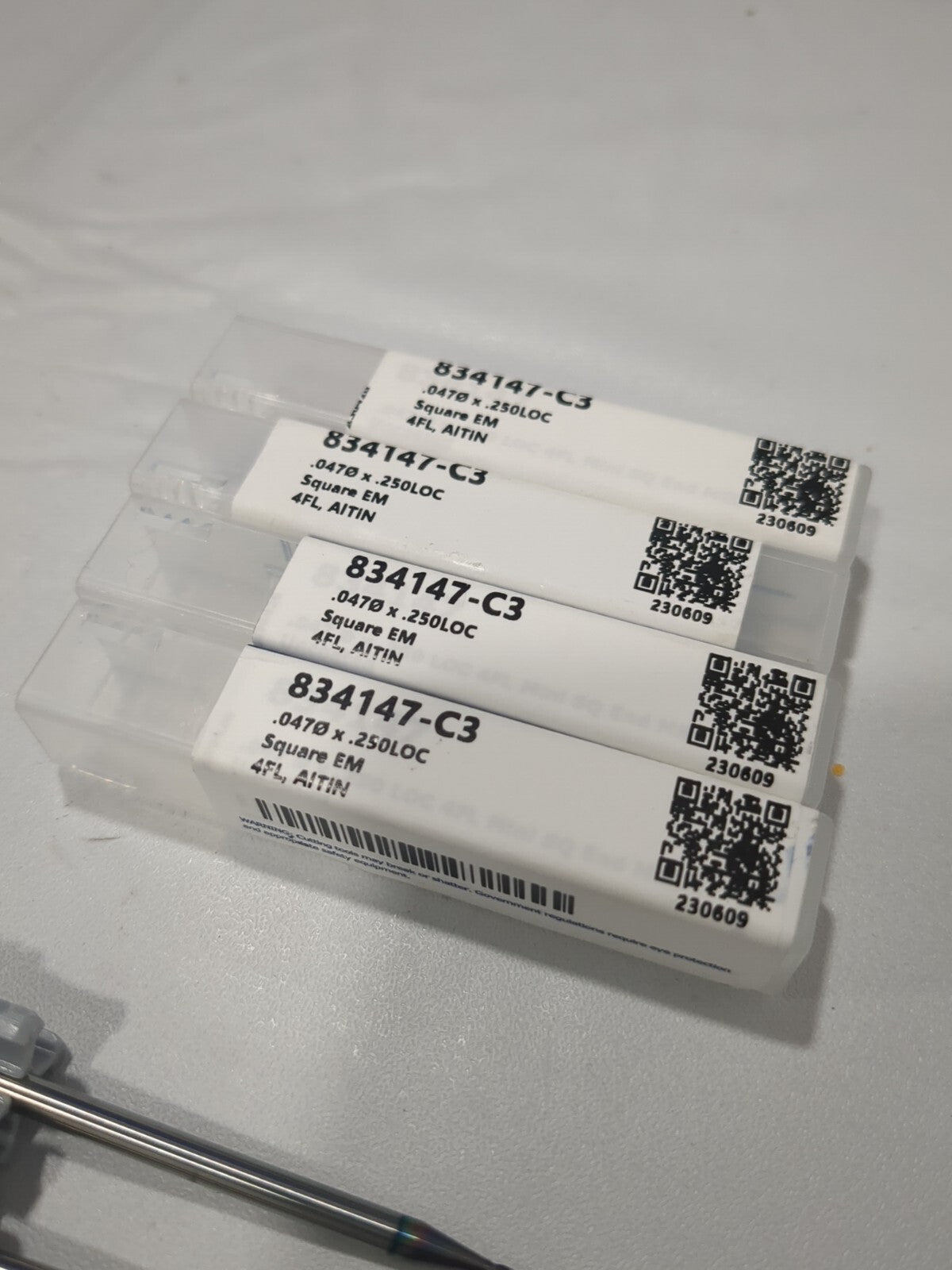

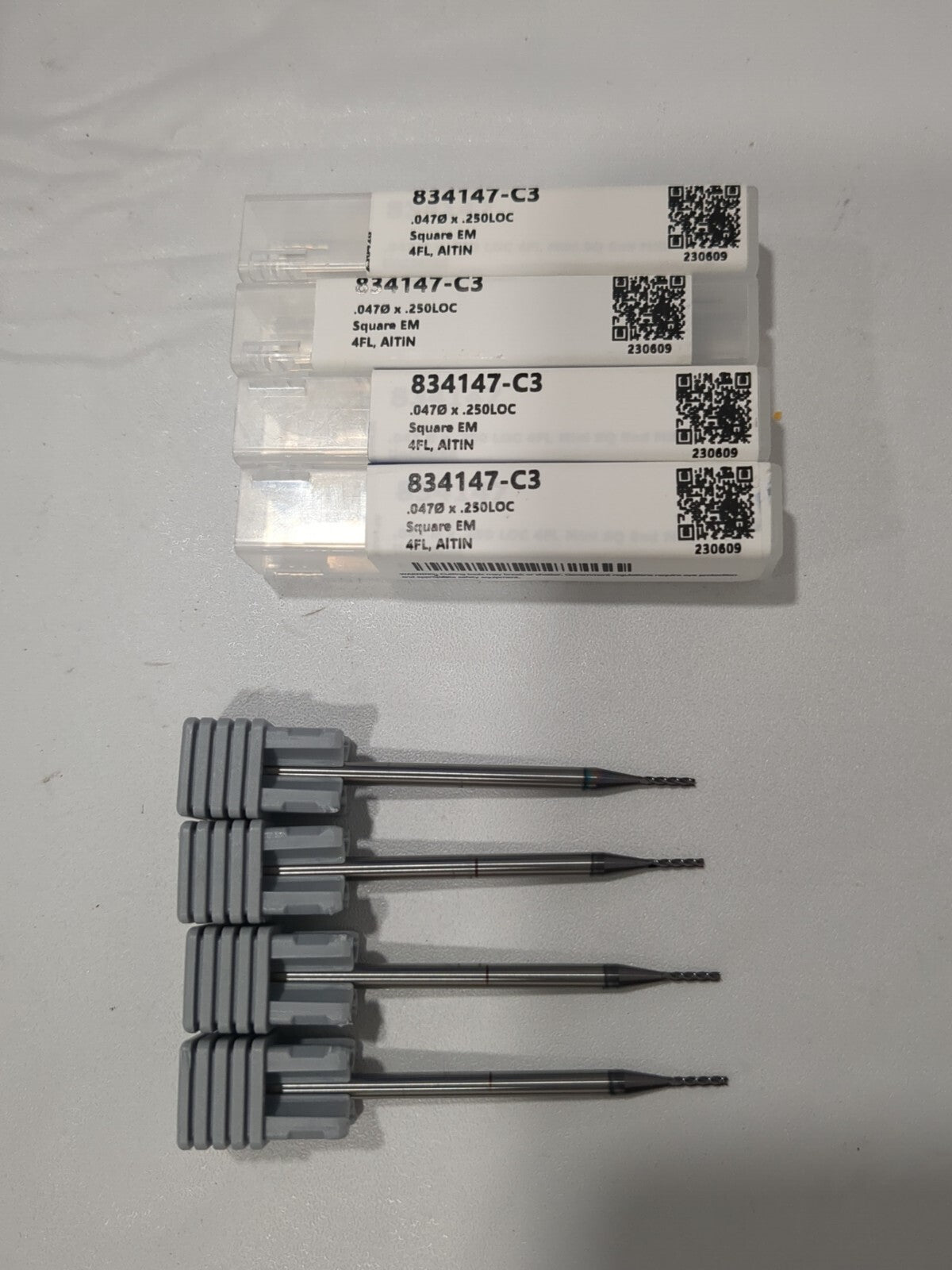

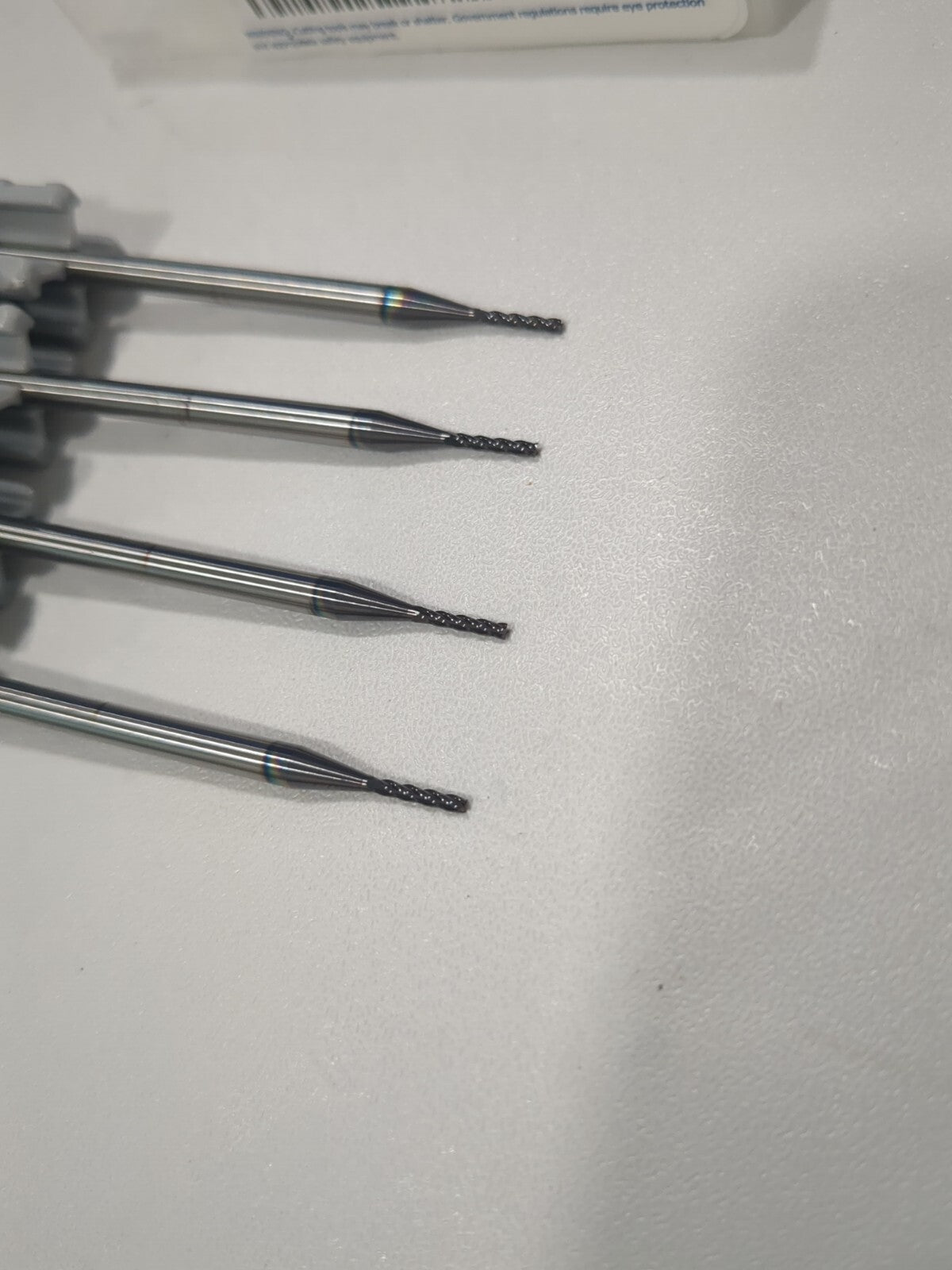

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
