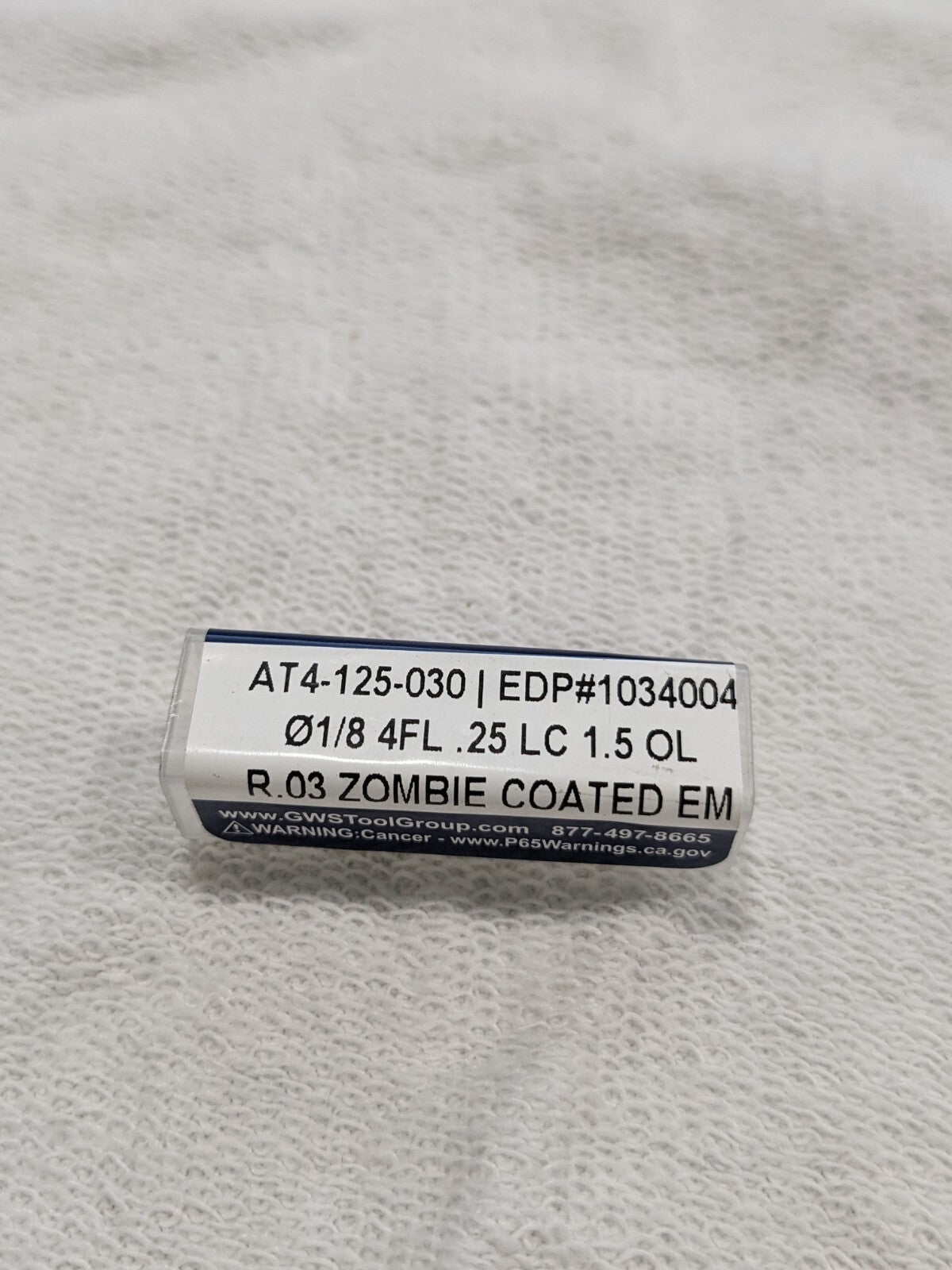

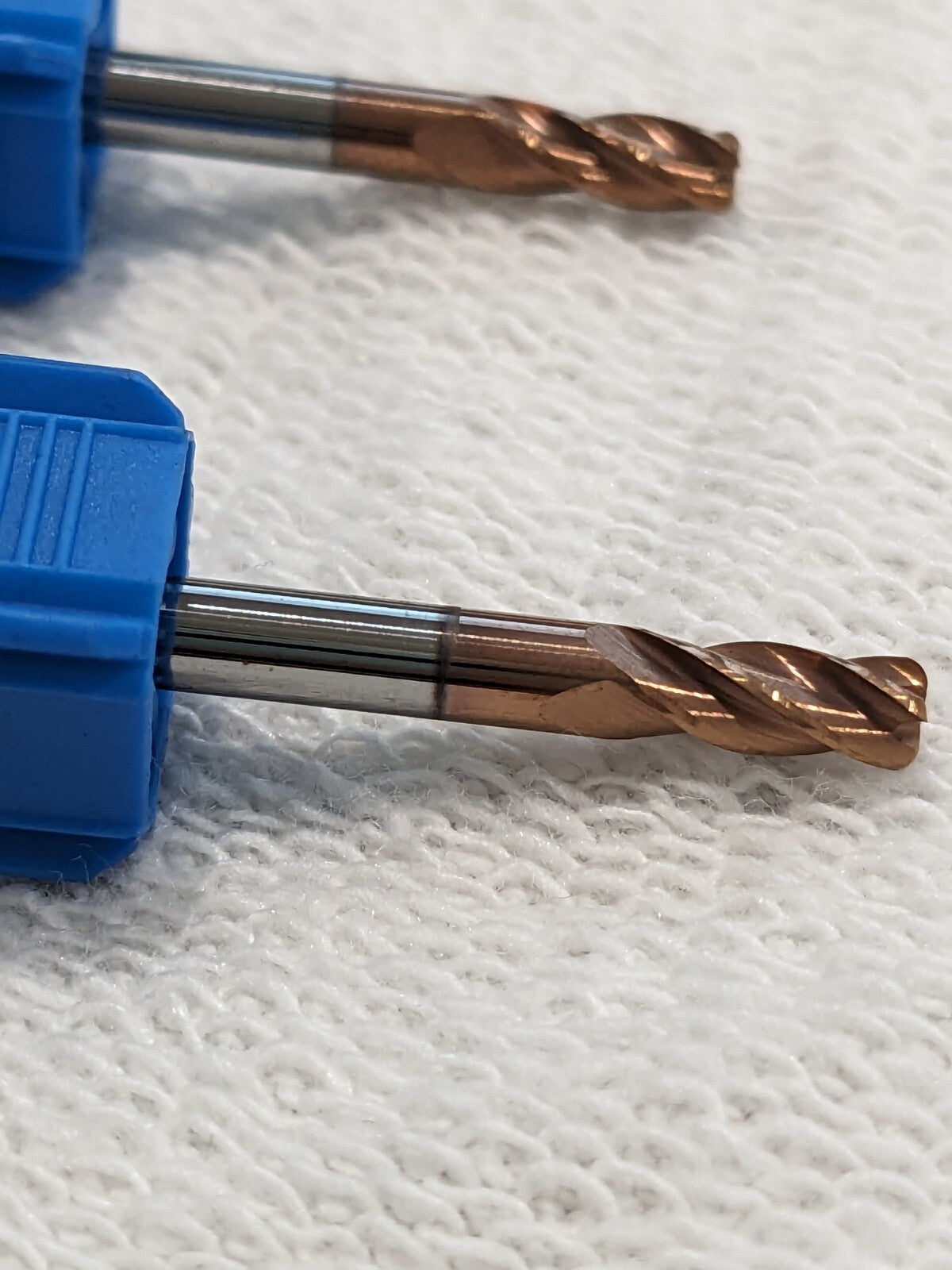

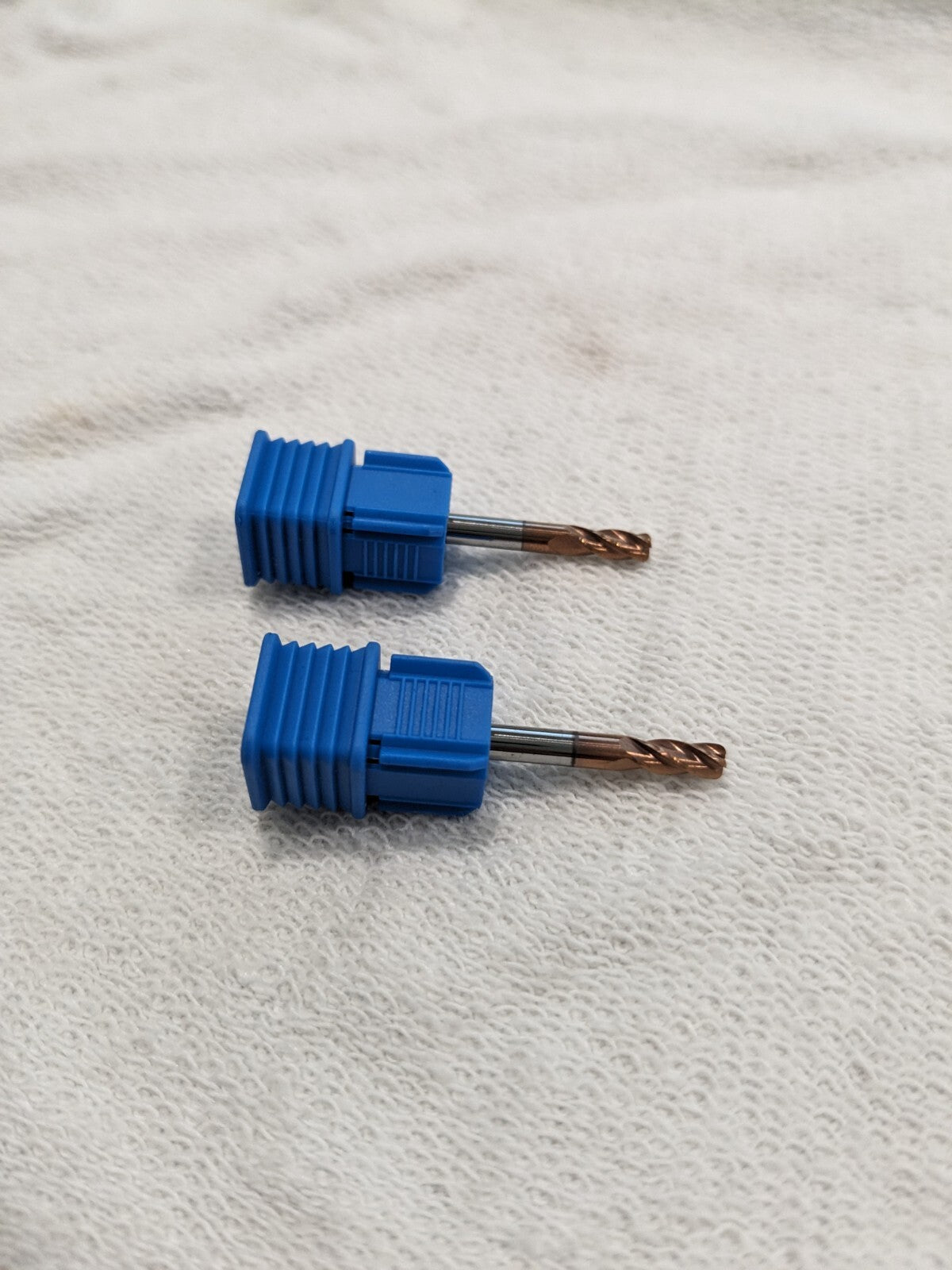

GWS Corner Radius End Mills 2pc: 1/8" Dia 1034004

GWS Corner Radius End Mills 2pc: 1/8" Dia 1034004

MSRP: $40

•

• Mill Diameter (Inch) 1/8
• Mill Diameter (Decimal Inch) 0.1250
• Number Of Flutes 4
• Length of Cut (Inch) 1/4
• Single Or Double End Single
• End Mill Material Solid Carbide
• Coating/Finish FX7
• Overall Length (Inch) 1-1/2
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0300
• Variable Index Yes
• Variable Helix Yes
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 1.5
• Chipbreaker No
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 1.0000
• Length Type Short
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (Decimal Inch) 0.1250
• Shank Diameter (Inch) 1/8
• Shank Diameter Tolerance h6
• Primary Workpiece Material Stainless Steel; Cast Iron; Steel
• Primary Workpiece Material Code P; K; M
• UNSPSC Code 27112803
• Secondary Workpiece Material Non-Ferrous Metal; Hard Material; Superalloys & Titanium
• Secondary Workpiece Material Code S; H; N
• Material Grade Submicron
• Series 1034
• Material Application Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• For Use With. End Mill Toolholders

(Description).

Please review photos, comes as shown.
