GWS Corner Radius End Mill: 3/4" Dia 5 Fl Solid Carbide 121400

GWS Corner Radius End Mill: 3/4" Dia 5 Fl Solid Carbide 121400

MSRP: $140

• Mill Diameter (Inch) 3/4
• Mill Diameter (Decimal Inch) 0.7500
• Number Of Flutes 5
• Length of Cut (mm) 22.22
• Length of Cut (Inch) 7/8
• Single Or Double End Single
• End Mill Material Solid Carbide
• Coating/Finish FX1
• Overall Length (Inch) 3
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0600
• Variable Index Yes
• Variable Helix Yes
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 3.0000
• Chipbreaker No
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 0.8750
• Length Type Short
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (Decimal Inch) 0.7500
• Shank Diameter (Inch) 3/4
• Shank Diameter (mm) 19.50
• Shank Diameter Tolerance h6
• Primary Workpiece Material Hard Material; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; H; K
• UNSPSC Code 27112803
• Secondary Workpiece Material Stainless Steel
• Secondary Workpiece Material Code M
• Material Grade Submicron
• Series 1035
• Material Application Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Coating Classification Uncoated
• For Use With. End Mill Toolholders

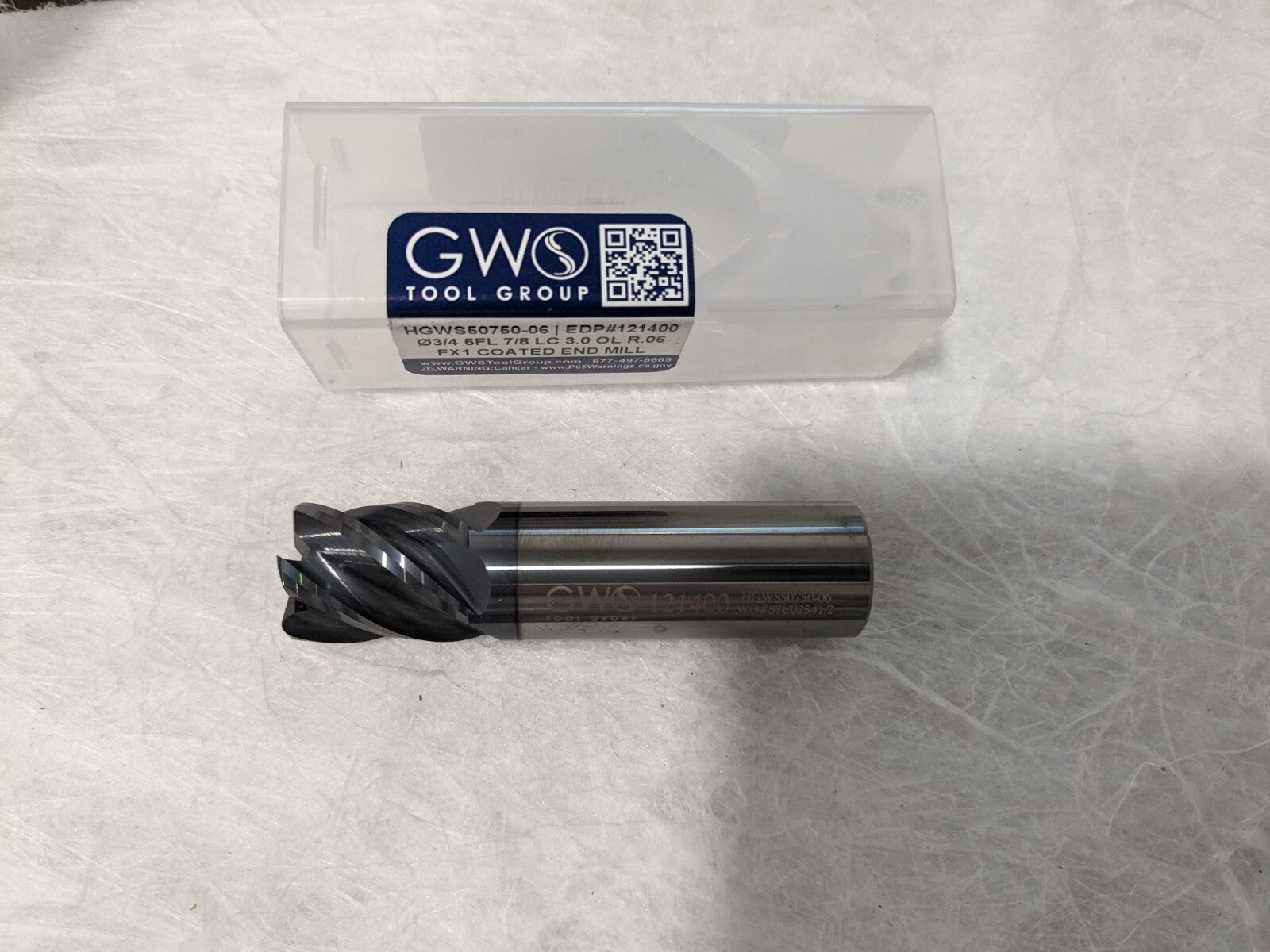

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
