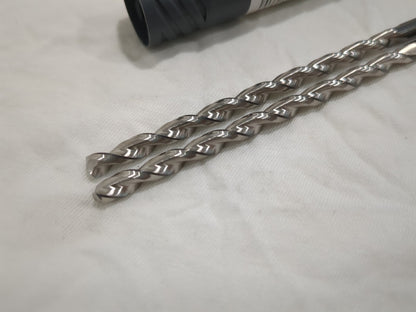

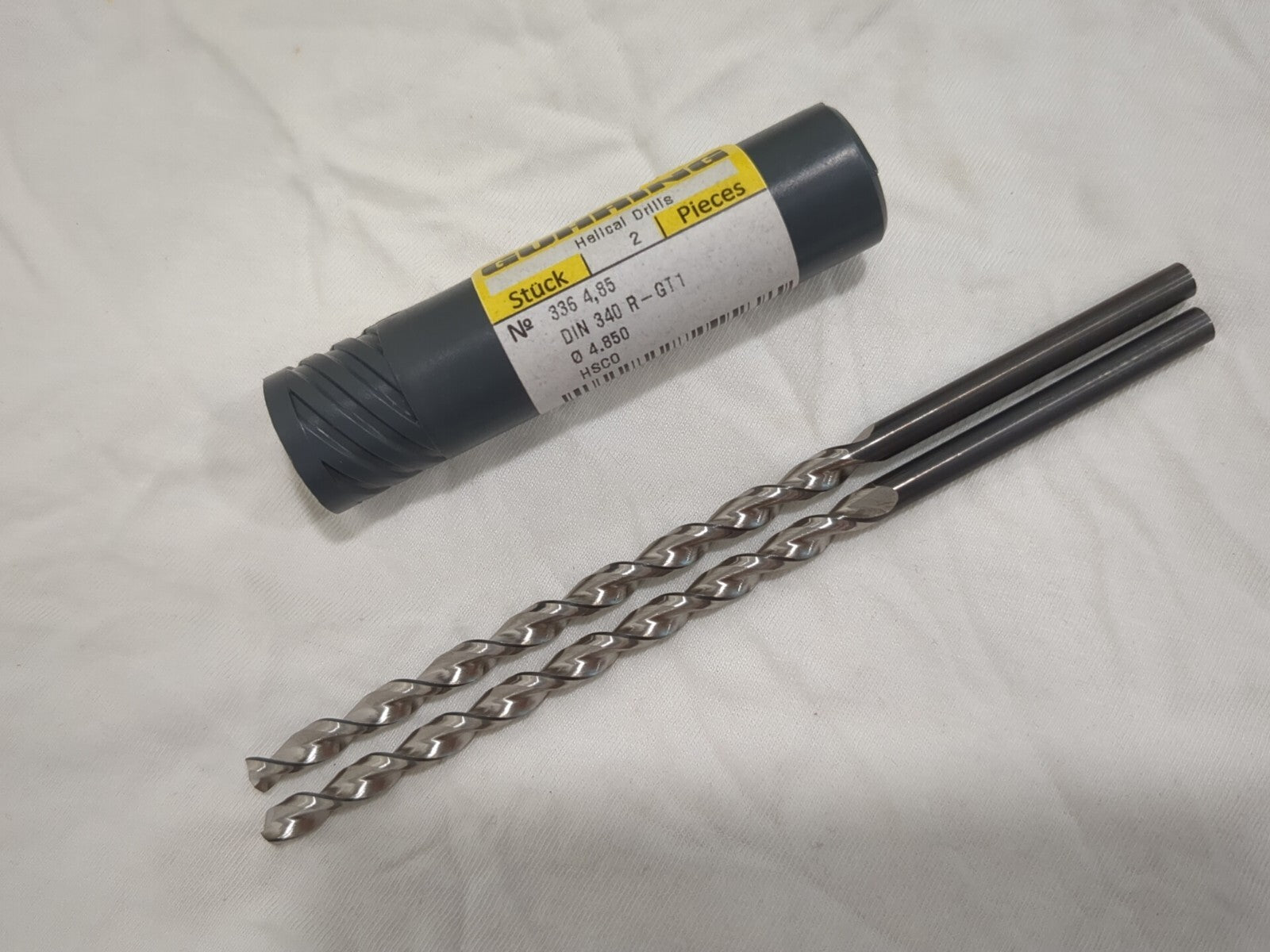

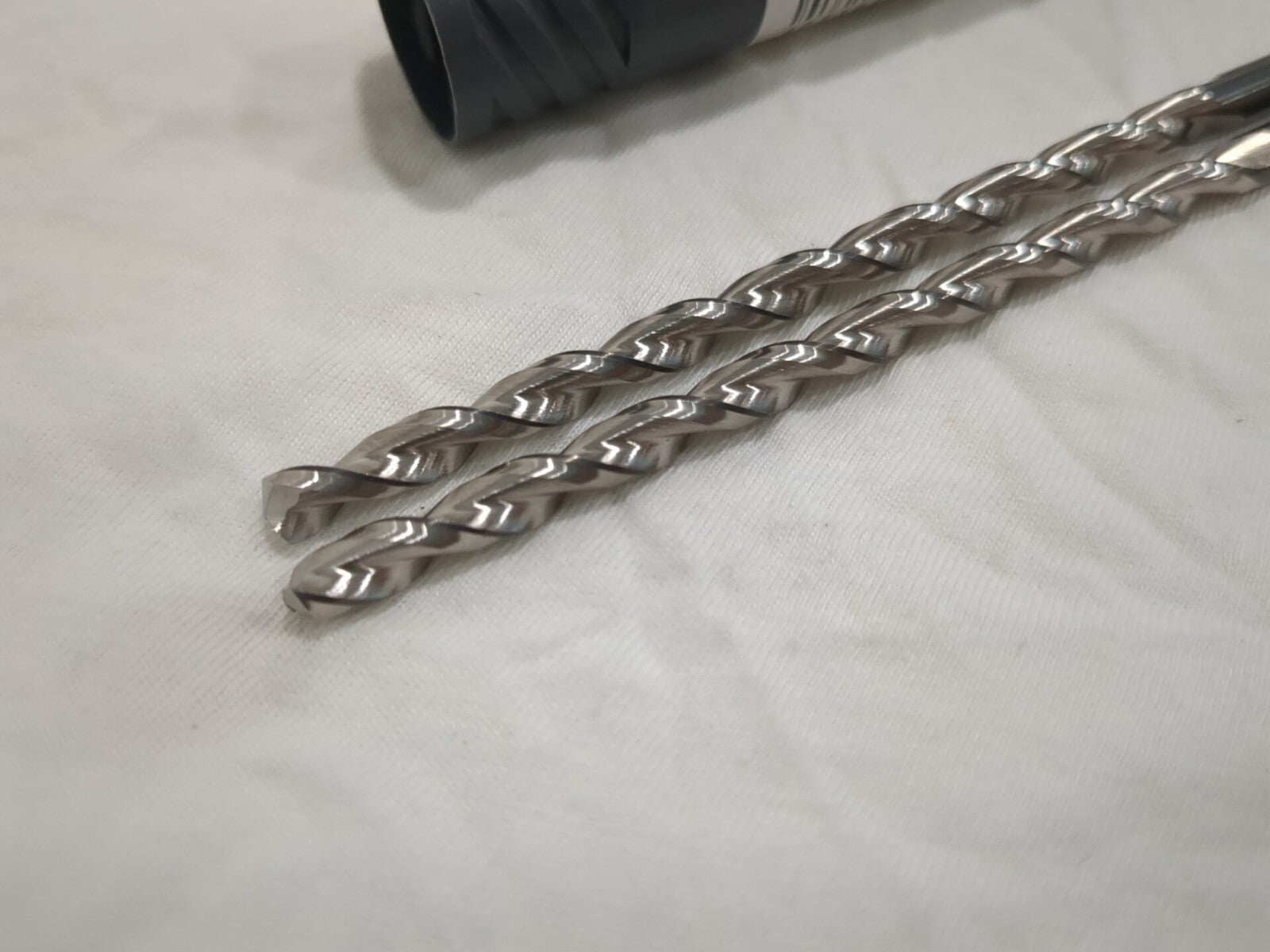

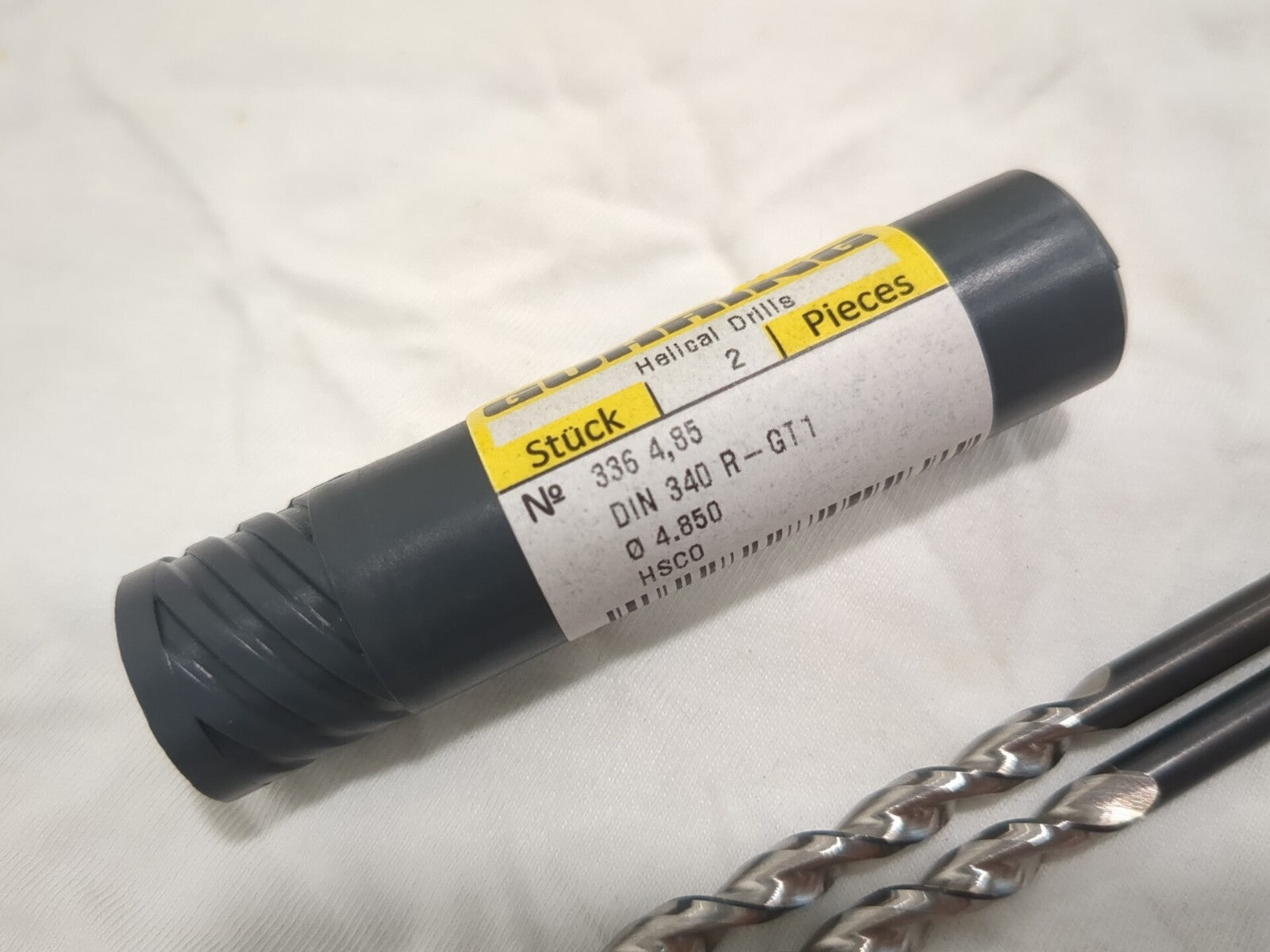

GUHRING Taper Length Drill Bit 2pc: Series 336, #11, 130 ° Point, Cobalt

GUHRING Taper Length Drill Bit 2pc: Series 336, #11, 130 ° Point, Cobalt

MSRP: $70

• Drill Bit Size (Wire) #11
• Tool Material HSS-E Cobalt
• Coating/Finish Bright/Uncoated
• Flute Length (Inch) 3-7/16
• Shank Type Straight-Cylindrical
• Point Type Standard
• Flute Type Parabolic
• Coolant Through No
• Drill Point Angle (Degrees) 130
• Drill Bit Size (Decimal Inch) 0.1910
• Flute Length x Diamter Ratio 10xD
• Overall Length (Decimal Inch) 5-3/16
• Cutting Direction Right Hand
• Series 336
• Shank Diameter (Decimal Inch) 0.1909
• Flute Length X Diameter Ratio 10xD
• Maximum Drilling Depth (Decimal Inch) 3.1390
• Maximum Drilling Depth (mm) 79.73
• Shank Length (mm) 45.00
• Drill Bit Diameter Tolerance +0.000 to -0.018 mm
• Web Thinning Web-Thinned
• Web Configuration Parallel
• Threaded Shank No
• Standards DIN 340
• Specification Number DIN 340
• Drill Bit Grade High Performance
• Spiral Type Regular
• Material Application3 Hard Material; Stainless Steel; Cast Iron; Steel
• UNSPSC Code 23241600

(Description).

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
