GUHRING Screw Machine Length Drill Bit: 8.10 mm Dia, 140 deg Pt 9012420081000

GUHRING Screw Machine Length Drill Bit: 8.10 mm Dia, 140 deg Pt 9012420081000

MSRP: $130

• Drill Bit Size (mm) 8.10
• Drill Bit Size (Decimal Inch) 0.3189
• Tool Material Solid Carbide
• Cutting Direction Right Hand
• Coating/Finish TiN
• Number Of Flutes 2
• Spiral Type Regular
• Flute Type Regular Spiral
• Drill Point Angle 140
• Coolant Through No
• Shank Type Straight
• Shank Diameter (Decimal Inch) 0.3189
• Overall Length (mm) 79.00
• Overall Length (Decimal Inch) 3.1102
• Point Type Cone Relief
• Series 1242
• Web Thinning Web-Thinned
• Web Configuration Parallel
• Drill Length Type Screw Machine
• Maximum Drilling Depth (Decimal Inch) 0.9780
• Maximum Drilling Depth (mm) 24.85
• Shank Length (Decimal Inch) 1.6535
• Shank Length (mm) 42.00
• Flute By Diameter Ratio 3xD
• Tool Performance High Performance
• Drill Bit Diameter Tolerance +0.006 to +0.021 mm
• Standards DIN 6539
• Flute Length (mm) 37.00
• Drill Bit Size Range (Decimal Inch) 0.3000 to 0.3500
• Drill Bit Size Range (mm) 8.00 - 9.50
• Specification Number DIN 6539
• Specification Designation DIN
• Material Grade Submicron
• UNSPSC Code 23241635

(Description).

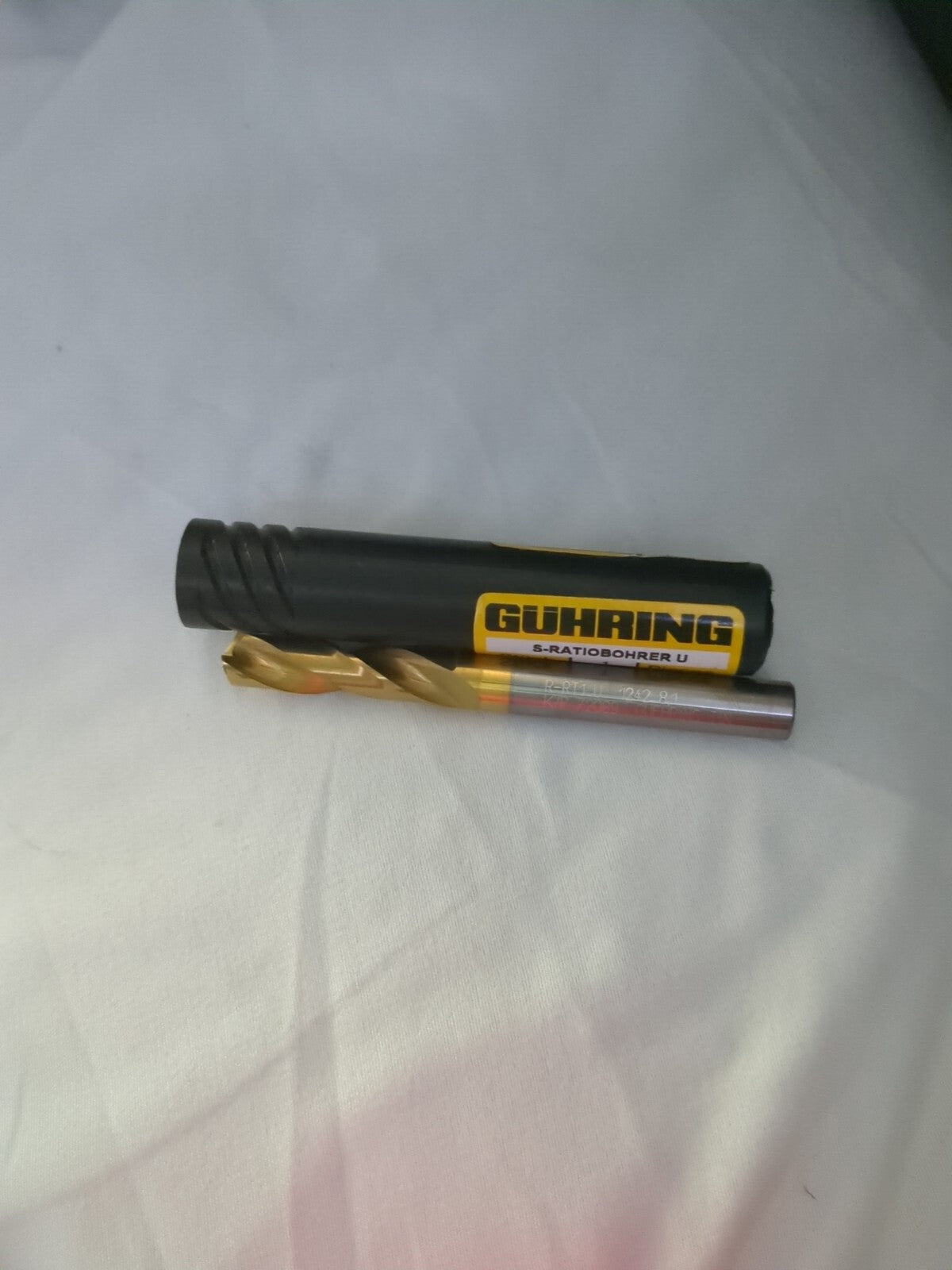

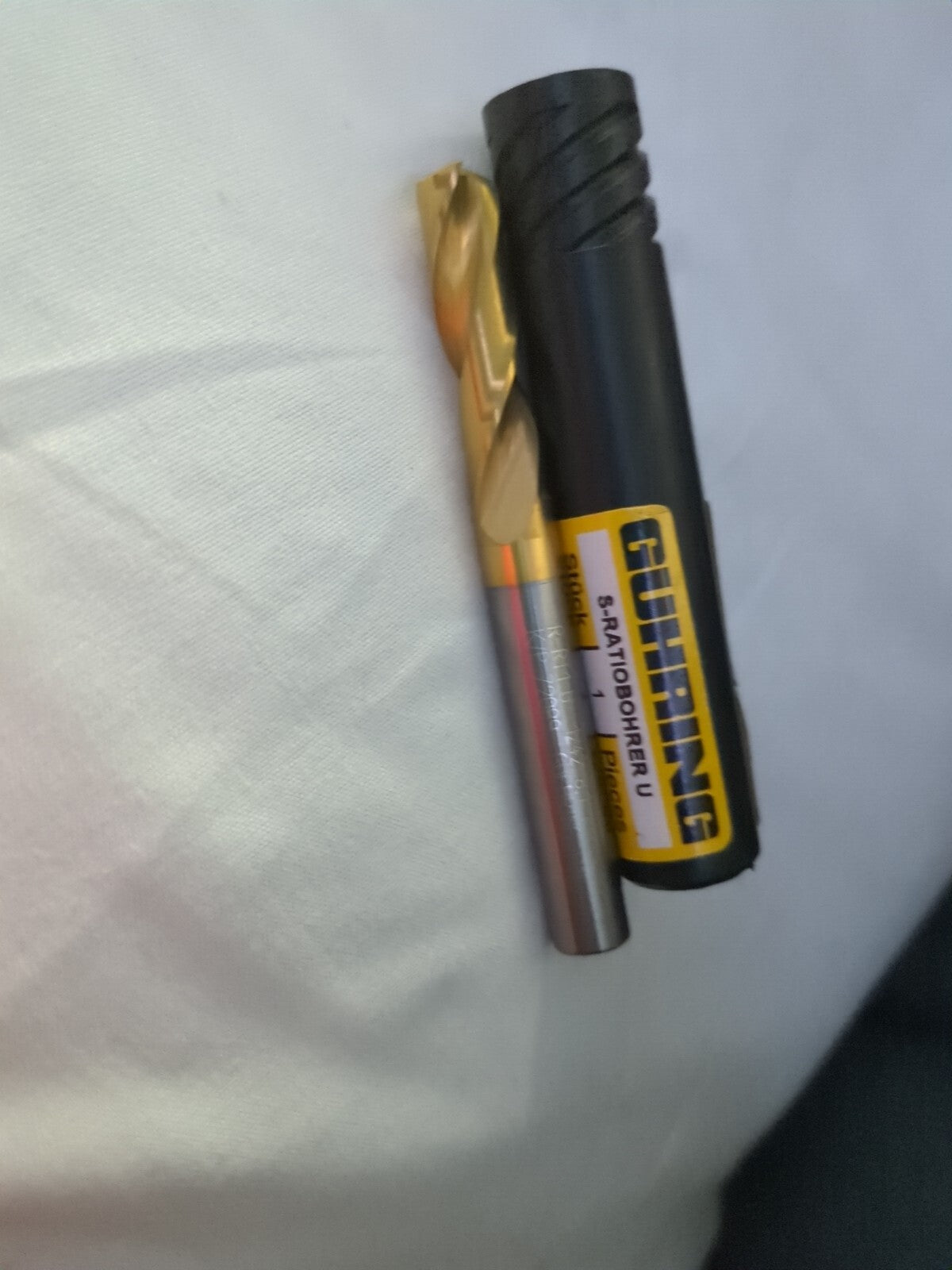

Please review photos, comes as shown.
