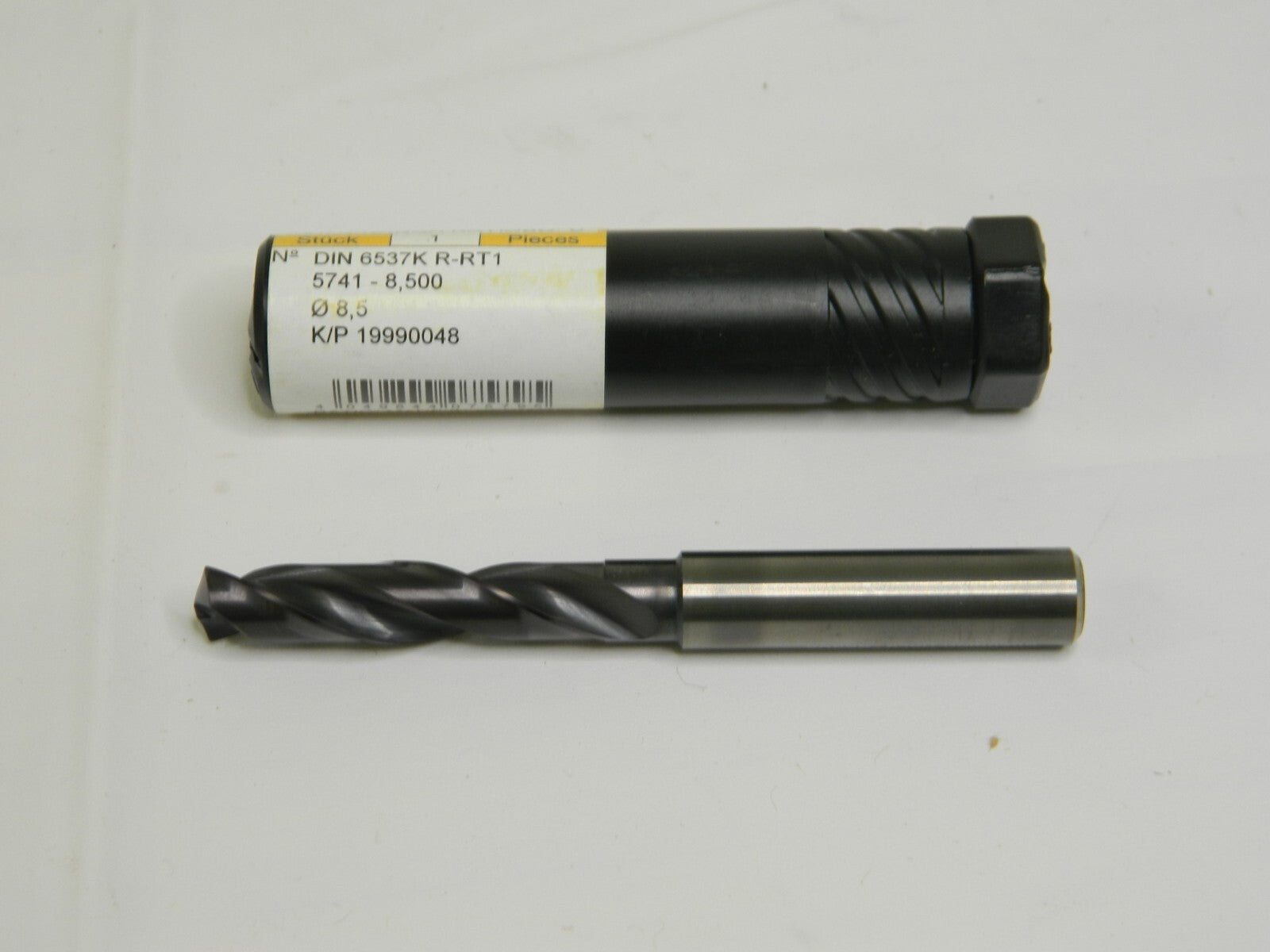

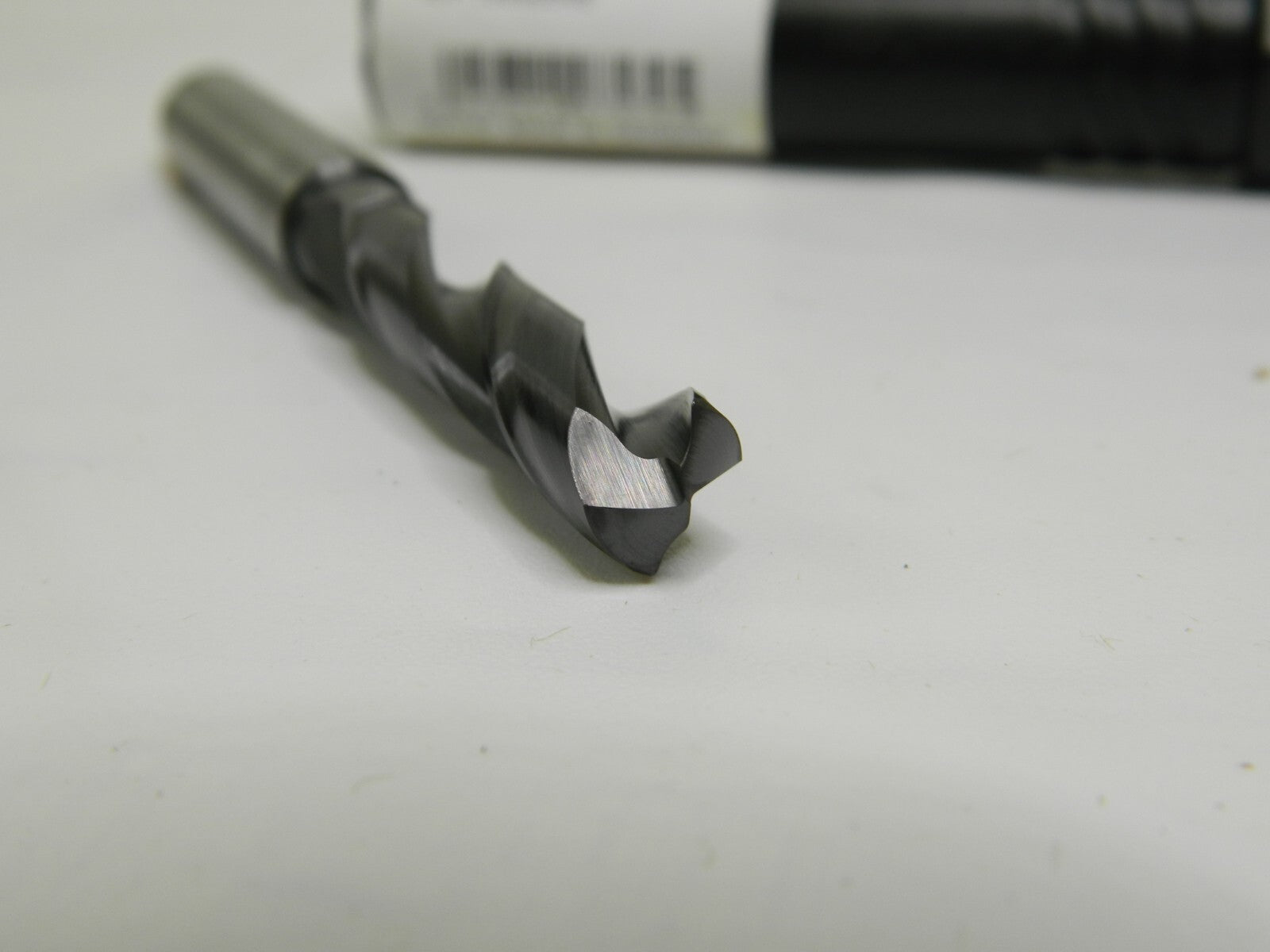

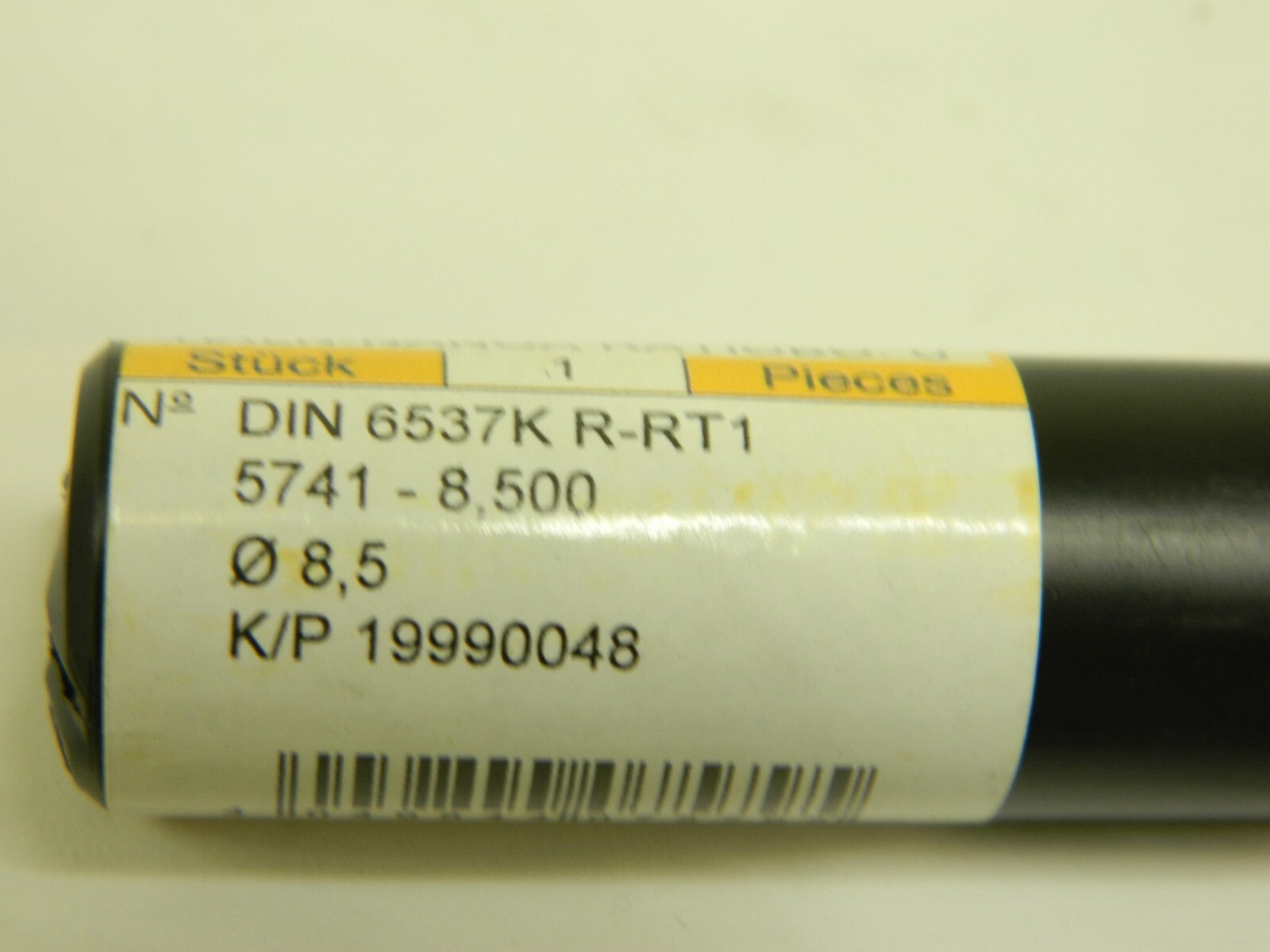

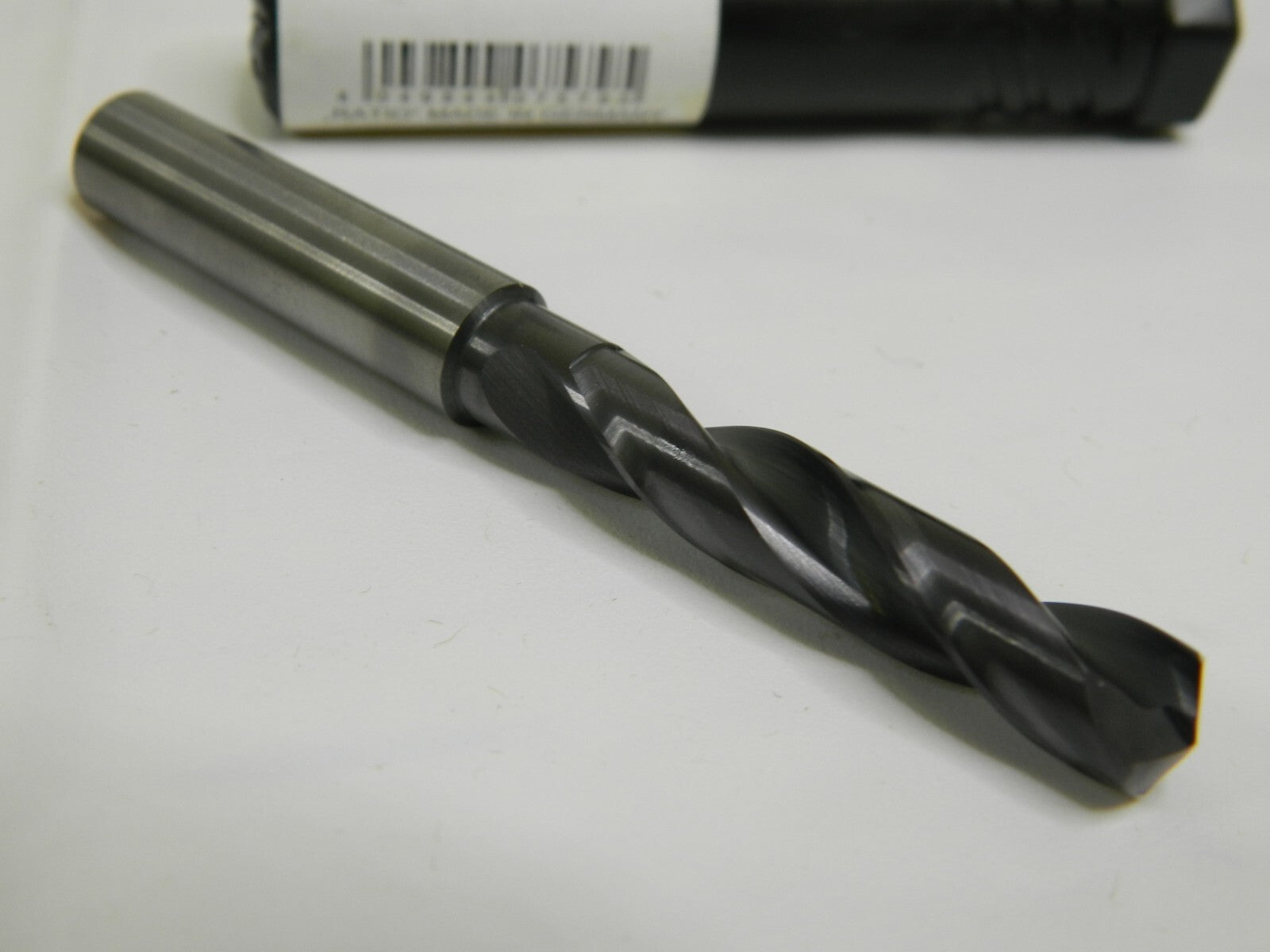

Guhring SC Screw Machine Length Drill Bit: 0.3346″ Dia, 140 ° 9057410085000

Guhring
Solid Carbide Screw Machine Length Drill Bit

MSRP: $100.00

• Drill Bit Size (mm) 8.50
• Tool Material Solid Carbide
• Cutting Direction Right Hand
• Coating/Finish Coated
• Drill Point Angle 140
• Spiral Type Regular
• Flute Type Spiral
• Point Type SU
• Coolant Through No
• Shank Type Straight-Cylindrical
• Number Of Flutes 2
• Drill Bit Size (Decimal Inch) 0.3346
• Overall Length (mm) 89.00
• Shank Diameter (mm) 10.00
• Series 5741
• Web Thinning Web-Thinned
• Drill Length Type Screw Machine
• Maximum Drilling Depth (Decimal Inch) 1.3480
• Maximum Drilling Depth (mm) 34.25
• Flute By Diameter Ratio 3xD
• Tool Performance High Performance
• Drill Bit Diameter Tolerance m7
• Standards DIN 6537 K
• Flute Length (mm) 47.00
• Drill Bit Grade High Performance
• Drill Bit Size Range (Decimal Inch) 0.3000 to 0.3500
• Drill Bit Size Range (mm) 8.00 to 9.50
• Specification Designation DIN
• Material Grade K40

This item is new and in great condition. SOLD AS IS.

Please review photos, comes as shown.
