GUHRING Replaceable Drill Tip: 4115 41/64, 0.6406″ Dia 9041150162700

GUHRING Replaceable Drill Tip: 4115 41/64, 0.6406″ Dia 9041150162700

MSRP: $120

• Cutting Diameter (Inch) 41/64
• Cutting Diameter (Decimal Inch) 0.6406 in
• Tip Material Solid Carbide
• Manufacturer Grade K/P
• Cutting Direction Right Hand
• Series 4115
• Coating Process PVD
• Insert Geometry Relieved Cone
• Insert Seat Size 160
• Functional Length (Decimal Inch) 0.3152
• Functional Length (mm) 11.00
• Primary Workpiece Material Stainless Steel
• Primary Workpiece Material Code M
• Secondary Workpiece Material Cast Iron; Superalloys & Titanium; Steel
• Secondary Workpiece Material Code P; S; K
• Height (mm) 11.00
• Overall Length/Projection (Decimal Inch) 0.4334
• Web Thinning Web-Thinned
• Drill Point Angle 140
• Flute Type Helical
• Insert Holding Method Screw; Clamp
• Coolant Through No
• Flute Length (mm) 8.00
• Point Type Two Facet
• Spiral Type Regular Spiral
• Style 4115
• UNSPSC Code 23242105
• Coating/Finish nano-A
• Included Angle Degree 140
• Number Of Flutes 2

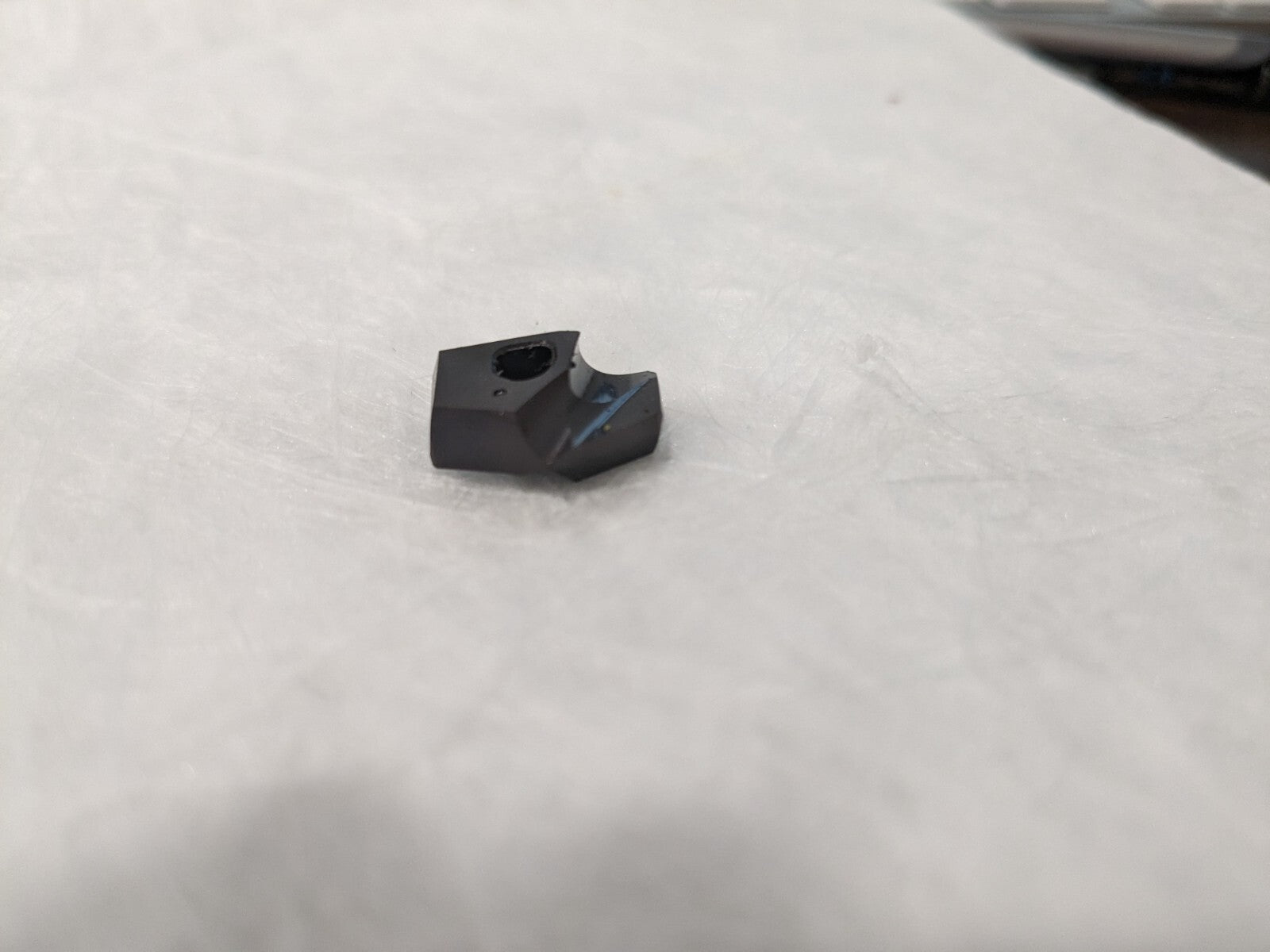

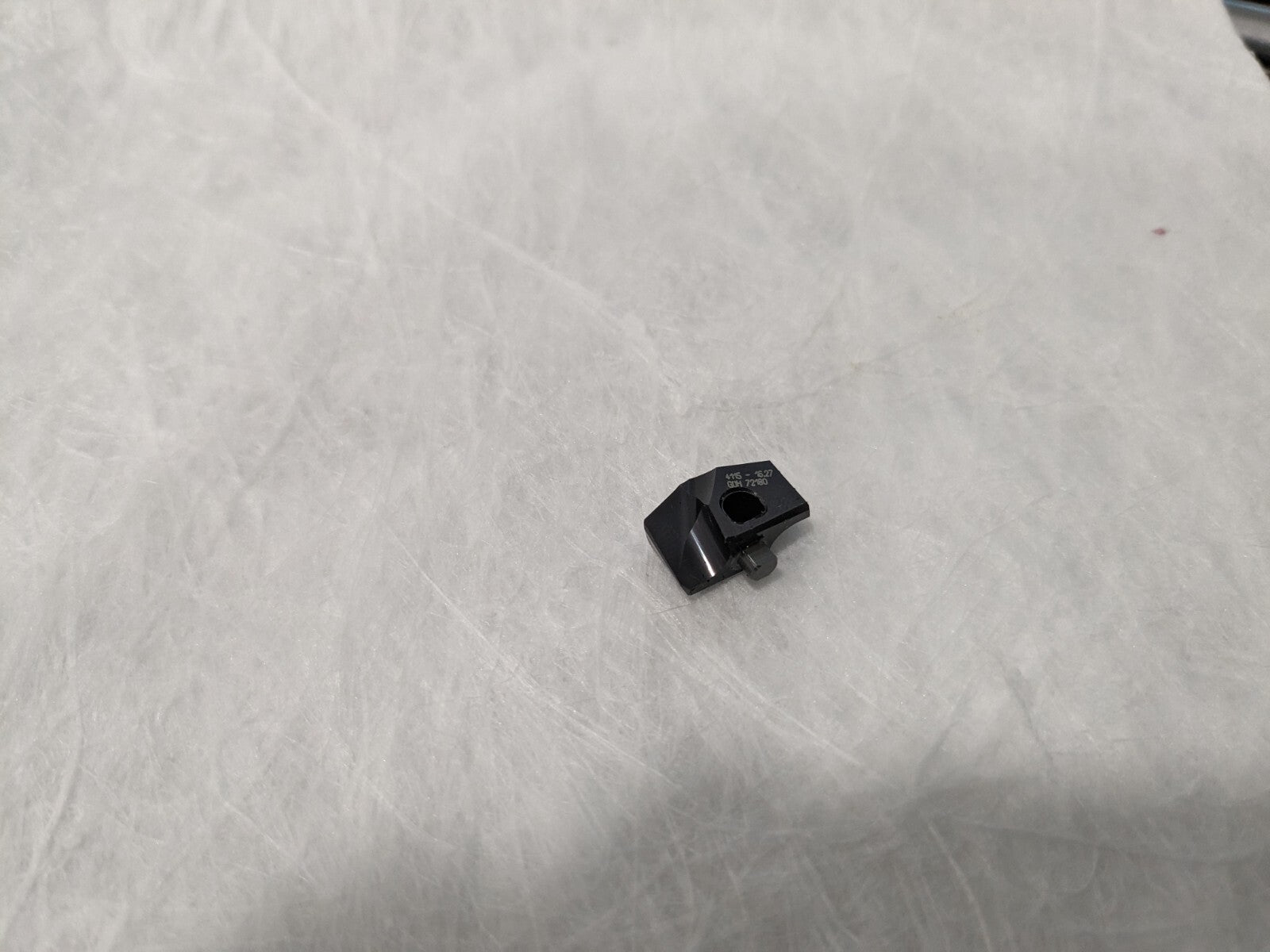

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
