GUHRING pk of 8 Jobber Drills: 17/64" Dia, 118 deg Point, Cobalt 9055230067500

GUHRING

 pk of 8 Jobber Drills: 17/64" Dia, 118 deg Point, Cobalt 9055230067500

MSRP: $85

• Drill Bit Size (Inch) 17/64
• Drill Bit Size (Decimal Inch) 0.2656
• Drill Bit Material Cobalt
• Drill Point Angle (Degrees) 118
• Coating/Finish Bright/Uncoated
• Flute Type Regular Spiral
• Cutting Direction Right Hand
• Point Type 4 Facet
• Primary Workpiece Material Aluminum & Non-Ferrous; Cast Iron; Steel
• Specification Number DIN 338
• Coolant Through No
• Flute Length (Decimal Inch) 2.7165
• Flute Length (mm) 69.00
• Number of Flutes 2
• Primary Workpiece Material Code P; K; M; N
• Shank Diameter (Decimal Inch) 0.2656
• Overall Length (mm) 109.00
• Overall Length (Decimal Inch) 4.2913
• Spiral Type Regular
• Series 5523
• Flute By Diameter Ratio 5xD
• Shank Diameter (Inch) 17/64
• Shank Diameter (mm) 6.75
• Maximum Drilling Depth (Decimal Inch) 2.3180
• Maximum Drilling Depth (mm) 58.88
• Shank Length (mm) 40
• Drill Bit Diameter Tolerance +0.000 to -0.022 mm
• Web Thinning Web-Thinned
• Web Configuration Tapered
• Shank Type Straight
• Standards DIN 338
• Drill Bit Grade General Purpose
• Drill Bit Size Range (Decimal Inch) 0.2500 - 0.3000
• Material Grade M35
• Specification Designation DIN
• UNSPSC Code 23241634
• Country of Origin Germany

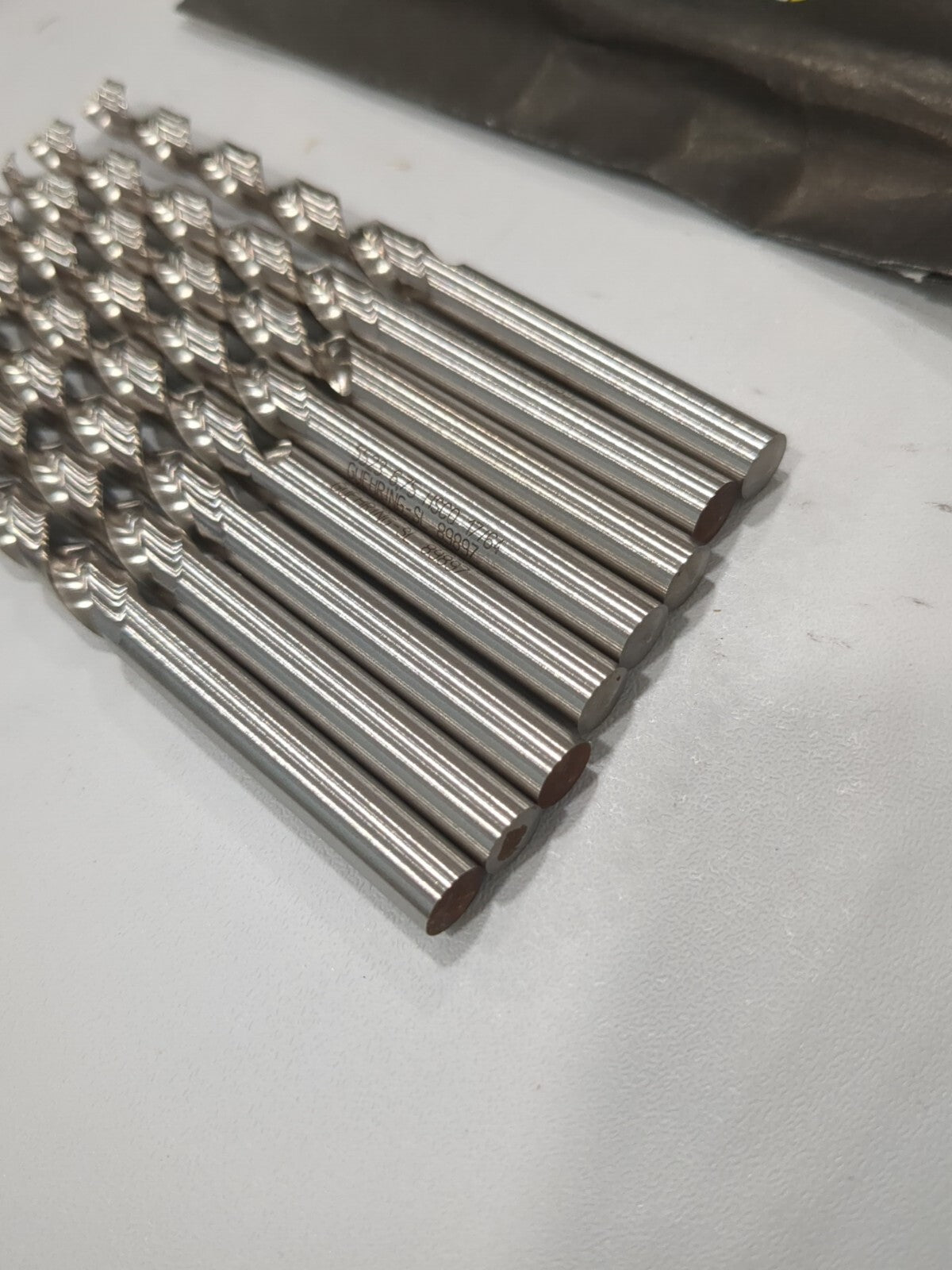

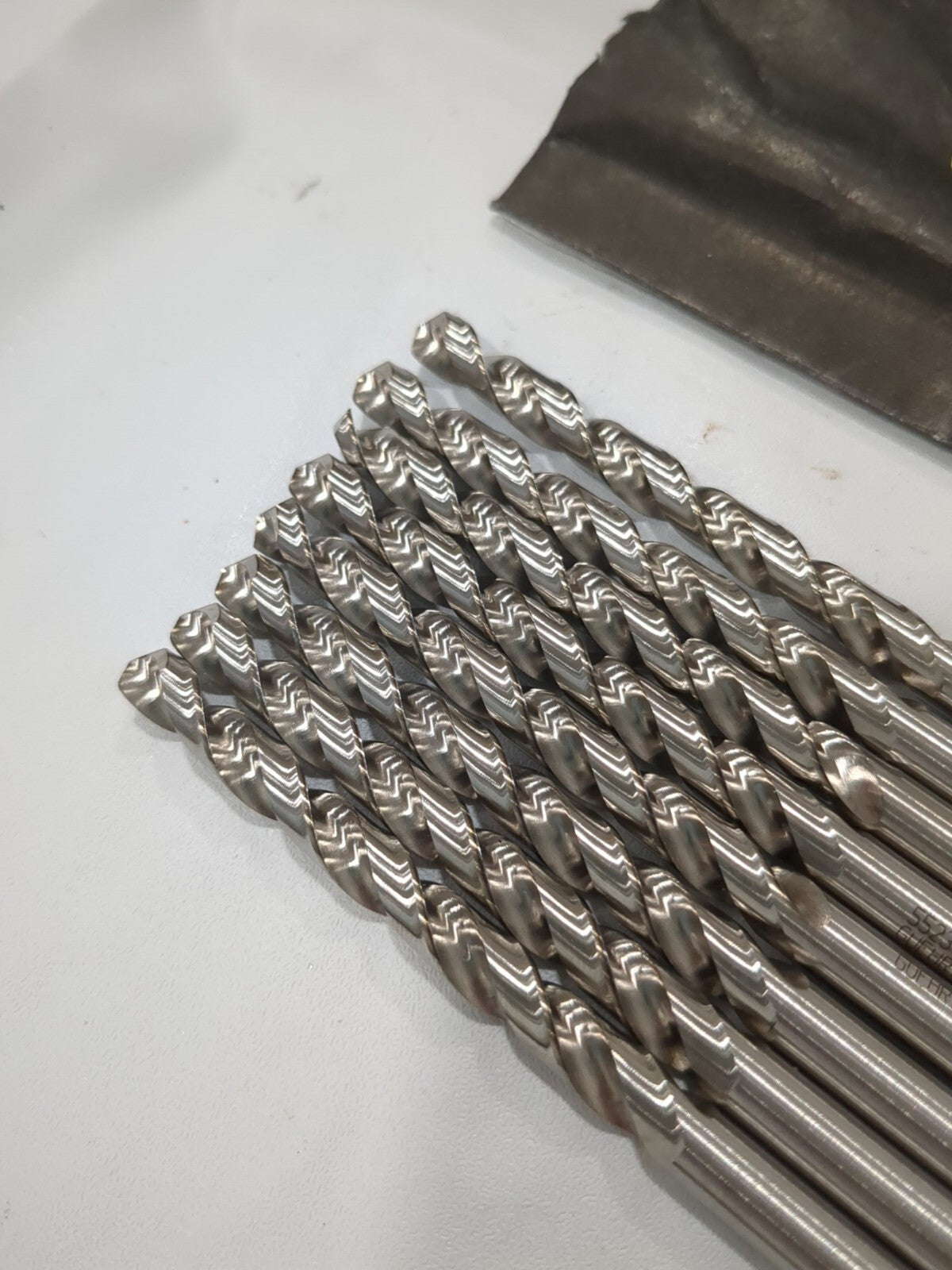

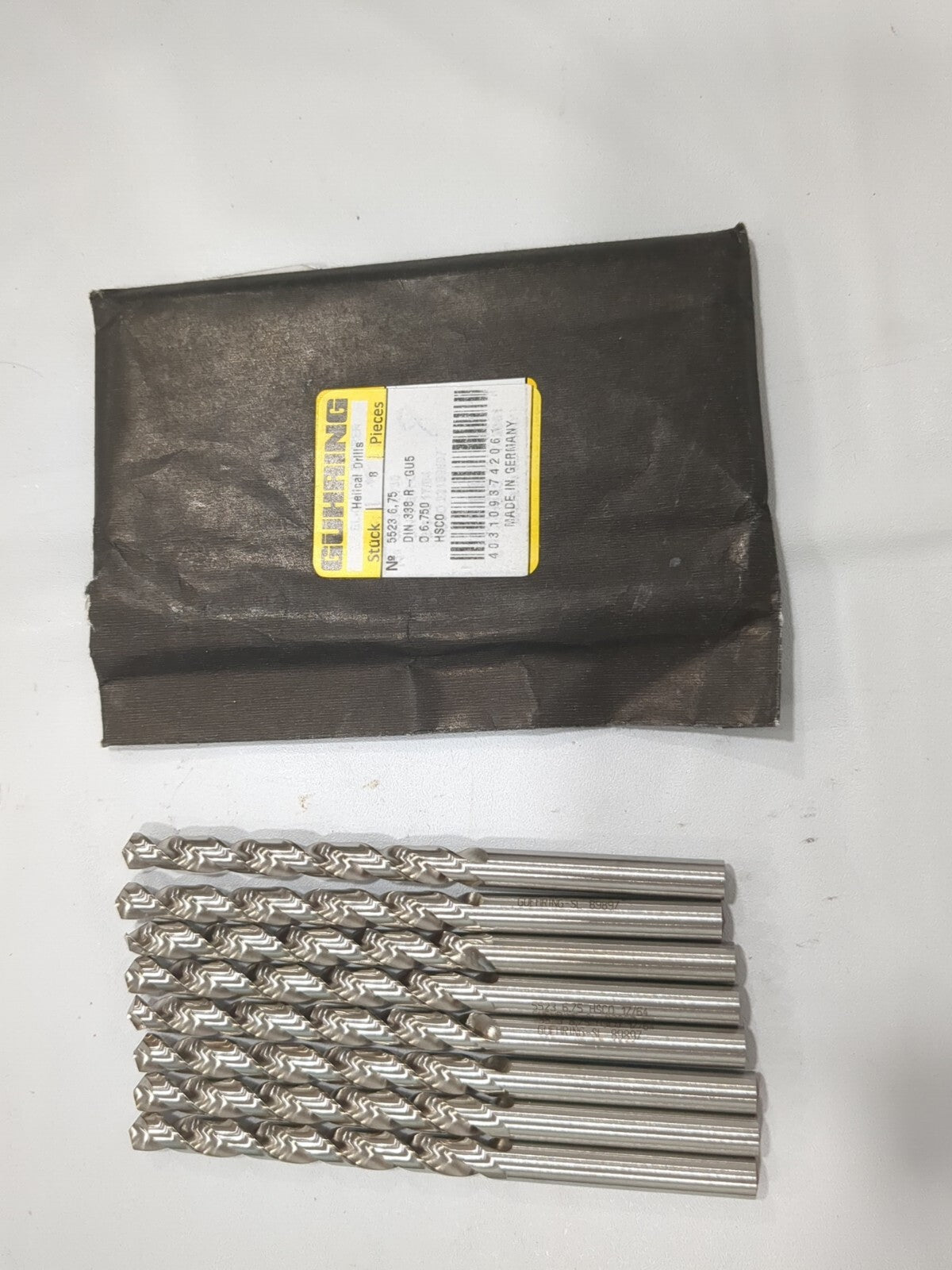

This is a pack of 8 jobber drills by Guhring, with a diameter of 17/64 inches, a 118-degree point angle, and made of cobalt. The drills are designed for metalworking applications.

Please review photos, comes as shown.
