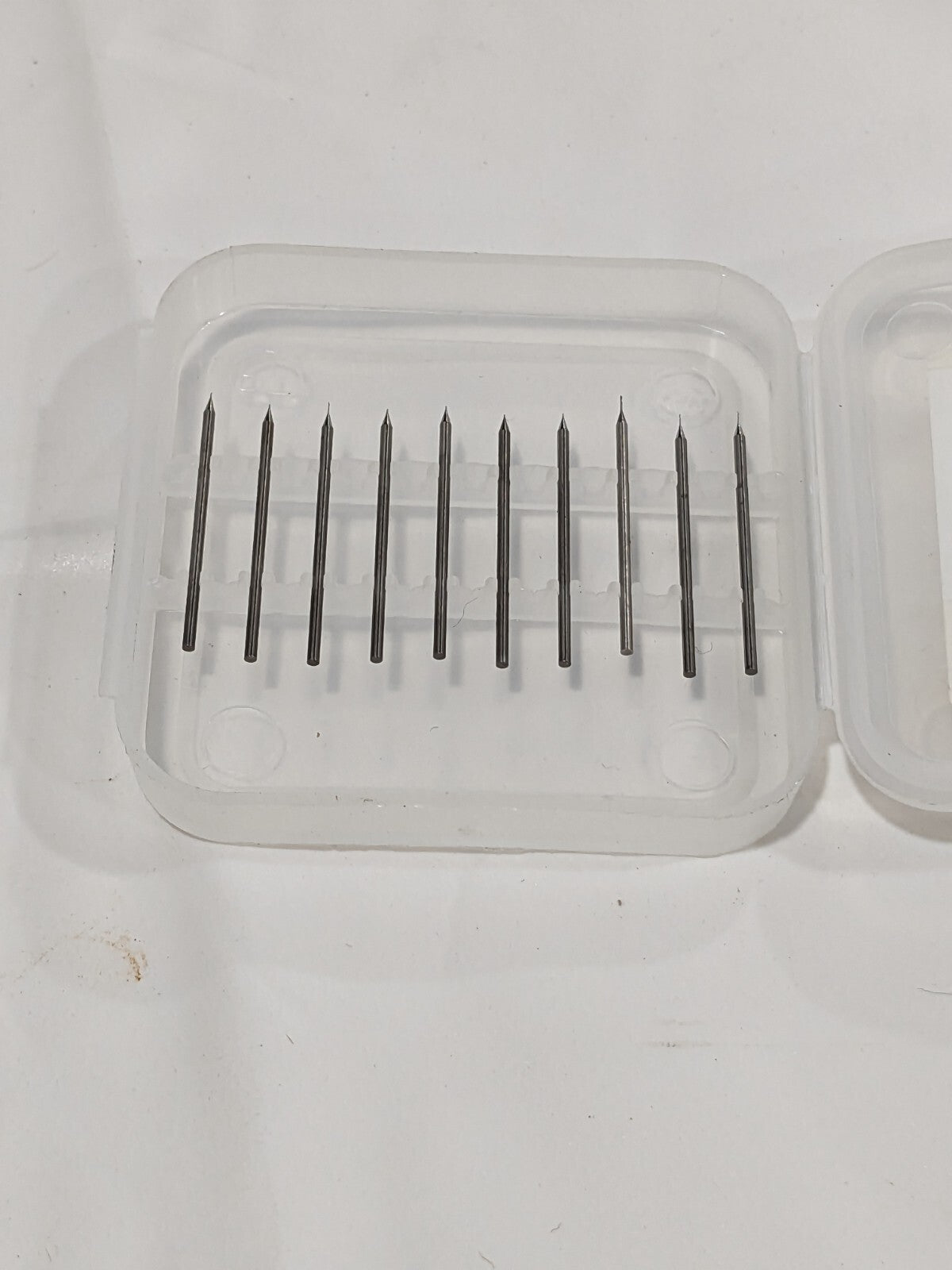

GUHRING Micro Drill Bit: 0.0051" Dia, 118 deg, Cobalt Qty 10 9003010001300

Guhring
1 Lot of 10 Micro Drill Bits

MSRP: $100.00

• Drill Bit Size (Decimal Inch) 0.0051
• Tool Material Cobalt
• Flute Length (mm) 0.80
• Coating/Finish Bright/Uncoated
• Coolant Through No
• Drill Point Angle 118
• Cutting Direction Right Hand
• Maximum Drilling Depth (mm) 0.61
• Maximum Drilling Depth (Decimal Inch) 0.0240
• Series 301
• Overall Length (Decimal Inch) 0.9840
• Flute Type Spiral
• Shank Type Straight-Cylindrical
• Point Type Faceted
• Web Thinning Web-Thinned
• Web Configuration Tapered
• Drill Bit Diameter Tolerance +0.000 to -0.004 mm
• Primary Workpiece Material Aluminum
• Primary Workpiece Material Code P; K; M; N
• Secondary Workpiece Material Titanium Alloy
• Secondary Workpiece Material Code S
• Shank Diameter (mm) 1.00
• Flute By Diameter Ratio 5xD
• Spiral Type Regular
• Specification Number DIN 1899
• UNSPSC Code 23241600

These items appear to be new and in good condition. SOLD AS IS.

Please review photos, comes as shown.
